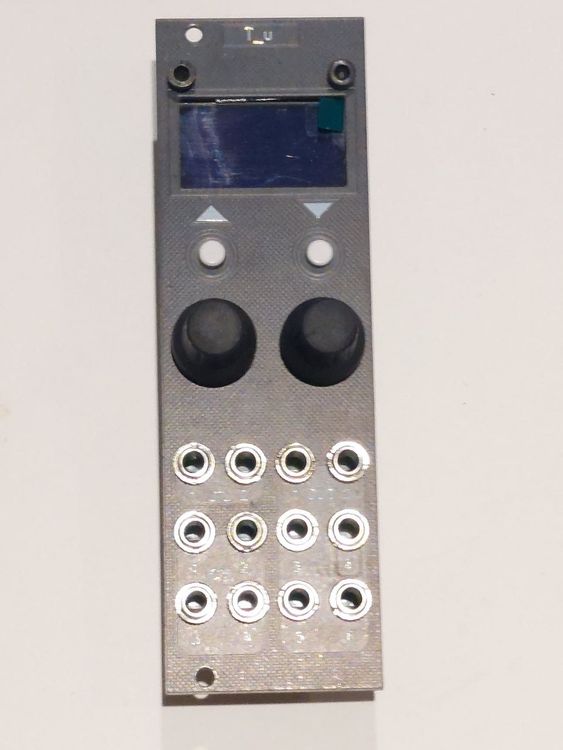

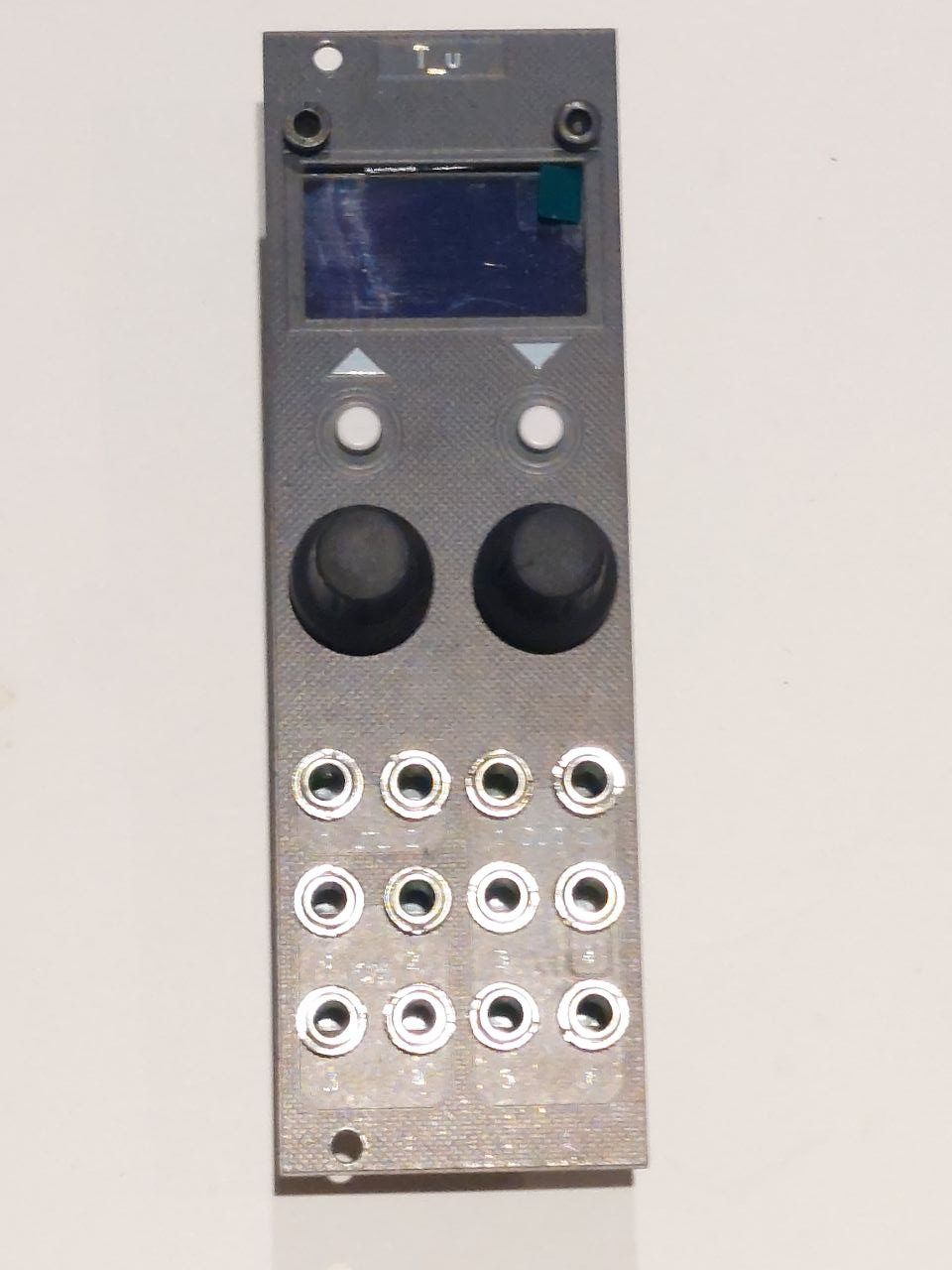

6 x clock generator
hardware basics, in brief:
teensy 3.1/3.2 @ 120MHz, w/ 128x64 OLED
trigger-to-output latency < 100us.
2 clock inputs (> 100k input impedance; threshold ~ 2.5V)
4 CV inputs (100k input impedance, -/+ 5V, assignable to (almost) any parameter)
6 clock outputs (5 digital, 1 DAC (12 bit): 10V (GPIO), -/+ 6V (DAC))
two encoders w/ switches; 2 tactile buttons.
14HP, ~ 25 mm Depth
firmware:
7 modes, selectable per channel:
trigger sequencer/sequence editor
clock division/multiplication
LFSR
random w/ threshold
euclidian
logic (AND, OR, XOR, NAND, NOR, XNOR)
burst
DAC (channel #4 only): random, binary, "Turing", logistic, sequencer/arpeggiator
)
)
)
)
)
)
