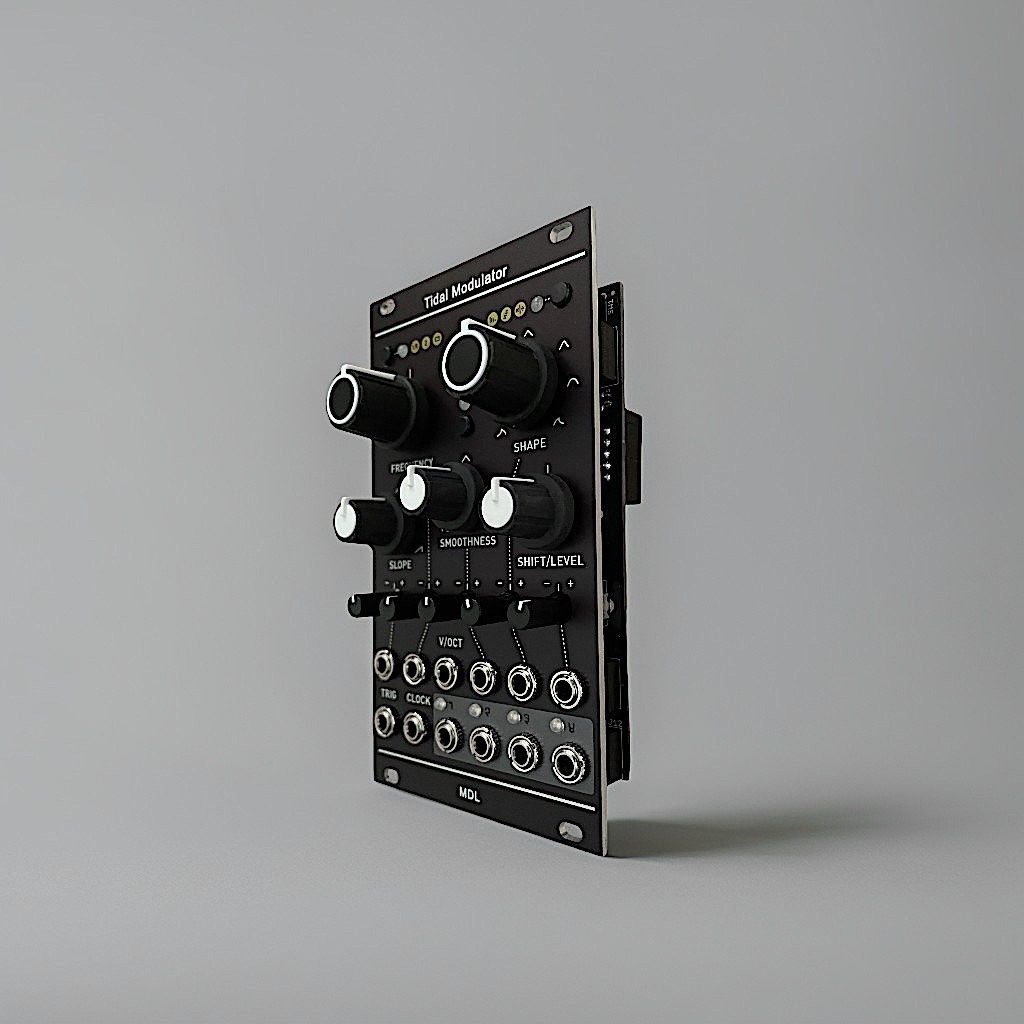

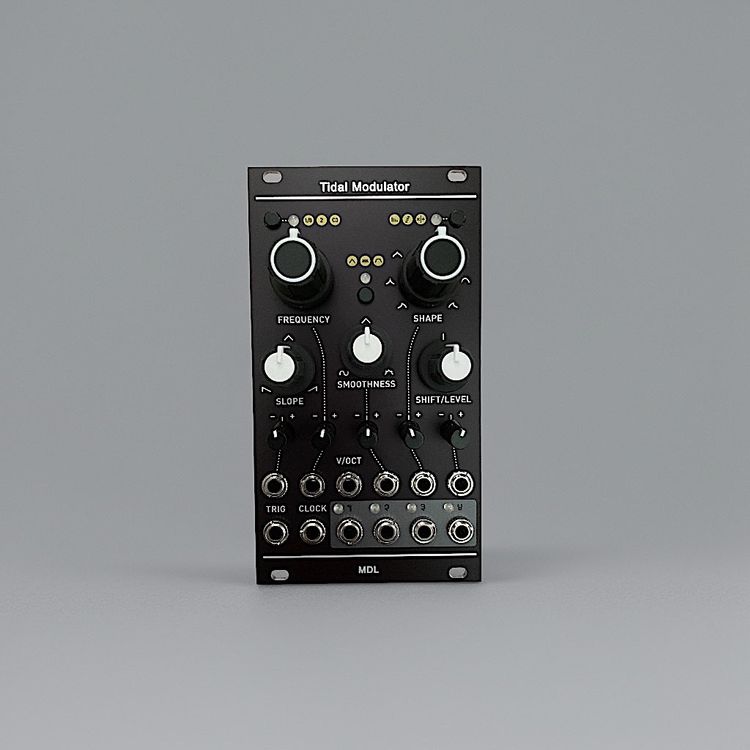

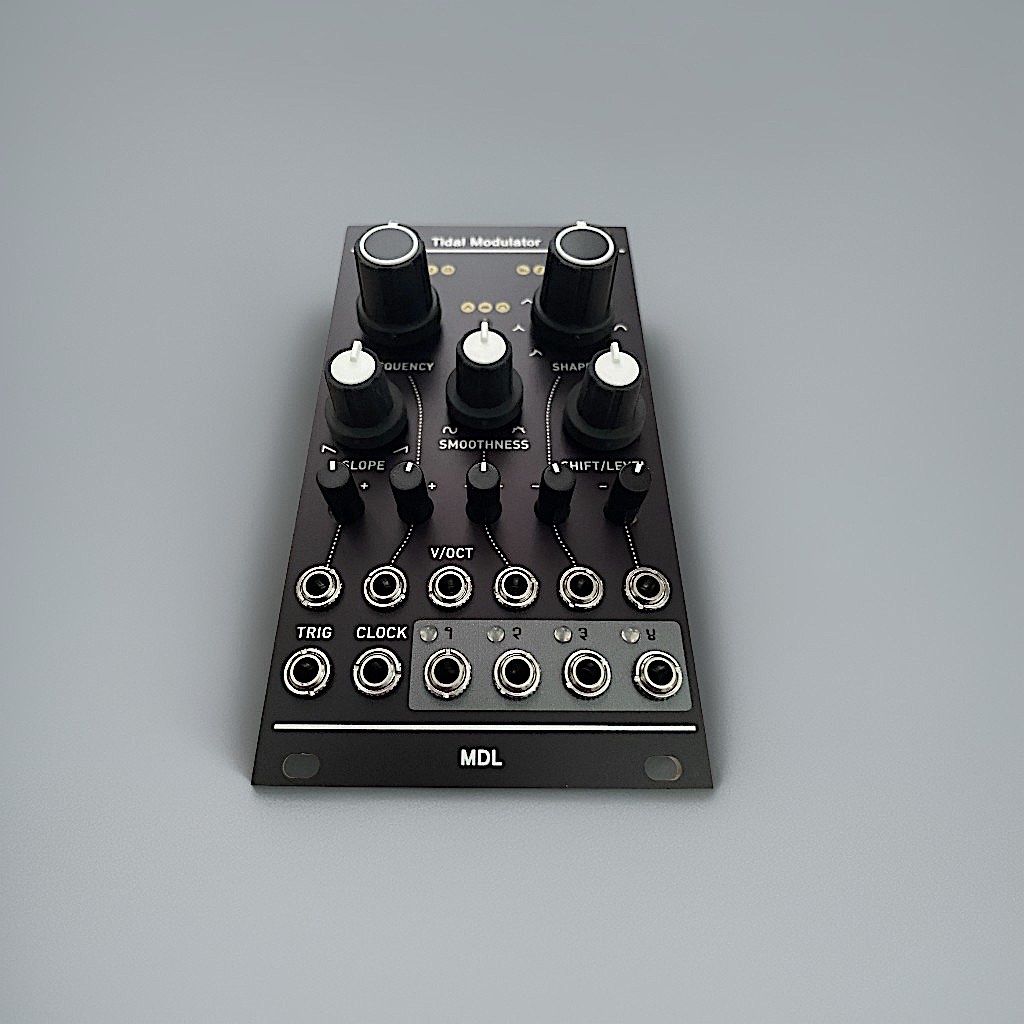

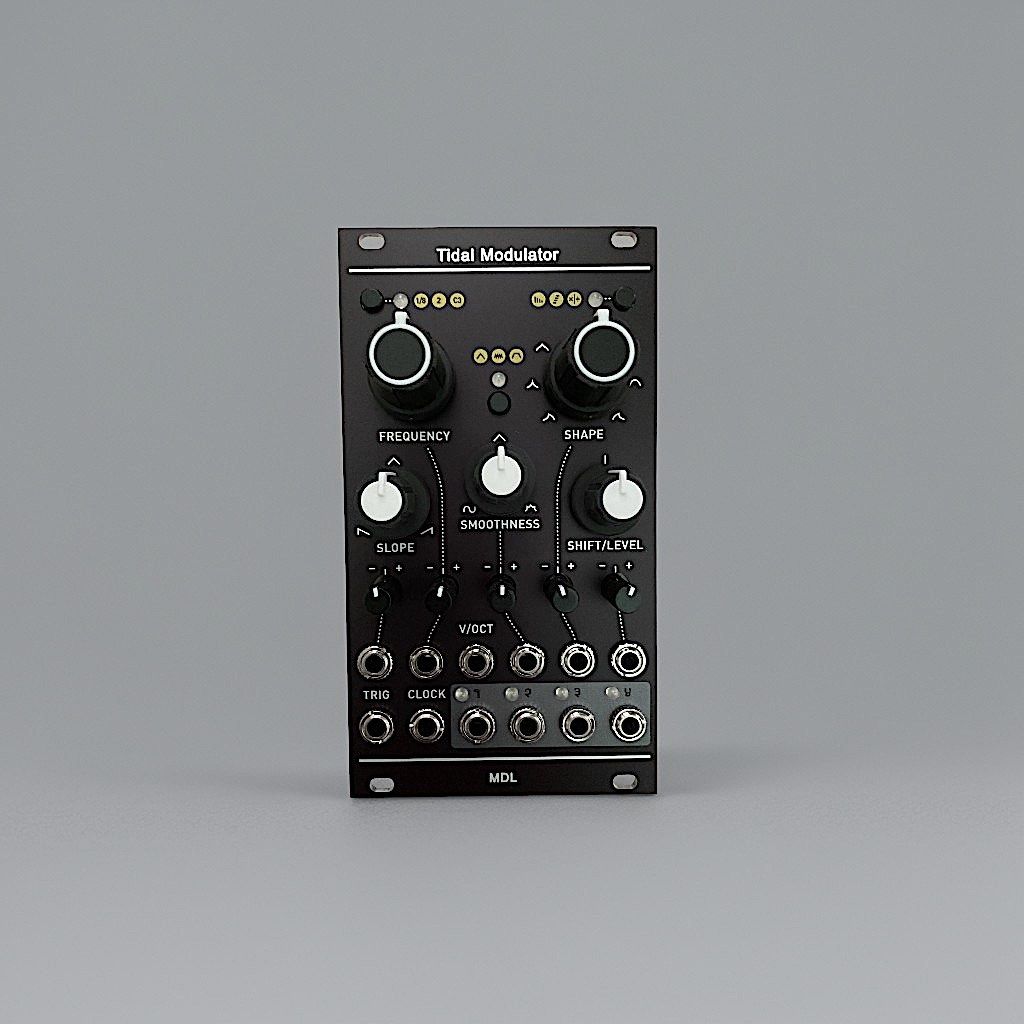

a Mutable Instruments Tides v2 clone.
The module is 1to1 identical to the original. Built with the greatest care. Original components are a matter of course!
High quality Enig Black circuit board
professionally soldered in the reflow process and of course calibrated and tested.
Panel: 2 mm Black Anodized Aluminium (not cheap pcb material)
This Module is a Brandnew Design from 2024.
Incl. ribbon cable and screws.
1 Year Warranty!
The manual can be found on github.
Tides is all about waves that go up and down, from minute-long cycles to audio rates... This module is Mutable Instruments’ unique take on the looping AD envelope generator – pushing this well-known trope to unknown territories.
The core of the module is a digital asymmetric triangle function generator, which can be used in AD and AR modes (for envelope generation), or looping (as a VC-LFO or VC-DO).
The triangle generator is followed by a wavetable waveshaper providing linear, exponential, logarithmic, sinusoidal, or arc-sinusoidal shapes for the A and D segments. Then, a second processor applies either a 2-pole low-pass filter to the waveform, smoothing its sharp edges; or a rubbery wavefolder, adding kinks and bounces to the waveform.
Polyrhythmic variations
What sets this 2018 revision apart from its predecessor is the introduction of additional output modes, producing variations (shifted in amplitude, time, phase or frequency) of the main signal.
And of course, a redesign from scratch focused on accuracy and audio quality.
