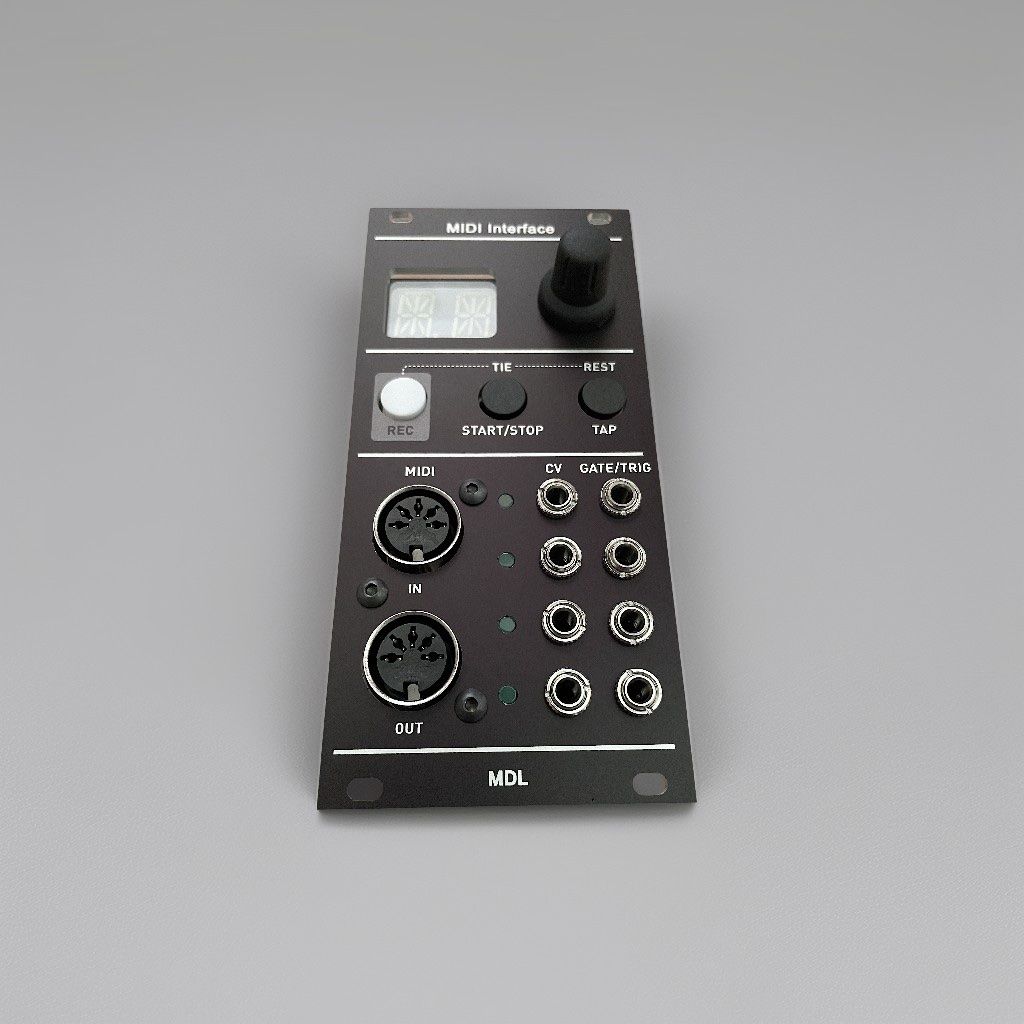

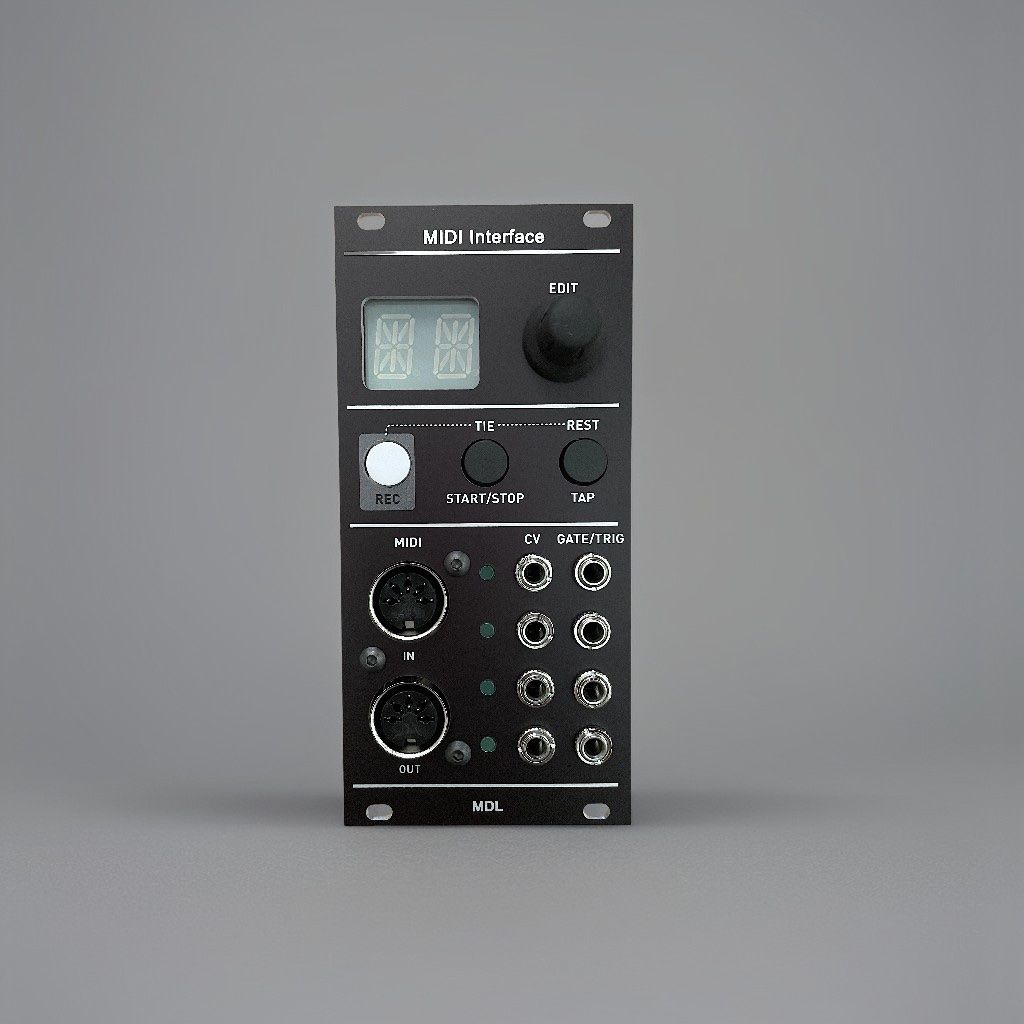

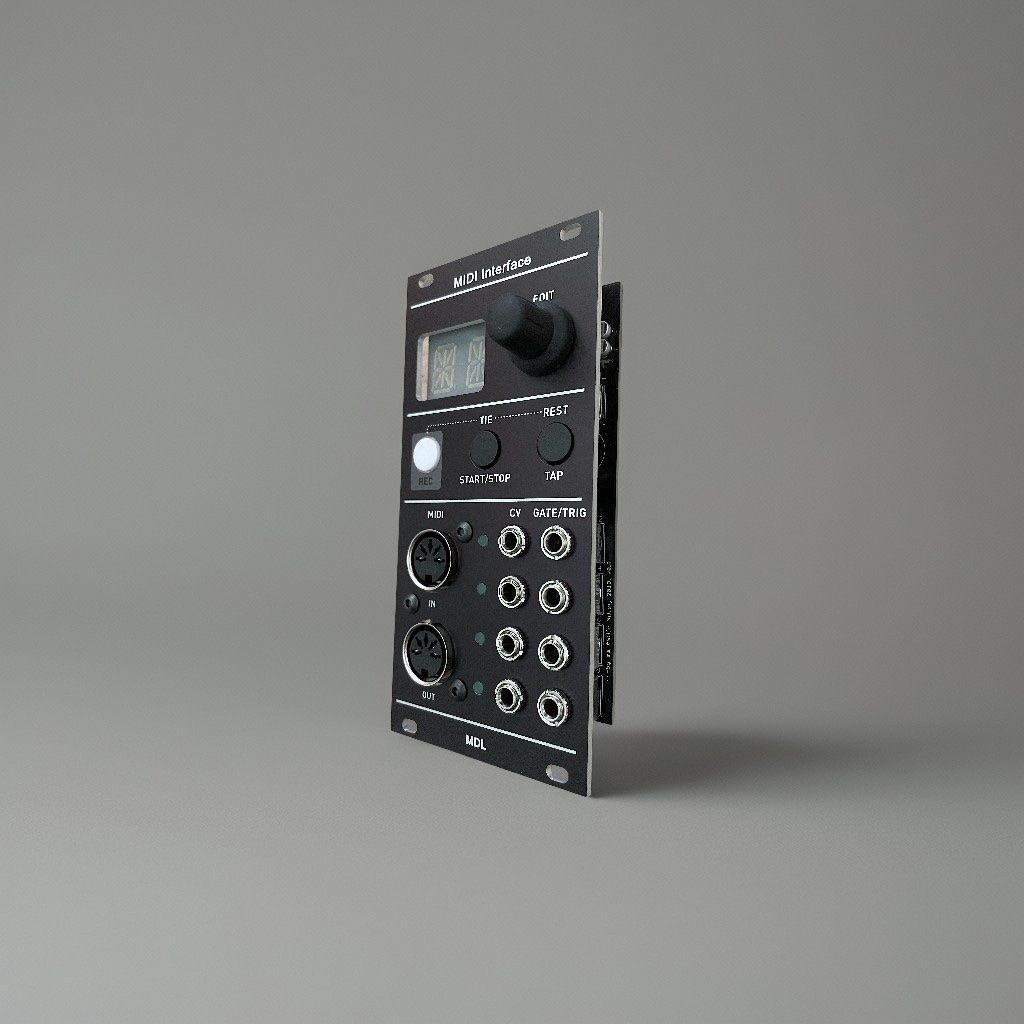

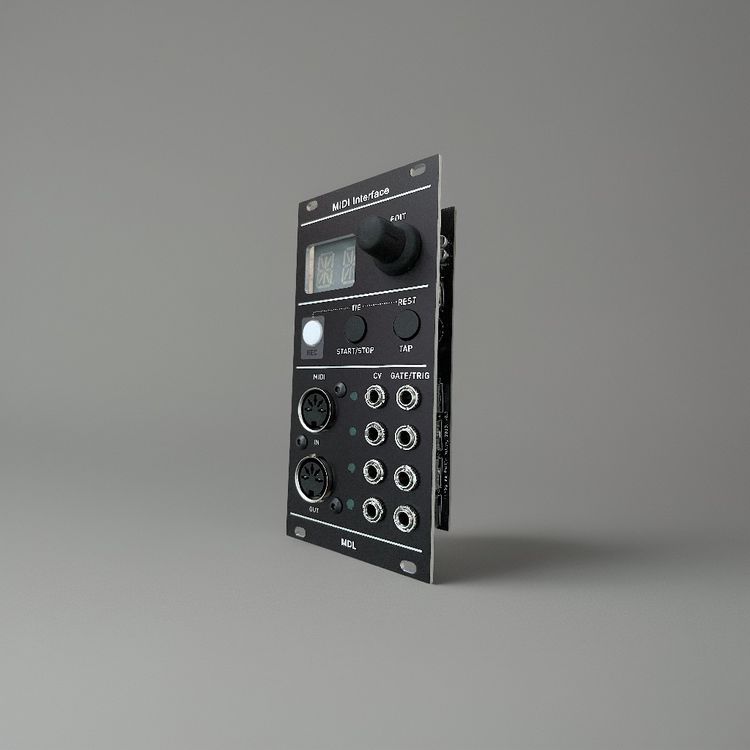

MDL Midi Interface (Mutable Yarns) Eurorack

a Mutable Instruments Yarns clone.

The module is 1to1 identical to the original. Built with the greatest care. Original components are a matter of course!

Naturally with forward encoder and protective glass on the display

Black circuit board professionally soldered in the reflow process and of course calibrated and tested.

Panel: 2 mm Black Anodized Aluminium

This Module is a Brandnew Design from 2024.

Incl. ribbon cable and screws.

1 Year Warranty!

Based on open source designs by émilie gillet under Creative Commons (CC-BY-SA) license.

The manual can be found on github.

The MIDI CV/Interface that can do moreMultichannel MIDI to CV/Gate conversion

Yarns is a MIDI interface providing up to 4 channels of very accurate CV/Gate conversion, which can be assigned to up to 4 voices.

In single voice mode, note, velocity, modulation and aftertouch (or other CC) CV are produced, along with a gate, a trigger, and a clock/reset output.

In two voices mode, two channels of note, modulation or aftertouch CV are produced, along with two gates, and clock/reset outputs.

Finally, in four voices mode, four pairs of CV/Gate outputs are provided.

Each voice has a built-in digital LFO to interpret modulation wheel messages as a vibrato; can respond to pitch-bend messages; or can be smoothed with a glide/portamento control – no need for a dedicated module and patches to get the right response from a MIDI keyboard!

Monophonic and polyphonic

The 2 and 4-voice modes are available both in a "polyphonic" and "multitimbral" flavour. The former receives chords from one single MIDI channel and dispatches them to the voices; while the later provides independent monophonic parts – which can be addressed to different MIDI channels, keyboard ranges, or even velocity levels.

Various note priority modes (low, high, last) and polyphonic allocation schemes (voice-stealing, random, cyclic) allows you to fine-tune the CV/Gate conversion to your playing style.

With sequencing and note transformation...

Each part can generate sequences either through an arpeggiator/euclidean sequencer combo; or with a SH-101 style sequencer with step-by-step recording, storing up to 64 notes. The module can sync to an external MIDI clock, and generate a clock/reset output at any subdivisions of the MIDI clock.

... and even more advanced features

Other unique features include support for microtunings (either through standard MIDI messages or from a selection of historical tunings or indian ragas), just intonation, and an audio output mode which can transform one, two, or four of the CV outputs into simple digital oscillators.
