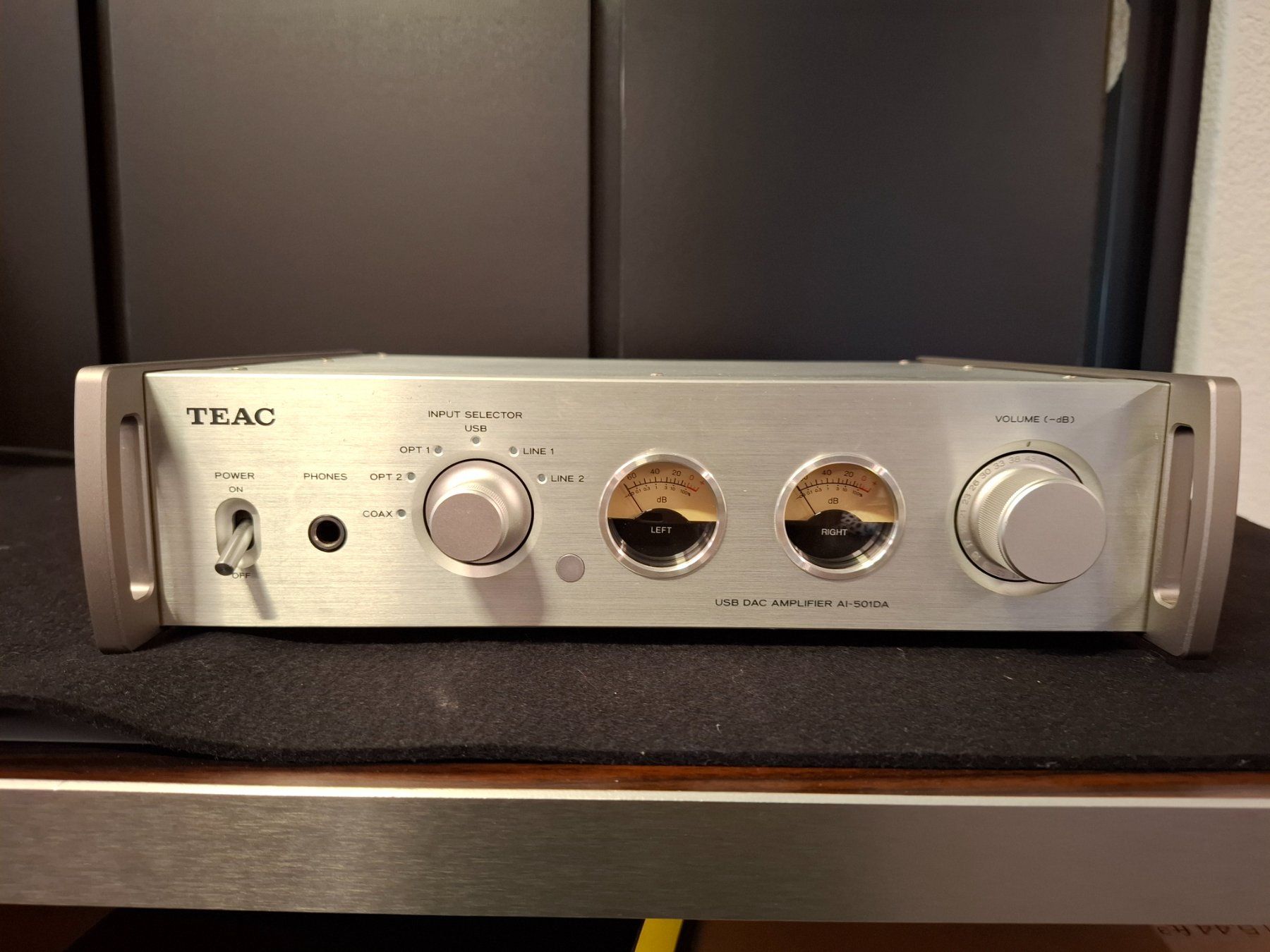

TEAC AI-501DA USB DAC Verstärker Silber

Besichtigunsgtermin kann unter 0317554981 abgemacht werden.

Amplifier Maximum Output Power90W + 90W (4 ohms, 20Hz to 20kHz)

45W + 45W (8 ohms, 20Hz to 20kHz)Rated Output Power60W + 60W (4 ohms, 20Hz to 20kHz)

30W + 30W (8 ohms, 20Hz to 20kHz)Supported Impedance4 ohms to 8 ohmsTotal harmonic distortion0.05% (1kHz, 4 ohms, 55W)S/N ratio (input short) LINE IN100dB (IHF-A)Frequency range10Hz to 60kHz (−3dB)Digital audio inputs COAXIALRCA jack x 1 (0.5Vp-p/75ohm)Sampling frequency32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHzbit rates16/24-bitsOPTICALOptical digital connectors x 2 (−24.0 to −14.5dBm peak)Sampling frequency32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHbit rates16/24-bitsUSBType B connector x 1 (USB 2.0 compliant)Sampling frequency32 kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHzbit rates16/24-bitsAnalog audio inputs RCARCA jacks x 2pairsNominal input level-10dBVMaximum input level+6dBVHeadphones output ConnectorStandard 6.3mm stereo jackMaximum output level50mW + 50mW or more (32 ohms, THD+N 0.1%)Power supplyAC120V, 60HzPower Consumption55WOverall Dimensions290(W) x 81.2(H) x 264(D) mm,

11.4"(W) x 3.2"(H) x 10.4"(D)Net Weight4.0kgOperating Temerature+5˚C to +35˚COperating humidity range5% to 85% (no condensation)Storage Temerature:-20˚C to +55˚CAccessoriesAC Cable, AC Plug Adapter (3P-2P), Remote Control, AAA Batteries (x2), Owner's Manual, Warranty Card
