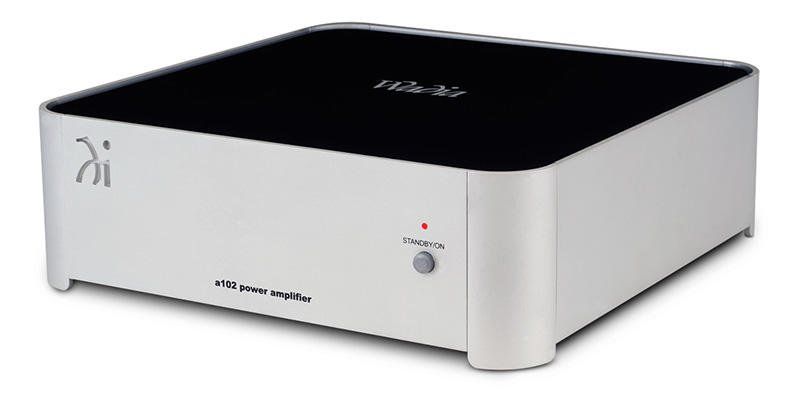

Perfect complement in size & functionality to di122 Digital Audio Decoder
- POWER: 2x50 watts into 8 ohm, 2x80 watts into 4 ohm
- TOTAL HARMONIC DISTORTION
- 0.2% maximum harmonic distortion at any level from one-half to full rated power output, 20Hz to 20kHz
- DYNAMIC HEADROOM: 1dB 8 ohm load, 1.3dB 4 ohm load
- FREQUENCY RESPONSE: +0, -0.5dB from 20Hz to 20kHz, +0, -3.0dB from 10Hz to 50kHz
- INPUT SENSITIVITY (for rated output): 1.4V Balanced, 0.7V Unbalanced
- A-WEIGHTED SIGNAL TO NOISE RATIO:
- 96dB (113dB below rated output) Balanced
- 93dB (110dB below rated output) Unbalanced
- INTERMODULATION DISTORTION:
- 0.1% maximum if instantaneous peak power output does not exceed the rated output for any combination of frequencies from 20Hz to 20kHz
- WIDE BAND DAMPING FACTOR: Greater than 200, 8 ohm load, Greater than 100, 4 ohm load
- INPUT IMPEDANCE: 15K ohms Balanced and Unbalanced
- VOLTAGE GAIN: 29dB
- TRIGGER INPUT: 5-15VDC, <1mA
- TRIGGER OUTPUT: 12VDC, 50mA maximum, delayed 0.2 seconds
- Finish: Cast Aluminum Construction with Screened Black Top Glass Panel
)
