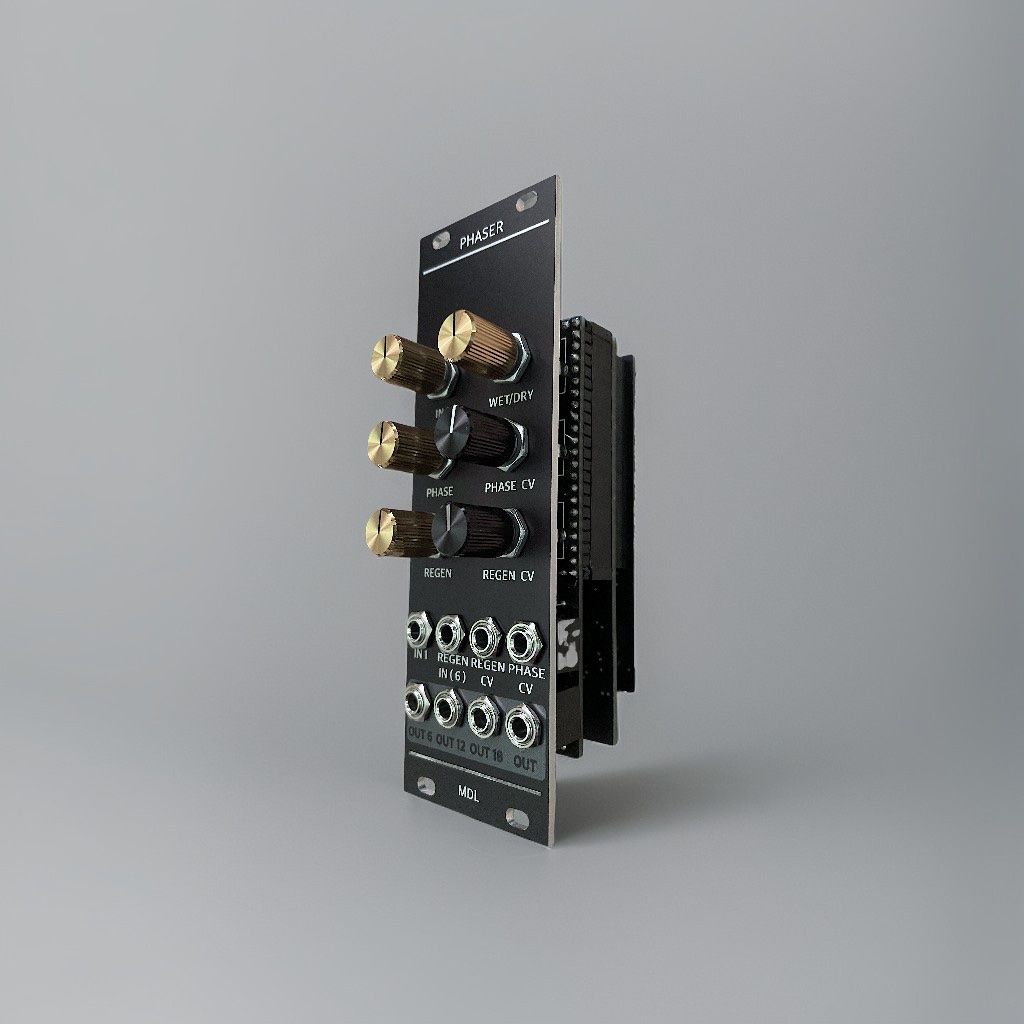

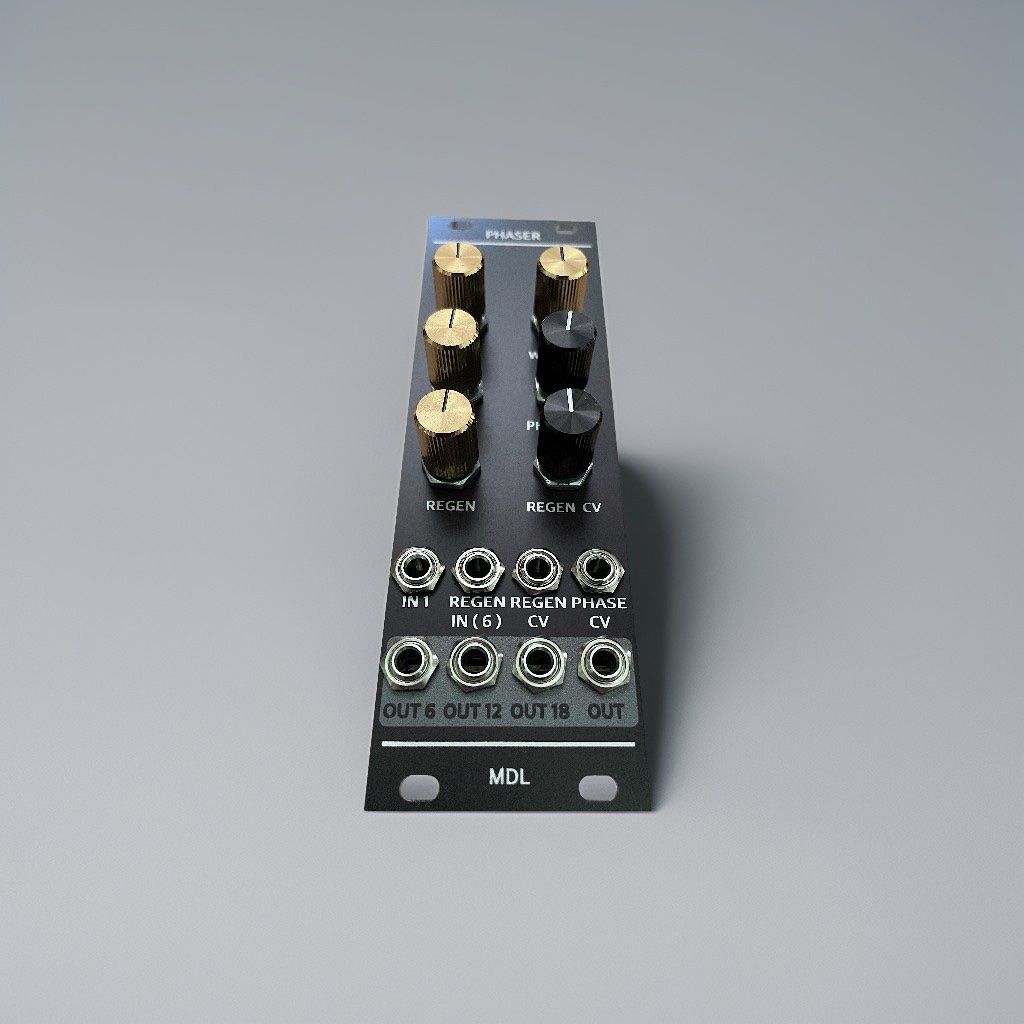

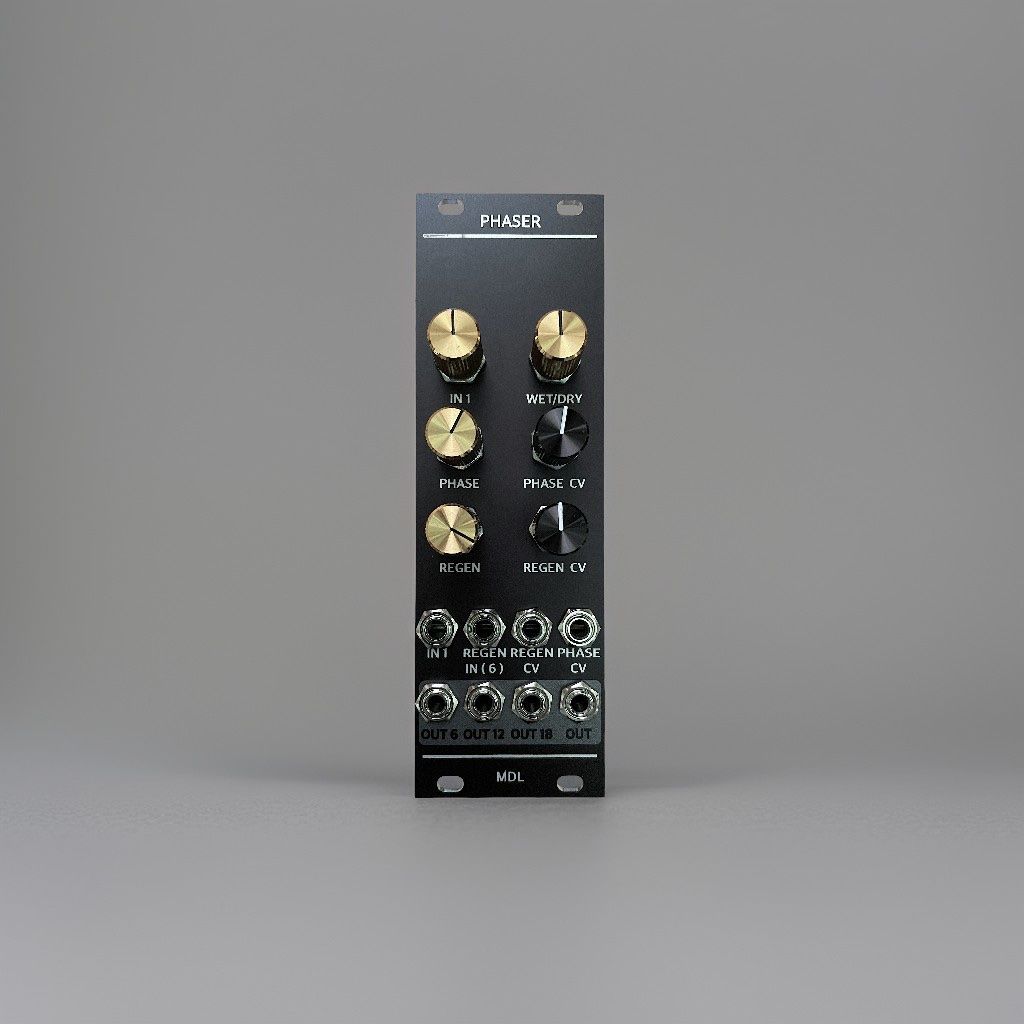

This module is a 24 stage phase shifter using LDRs in a black box.
Probably the unusual feature is the positive and negative feedback path. Feedback is 0 when the Regen pot is in the middle, turn it to the left for negative feedback, to the right for positive, or use CV to do the job for you. It will self-oscillate at the extremes.
It is probably obvious at this point that I have a thing for phasers. 24 stages are somewhat ridiculous but I wanted to try it and the result is a very nice smooth phaser with some angry bits when you push it.
The trimpot on the top PCB sets the operating range for the Phase pot. Set it to remove any dead zones at the extremes.
The Modul is brand-new and comes with a 1 year warranty
inkl. ribbon cable and screws
