Demomodell

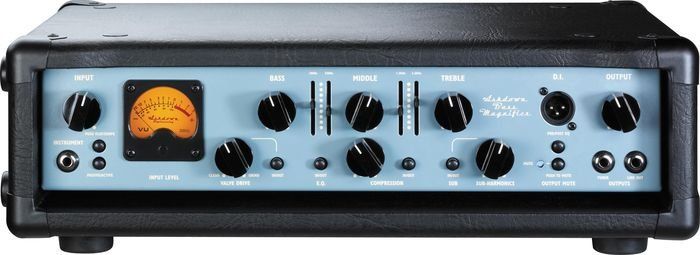

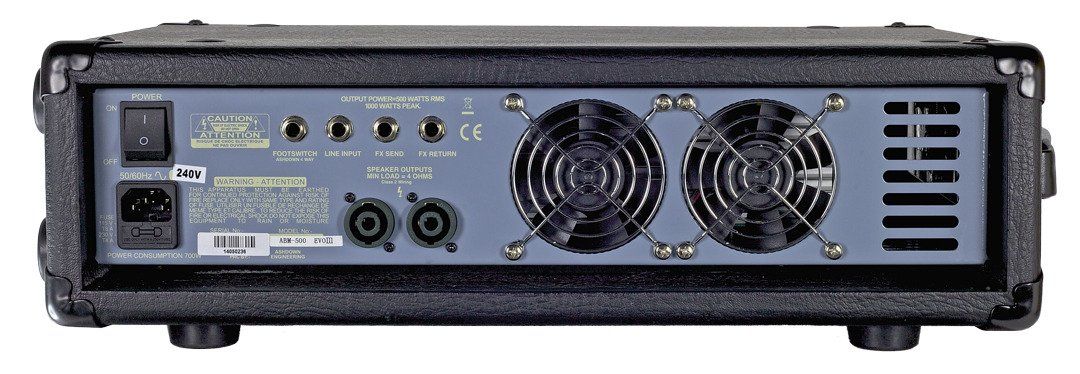

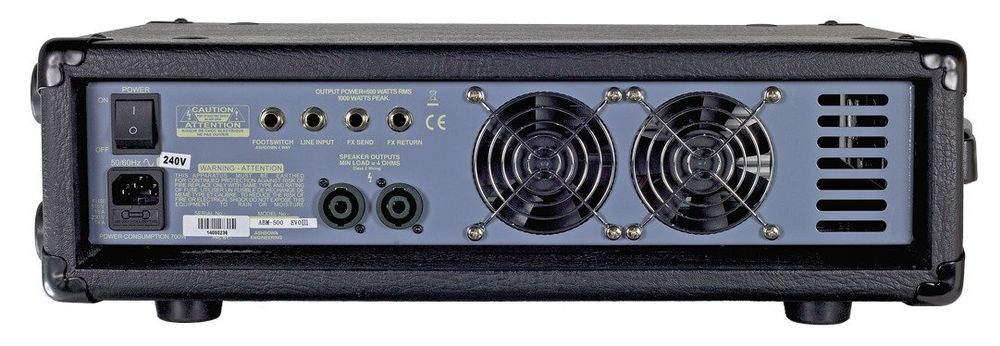

Ashdown ABM 500 EVO III
Power Output (RMS) 575W
Power Requirement 230 / 115V
Frequency Response -3dB at 17Hz and 30kHz
Speaker Outputs Minimum impedance 4 Ohms
High Instrument Input Impedance 3.9m Ohms, input range 150mV -
20mV p-p
Low Instrument Input Impedance 10k Ohms, input range 300mV -
40V p-p
Line Input Impedance 22k Ohms, input level 0dBu nominal
Sub Output Impedance 1k Ohms, level 0dBu Nominal
DI Output 600 Ohms balanced, level 0dBu nominal
Tuner Output Impedance 22k Ohms, level 0dBu nominal
EQ Bass +/-15dB @ 45Hz
Middle +/-15dB @ 660Hz
Treble +/-15dB @ 7kHz shelving
Slider 1 +/-15dB @ 180Hz
Slider 2 +/-15dB @ 340Hz
Slider 3 +/-15dB @ 1.3kHz
Slider 4 +/-15dB @ 2.6kHz
Shape (Push Flat) +8dB @ 50Hz & 4kHz, -8dB @ 400Hz, filter
slope
- 6dB/octave
Effects Send Impedance 22k Ohms, level 0dBu nominal
Effects Return Impedance 22k Ohms, input level 0dBu Nominal
H x W x D (mm) 134 x 474 x 315
Weight (kg) 14
)
