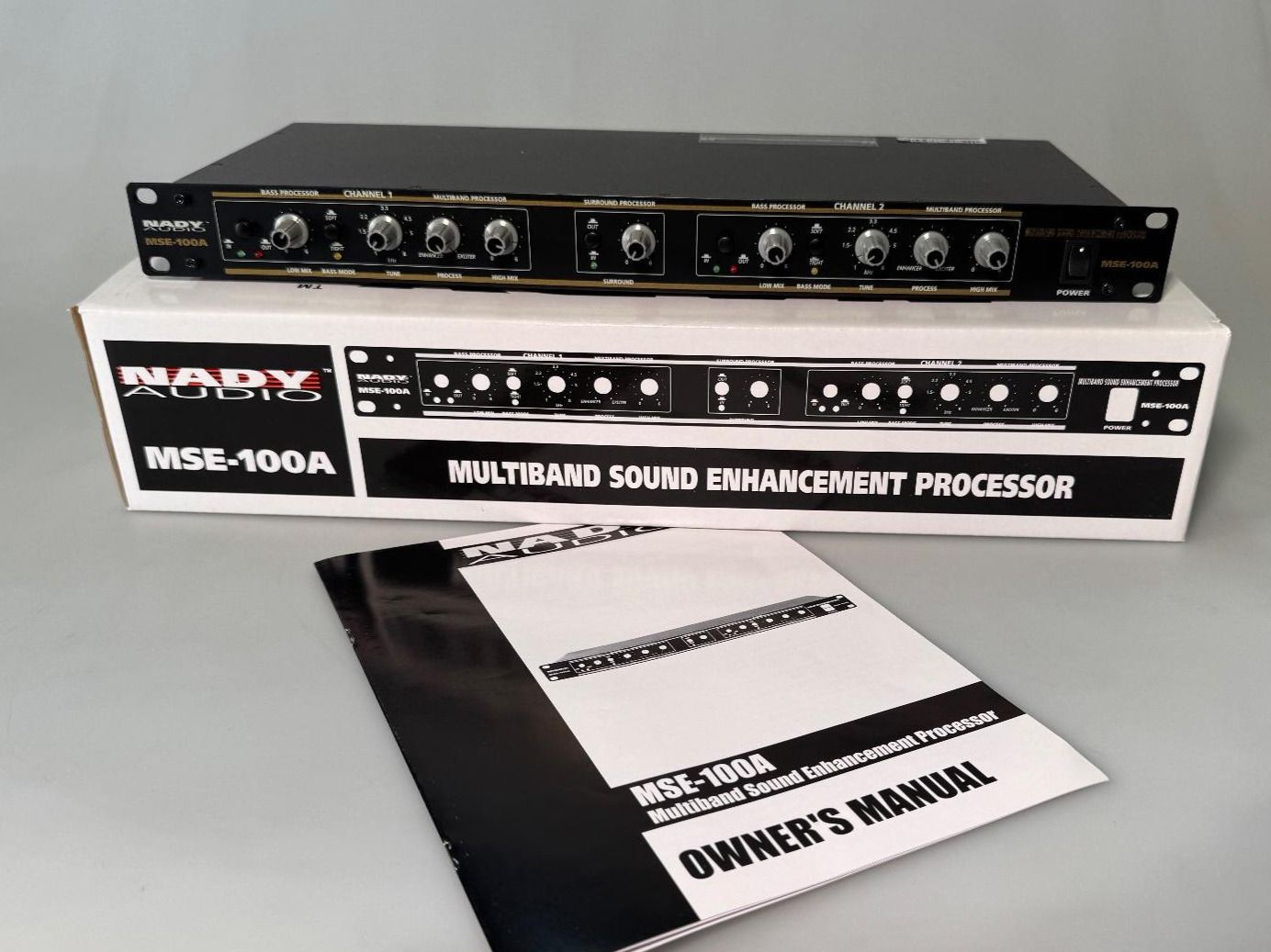

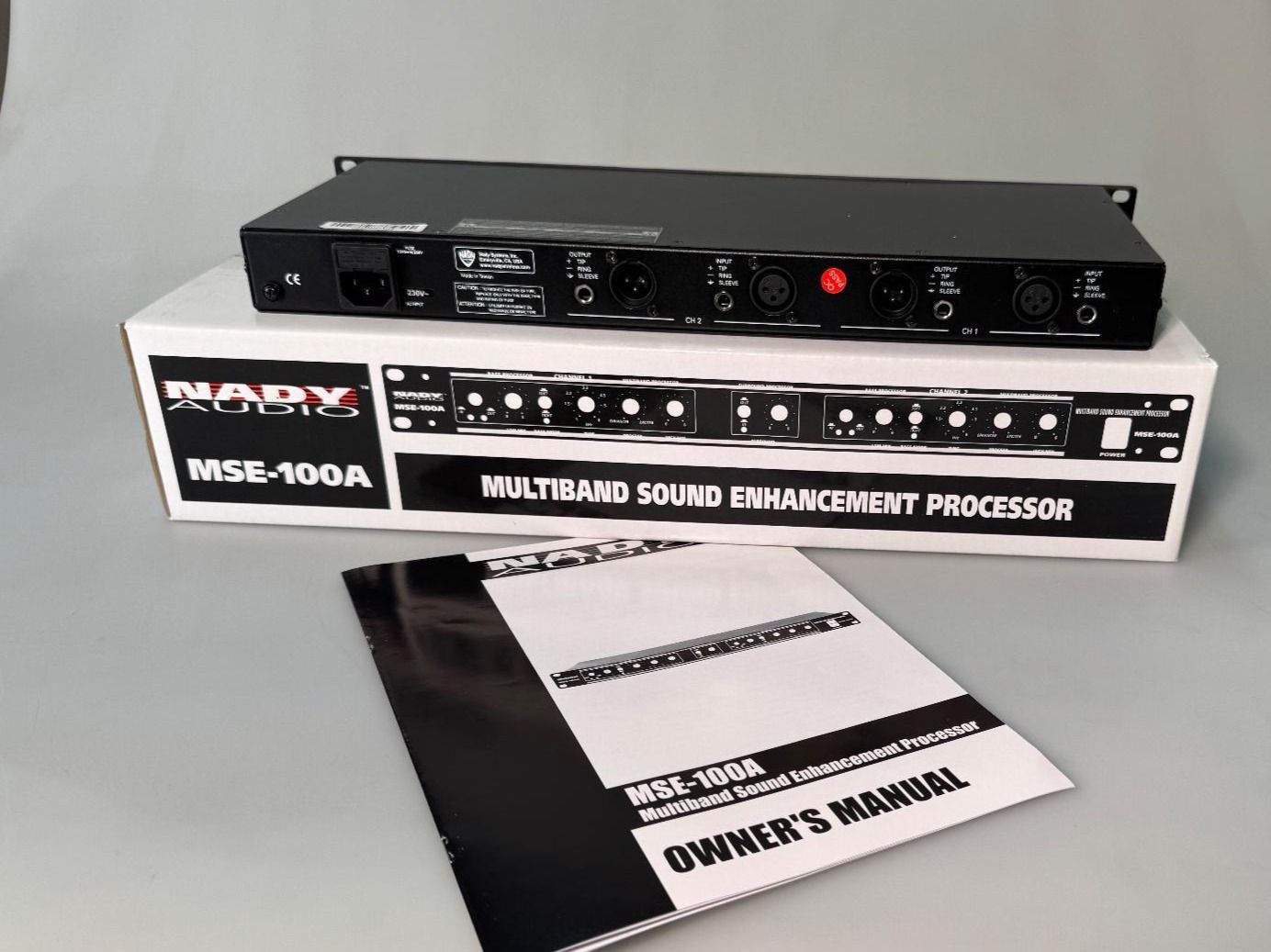

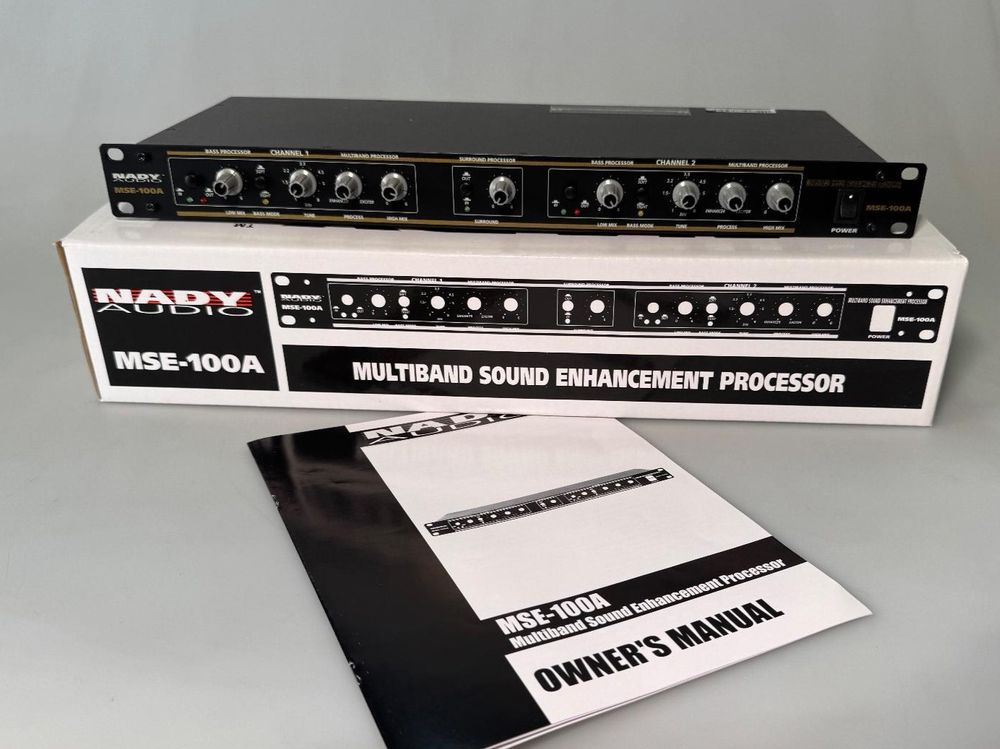

Multiband Sound Enhancement Processor MSE-100-A NADY

NADY Multiband sound enhancement processor MSE-100-A

Demomodell

INPUT

Type..................................RF filtered, servo-balanced input

Connectors ......................XLR and 1/4” TRS jacks

Impedance ......................24K Ω balanced,

12K Ω unbalanced

Max. Input Level..............+21dBu balanced and unbalanced

CMRR ..............................Typically 40dB, > 55dB @ 1kHz

OUTPUT

Type..................................DC-decoupled unbalanced

output stage

Connectors ......................XLR and 1/4” TRS jacks

Impedance ......................90 Ω balanced, 45 Ω unbalanced

Max. Output Level ..........+21dBu balanced and unbalanced

Bandwidth........................20Hz to 20kHz, +0/-0.5dB

Frequency Response......5Hz to 100kHz, +0/-3dB

Noise ................................> -95dBu, unweighted, 22Hz to

22kHz

THD ..................................0.008% typically @ +4dBu,1kHz

IMD....................................0.01% typically, SMPTE

Crosstalk..........................< -86dB, 22Hz to 22kHz

BASS PROCESSOR

Type..................................“Dual Mode” Bass Processor

Switches the bass sound

from “Soft” to “Tight”

Low Mix Control..............Variable (0 to 6; Off to Max.)

MULTIBAND PROCESSOR

Type..................................“Natural Sonic” processor with

“Variable Sound Processing”

Tune Control....................Variable (1 to 8kHz).

Process Control ..............Variable (Enhancer to Exciter)

High Mix Control ............Variable (0 to 6; Off to Max.)

FUNCTION SWITCHES

IN/OUT switches both channels, with red/green LED status

indicators

POWER SUPPLY

AC Voltage ......................100-120/60HZ or 200-240/50HZ

VAC as marked

Power consumption........9 watts

Fuse ................................T250mA, 250V

DIMENSION

44 X 482 X 197mm

WEIGHT

2.8 Kg
