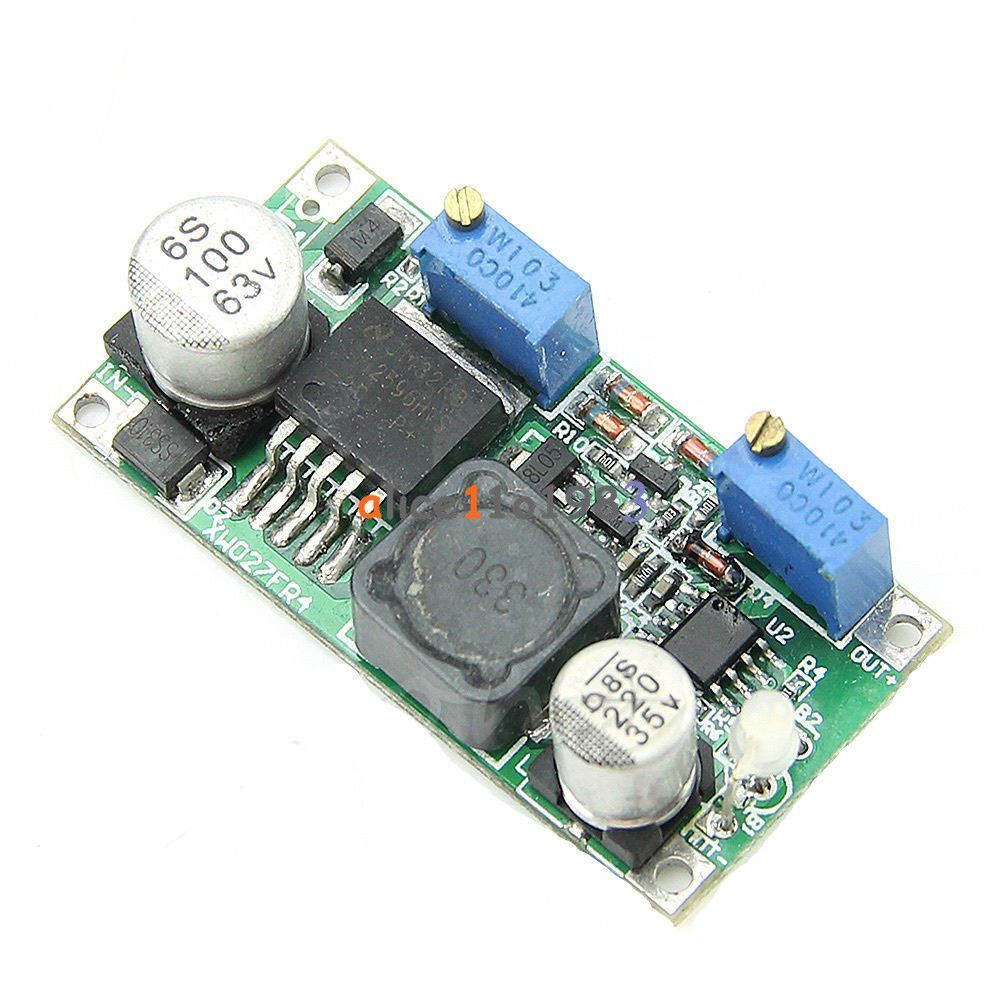

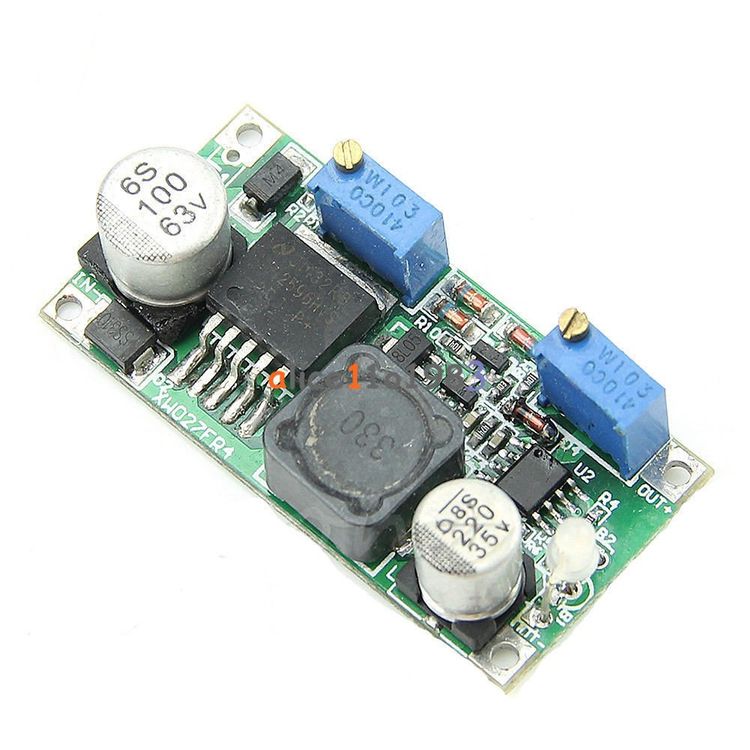

Zu verkaufen Step-Down DC-DC Regler mit Spannung und Strom Begrenzung(Einstellung). Ideal als Charger.
Description:
100% brand new and high quality
Type: DC/DC Constant Current / Constant Voltage
Size: (L*W*H)4.80*2.40*1.4cm/1.89"*0.94"*0.55"
Input Voltage: 5V-57V input voltage must be higher 2V than the output voltage
Output Current: rated current 2.5A/ 3A MAX ( Heat-sink Needed)
Output Voltage: 1.25-30V (Adjustable)
Output Power: 15w max at maximum voltage
Output short circuit protection: Yes, constant current (constant current setting values)
Input reverse polarity protection: Yes,
Constant current range: 0.2-3A (adjustable, default transferred 1A)
Turn lamp current: constant current value * (0.1), turn the lamp current constant current value Linkage
Benefits:
Stepless adjustment of the output voltage
Stepless adjustment of the output current
LED indicator, Red under load / Green on load free
Multiturn potentiometer with long life
Up to 1.5V (Typ. 1.16V) difference between the input and output voltages
Up to 2.5A output current
Very low power consumption at idle, about 10mA (0.01)
Temperature protection
Input voltage to 60V
High stability of the output voltage
High efficiency
No need additional cooling to 2.2A
High frequency DC/DC conversion, leading to size reduction of the device
Application:
Charger for all batteries in the range 1.23V ~ 28V, only set the precise battery voltage and charging current
High conversion when used in car
Adjustable laboratory voltage source
LED driver with constant current
Dimming devices
Laboratory power supply
