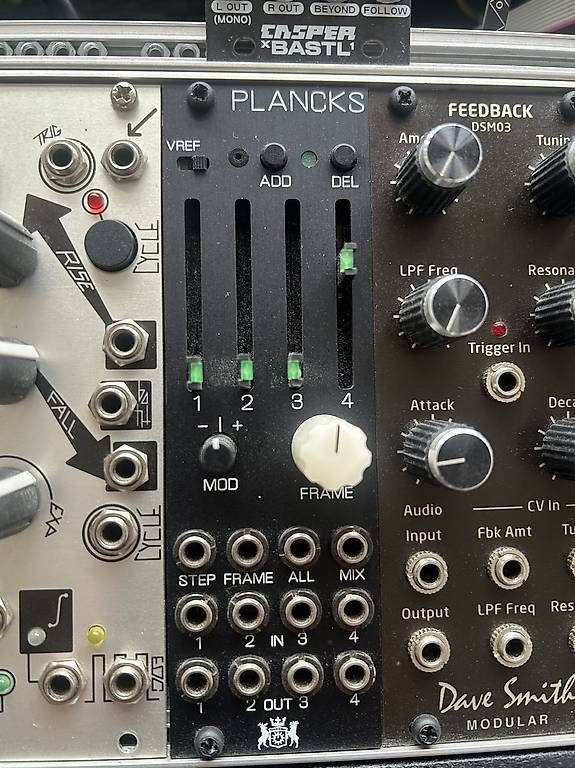

Ich verkaufe hier mein Plancks von Michigan Synth Works. Das Modul funktioniert technisch einwandfrei und ist wie neu. Kann in Bern abgeholt oder mit Aufpreis via Post verschickt werden.

Privatverkauf, keine Garantie oder Rücknahme.


"8hp Slider version of the popular Mutable Instruments Frames module.

"The heart of Frames is a 4-channel digitally controlled analog VCA. Through flexible input/output mixing and normalling options, it can be patched to serve the following purposes (among others):
* 4-channel attenuator/VCA.
* 4-channel mixer.
* 4-channel programmable CV source.
* Quadraphonic panner.

But what makes it truly unique is the way in which channel levels can be controlled, using a technique inspired by computer animation. Frames allows up to 64 configurations of the 4 level knobs to be stored and recalled throughout the course of its big "Frame" knob. By rotating the knob (or sending a CV to the Frame modulation input), the configurations are morphed into one another.

To fine-tune the animation and get varied morphing or sequencing results, the following options are available for each of the 4 channel:
* Easing curve (stepped, linear, exponential, logarithmic, sine, bouncy)
* Attenuation response of the level knob, from linear to logarithmic

With a bit of patching and imagination, Frames can also be re-purposed as a 4-channel sequencer, a multi-stage envelope generator, a trajectory generator for quadraphonic panning...

I/O:
* 4x DC-coupled signal inputs
* 4x Attenuated signal outputs
* Global signal input normalled to all inputs
* Mix output
* Frame control CV input
* Frame change trigger output

Controls:
* 4x Channel level control with LEDs for visualizing levels
* Frame control with RGB LED backlight
* Frame CV attenuverter
* Keyframe creation/suppression buttons""
