You get exactly what's in the picture
Du bekommst genau das, was auf dem Bild zu sehen
Tu obtiens exactement ce qui est sur la photo
Ricevi esattamente quello che vedi in foto
100% Brand New
100% neu
100% neuf
100% Nuovo di zecca

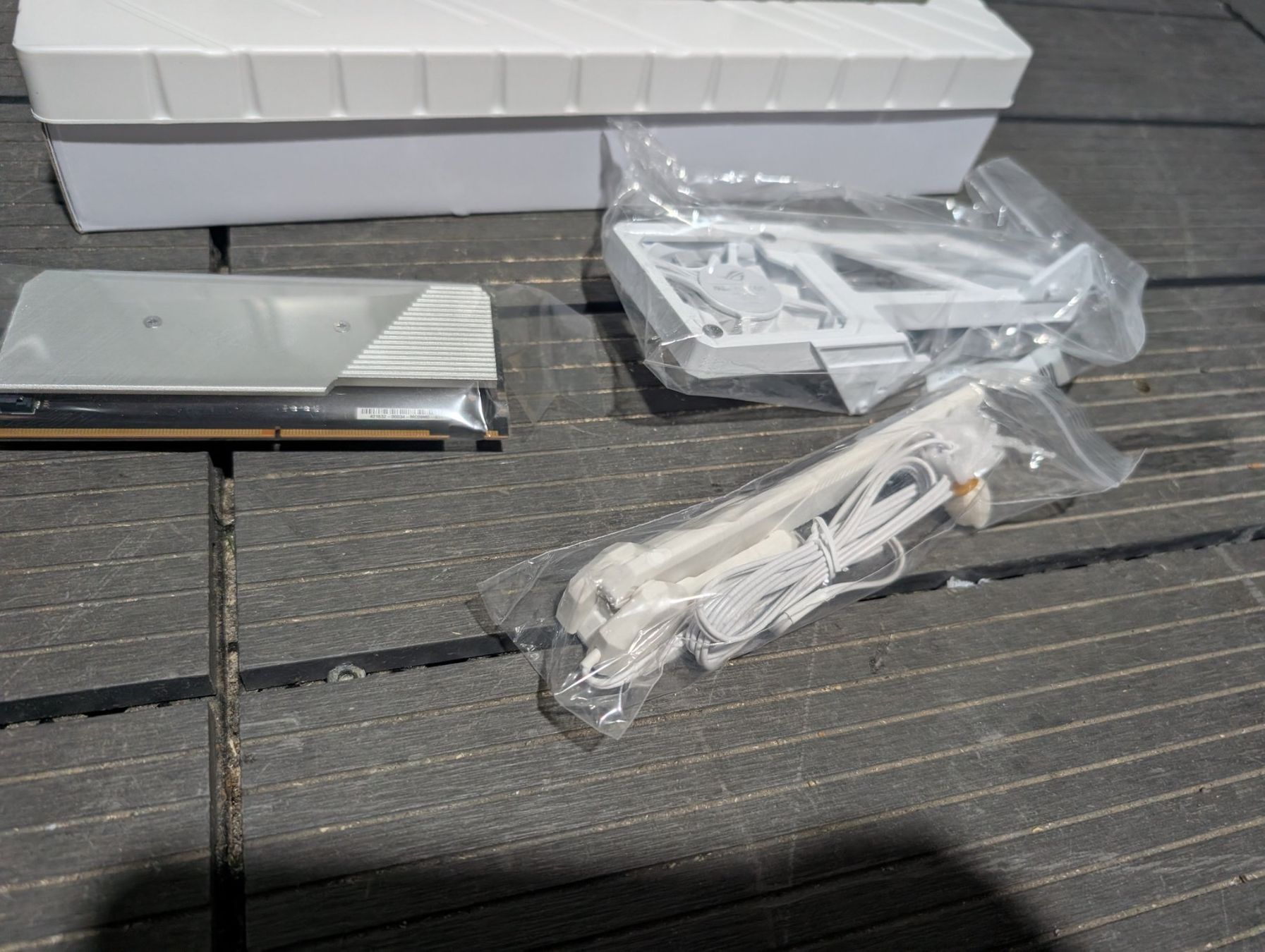

Bundle:
Core System Accessories
- 1 x ROG DIMM.2 Card with attached heatsink
- 1 x ASUS WiFi Q-Antenna
- 1 x ROG Memory Fan Kit (cooling bracket specifically for custom RAM airflow)

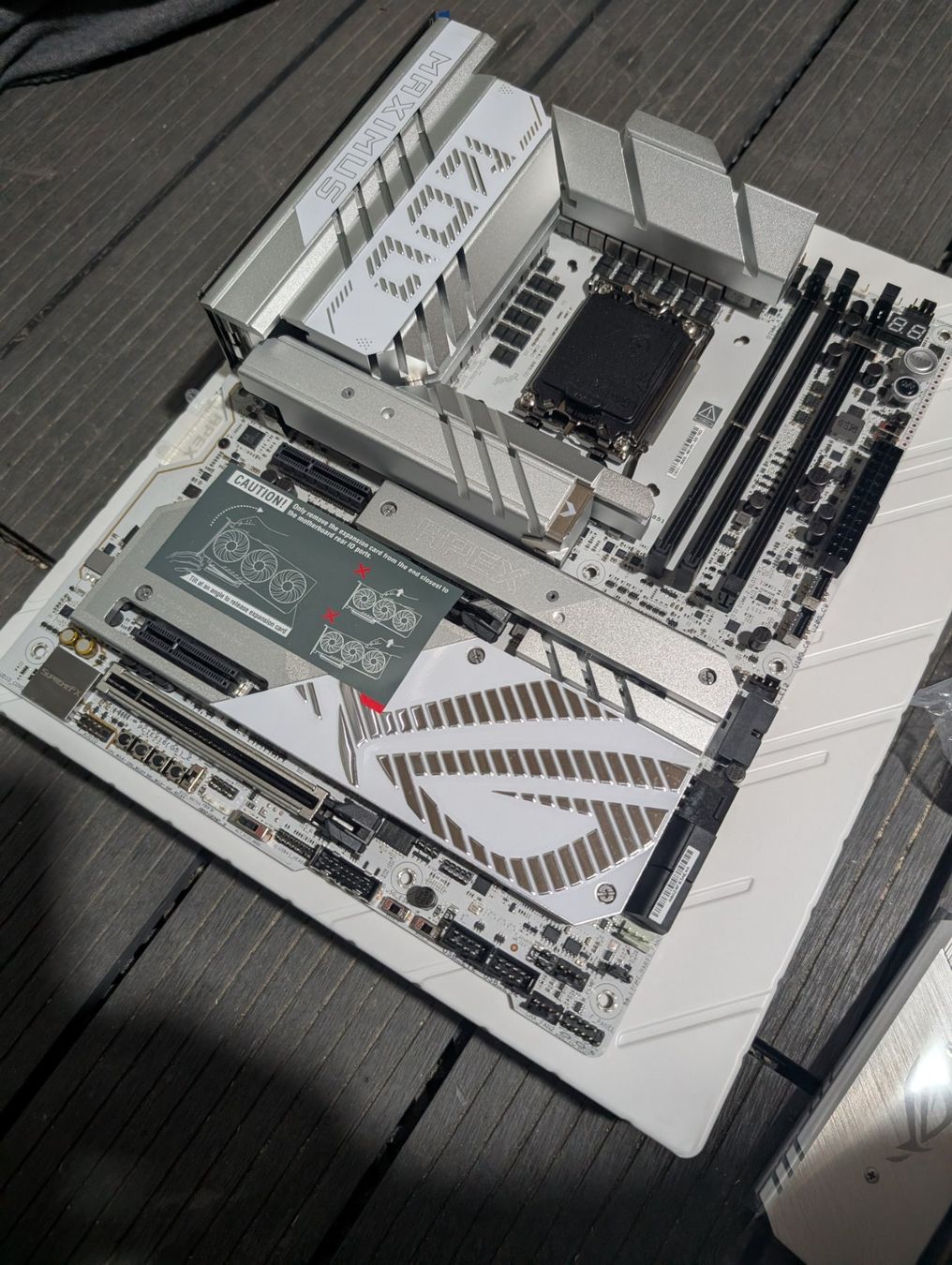

ASUS ROG Maximus Z890 Apex
Processor & Chipset
- CPU Socket: Intel LGA1851.
- Supported Processors: Intel Core Ultra Processors (Series 2).
- Chipset: Intel Z890 Chipset. [1, 2]
Memory (DRAM)
- DIMM Slots: 2 x DDR5 DIMM slots (Dual Channel optimized).
- Max Capacity: Up to 96GB / 128GB (depending on the module layout and firmware update status).
- Speed Support: 9600+ MT/s (OC).
- Features: Support for CUDIMM, Clocked Unbuffered DIMM modules, ASUS Enhanced Memory Profile III (AEMP III), NitroPath DRAM technology, and DIMM Flex. [1, 2, 3, 4]
Expansion Slots
- PCIe 5.0: 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 configurations).
- PCIe 4.0: 2 x PCIe 4.0 x4 slots.
- Mechanics: Includes PCIe Slot Q-Release Slim (removes the graphics card automatically by pulling it up from the front edge). [1]
Storage Options (6x M.2 Slots Total)
- Onboard M.2 (PCIe 5.0): 3 x M.2 slots via CPU lanes (PCIe 5.0 x4 modes).
- Onboard M.2 (PCIe 4.0): 1 x M.2 slot via Chipset lanes (PCIe 4.0 x4 mode).
- Expansion M.2: 2 x M.2 slots via the included proprietary vertical ROG DIMM.2 card (PCIe 4.0 x4 layout).
- SATA Ports: 4 x SATA 6Gb/s ports. [1, 2, 3, 4]

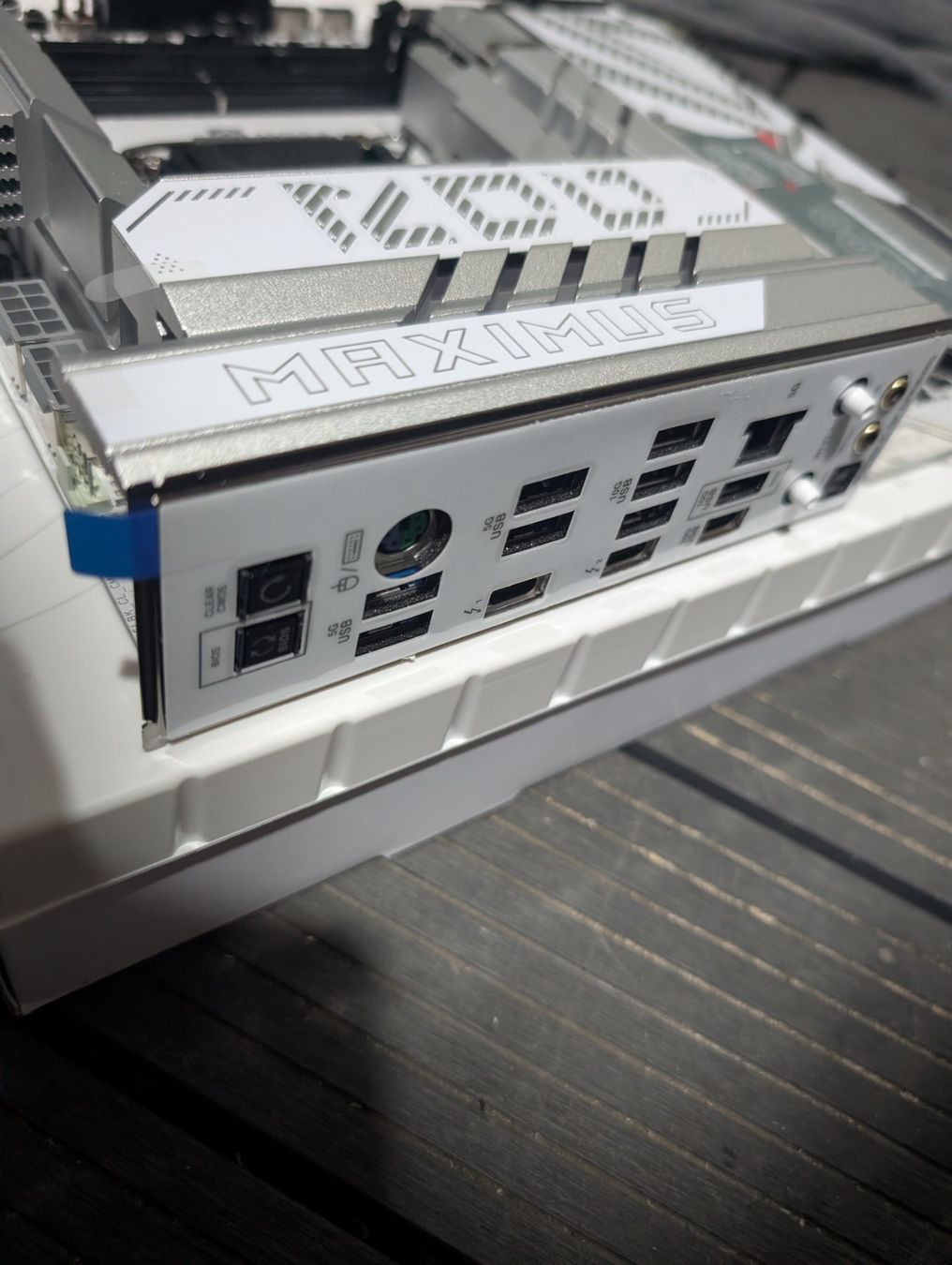

High-Speed I/O & Networking
- Wireless: Integrated Intel Wi-Fi 7 with a magnetic ASUS WiFi Q-Antenna.
- Wired LAN: 1 x Realtek 5Gb Ethernet port.
- Thunderbolt: 2 x Thunderbolt 4 Type-C ports built directly into the rear I/O.
- Rear USB Ports: 4 x USB 10Gbps (Type-A) + 4 x USB 5Gbps (Type-A).
- Front USB Headers: 1 x USB Type-C 20Gbps (supports Quick Charge 4+ up to 60W) + 1 x USB Type-C 10Gbps. [1, 2, 3]
Audio Engine
- Hardware: ROG SupremeFX ALC4080 high-definition codec.
- Amplification: Savitech SV3H712 amplifier.
- Output capabilities: Gold-plated analog audio jacks + Optical S/PDIF out port. [1]
Power Delivery & Overclocking Features
- VRM Architecture: 22+2+1+2 Teamed Power Stages rated at 110A each.
- Power Connectors: Dual 8-pin ProCool II solid-pin connectors.
- Diagnostic Toolkit: ProbesKit voltage measurement checkpoints, onboard Safe Boot / Retry hardware buttons, LN2 Mode switch, and full Condensation Detection alerts. [1, 2]
