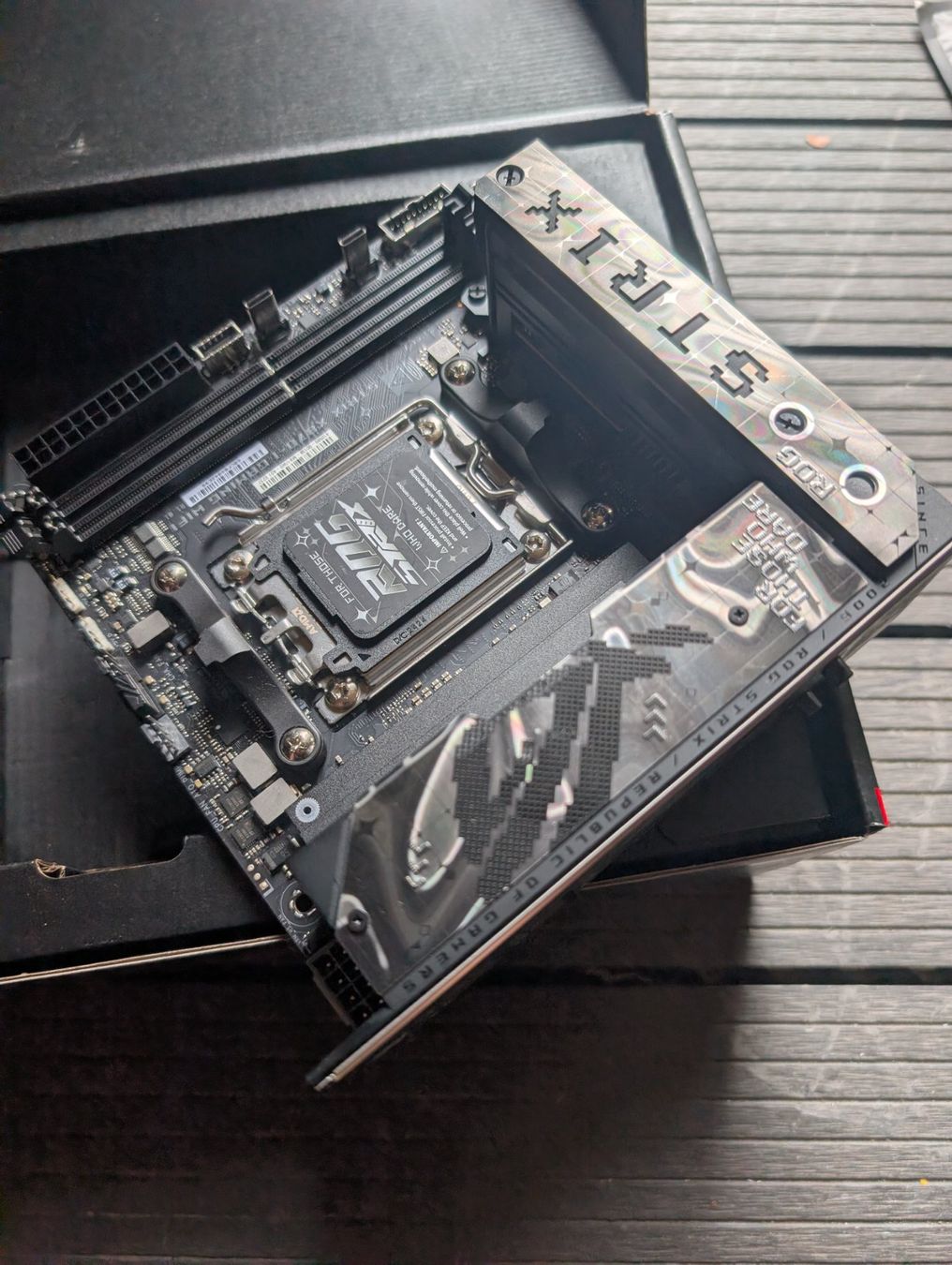

Key Specifications
- Processor Socket: AMD Socket AM5. [1]
- CPU Support: Compatible with AMD Ryzen 9000, 8000, and 7000 Series desktop processors. [1]
- Chipset: AMD X870. [1]
- Form Factor: Mini-ITX (6.7 in x 6.7 in / 17 cm x 17 cm). [1]
- Power Delivery: 10+2+1 power stages VRM layout with robust heatsinks and a dedicated cooling fan. [1, 2]
- Memory Support: 2 x DIMM slots supporting up to 96GB/128GB DDR5 dual-channel unbuffered memory (overclocked speeds up to 8600+ MT/s). [1, 2]
- Expansion Slots: 1 x PCIe 5.0 x16 SafeSlot (supports PCIe Slot Q-Release Slim). [1]
- Storage Interfaces:
- 1 x M.2 2280 slot (PCIe 5.0 x4 mode)
- 1 x M.2 2242-2280 slot (PCIe 4.0 x4 mode)
- 2 x SATA 6Gb/s ports (via the included ROG FPS card) [1]
- Networking & Connectivity:
- Wi-Fi 7 (802.11be) with ultra-fast 320MHz channel support and an included ASUS Q-Antenna.
- Intel 2.5Gb Ethernet port.
- Bluetooth 5.4. [1, 3]

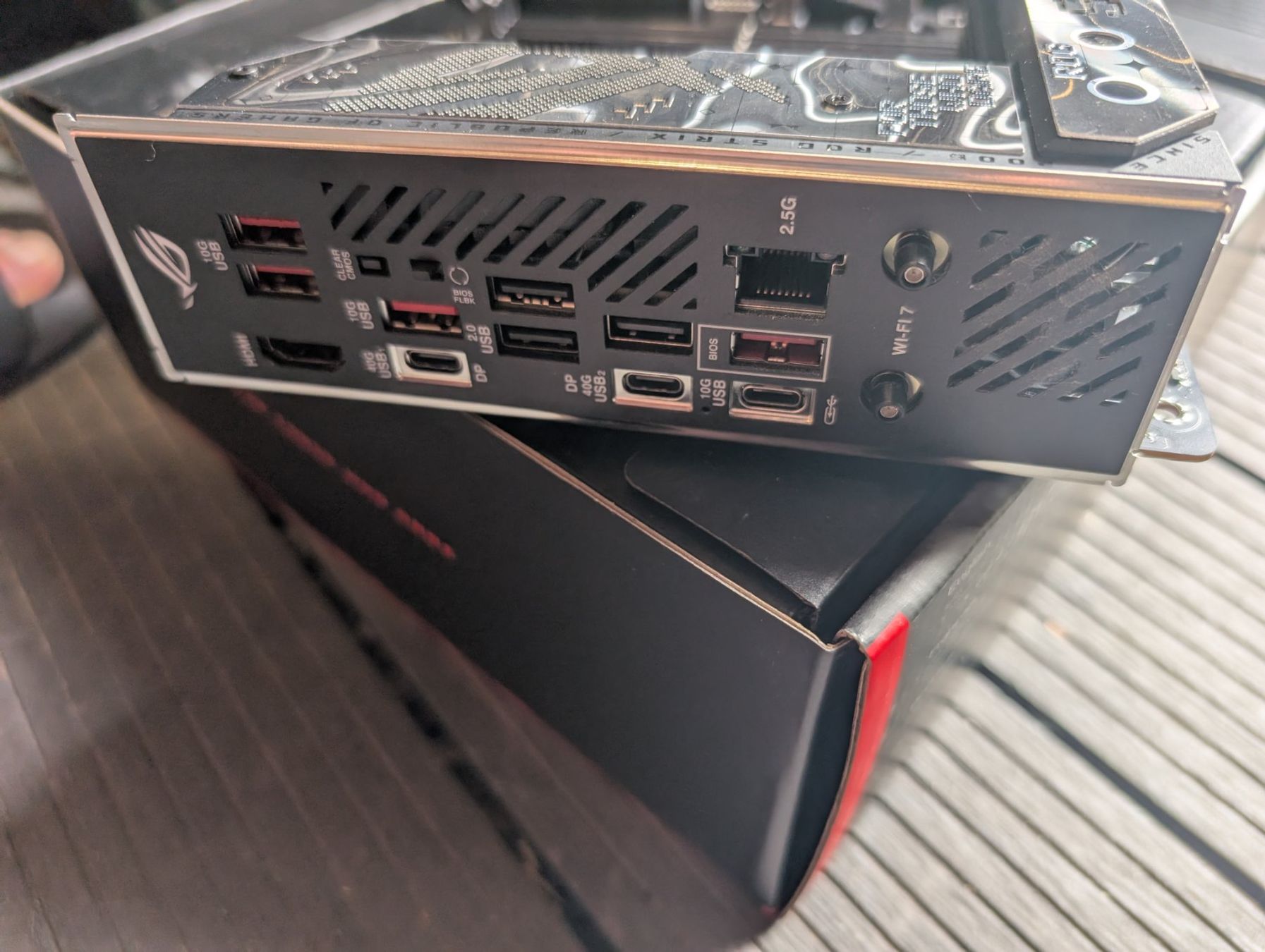

- Rear Panel I/O Ports:
- 2 x USB4 Type-C ports (up to 40Gbps, supporting DisplayPort output)
- 5 x USB 10Gbps ports (4 x Type-A + 1 x Type-C)
- 3 x USB 2.0 ports (Type-A)
- 1 x HDMI port
- Clear CMOS & BIOS FlashBack buttons [1, 2, 3, 4]

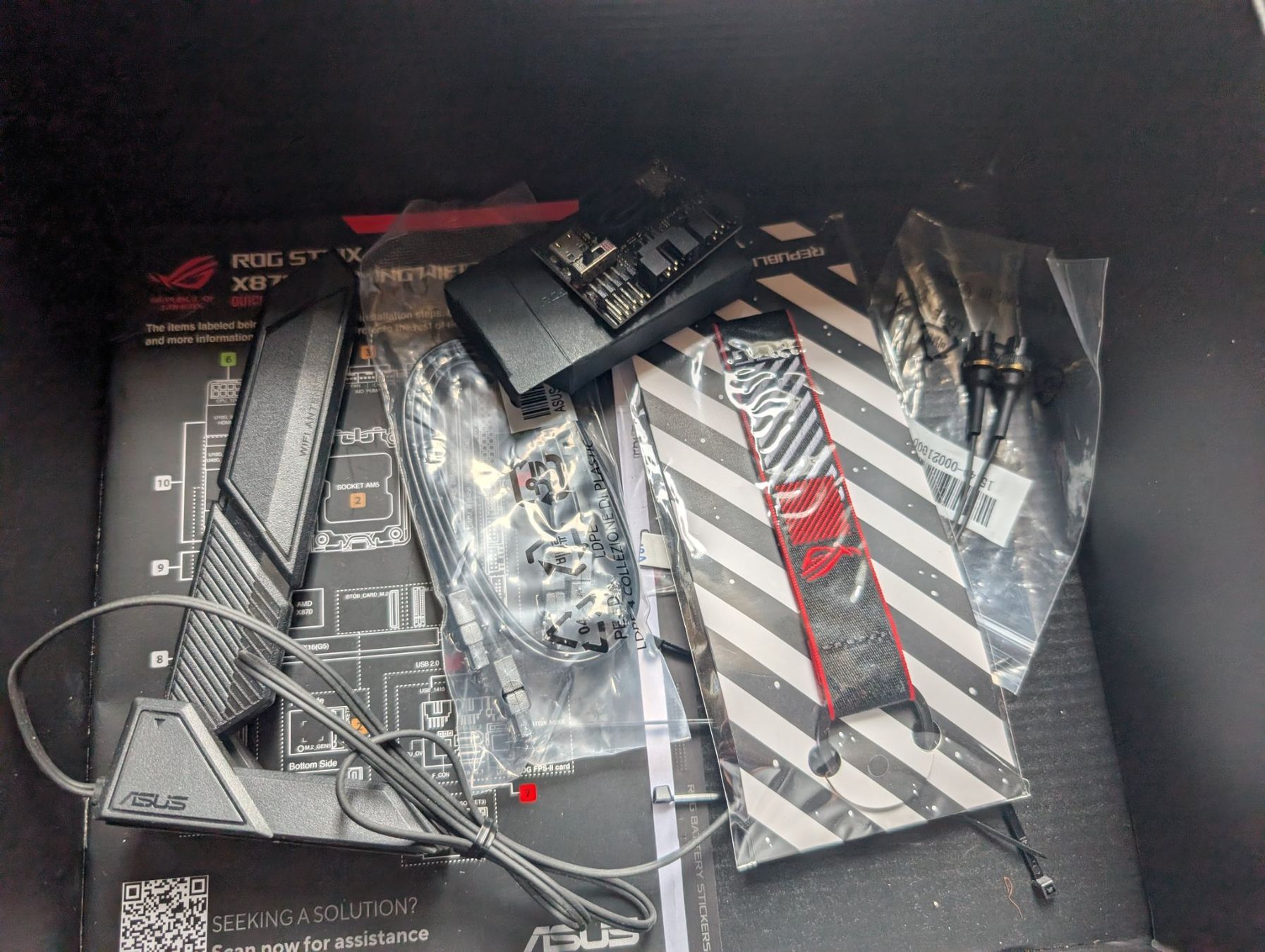

- Exclusive Accessories Included:

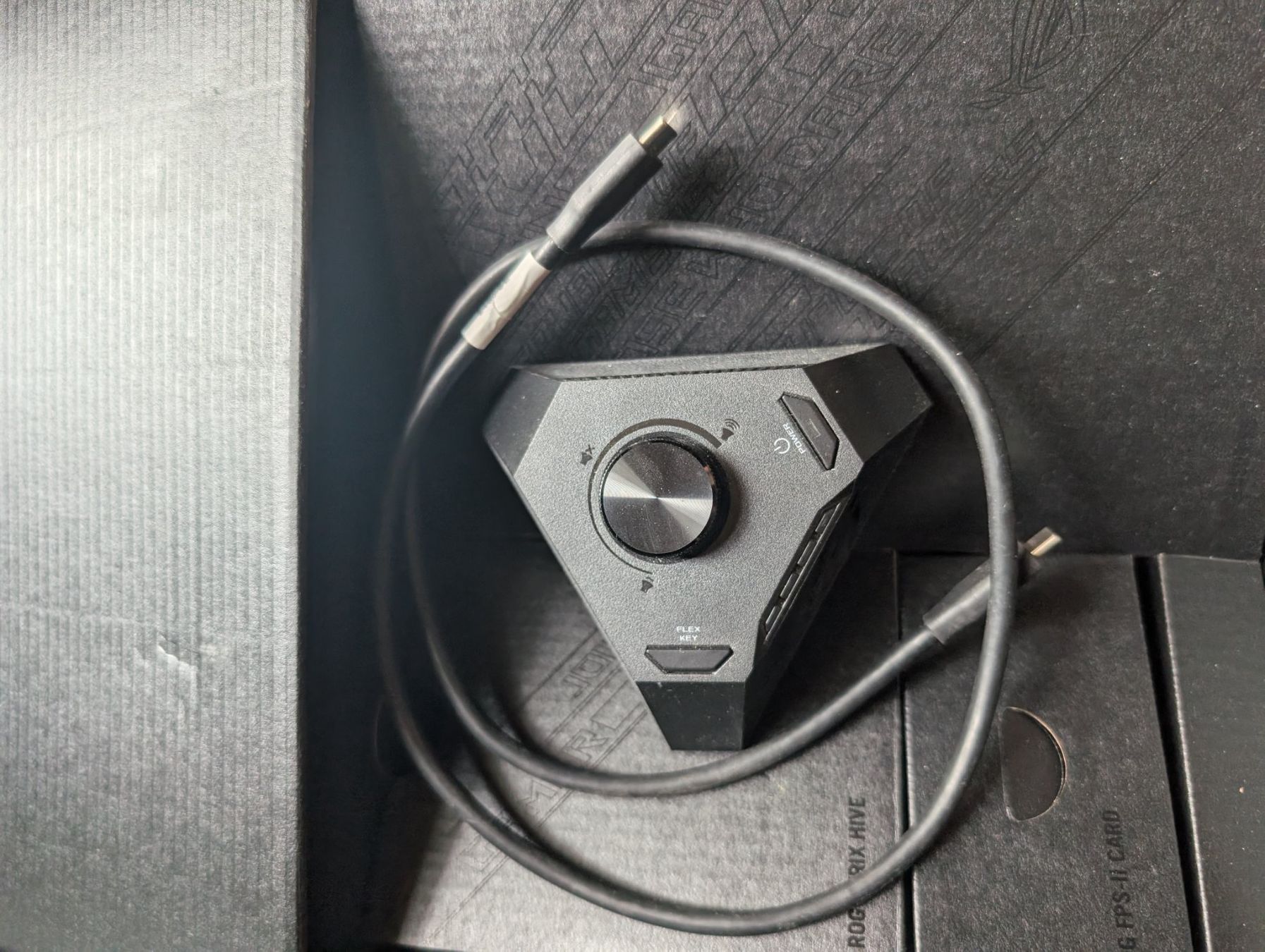

- ROG Strix Hive II: An external desktop hub managing audio controls, Q-LED diagnostics, a physical power/FlexKey button, and built-in ESS Sabre9260Q DAC audio.

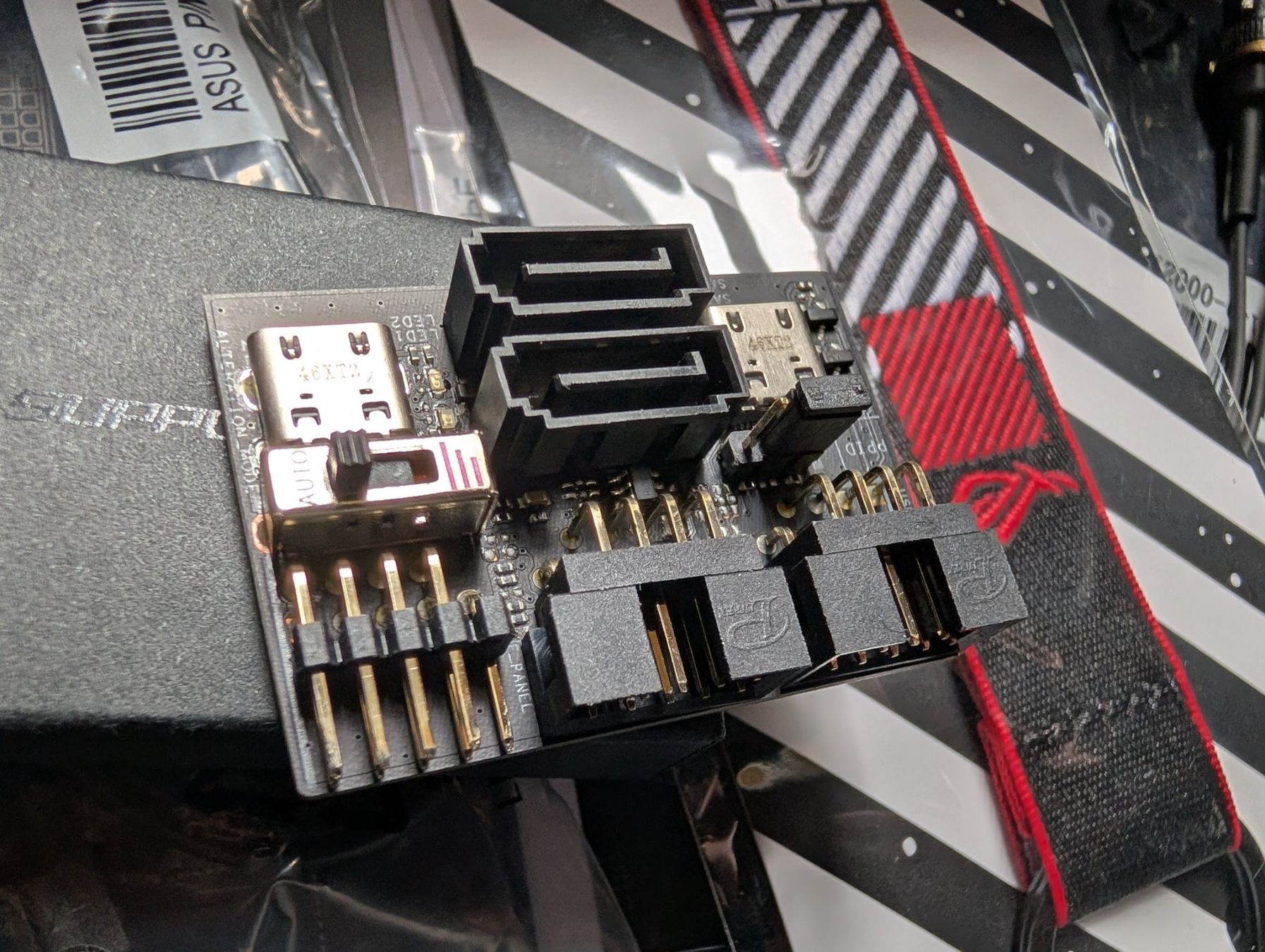

- ROG FPS Card: A vertically-mounted expansion card to host internal front panel headers, dual SATA ports, and a PCIe mode switch. [1]
)
)
