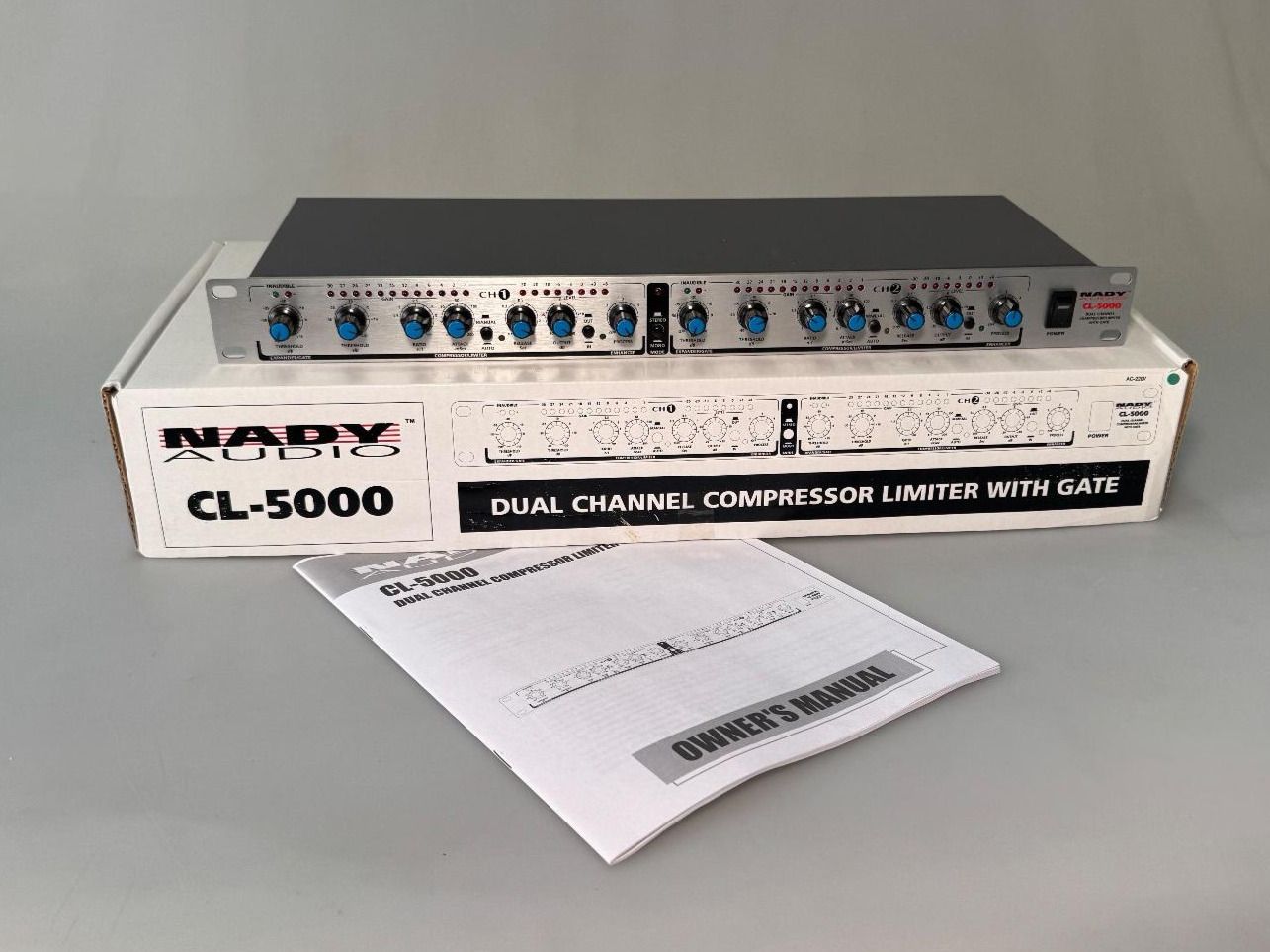

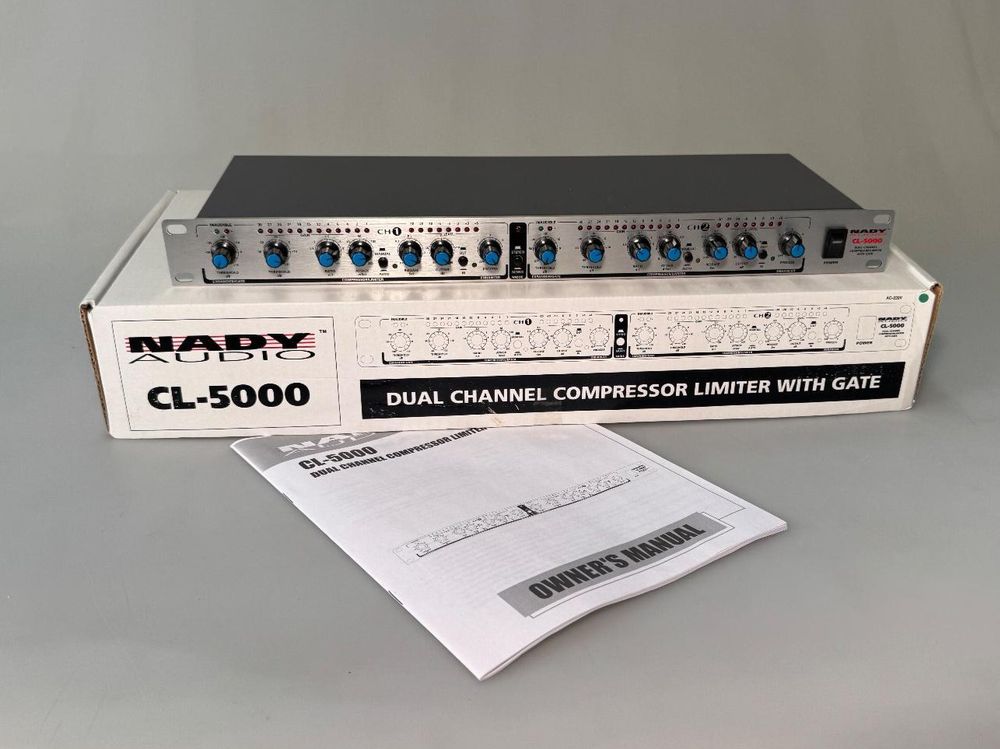

NADY Dual Channel Compressor Limiter with Gate
Demogerät (NOS)
INPUT
Type RF filtered, servo-balanced input
Connectors XLR and 1/4" TRS jacks
Impedance 50K Ohms balanced, 25K Ohms unbalanced
Nominal Operating Level +4 dBu / -10 dBV switchable
Max. Input Level +21 dBu balanced and unbalanced
CMRR typically 40dB, > 55dB @ 1kHz
DETECTOR INPUT
Type DC de-coupled unbalanced input, 1/4” TRS jack
Impedance > 20K Ohms
Max. Input Level +21 dBu
OUTPUT
Type Electronically buffered output stage
Connectors XLR jacks
Impedance 60 Ohms balanced, 30 Ohms unbalanced
Max. Output Level +21dBu balanced and unbalanced
Bandwidth 20Hz to 20kHz, +0/-0.5dB
Frequency Response 0.35 Hz to 200kHz, +0/-3dB
Noise > -95dBu, unweighted, 22Hz to 22kHz
THD 0.04% typically @ +4dBu, 1kHz, Gain 1
IMD 0.01% typically, SMPTE
Crosstalk < -100 dB, 22Hz to 22kHz
Stereo Coupling True RMS detection
CMR@ 1 KHz > 60 dB
EXPANDER/GATE SECTION
Type IRC (Interactive Ratio Control) Expander/Gate
Threshold variable (OFF to +10 dBu)
Attack < 1 ms/100 dB
Release 100 ms/ 100 dB
COMPRESSOR SECTION
Type IKA (Interactive Knee Adaption) Compressor
Threshold variable (-40 to + 20 dBu)
Ratio variable (1:1 to ∞ :1)
Threshold Characteristics Hard Knee
Manual Attack Time variable (0.1 to 200 ms/20 dB)
Manual Release Time variable (0.05 to 4 sec/20 dB)
Auto Attack Time typ. 15 ms. @ 10 dB, 5 ms @ 20 dB, 3 ms @ 30 dB
Auto Release Time program dependent, typ. 125 dB/sec.
Output variable (-20 to + 20 dB)
