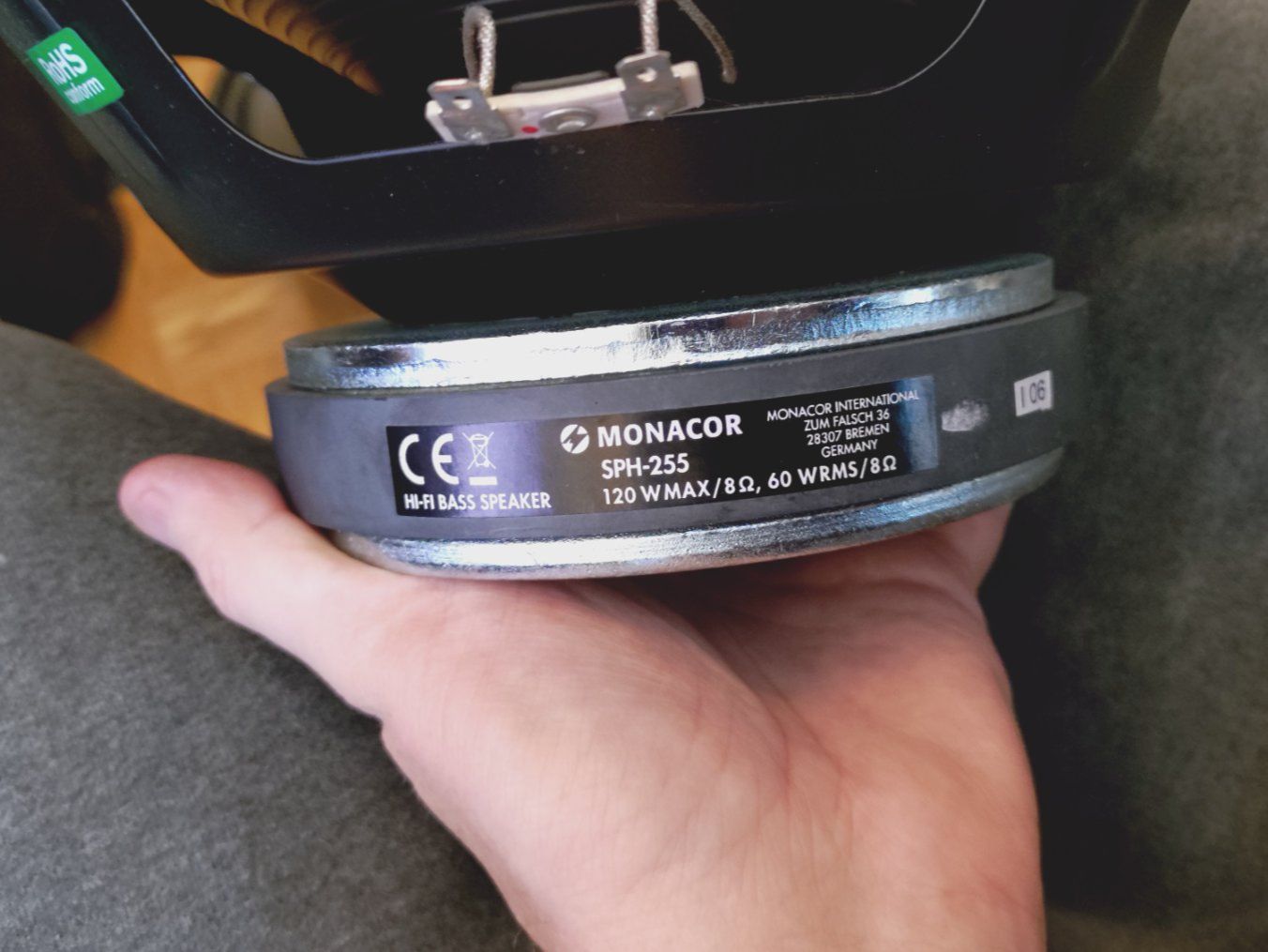

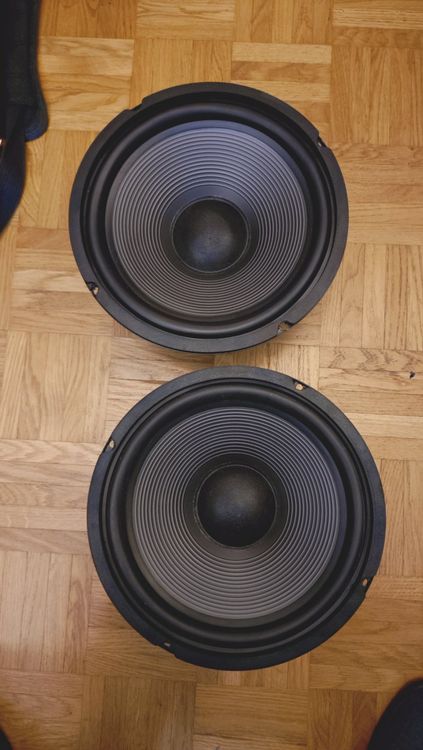

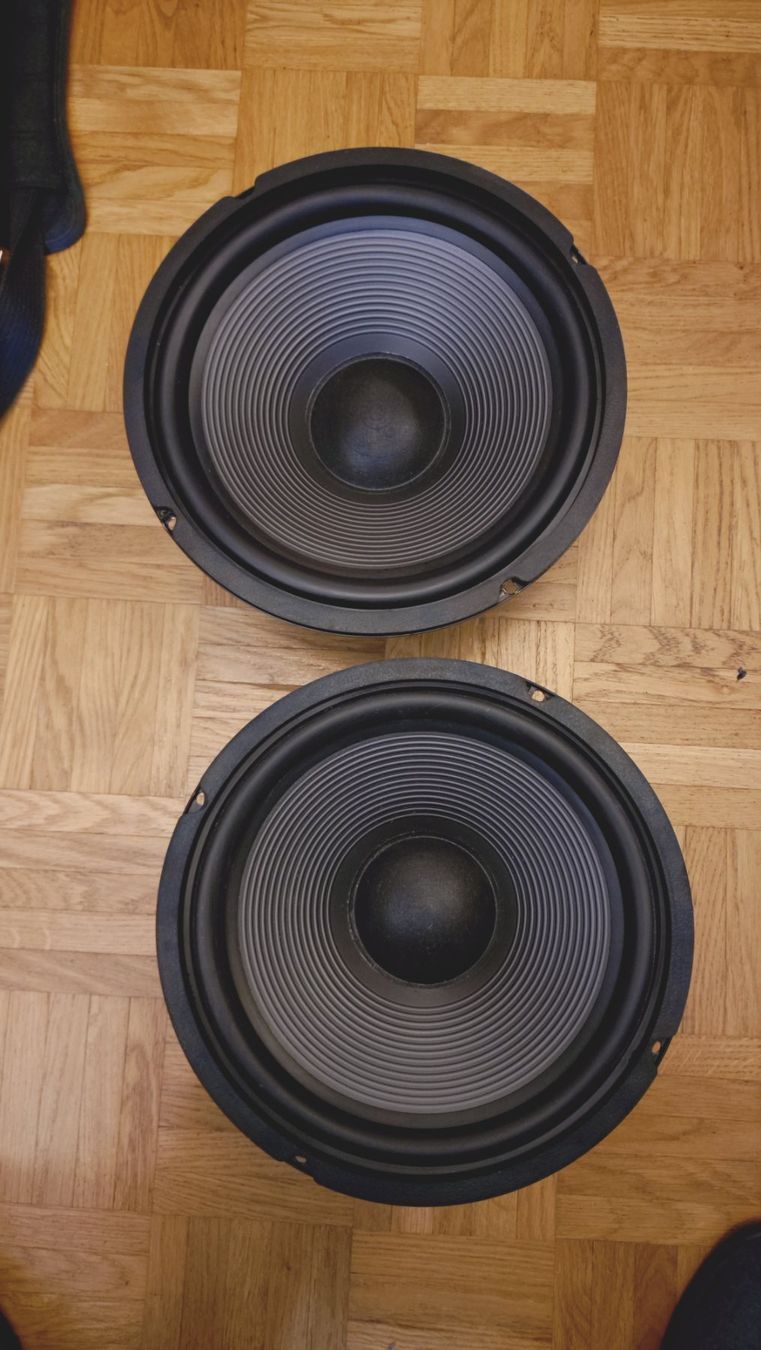

Ungebrauchte MONAVOR SPH-255 Chassis aus einem Projekt, dass nie realisiert wurde.
Specifications
- Sensitivity (1W, 1m, infinite baffle)SPL1W 90.7dB
- Frequency response 23 - 3000Hz
Thiele & Small parameters
- Resonance frequency (free air)fS 23Hz
- Mechanical quality factorQMS 2.86
- Electrical quality factorQES 0.26
- Total quality factorQTS 0.24
Large signal parameters
- Maximum linear excursionxmax 4.5mm
- Air volume displaced at xmaxVD 158cm³
- Power handlingP 60W
- Program powerPmax 120W
Voice Coil
- Nominal impedanceZ 8Ω
- DC resistanceRE 6.1Ω
- Inductance (1kHz)LE 1.5mH
- VC Diameter 50mm
- Winding material Aluminium
Magnet
- Force factorBl 11.7N/A
- Motor constantBl/√RE 4.74
- N/√WDiameter 140mm
- Weight 1.1 kg
Diaphragm
- Effective diameter 211mm
- Effective areaSD 350 cm²
- Moving massMMS 42g
- Moving mass (without air load)MMD 37.3g
Suspensions
- StiffnessKMS 0.84N/mm
- ComplianceCMS 1190µm/N
- Equivalent volume to the complianceVAS 205L
- Mechanical resistanceRMS 2.12 N·s/m
Dimensions
- Nominal diameter 10″ 257mm
- Overall diameter 257mm
- Baffle cutout diameter
- 235mm
- Overall depth 128mm
- Flange thickness 10mm
- Mounting depth 118mm
- Volume occupied by the driver (estimated)1.6L
- Net weight 3.73kg
Kann in Thalwil abgeholt werden
Ich akzeptiere auch TWINT
Versand auf Anfrage
)
