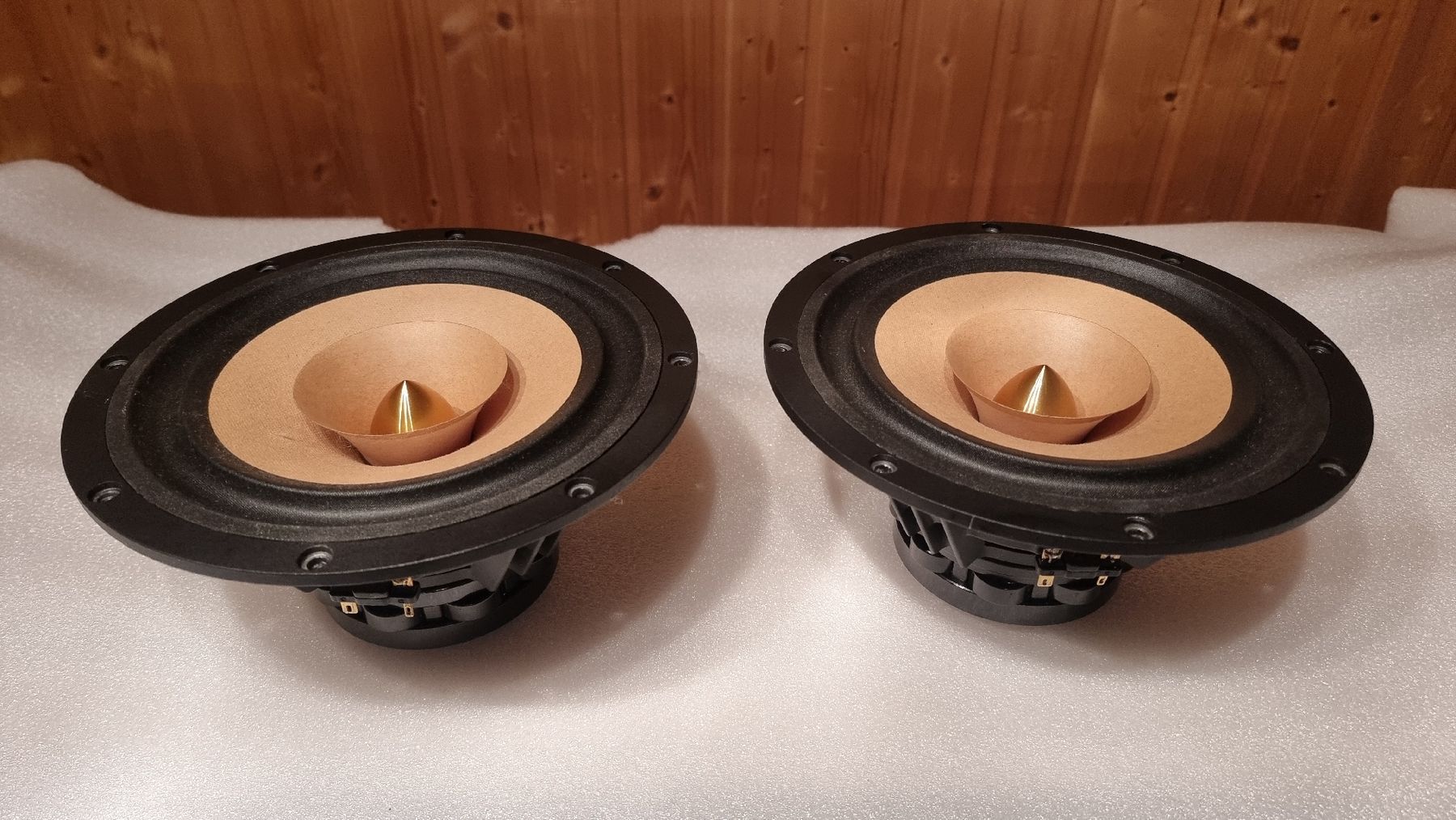

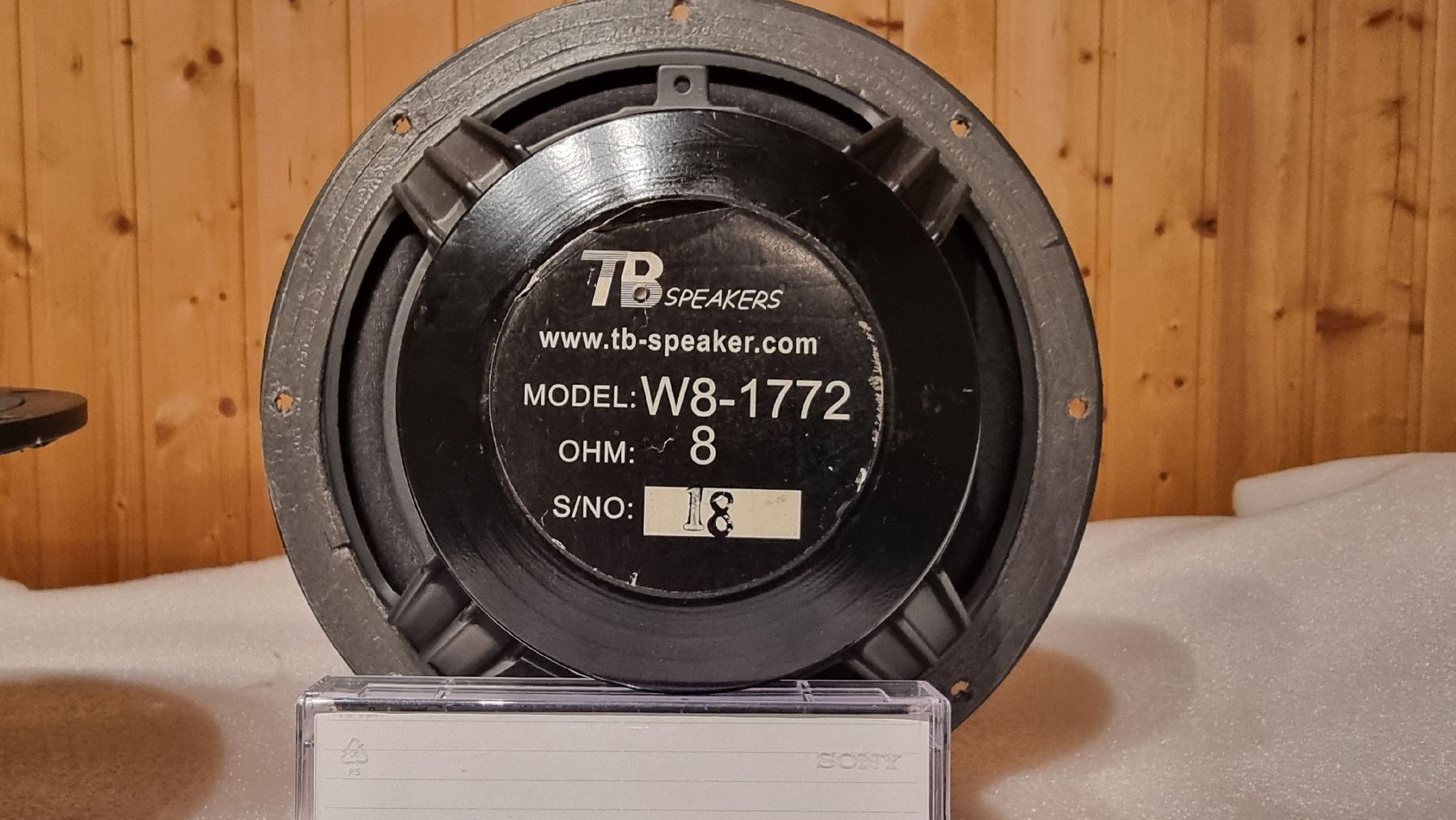

Tangband W8-1772 Paar
Sehr guter Zustand.
Typ: 8 Ohm. Breitbänder.
Specifications:
Sensitivity (1W, 1m, infinite baffle)
SPL1W 97.1dB
Frequency response
42 - 20000Hz
Thiele & Small parameters:
Resonance frequency (free air).fS 42Hz
Mechanical quality factor QMS 1.02
Electrical quality factor QES 0.36
Total quality factor QTS 0.27
Large signal parameters:
Maximum linear excursion (one way)
xmax.3mm
Air volume displaced at xmax.VD.66cm³
Power handling P 30W
Program power Pmax 60W
Voice Coil:
Nominal impedance Z 8Ω
DC resistance RE 6.8Ω
Inductance (1kHz) LE 0.009mH
VC Diameter 38.5mm
Magnet:
Force factor Bl 7.12
N/A
Motor constant Bl/√RE 2.73
N/√W
Air gap height HAG 10mm
Magnet-Material Neodymium
Diaphragm:
Effective diameter.167mm
Effective area
SD 220cm²
Moving mass (including air load)
MMS 10.1g
Moving mass MMD 7.8g
Material Paper
Suspensions Stiffness KMS 0.728 N/m
Compliance CMS 1374µm/N
Equivalent volume to the compliance
VAS 94.5L
Mechanical resistance RMS 2.62 N·s/m
Surround material Fabric
Dimensions
Nominal diameter 8 ″203 mm
Volume occupied by the driver (estimated)1.4L
Net weight 3.23kg
)
