STUDER OnAir 1000 DIGITAL MIXER

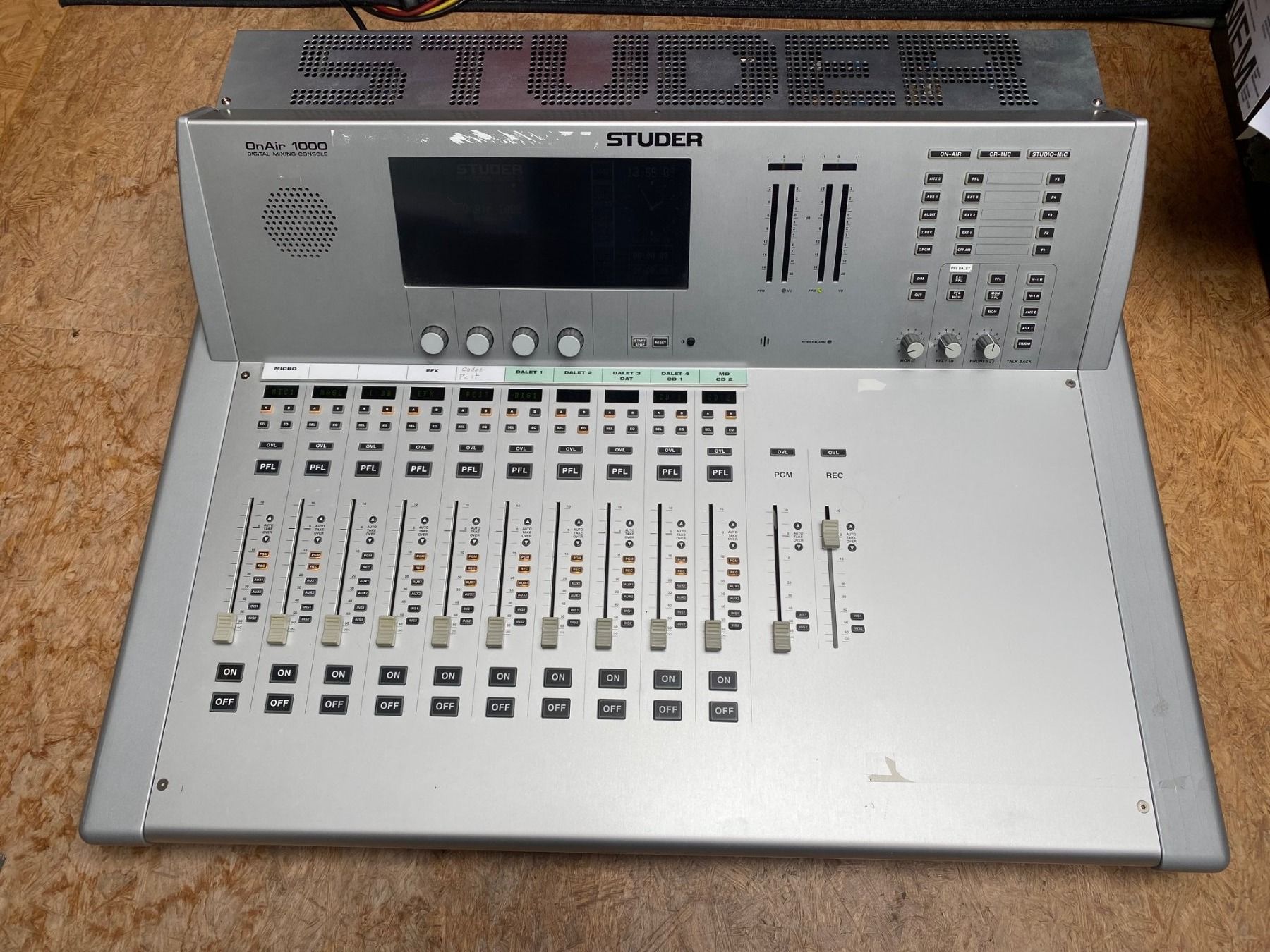

VENDO PER MANCATO USO: DIGITAL MIXER STUDER OnAir 1000 (Broadcast, live, production...), in ottime condizioni. User Manual e specifiche le trovate in Google

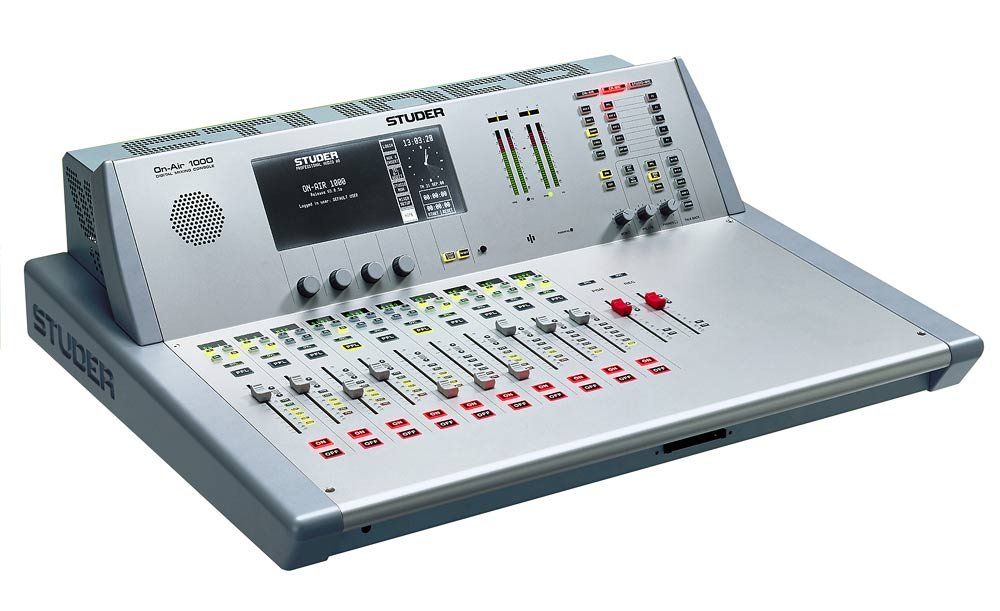

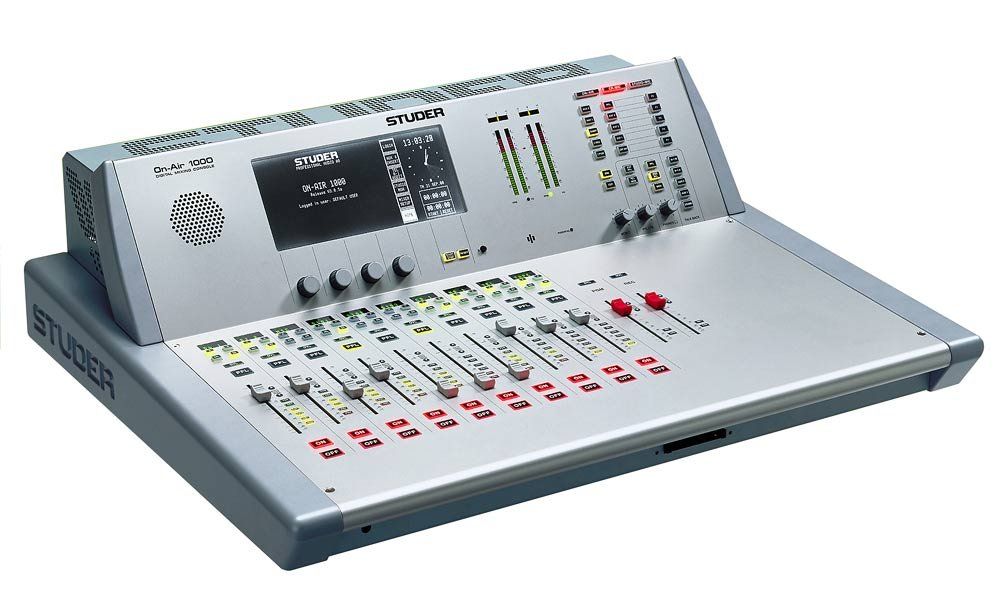

The Studer On-Air 1000 at a Glance • Inexpensive and ergonomic solution for smallto mid-range broadcasting studios • 10 channel faders, 2 master faders • Integrated input router • digital signal processing • easy to operate • short learning curve • graphical user interface • proven Studer quality and reliability

INPUT:

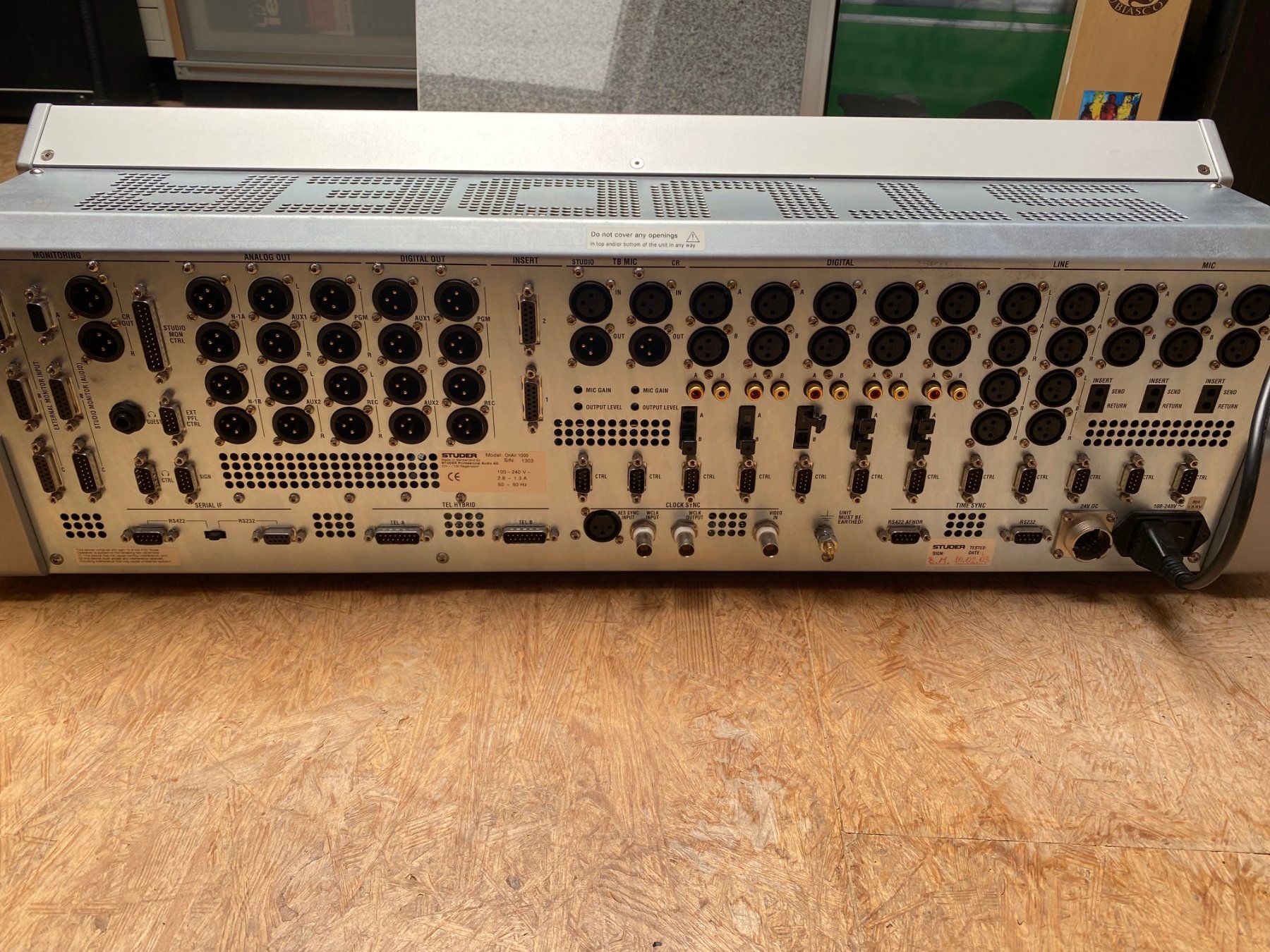

For studios with most of the equipment in digital format a digitally biased version offers 10 (5x2 with A/B select) digital inputs accepting AES/EBU or S/PDIF signals. The digital signal source needs not be synchronized to the console as all inputs are equipped with sampling frequency converters (SFC). The input can be connected via XLR, Cinch or optical TOSLINK connectors. In addition to these 10 digital inputs the digitally biased version offers 4 (2x2 with A/B select) analog line inputs with XLR connectors and 6 (3x2 with A/B select) mono microphone wide range inputs also with XLR connectors. All microphone inputs feature insert sends and returns and also accept line level signal sources e.g. telephone line signals. For more traditional analog applications the Studer On-Air 1000 is available in an analog biased version. There are 10 (5x2 with A/B select) analog inputs, 4 (2x2 with A/B select) digital inputs and 6 (3x2 with A/B select) microphone mono wide range inputs at the user’s disposal. All inputs feature the same characteristics as described for the digitally biased version. In addition to these input channels the console offers two analog stereo insert sends and returns which can be routed into any channel or even the main output buses. The active routing is displayed on the surface in the respective channel strip by LEDs. The Studer On-Air 1000 features an integrated input router allowing to assign any of the input signals to any of the channel faders on the surface in a very easy way.

OUTPUT:

On the output side the Studer On-Air 1000 console provides one stereo Program Output (PGM), one stereo Record Output (REC) and two stereo AUX send busses. All available in analog and digital format at the same time. Moreover two cleanfeeds, N–1A and N–1B, are available in analog format. Finally the stereo Audition bus can be used for different applications. All outputs are fed to XLR connectors.

CONTROLS:

Controls Setting new standards in its class, the Studer On-Air 1000 is equipped with a wide variety of control inputs and outputs. The Time Sync input allows the internal time and date system to be synchronized to external sources. Up to 8 protocols (AFNOR NFS87-500, Seiko serial clock, DCF77 mouse clock, MOBATIME IF482, GPS NMEA0183, RCC 8000A Type II, HOPF 6021, LEITCH SMPTE/EBU Timecode) are implemented. The Clock Sync input provides word clock synchronization to external sources. AES/EBU, word clock for 32 kHz, 44.1 kHz and 48 kHz are accepted as well as Video Ref for 25, 29.97 or 30 frames per second. The Studer On-Air 1000 can communicate to external devices via RS232 or RS422 serial interfaces. This allows integration with a radio automation system such as Studer DigiMedia through a standard serial protocol. A built-in telephone hybrid control can be used to directly control two external telephone hybrids from the console.

The Studer On-Air 1000 includes a set of general purpose inputs and outputs (GPIO open collectors or opto coupler inputs) on every individual input channel which may be used to start and/or cue external devices such as CD players or R-DAT units, to be controlled by a radio automation system, or for red light indication, etc. The control signals can be triggered by various functions and depend on the selected fader start mode giving the On-Air 1000 greatest possible fl exibility for your needs.
