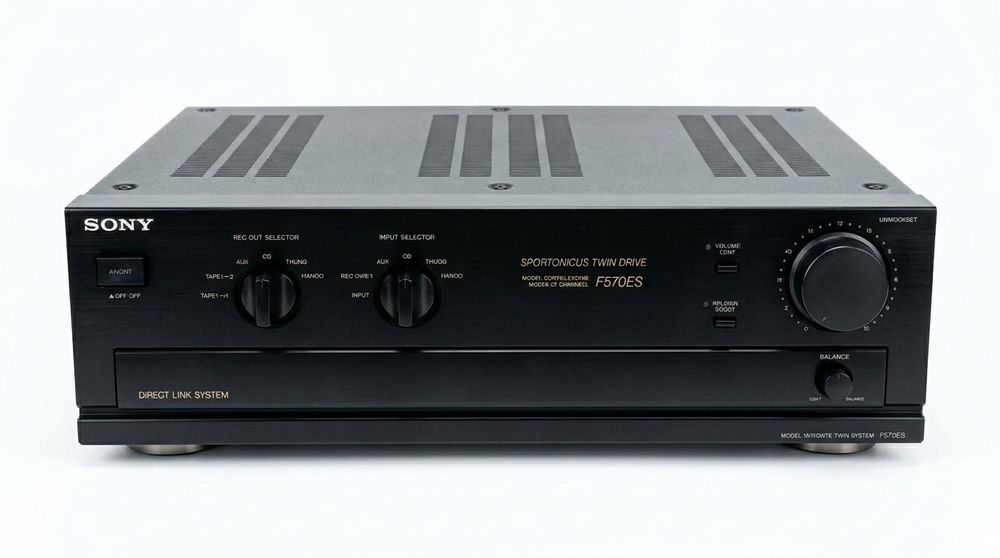

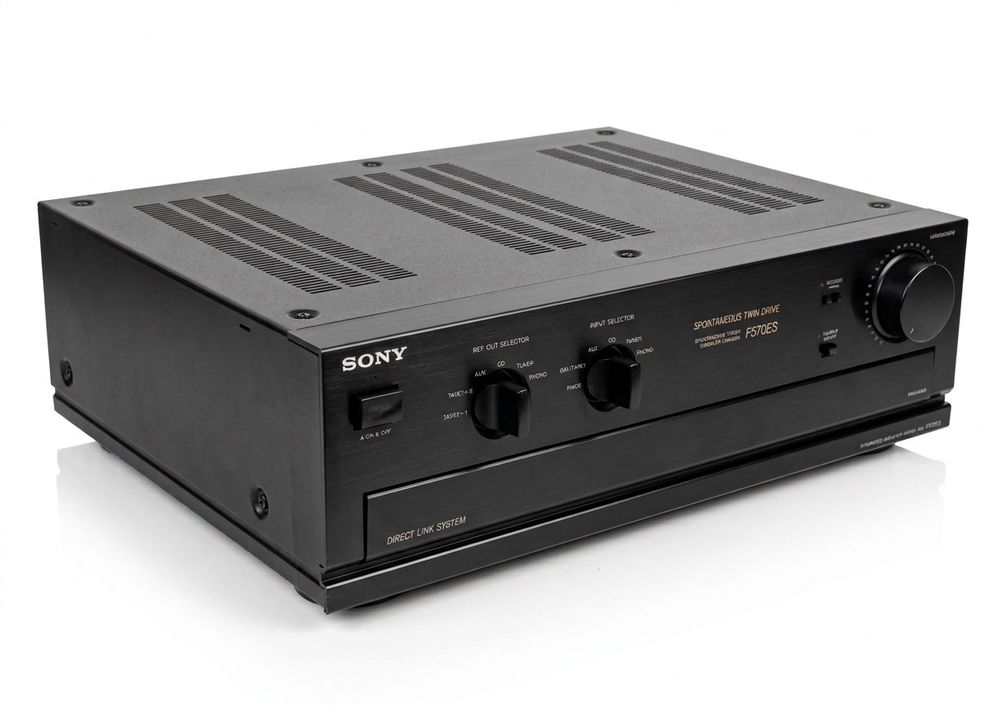

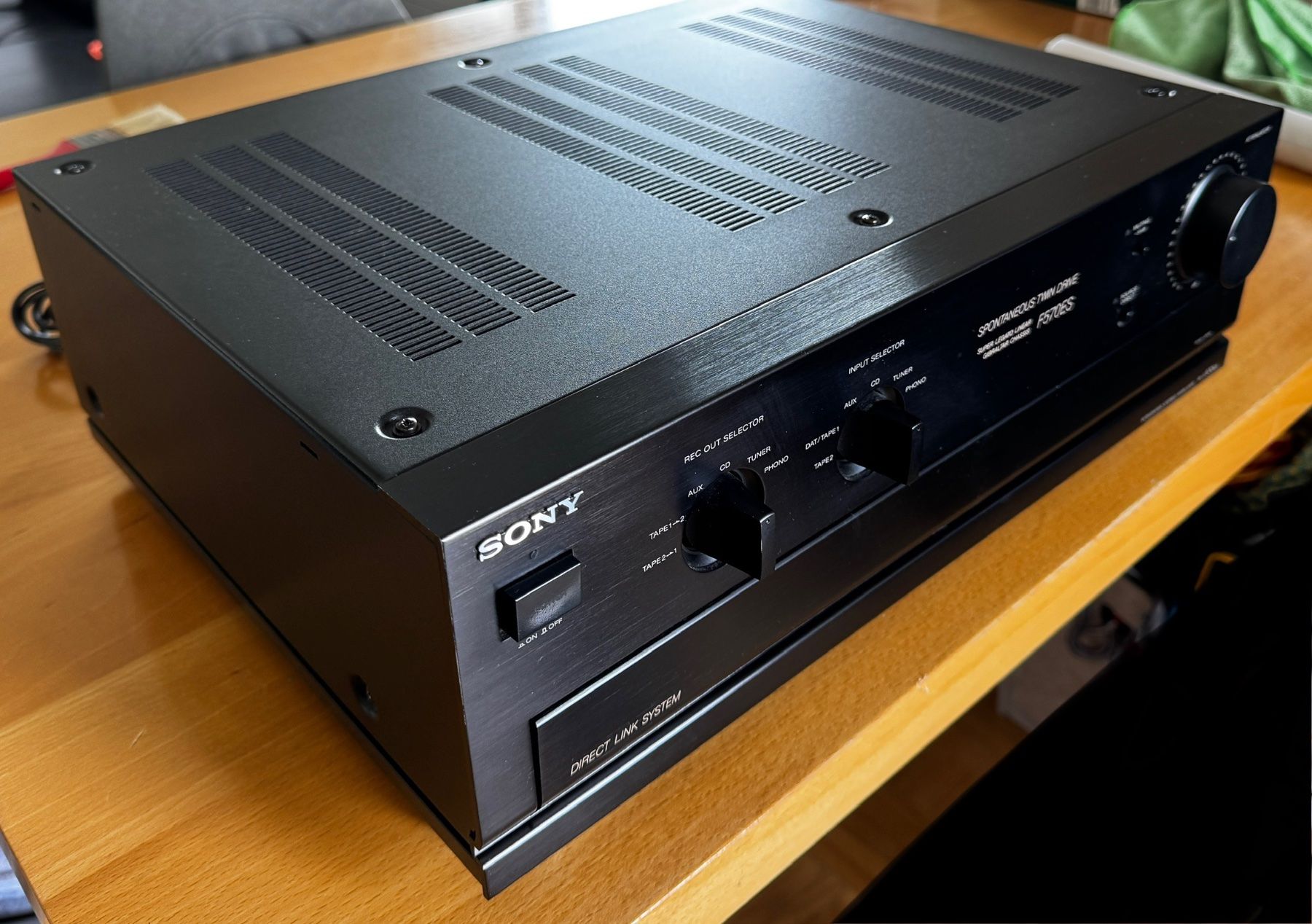

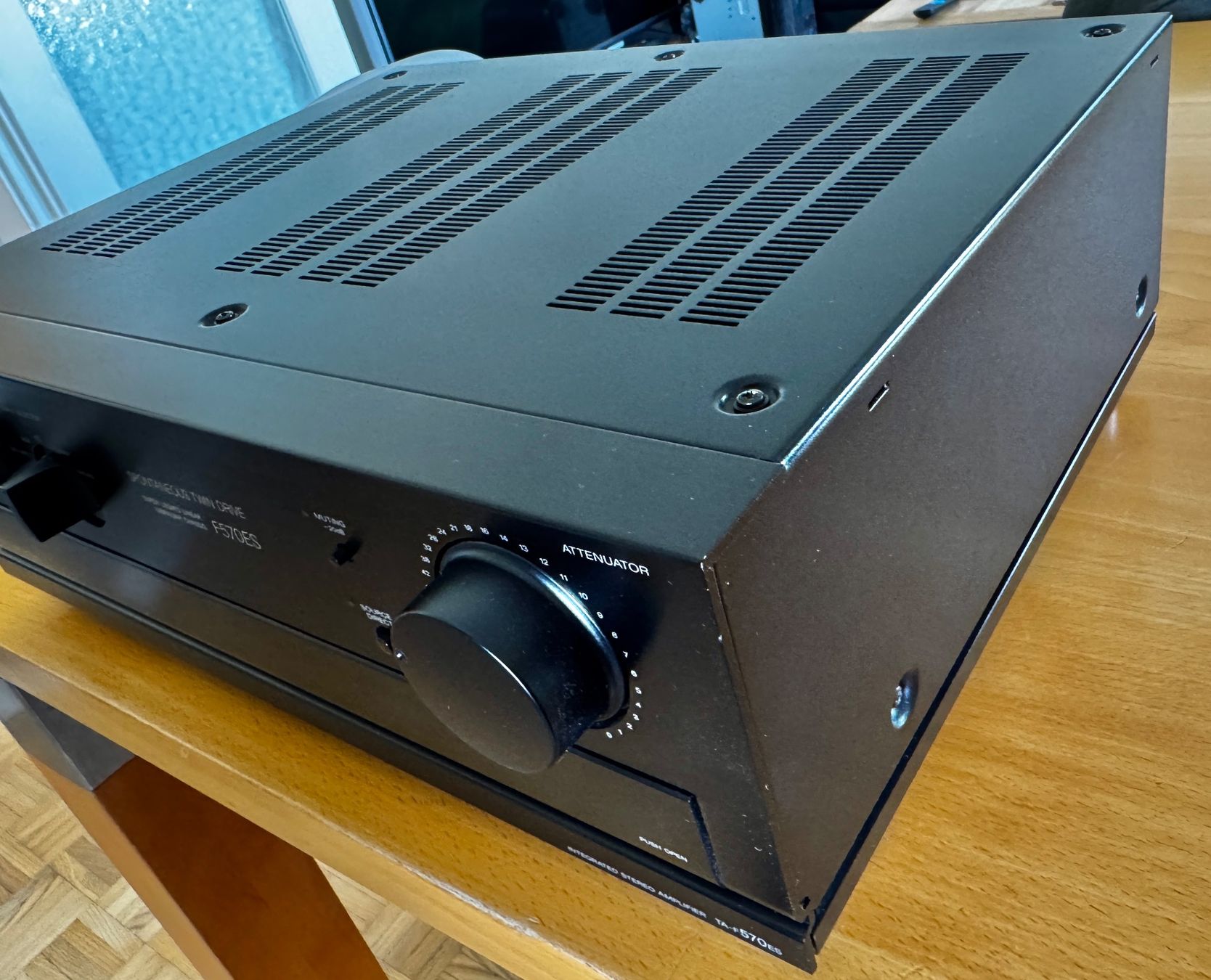

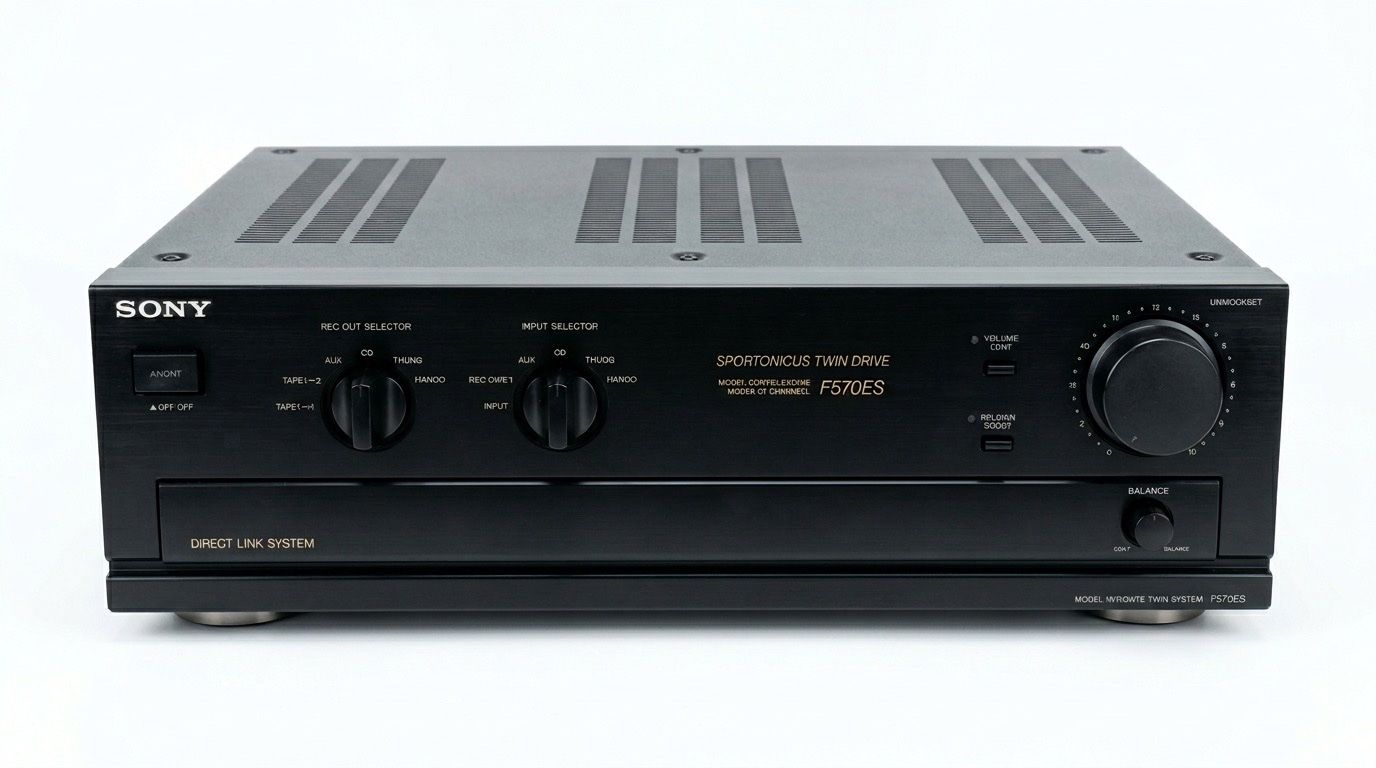

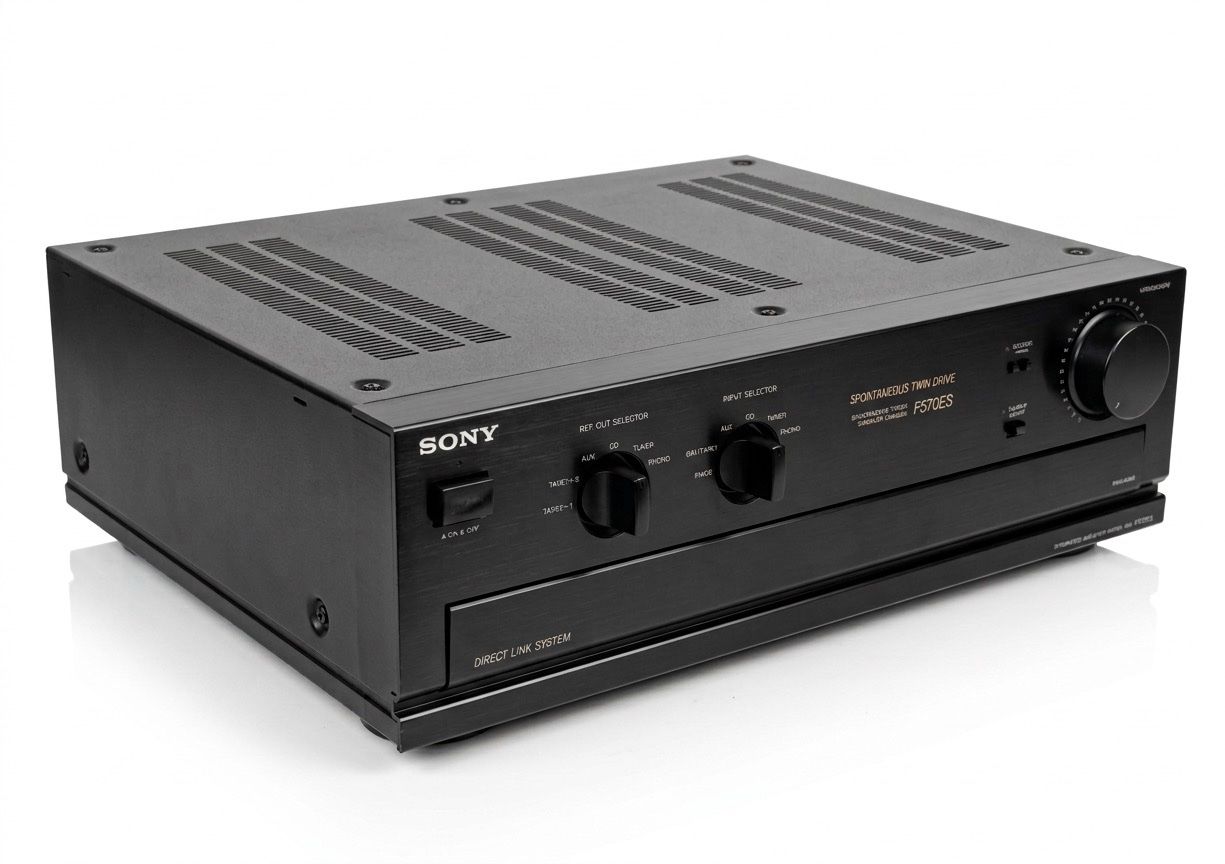

Esprit Series Amplifier

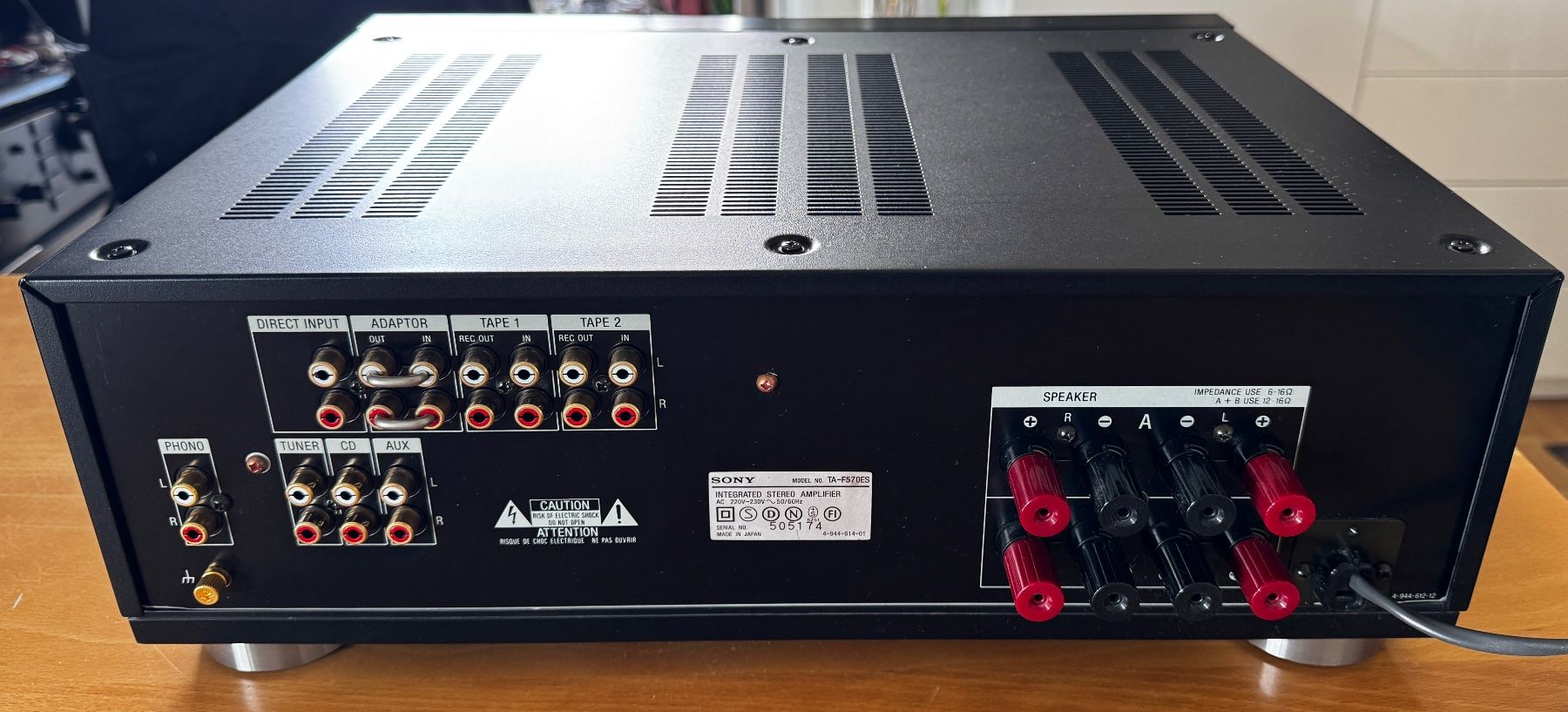

Connections
- 8 entrances:
- 8 inputs: Tuner, CD, Direct In, Tape 1.2, adapter, Aux (150mV, 20 KOhm), 1x Phono MM/MC (2.5mV, 50KOhm / 0.17mV, 100Ohm)
- 3 outputs: Tape 1, 2 Adapter (150mV, 1 kOhm)
- The adapter loop cannot be switched separately and must always be closed during normal operation. Accordingly, there are two jumper plugs for this purpose on the rear connection panel.
- The switchable direct-in input bypasses the input and rec-out selectors.
Technical data
- Continuous power output (at distortion factor)
- 4 ohms: 2 x 120 W at 0.01%
- 6 ohms: 2 x 95 W at 0.006%
- 8 ohms: 2 x 90 W at 0.004%
- Dynamic power (at distortion)
- 4 ohms: 2 x 175 W at 0.01%
- 6 ohms: 2 x 115 W at 0.006%
- 8 ohms: 2 x 100 W at 0.004%
- Damping factor: 100
- Frequency response: 10Hz - 100kHz
- Tone control: yes, switchable
- Bass: at 100Hz ±7dB
- High frequencies: at 10kHz ±6dB
- Loudness: no
- High Filter: no
- Mute: yes, -20db
- Direct/Line-Straight: yes
Special features
- Phono input (switchable MM or MC)
- Gold-plated RCA inputs and outputs
- Gold-plated headphone jack (3.5 mm).
- REC-Out selector
- The case is satin-matte black and all metal.
- The internal structure is designed to be very user-friendly.
- Generous power supply
- low impedance stable
12Kg
