Features:
Network Monitoring
Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
Hot - Swap Network Card
Network access is ensured when power is lost to the Primary unit with backup power provided by the Linked unit.
Temperature/Humidity Monitoring
Primary and Expansion (select products) units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.

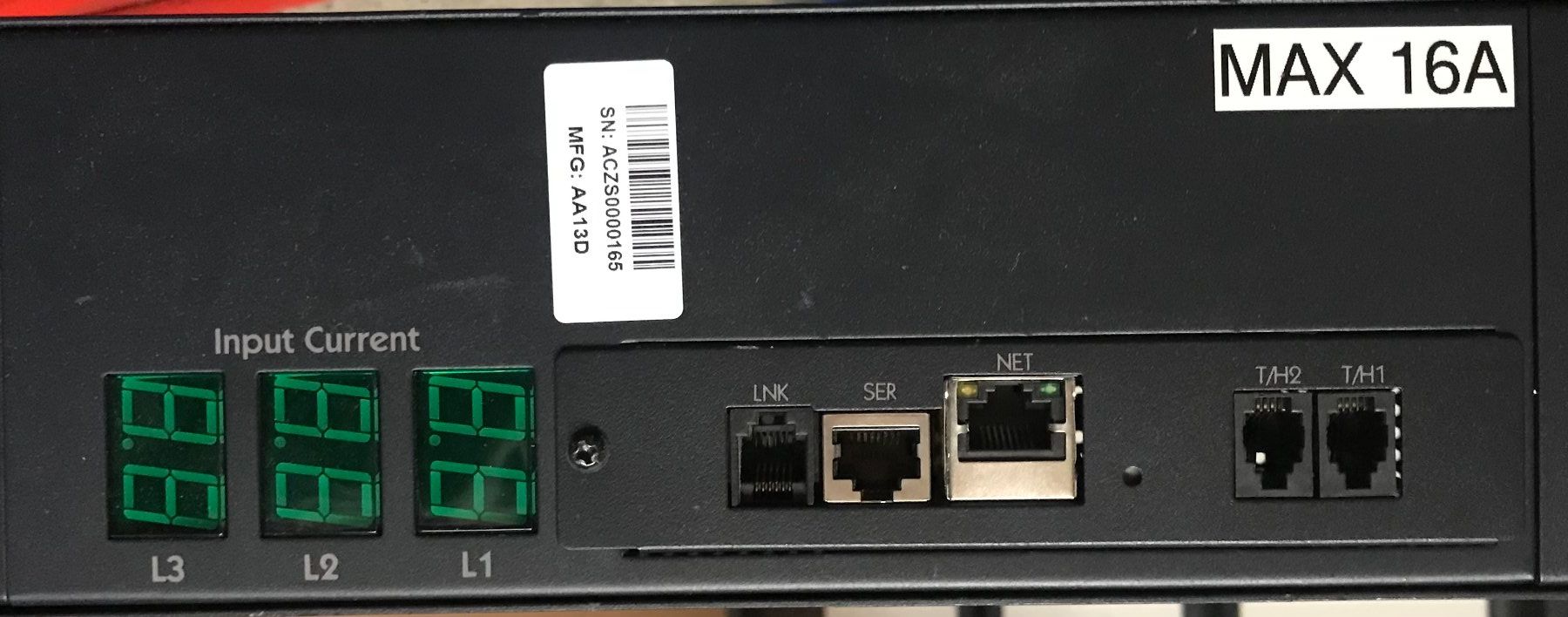

Auto - Flip Current Display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in highdensity cabinets.
Per - Inlet Power Sensing
PIPS® (Per Inlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, & Energy per inlet. Branc h
Circuit Protection
This PDU meets the UL and IEC 62368-1 requirement for branch circuit protection through UL 489 rated magnetichydraulic circuit breakers or UL 248 fuses.
Outlet Control
On Switched PDUs, cycle power to individual outlets or groups of outlets to reboot servers, or power off unused receptacles.
Flexible Mounting
Includes standard button mounts along with provisions for custom mounting brackets.
Inputs:
Input s Input Voltage (V): 208
Frequency 50/60 Hz
Input Plug: CS8365 3P+G 50A
Input Current (A): 50
Input Current Rated (A): 40
Input Power Capacity (kW): 14.4
Outputs:
(36) x IEC 60320/C13 North AmericanRating: 12A @208V L-L (15A Peak)
(12) x IEC 60320/C19 North AmericanRating: 16A @208V L-L (20A Peak)
