Ready for those conditions

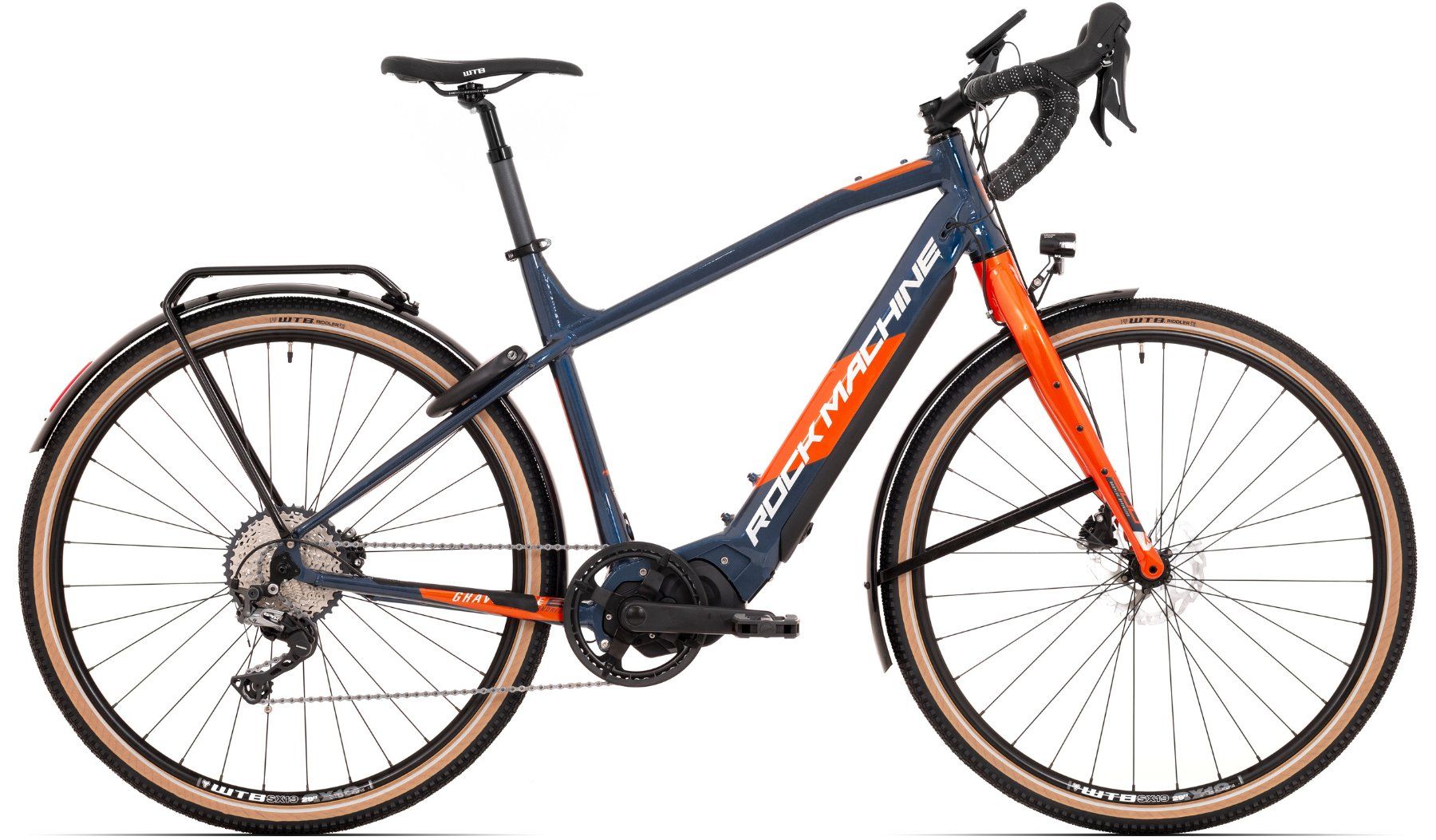

Gravel Fun geometry with increased comfort and control over the wheel also makes climbing and descending easier. An integrated 504Wh Darfon battery, fast 4A charger, efficient 40Nm Shimano E5000 motor with a range of up to 185km, Shimano SC-E6100 Bluetooth display, Shimano GRX RD-RX812 1×11, 44×11-42 gears, WTB Riddler 29×1.75" tyres with reflective strip and Touring trim make this unique model a partner for endless adventures outside civilization.

Highlights

Range up to 185km with 504Wh Battery and Shimano E5000 motor
Big Shimano Display with Bluetooth
Practical carriers, Sturdy fenders & Integrated Lock
Powerfull front & rear lights and reflective tire strip

BASE INFO

E-SYSTEM

SHIMANO STePS E5000

DISTANCE

120km

MAX. TORQUE

40Nm / 200%

E- BIKE PARTS

MOTOR

SHIMANO STEPS E5000, 40Nm

CHARGER

DARFON 4A Smart Plus charger

BATTERY

DARFON, 36V, 504 Wh, integrated

DISPLAY

SHIMANO SC-E6100, Clamp band

FRAMESET

FRAME

Alloy Al-6061 T6 Custom tubing, Smooth Welding, Gravel Fun Geometry, Shark Spine EVO 29er, SHIMANO STEPS DU hanger, 2nd Gen. Battery Integration, Axle 12x142, Post Mount, Fender&Kickstand Ready Dropout, Replaceable RD Hanger, Inner Cable Routing

FORK

Alloy rigid, Ahead 1-1/8" steerer

HEADSET

ACROS ZS44/EC49

DRIVETRAIN

GEAR RANGE

1x11, 11-42, 382%

REAR DERAILLEUR

SHIMANO GRX RD-RX812 Shadow Plus

CRANKSET

SHIMANO FC-E5010

CHAINRING
