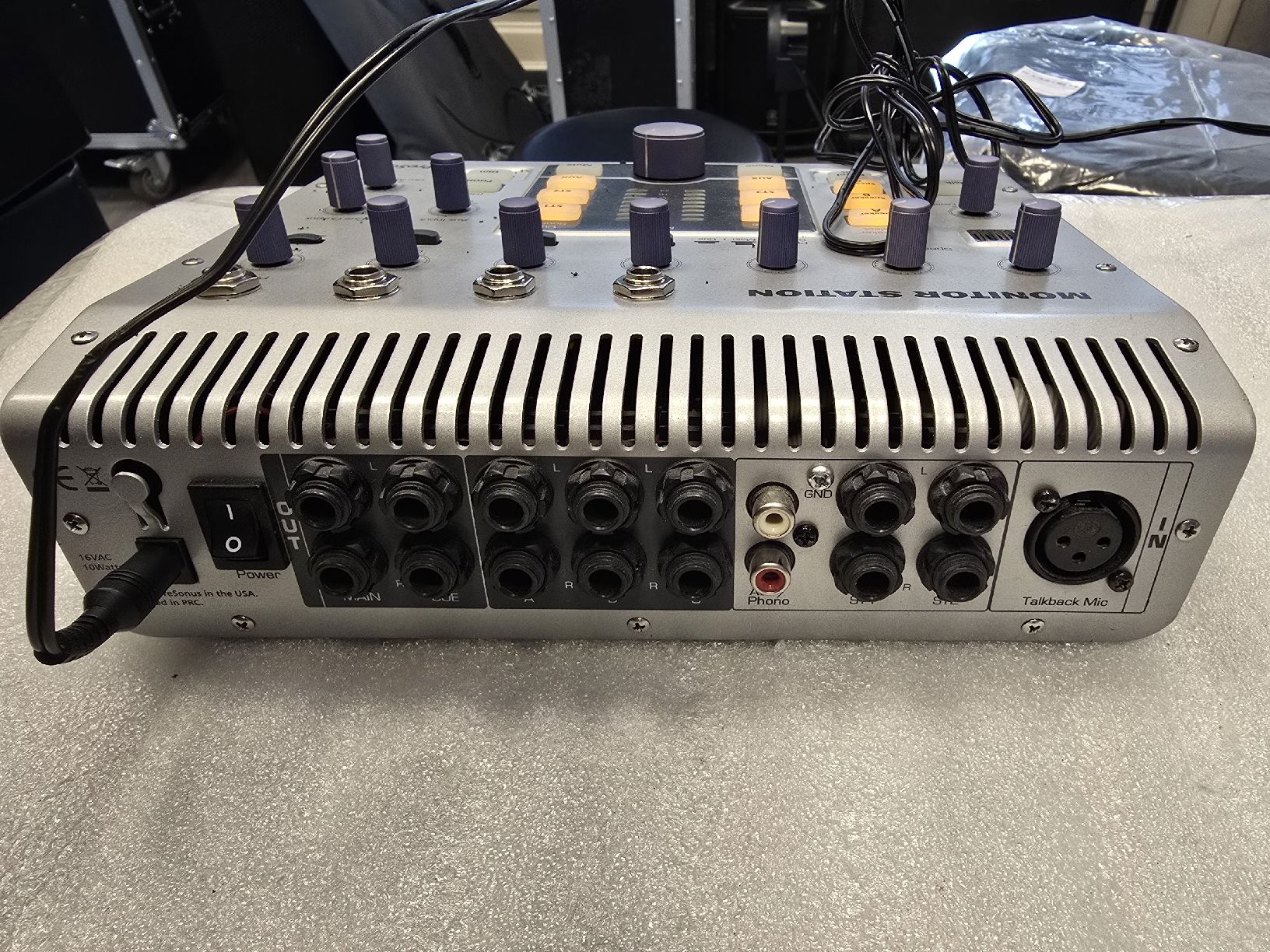

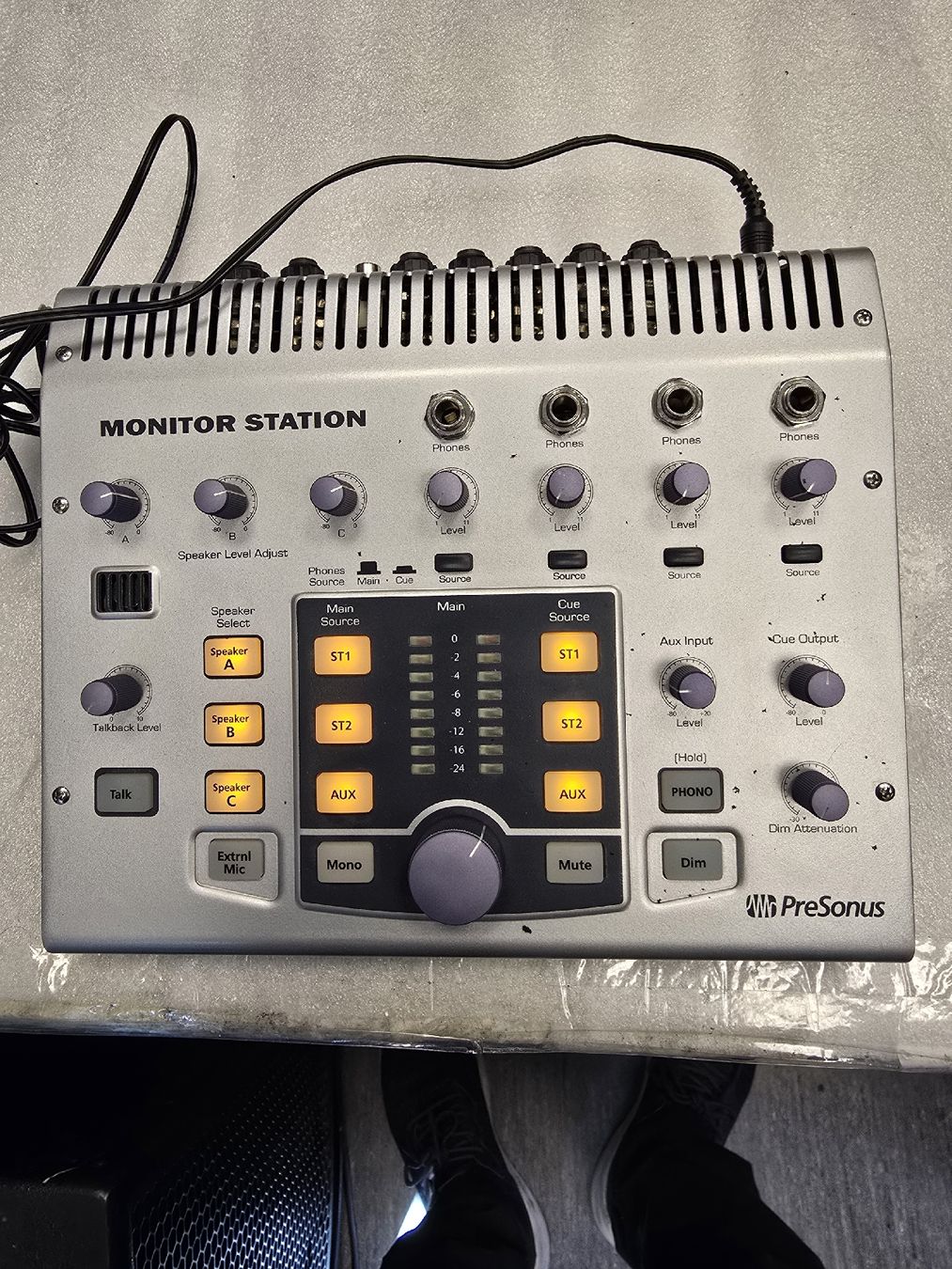

PRESONUS MONITER STATION + Power Supply

PRESONUS MONITER STATION + Power Supply

Features

Speaker Select switches

Separate level control for each speaker pair

4 balanced ¼”analog line inputs (2 L/R pairs)

2 unbalanced RCA analog line inputs (1 L/R pair) with phono preamp (switchable in/out) and level control

1 balanced XLR input for external dynamic talkback microphone

6 balanced ¼”, line-level speaker outputs (3 L/R pairs) with separate, passive level controls

2 balanced ¼”, line-level Main outputs (1 L/R pair) with source selection

2 balanced ¼”, line-level Cue outputs (1 L/R pair) with source selection

4 stereo ¼” headphone outputs with separate volume controls and independent input source selection

Aux/Cue section with:

Cue Source switches (all sources can be simultaneously available)

Aux-input level control

Cue output-level control

Phono preamp (switchable in/out)

Main section with:

Source switches (all sources can be simultaneously available)

Output-level control

Mute and Mono switches

Dim (-20 dB) switch with variable attenuation control

Dual 8-segment LED input meters with selectable +4, +10, or +18 dBu reference level

4 screaming-loud stereo headphone amplifiers with separate volume controls and independent input-source selection

Built-in electret-condenser talkback microphone with level control (feeds headphone and cue outputs)

Physical

9.5” (W) x 3” (H) x 8.75” (D) desktop-type chassis

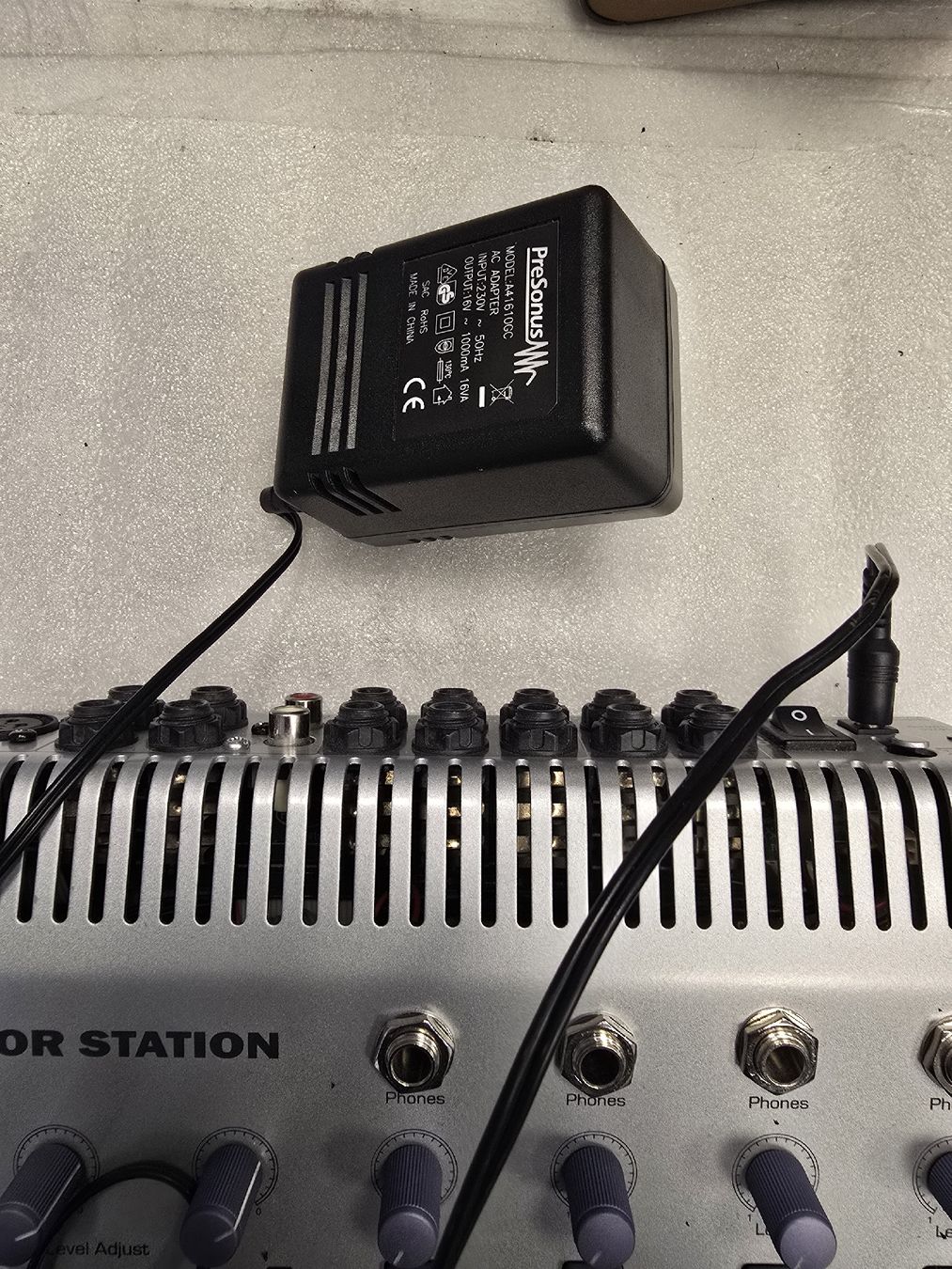

External 16 VAC power supply
