Orange Phase Pro 2023

Specifications

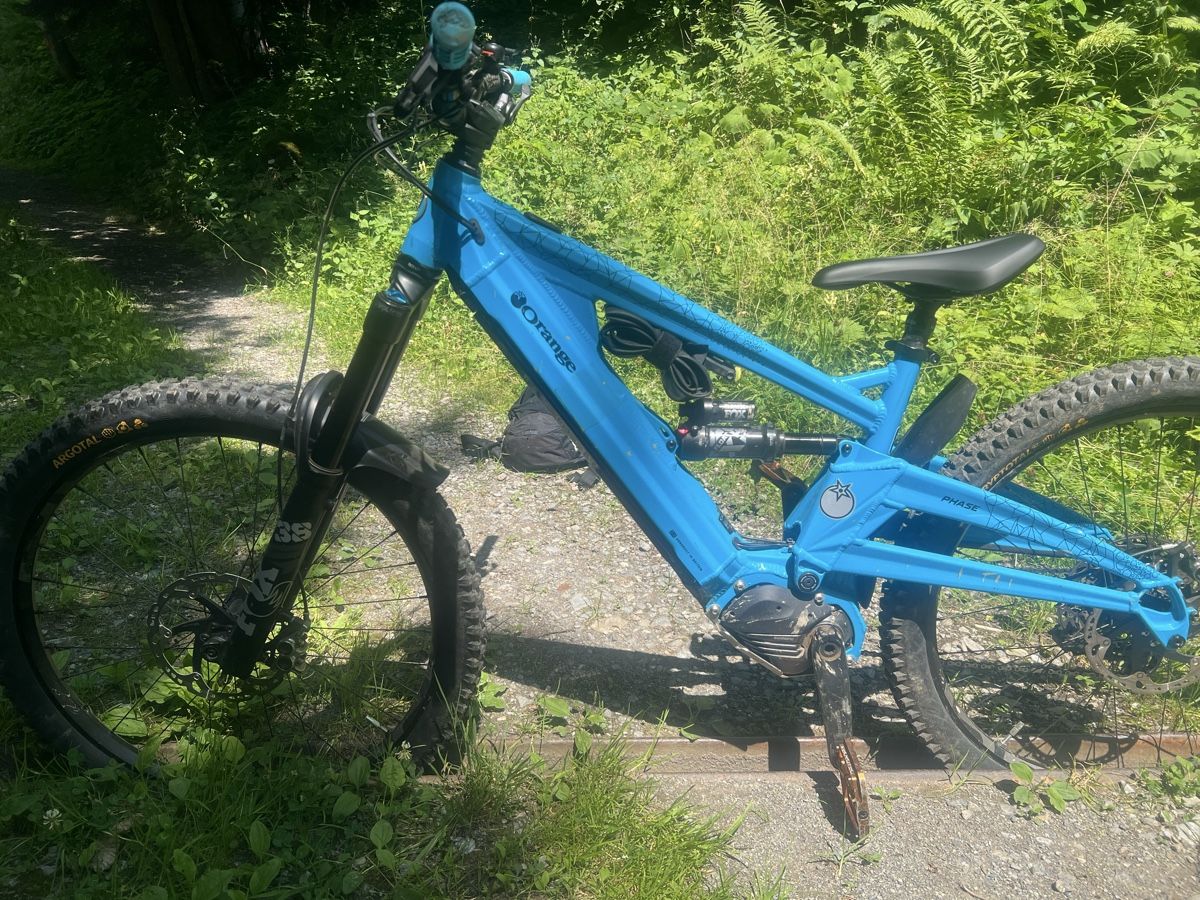

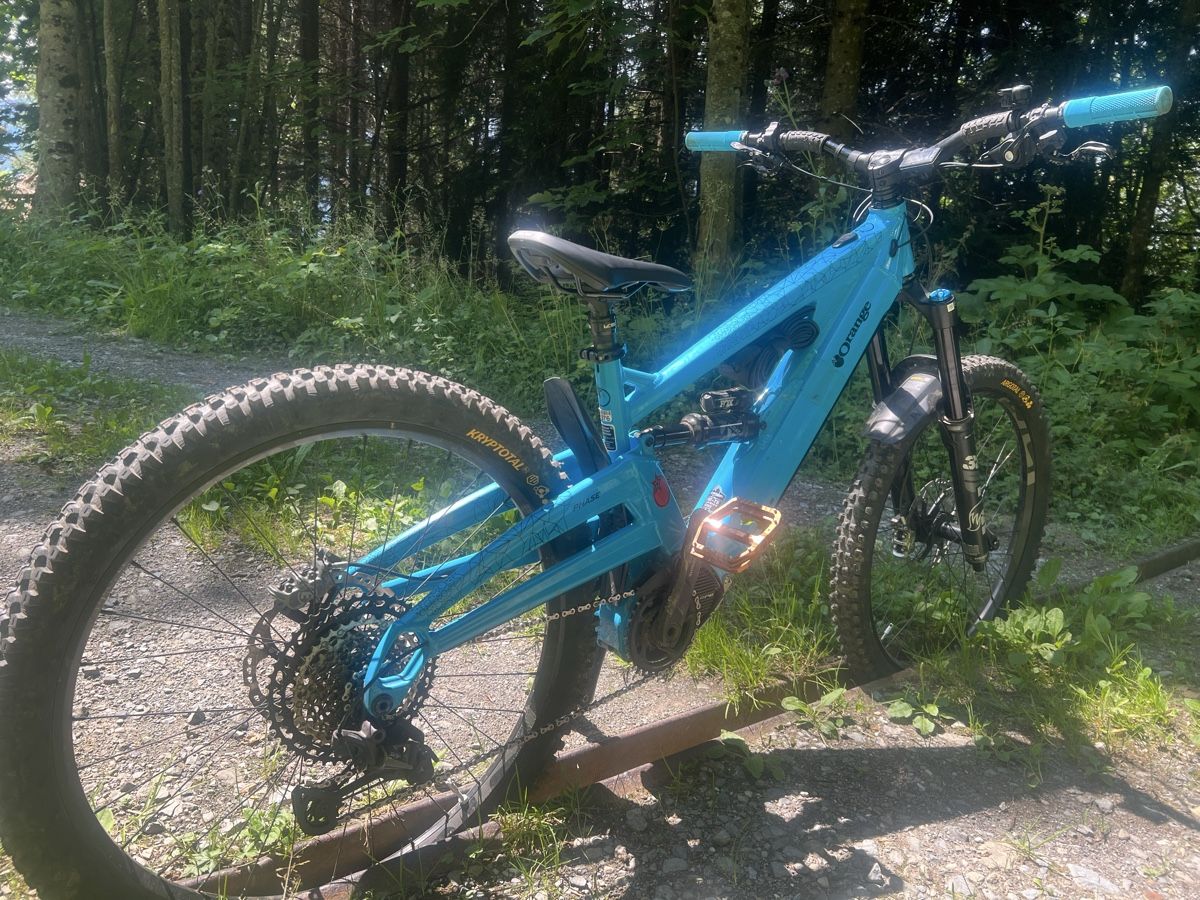

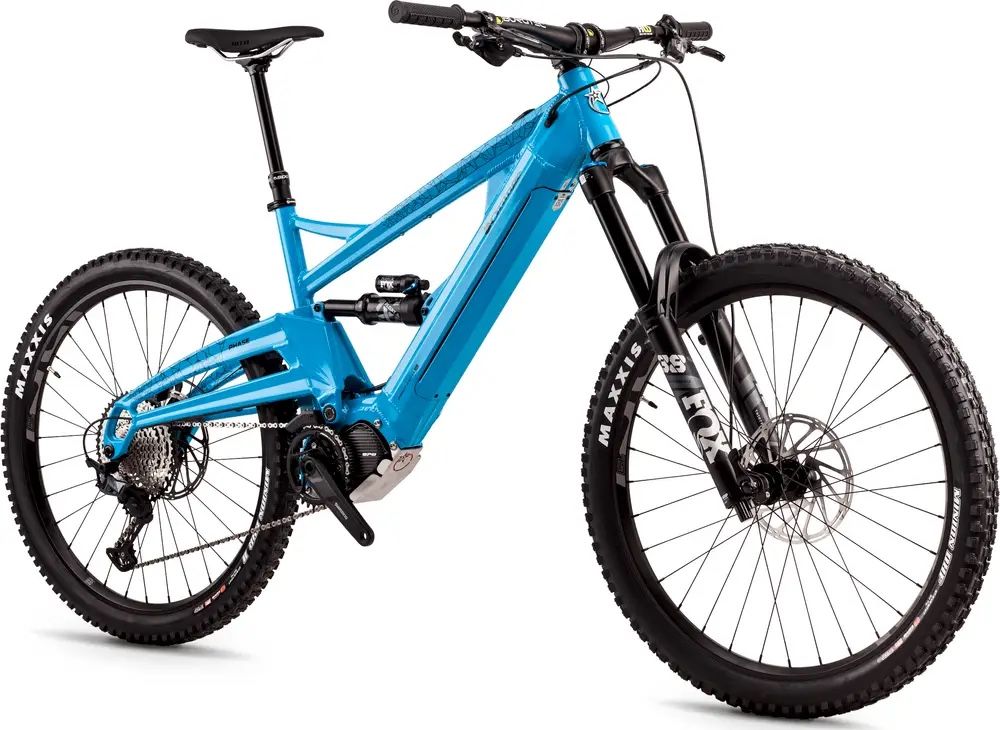

Product Orange Phase Pro E-Bike

Model Year 2023

Intended Use

Enduro / All-Mountain

Freeride / Bike Park

Rider

Unisex

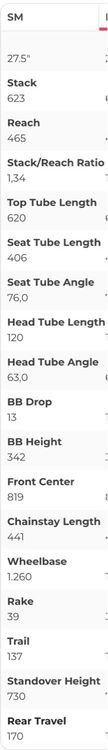

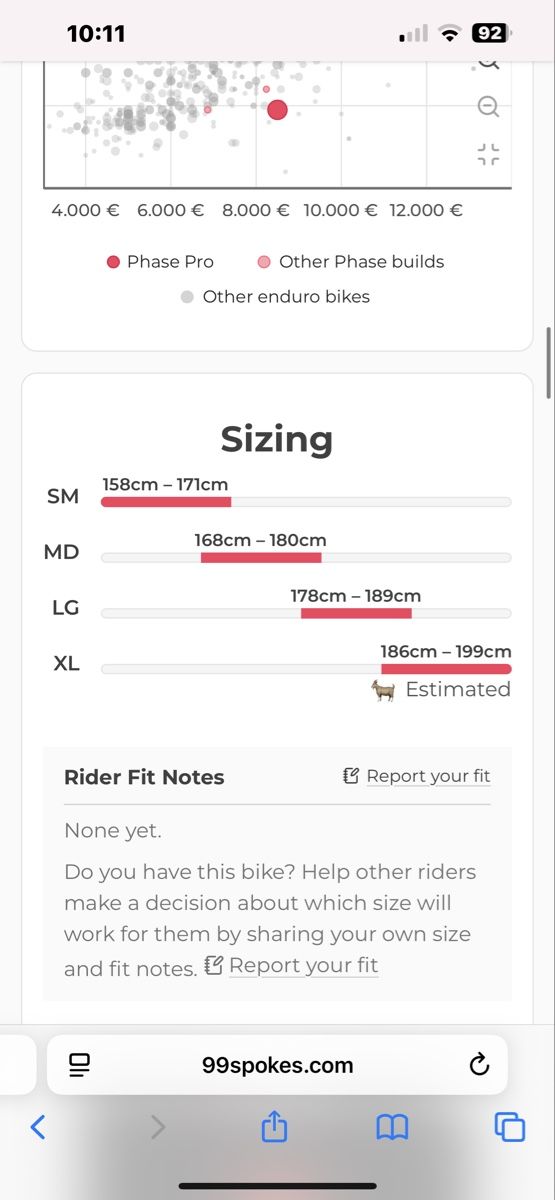

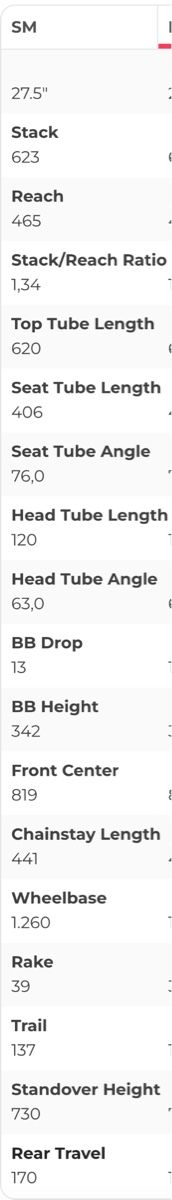

Sizes and Geometry

SM

View Full Geometry

Wheel Size

27.5" (650b)

E-Bike Class

Class 1: Pedal Assist (Pedelecs)

Motor Shimano STEPS EP8, 85Nm max torque, 250W nominal power, 504W max power

Battery Shimano STEPS E8036, integrated, quick release removable

Battery Capacity

630 Wh

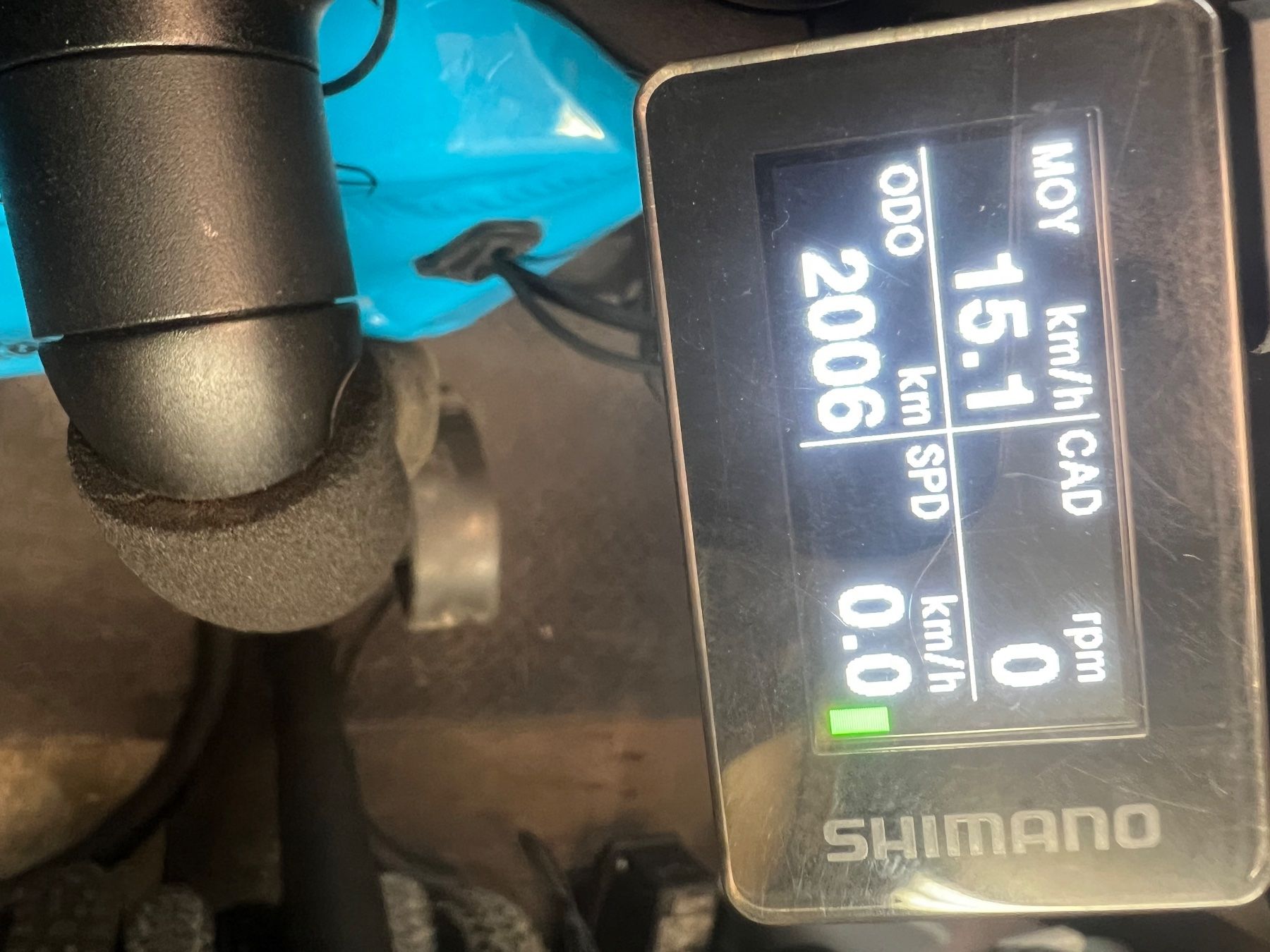

Display/Remote Shimano STEPS EM800

Modes Boost, Trail, Eco, Intelligent Walk Assist

Max Speed with Assist

15.6 mph (25 km/h)

Frame Material

Aluminum

Frame Material Details Monocoque 6061-T6 custom-butted aluminum

Rear Travel

170mm

Rear Shock FOX FLOAT X Performance, 230mm x 65mm

Fork FOX FLOAT 38 Performance

Fork Travel 180mm

Head Tube Diameter Straight, 49mm

Headset ACROS, BlockLock rotation limiter, ZS49/28.6 upper, EC49/40 lower

Handlebar Burgtec RideWide Enduro, 800mm width

Stem Burtgec Enduro, 42.5mm length

Grips Strange Grappler, lock-on

Brakes SRAM Guide RE, 4-piston, 200mm rotors

Brake Levers SRAM Guide RE

Drivetrain

1x

Shifters Shimano SLX M7100, 12-speed

Front Derailleur None

Rear Derailleur Shimano SLX M7100, 12-speed

Chainguide e*thirteen e*spec Plus upper slider

Cranks Shimano M600, 165mm length

Chainrings Shimano M600, 34 tooth

Pedals None

Chain KMC, 12-speed

Cassette Shimano SLX M7100, 12-speed, 10-51 tooth

Rims e*thirteen LG1 EN, 30mm width

Hubs Front: Strange, 110x15mm Boost

Rear: Hope Tech Pro 4, 148x12mm Boost, MICRO SPLINE driver

Spokes

Tires Front: Maxxis Minion DHF, 3C compound, EXO+ casing, 27.5" x 2.5"

Rear: Maxxis Minion DHR II, 3C compound, EXO+ casing, 27.5" x 2.4"

Saddle WTB Volt

Seatpost SDG Tellis dropper, 150mm or 170mm drop

Seatpost Diameter 30.9mm

Seatpost Clamp Strange, bolt-on, 34.9mm

Rear Dropout / Hub Dimensions 148x12mm Boost

Max. Tire Size

Bottle Cage Mounts None

Colors Gloss Cyan Blue with Black decals

Warranty 5 years frame, 1 year paint/finish, limited lifetime crash replacement

Weight

Miscellaneous • Single pivot rear suspension design

• Internal cable routing

• SRAM UDH (Universal Derailleur Hanger)

• Power settings customizable via Shimano STEPS E-Tube Project App

Price

$7,900.00

More Info

orangebikes.com

Pour des questions /essaies/ photos et autres infos je suis disponible;

0793156761
