Zu verkaufen:

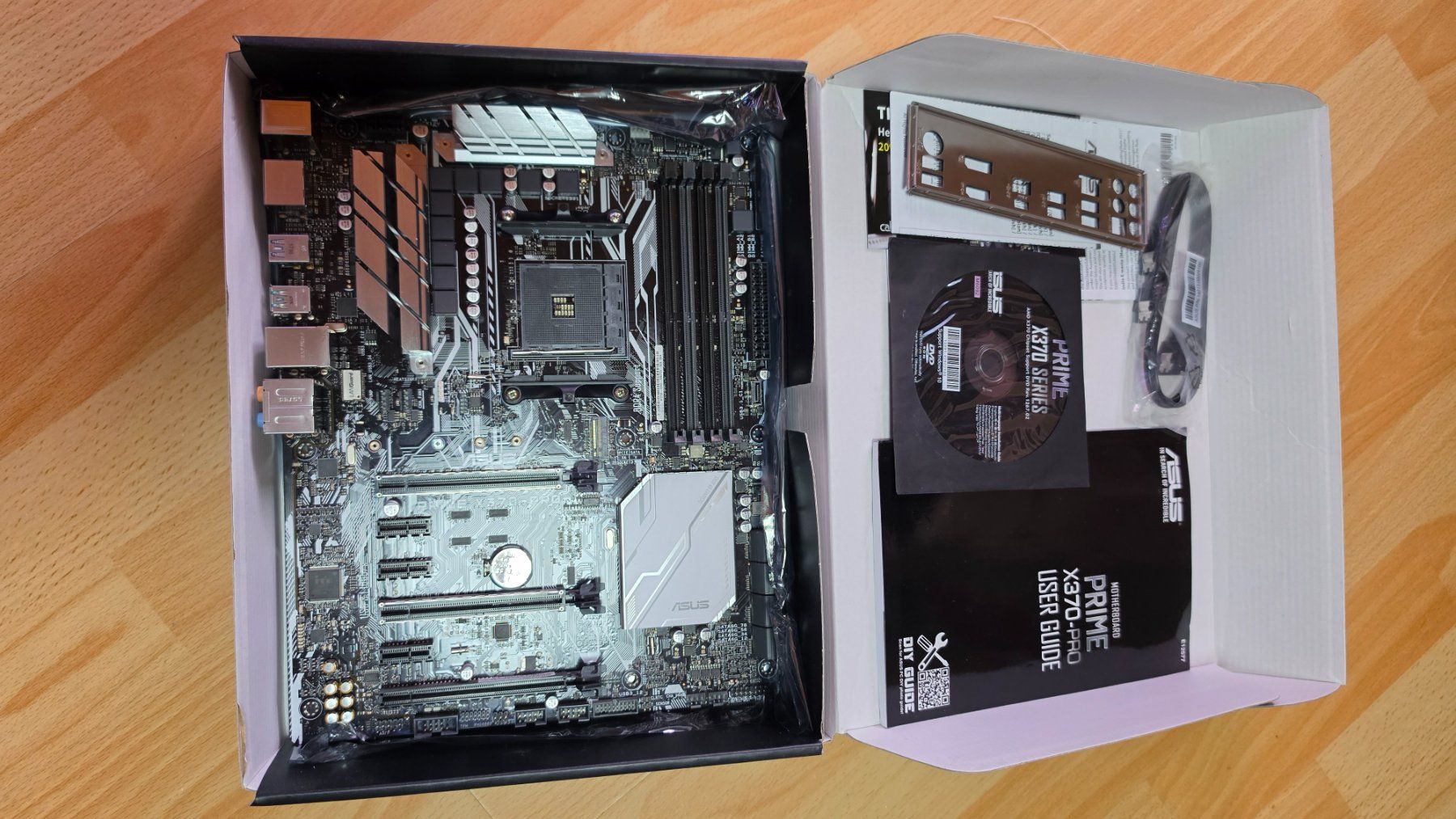

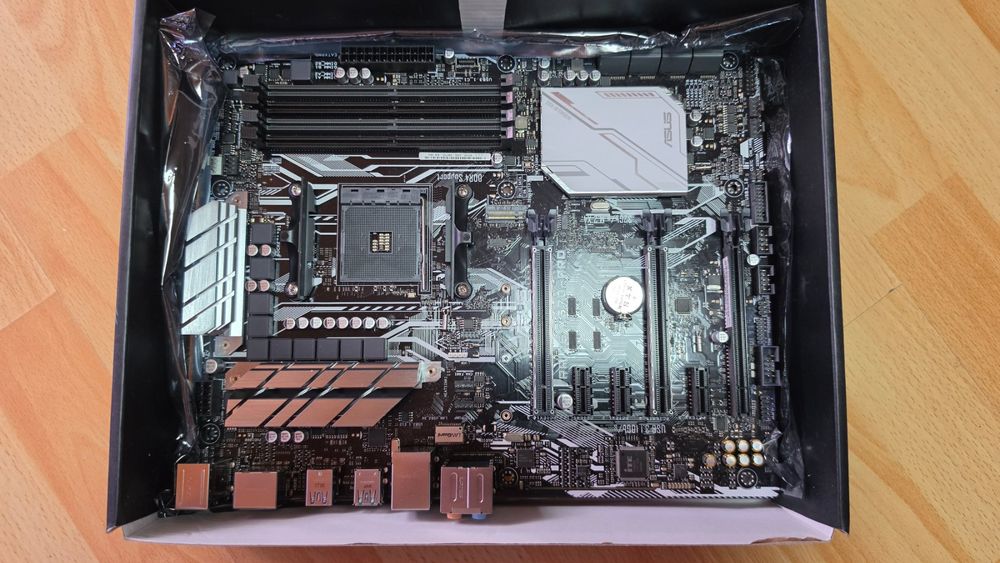

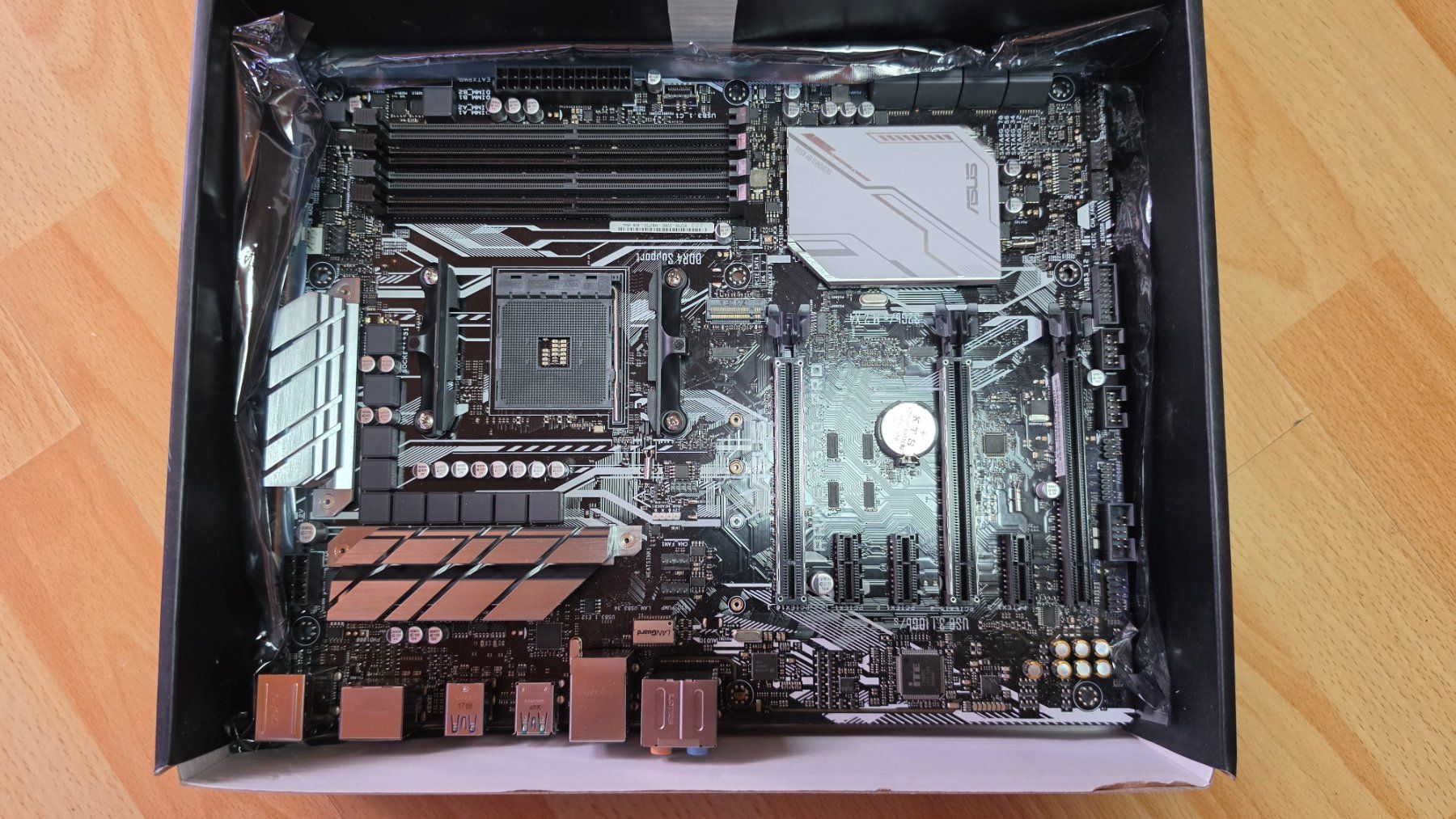

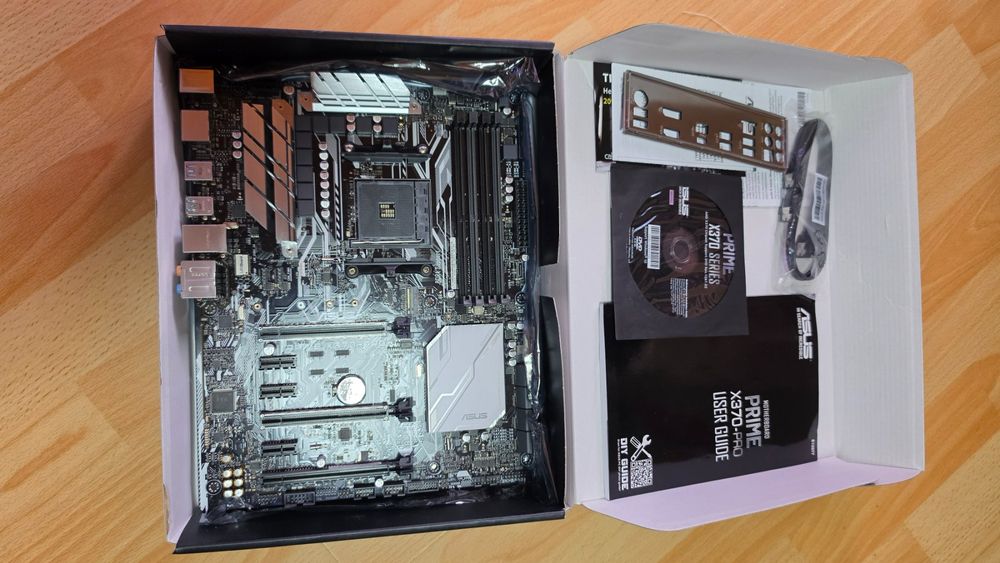

Mainboard Asus PRIME X370-PRO
Privatverkauf...also ohne Garantie und Rucknahme.
General Information:
Category motherboards or daughterboards
Description ASUS PRIME X370-PRO - Motherboard - ATX - Socket AM4 - AMD X370 - USB 3.0, USB 3.1, USB-C - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer ASUS
UNSPSC 43201513
Main Specifications
Dimensions & Weight / Depth 24.4 cm
Dimensions & Weight / Width 30.5 cm
Header / Brand ASUS
Mainboard / Chipset Type AMD X370
Mainboard / Compatible Processors • A series
• Athlon
• Ryzen
Mainboard / Processor Socket Socket AM4
Networking / Data Link Protocol • Ethernet
• Fast Ethernet
• Gigabit Ethernet
Packaged Quantity 1
Video Output / Type Graphics adapter (CPU required)
Audio
Audio Codec Realtek ALCS1220A
Compliant Standards High Definition Audio
Type HD Audio (8-channel)
Expansion / Connectivity
Expansion Slots • 1 x CPU
• 4 x DIMM 288-pin
• 1 x PCIe 3.0 x16 (x16/x8 mode (with AMD Ryzen CPU); slot not works with AMD 7th Generation A-series/Athlon CPU)
• 3 x PCIe 2.0 x1
• 1 x PCIe 2.0 x16 (x4 mode)
• 1 x PCIe 3.0 x16 (x8 mode)
Interfaces • 1 x LAN (Gigabit Ethernet)
• 5 x USB 3.0
• 1 x PS/2 keyboard / mouse
• 1 x audio line-in - mini-jack
• 1 x audio line-out - mini-jack
• 1 x microphone - mini-jack
• 1 x TOSLINK
• 1 x USB-C
• 2 x USB 3.1
• 1 x HDMI
• 1 x DisplayPort
• 1 x audio line-out (center/subwoofer) - mini-jack
• 1 x audio line-out (rear) - mini-jack
Internal Interfaces • 4 x USB 2.0 - header
• 2 x USB 3.0 - header
• 1 x serial - header
• 1 x USB-C - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces • SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
• SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Features
BIOS Features WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, ASUS O.C. Profile, UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support, ACPI 6.1 support
BIOS Type AMI
Hardware Features C.P.R. (CPU Parameter Recall), jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, ASUS Precision Tweaker 2, NVIDIA 2-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Fanless Design Heatsink, AMD 3-way CrossFireX technology support, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, Turbo LAN, Dual Intelligent Processors 5, LANGuard, ASUS Overvoltage Protection, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS 5X Protection III, ASUS SafeSlot Core
Sleep / Wake Up Wake on LAN (WOL), wake on ring (WOR)
General
Chipset Type AMD X370
Compatible Processors Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon)
Max Processors Qty 1
Processor Socket Socket AM4
Product Type Motherboard - ATX
Graphics
Max Allocated RAM Size 2 GB
LAN
Network Controller Intel I211-AT
Network Interfaces Gigabit Ethernet
Miscellaneous
Cables Included • 4 x Serial ATA cable
• 1 x SLI bridge
Compliant Standards Plug and Play
Depth 24.4 cm
Included Accessories 1 x M.2 screw, I/O back cover
Software Included Drivers & utilities, ASUS AI Charger, ASUS AI Suite III, ASUS Turbo App, PC Cleaner
Width 30.5 cm
Supported RAM
Bus Clock 2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz (O.C.), 3200 MHz (O.C.)
Features Dual channel memory architecture
Max Size 64 GB
Registered or Buffered Unbuffered
Supported RAM Integrity Check Non-ECC
Technology DDR4
