Resources Parameter
ESP32: 240MHz dual core, 600 DMIPS, 520KB SRAM
Flash: 4MB
Netzwerk: Wi-Fi (mit UIFlow 2 auch Bluetooth)
Power Input: 5V @ 500mA (USB)
Port: Type C x 1, GROVE(I2C+I/0+UART) x 1
PIN: Port G19, G21,G22,G23,G25, G33
RGB LED: SK6812 3535 x 1
IR: Infrared transmission
Taste Custom: button x 1
Antenne: 2.4G 3D Antenna
Gewicht: 3g
Masse: 24*24*10mm

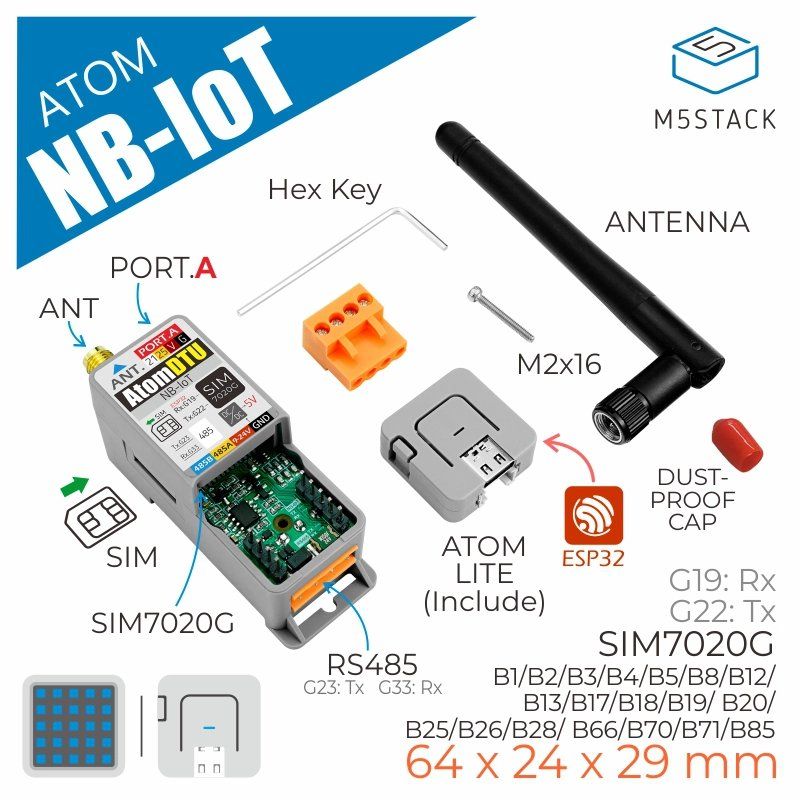

Inhalt:

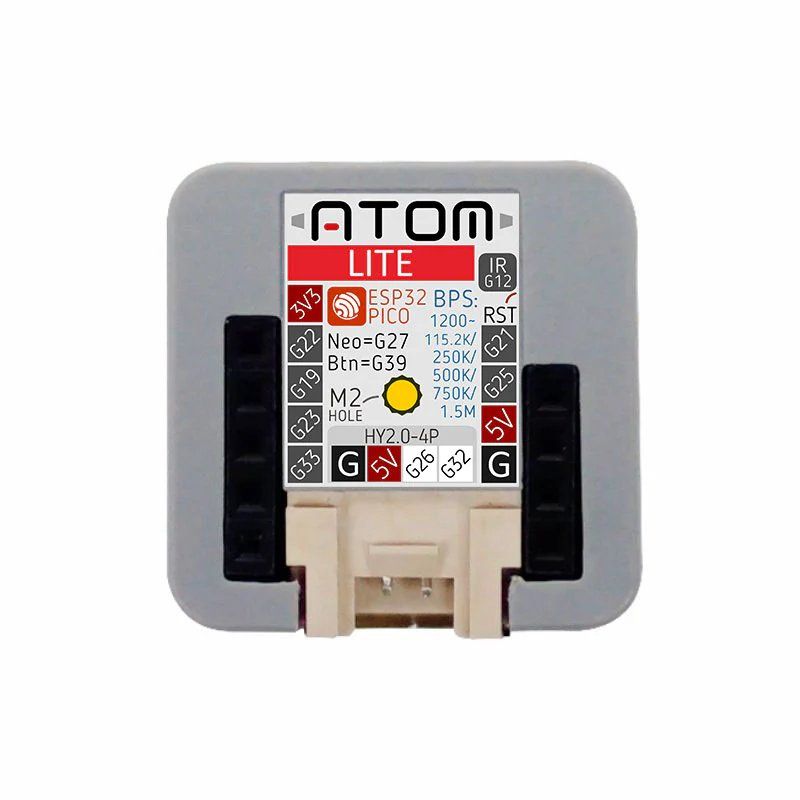

- Atom lite

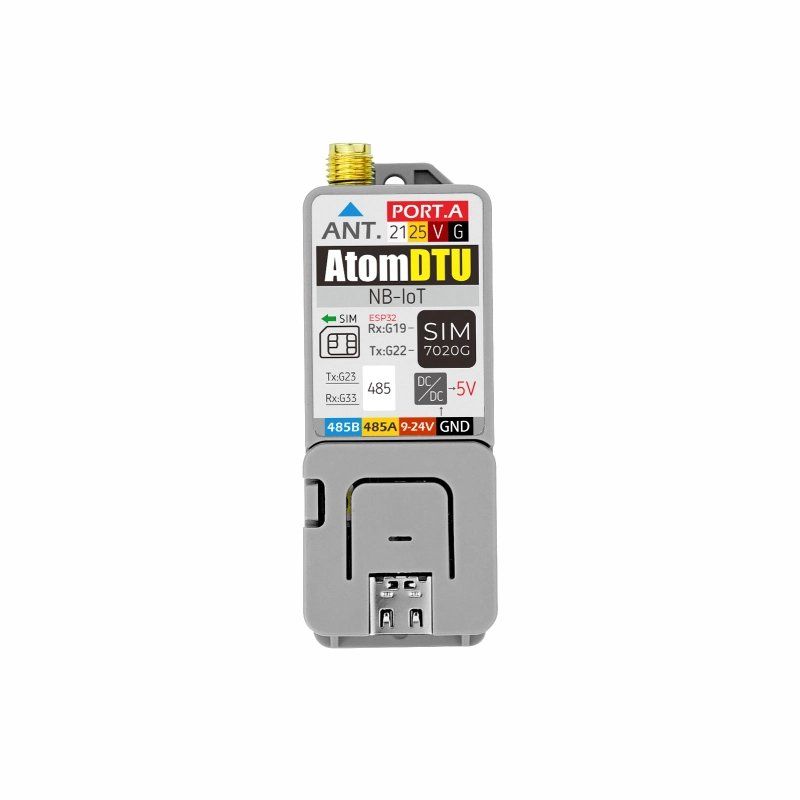

- NB-Iot
- Antenne
- Inbus-Schlüssel
- lange Schraube (M2 x 16mm)
- 3.96-4P Terminal / Stecker
Extras zum "normalen" Atom lite:
- RS485-Schnittstelle
- Modbus Master/Slave
- DIN-Schienen-Montage
- Grove-Port "A" (rot)
- SIM7020G, Global-Version/Multiband Support
- RS485 communication interface (with 12V input interface, internal integrated DCDC step-down 5V)
- Modbus Master/slave
- Strong signal access capability
- AT command control
- SIM card type: MicroSIM
- External antenna: SMA antenna interface
- Grove expansion interface:
- - I2C x1
- - Custom x1
- Serial communication: UART 115200bps

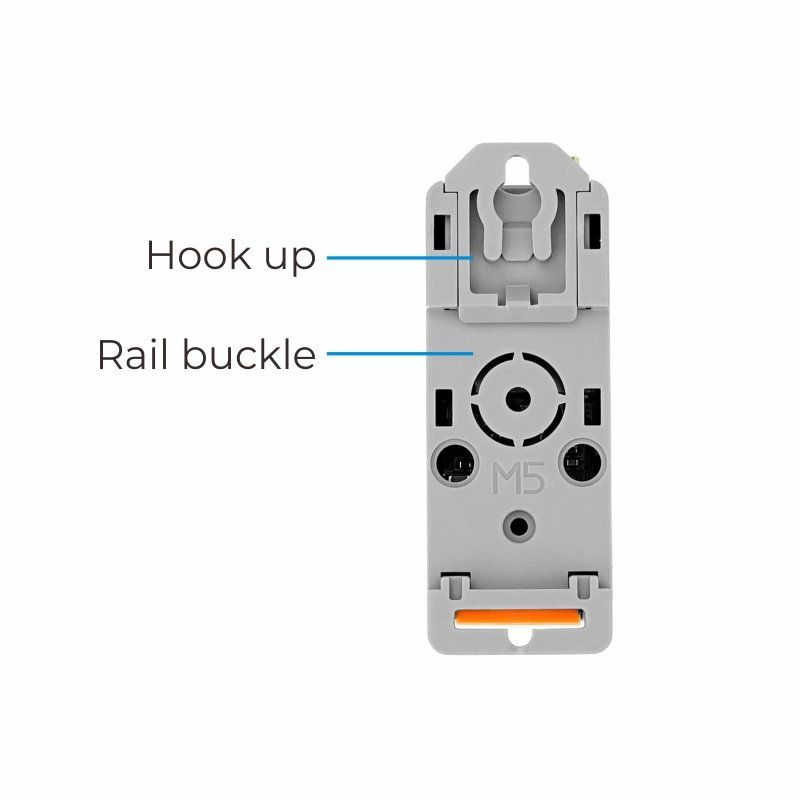

- Self-contained rail clamping
- Cat-NB frequency band:
- - B1/B2/B3/B4/B5/B8/ B12/B13/B17/B18/B19/ B20/B25/B26/B28/ B66/B70/B71/B85
- Data transmission (kbps):
- 126(DL)/150(UL)
- Network protocol:
- TCP/UDP/HTTP/HTTPS/ TLS/DTLS/DNS/NTP/ PING/LWM2M/COAP/ MQTT/MQTTS
- Arduino Libraries

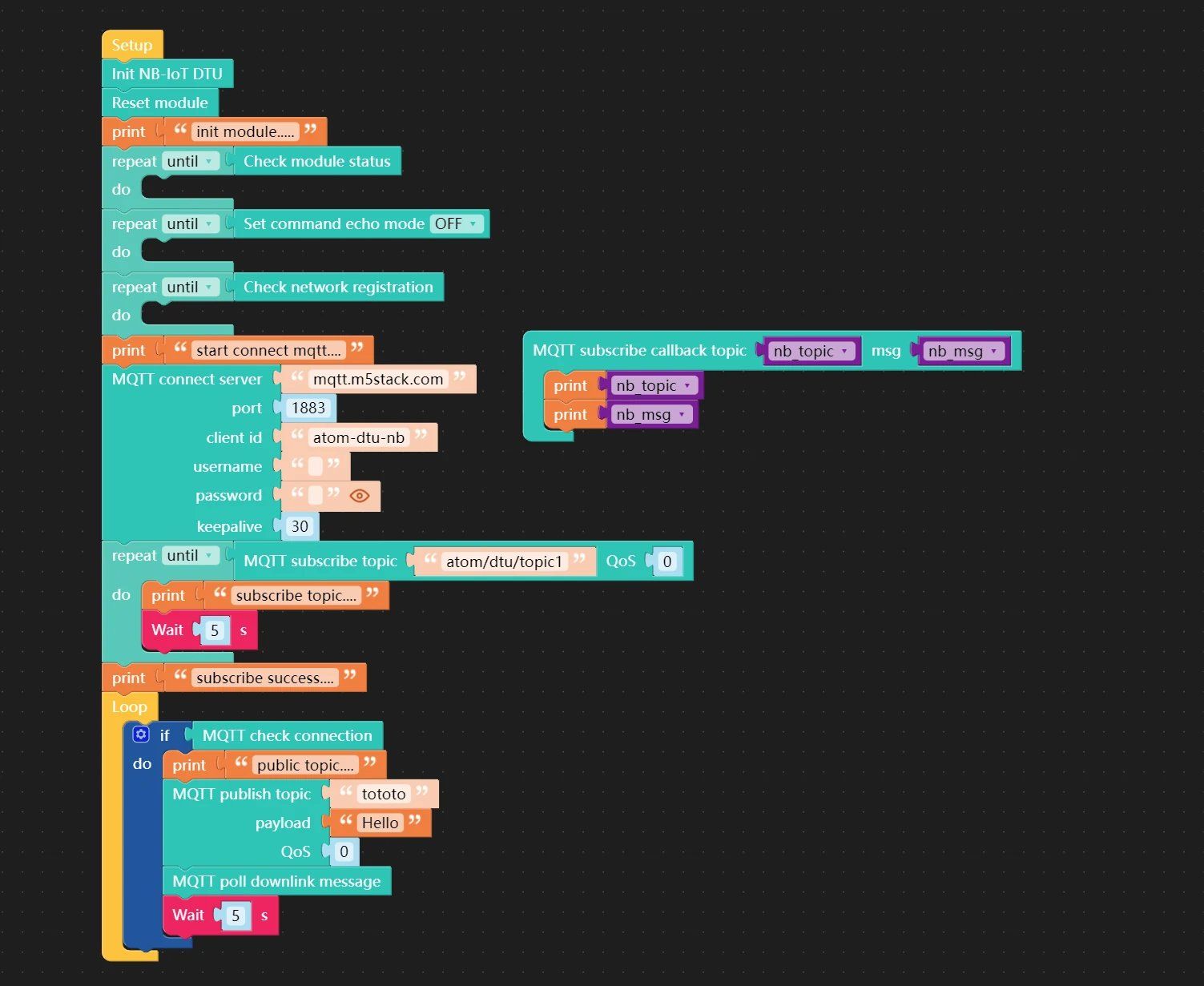

- UIFlow 1 und 2 (Block-Programmierung)
- ESPHome
- Home Assistant
Graitis oder günstige SIM-Karten findet man bei diversen Anbietern für NB-IoT
Weitere Infos auf der Seite von M5Stack
