Get ready for takeoff! Selling a brand new KDS Flymentor 3D system for RC helicopters. This advanced flight control system provides enhanced stability and precision for your RC helicopter. Includes parts as pictured, never fitted. Perfect for experienced RC pilots seeking to enhance their flying experience. Unused,
Flymentor 3D is a stabilization unit that helps the helicopter to self-stabilize in hover and also self recovery during 3D manuever.

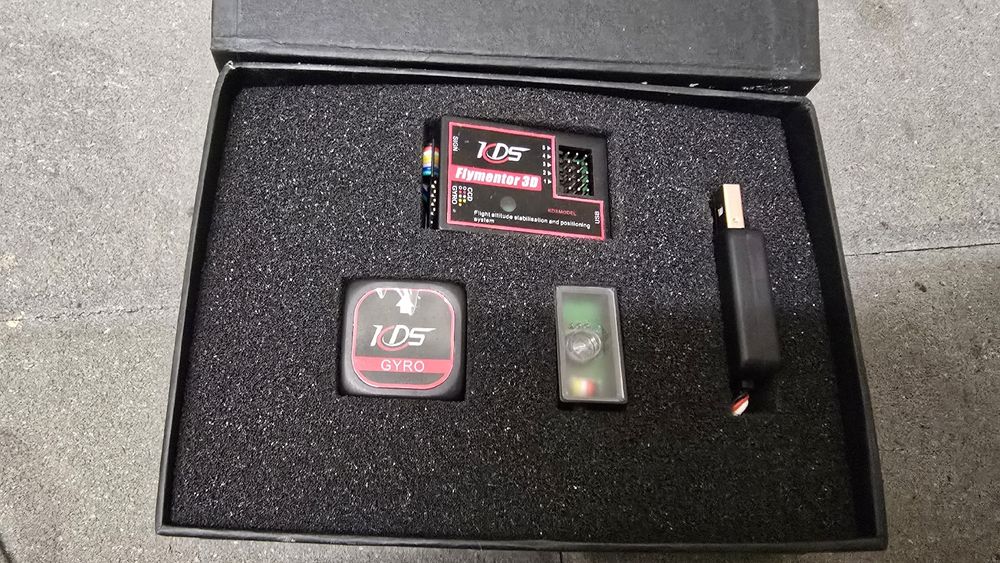

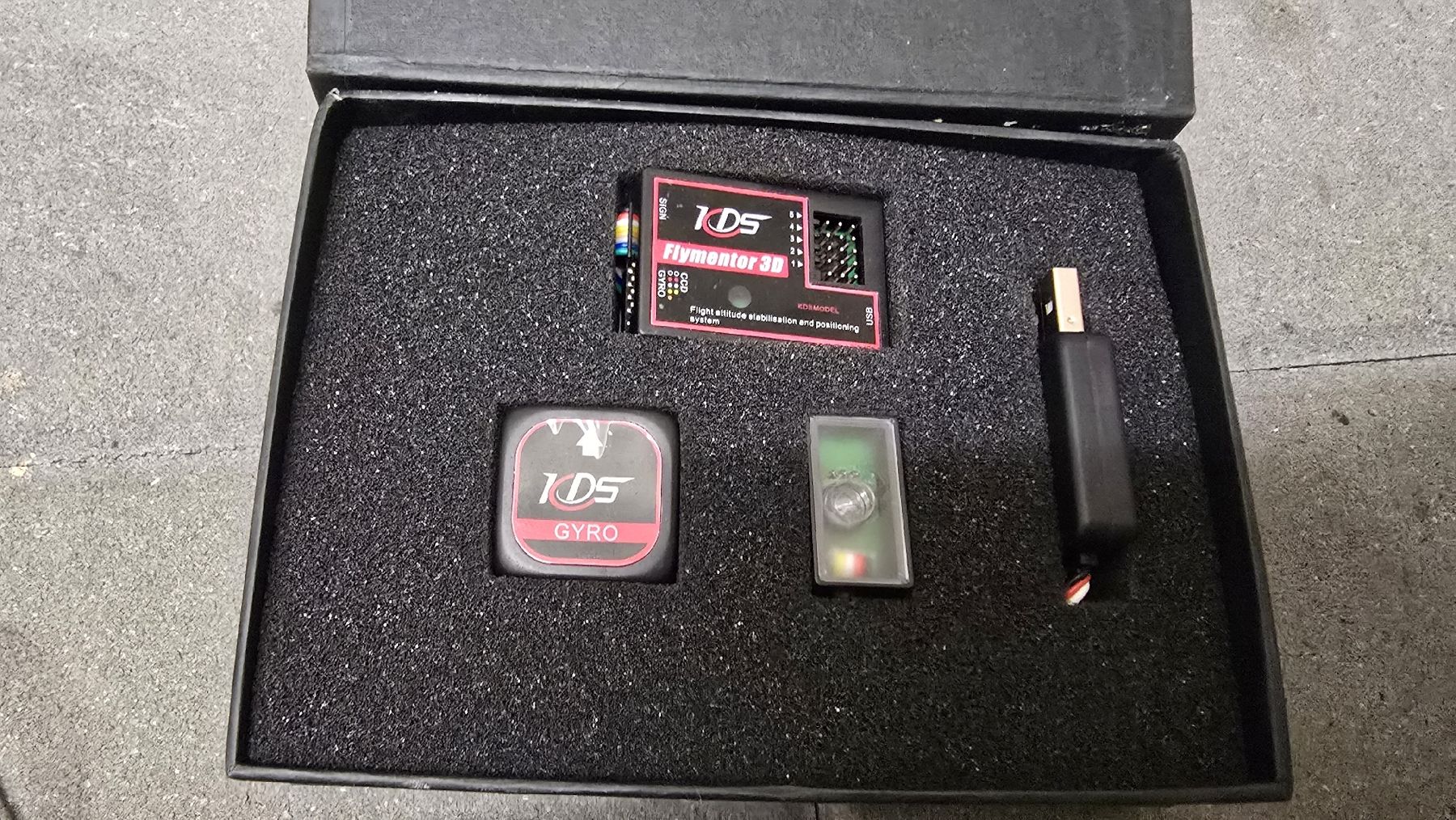

This unit comes with 5 items; the main unit, gyro, CCD sensor, CD software and usb data cable (manual is in PDF format in the CD).
Features:
Control all movement, including attitude stabilization, speed control, position locking.
CCO sensor to capture picture of ground, comparing pictures to avoid drifting.
Switch working mode (horizontal mode and position mode) through AUX channel.
Integrating head locking gyro and swash plate mixer.
Control sensitivity and mode of internal gyro through GEAR channel.
Support swash plate 3S 120°, 3S 140°, 4S 90°, 4S 90°+45°
Keep balance in inverted flight.
Configured by computer through USB.
If you are using FM/PPM remote control device, when helicopter is out of control, the Flymentor 30 will set aileron, elevator, rudder to neutral, and keep pitch in the final signal position, and switch to positioning mode automatically, the sensitivity is 70%.
Specification:
Voltage: 4.8-6.0V
Current: 55mA (under 5V)
Weight:37G
Temperature: O'C~ +40'C
Under the stabilisation mode and positioning mode, maximum rotate speed allowed: J Aileron and Elevator: ,;2000 / s
J Tail turning (if using external gyro): ,;3600 / s
