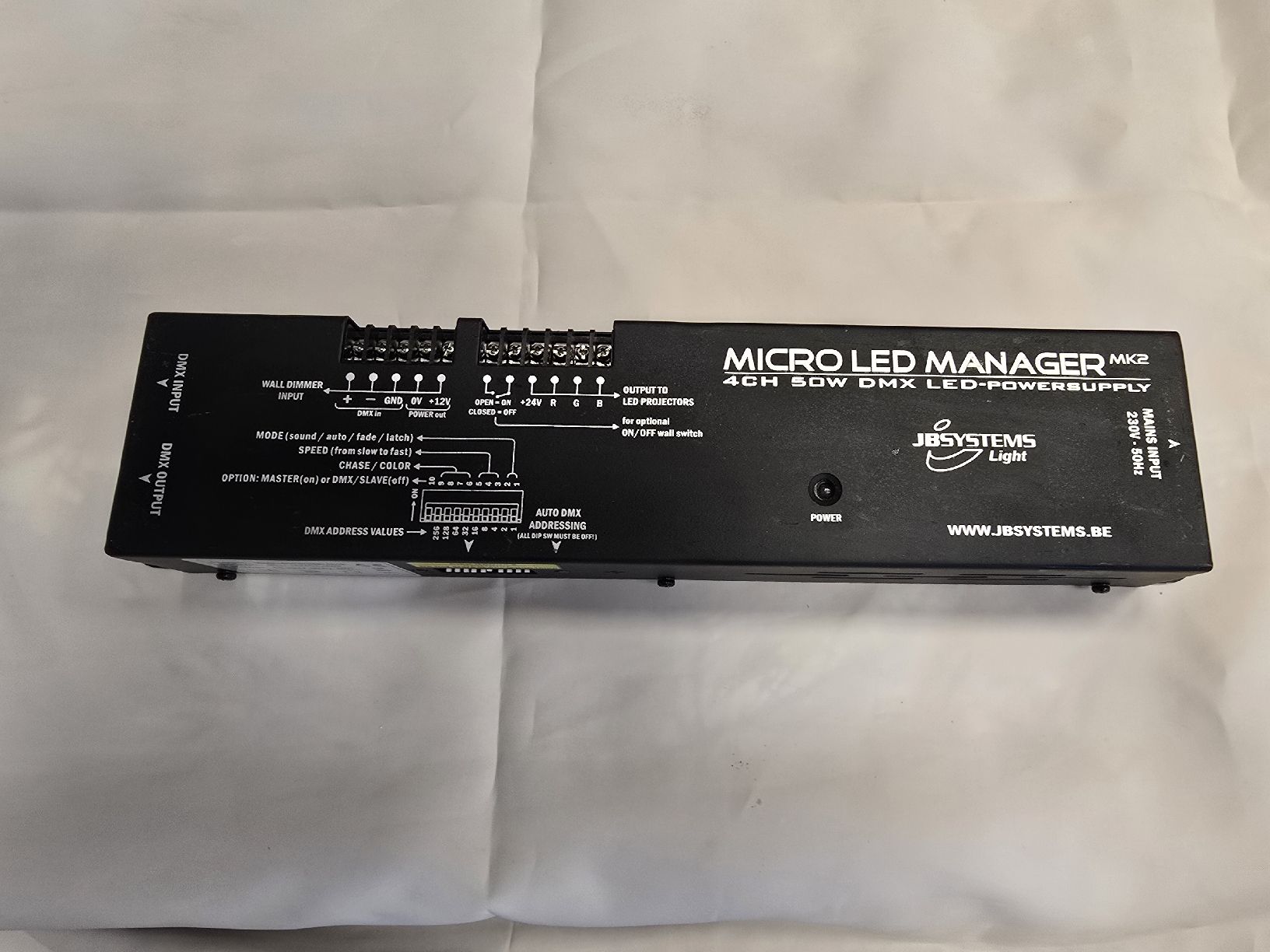

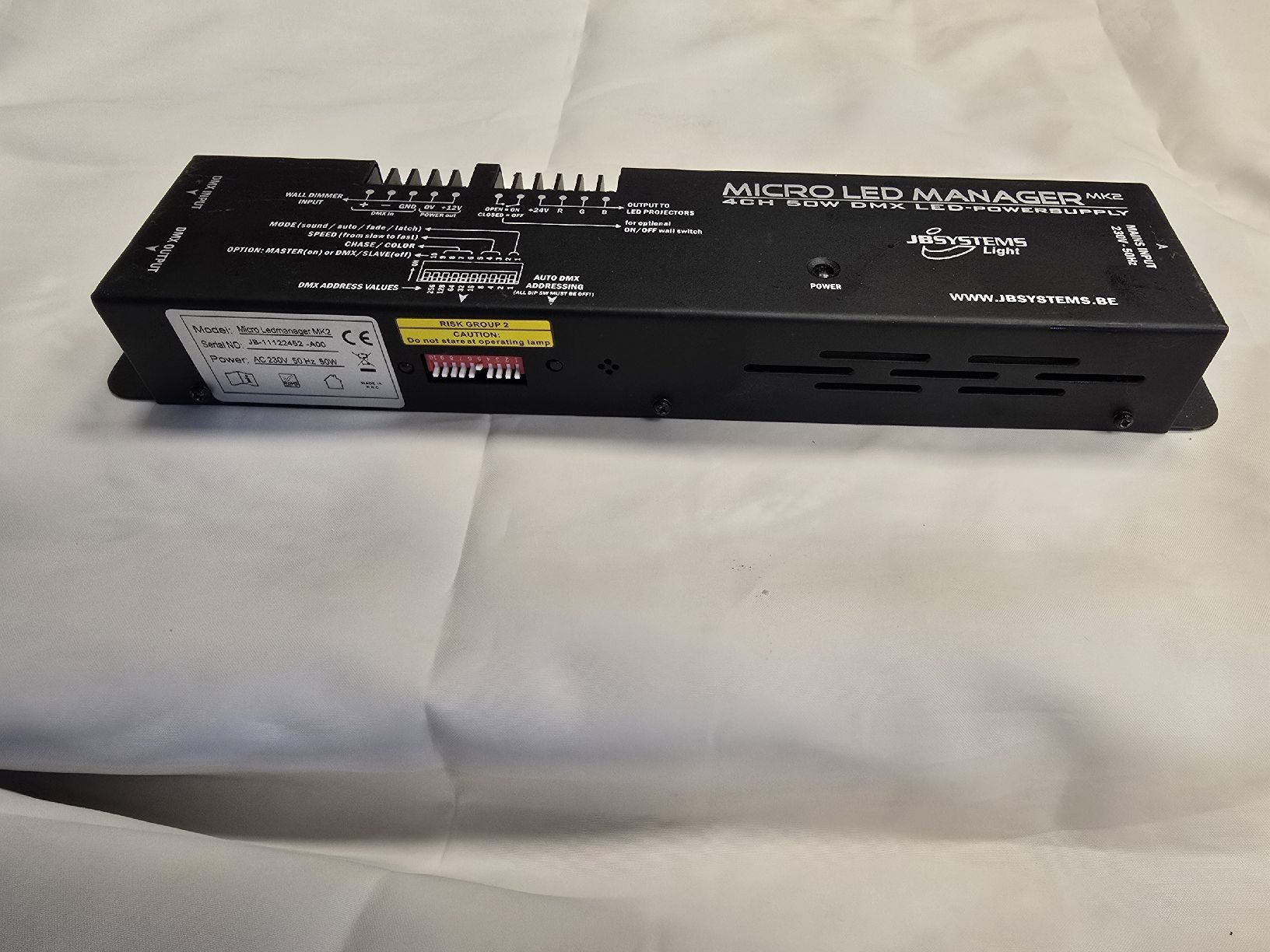

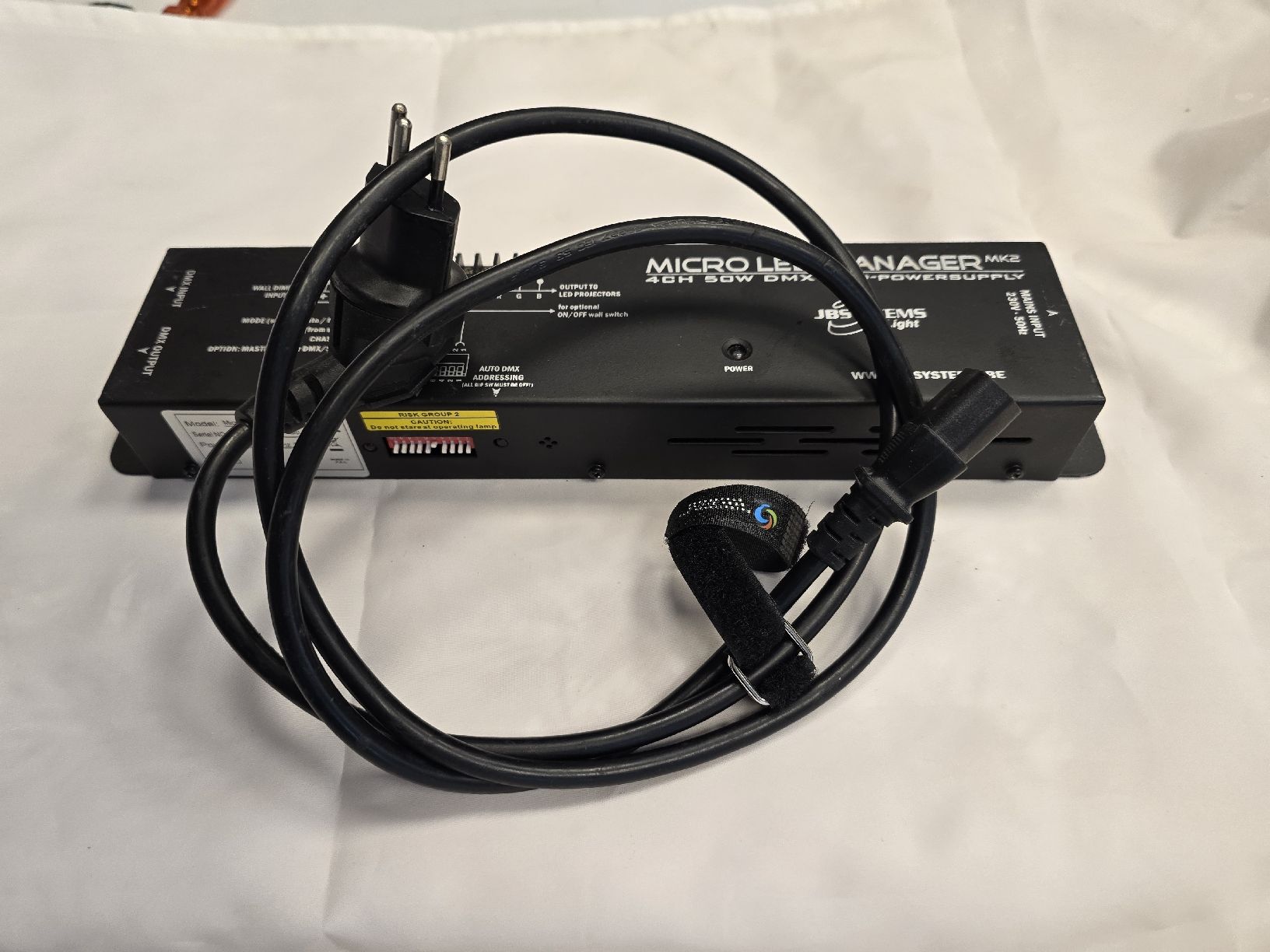

JB-Systems - Micro LED Manager MK2 led strip
The JB Systems Micro LED Manager MK2 is a state-of-the-art control unit for RGB LED fixtures, known for its versatility and user-friendly operation. The device offers various modes for color control and sequences, making it ideal for stage lighting and studio applications. It is compatible with common DMX controllers, allowing seamless integration into existing lighting systems.
Features JB Systems - Micro LED Manager MK2
Versatile Power Supply: Suitable for all types of passive RGB LED fixtures.
Various Operating Modes:
Fixed Color Mode: Instant access to 16 pre-programmed colors.
Auto Chase Mode: 16 different color chasers with 8 speeds.
Sound Chase Mode: Music-controlled color chasers.
Fade Chase Mode: Smooth transitioning color chasers in 8 speeds.
Wall Switch Compatibility: Compatible with any wall switch, even in DMX mode.

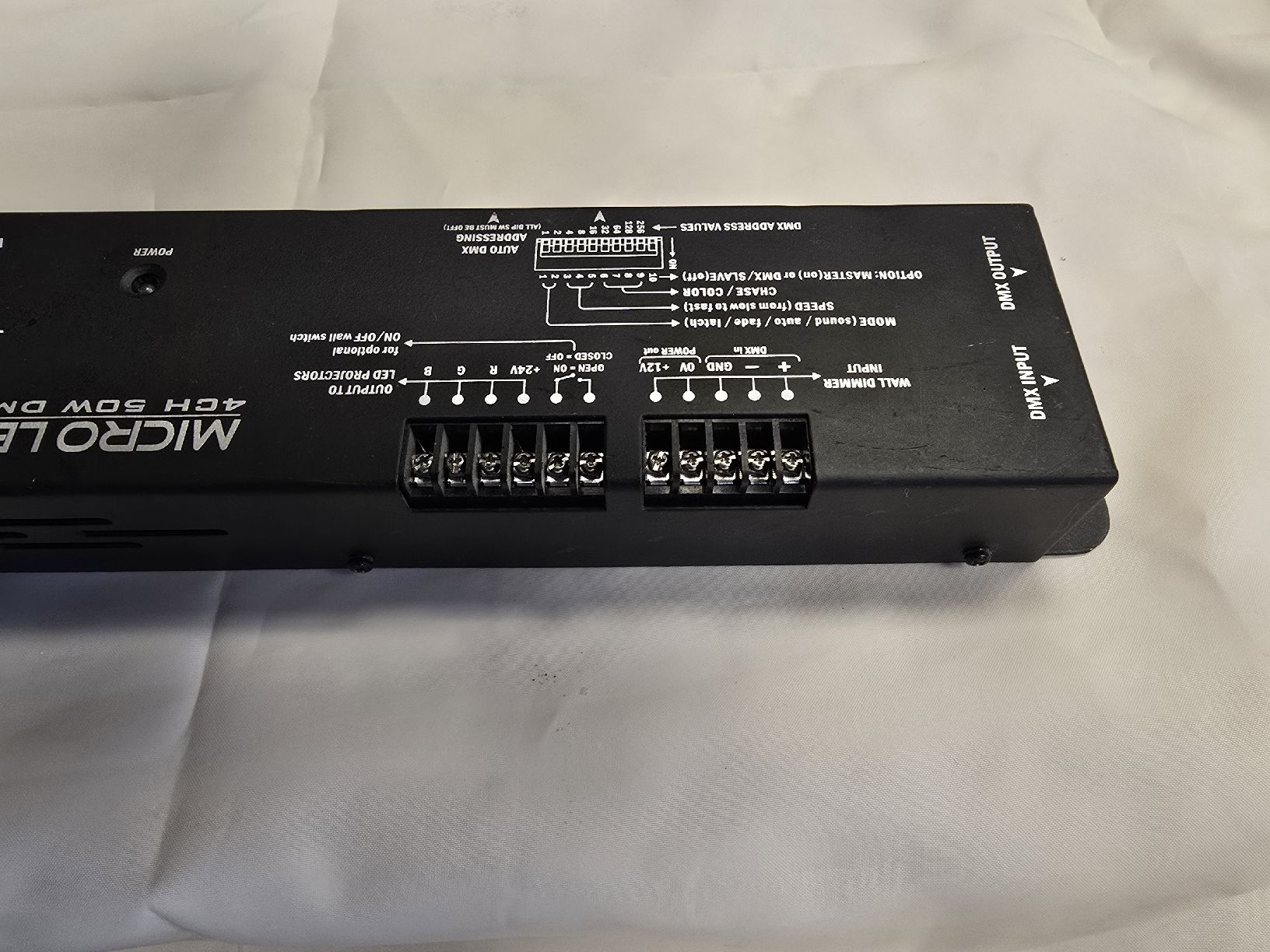

Flexible Control Options:
Directly on the device.
With an optional LED WALL DIMMER via a special connection interface.
With a LEDCON-02 remote control.
With a 300 Watt LED Manager.
With any common DMX controller.
Master/Slave Operation: Synchronization of multiple devices for powerful configurations.
1000Hz Scan Rate: Ideal for TV studios.
50W Power: 24Vdc output voltage with short-circuit protection.
4 DMX Channels: Ch1=Red, Ch2=Green, Ch3=Blue, Ch4=Dimmer/Strobe.

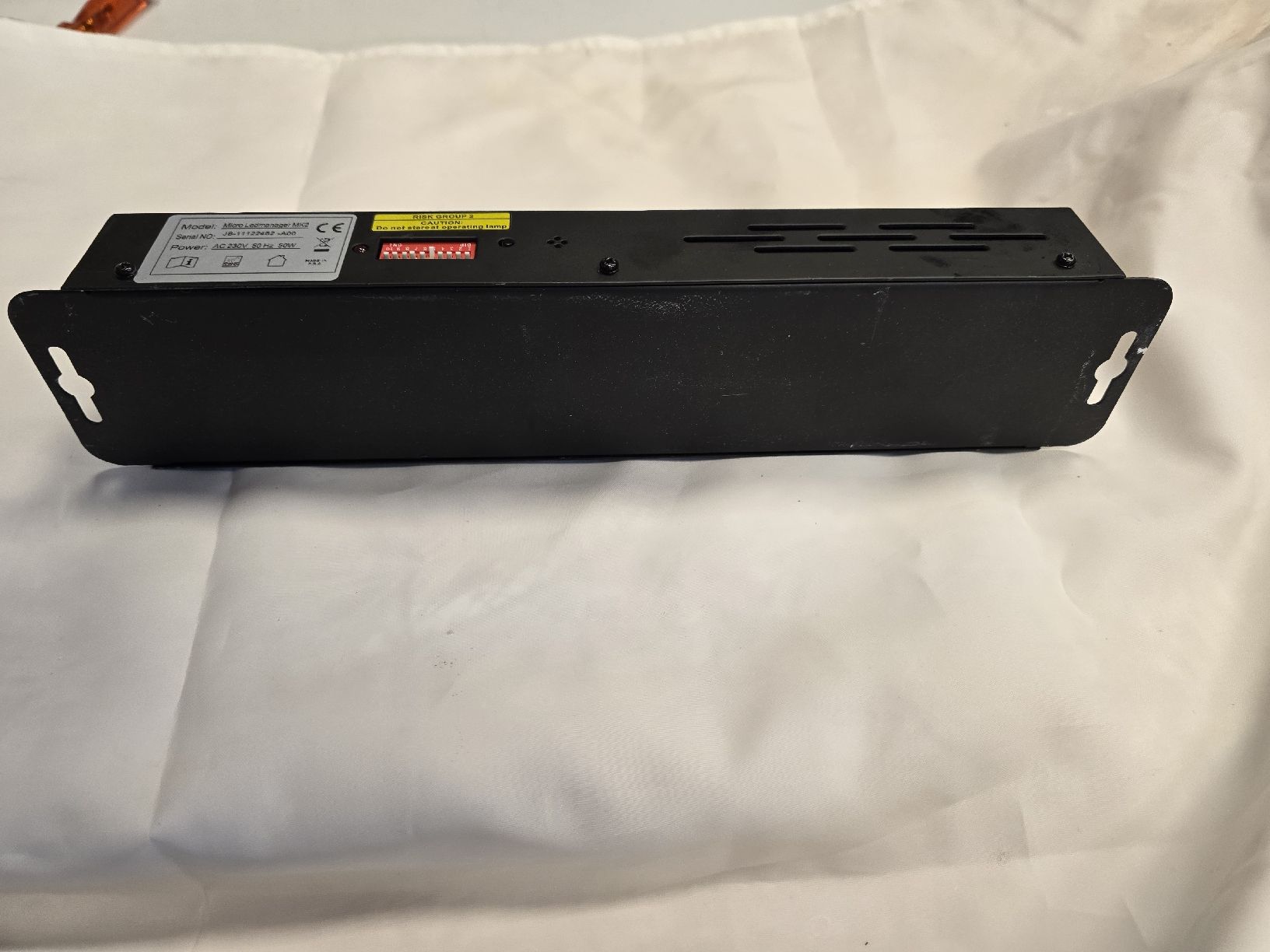

Wall Mountable: The housing is prepared for wall mounting.
Fanless: Completely silent operation.
Technical Specifications
Dimensions: 33.2 x 7 x 4 cm
Weight: 0.95 kg

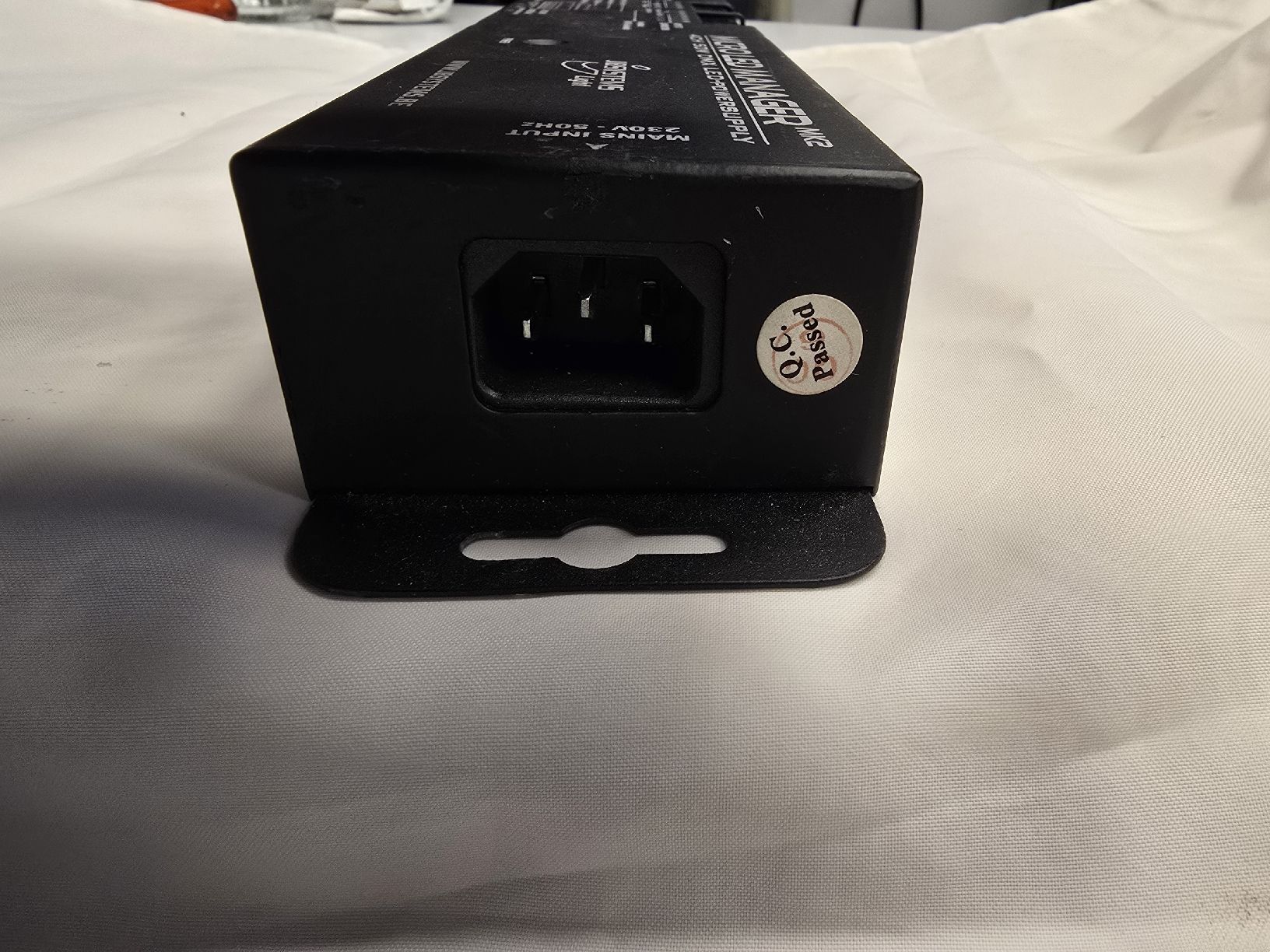

Power Supply: AC 100 - 240V, 50/60Hz
Battery Operation: Not specified
Power Consumption: 50W
Color: Black
Screen: None
IP Rating: Indoor
Control Protocol: Not specified
Programmable: No
Software Update: No
Minimum Number of DMX Channels: Not specified
Maximum Number of DMX Channels: 4

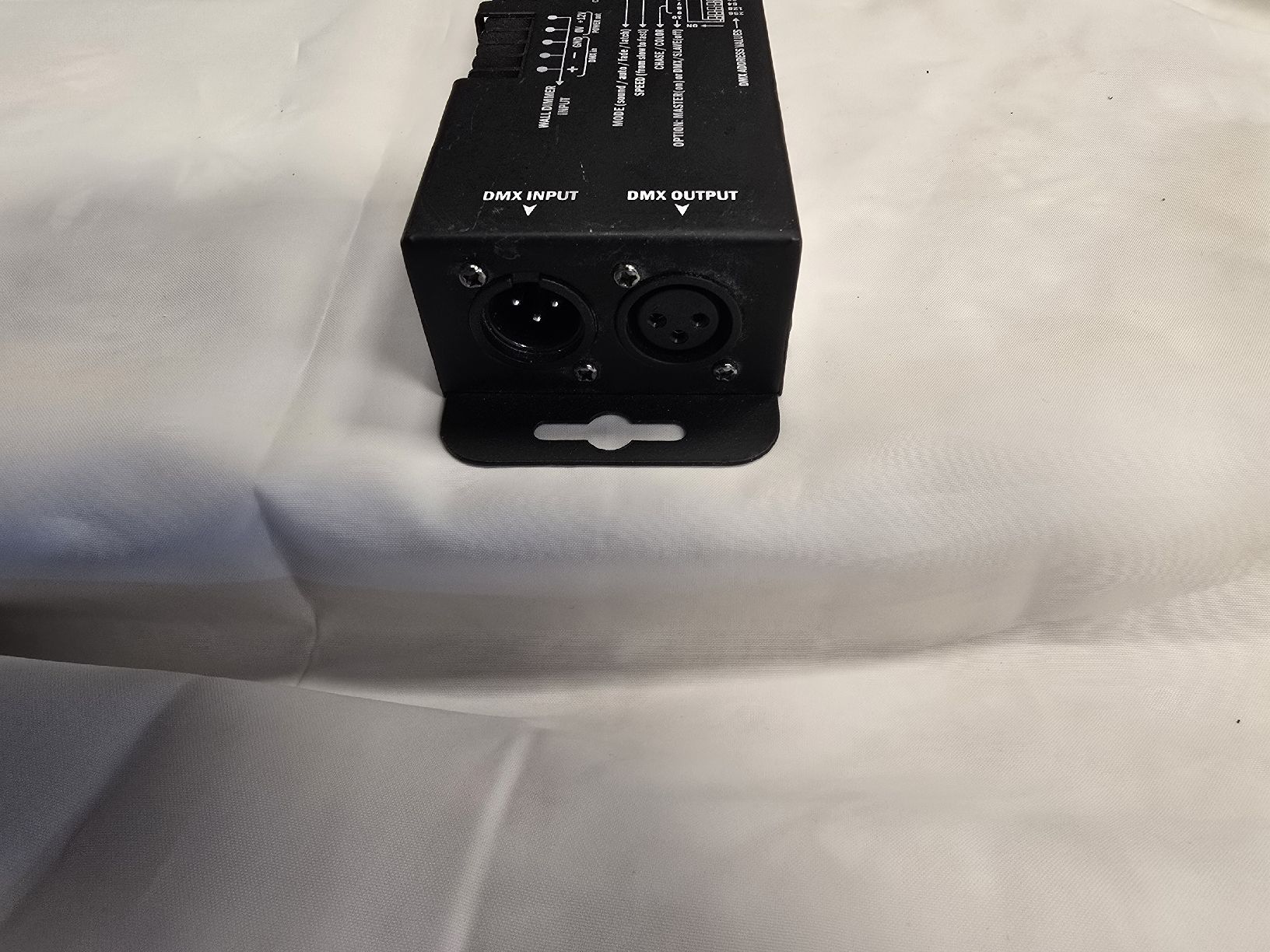

Connections:
Input: 3-Pin XLR
Output: 3-Pin XLR
