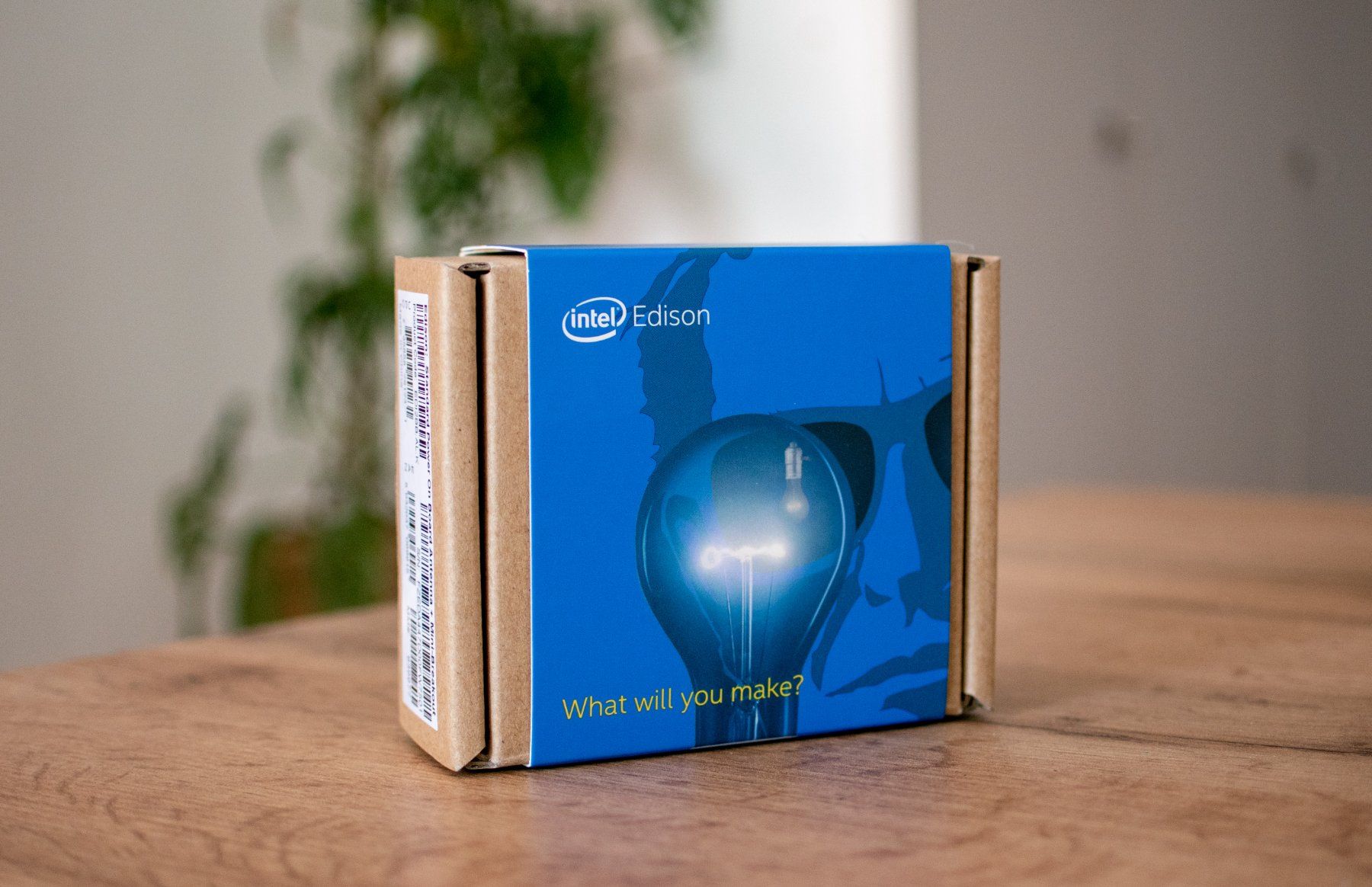

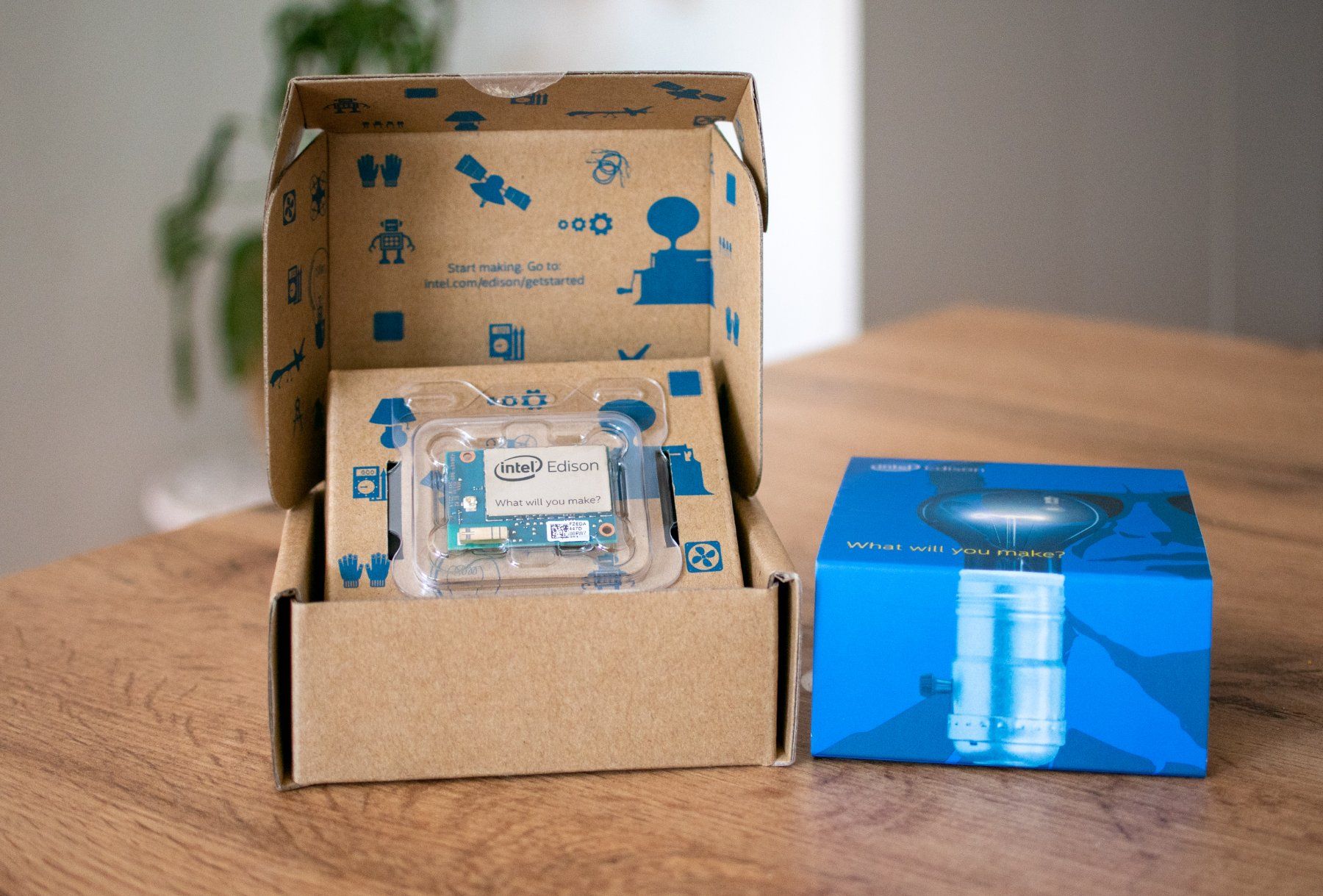

The package has been opened just for photo purposes. The module has never been connected.
Technical information (from the internet)
- Processor: 22nm Intel Atom "Tangier" (Z34XX) with two Silvermont cores at 500 MHz and a 100 MHz Intel Quark core.
- RAM: 1 GB LPDDR3 integrated on the package.
- Storage: 4 GB eMMC.
- Wireless: Dual-band Wi-Fi and Bluetooth LE.
- I/O: 40 GPIO pins, supporting various interfaces like UART, I2C, SPI, and PWM.
- Power: 3.15V - 4.5V DC input, with a dedicated battery charging circuit.

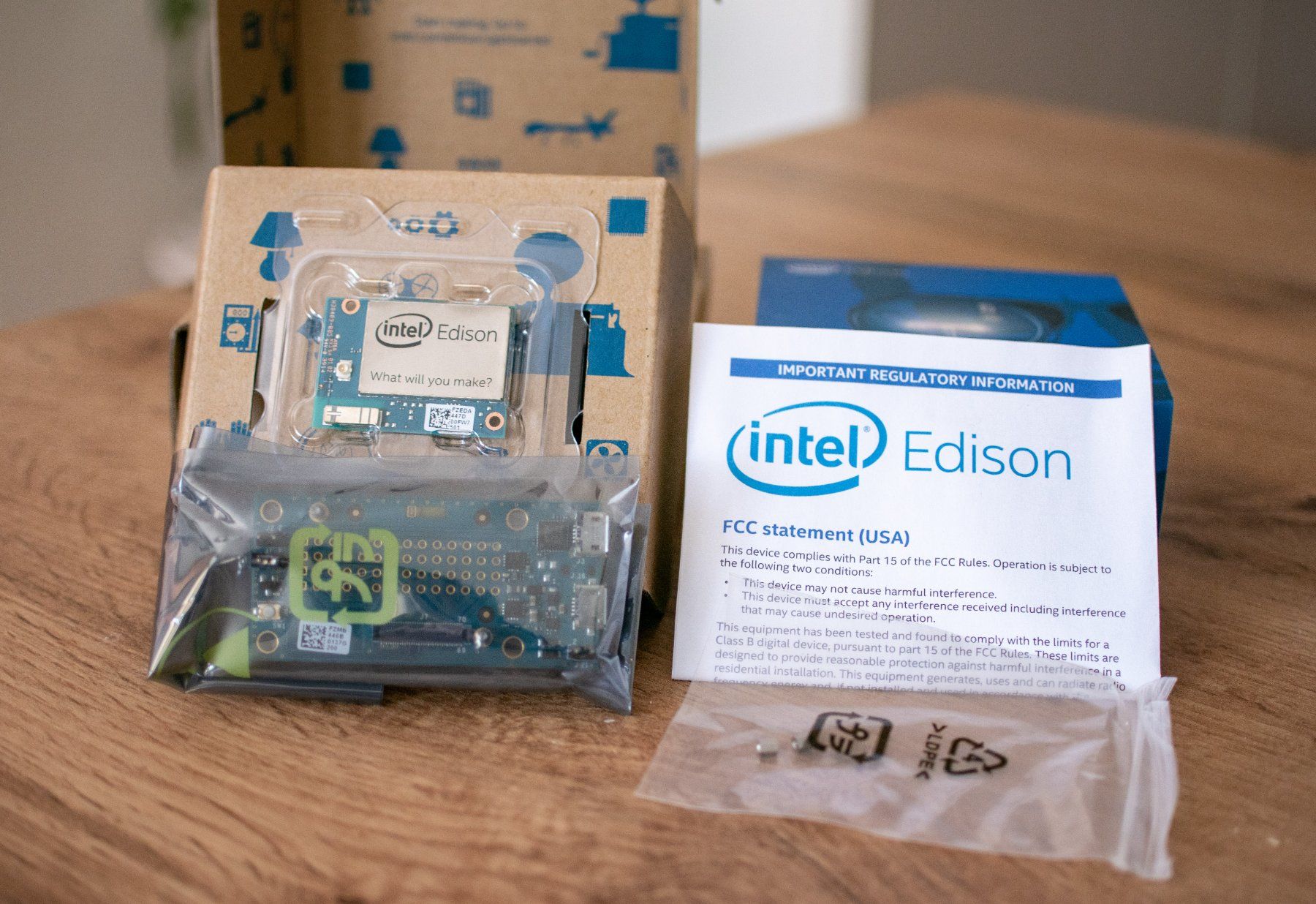

- Breakout Board: Designed to expose the Edison's 1.8V I/O, includes power supply, USB serial and OTG ports, and a power switch.
- Dimensions: Edison module: 35.5mm x 25mm x 3.9mm, Breakout Board: 61mm x 29mm x 12mm.
- Operating System: Yocto Linux.
- Software: Supports Arduino IDE and various programming languages.
Payment with Twint is available. Please send me a message with your number after the purchase if you prefer this method.
Shipping only in CH.
As a private, I guarantee you will receive what is described here and in the photos but no additional warranty is included.
)
