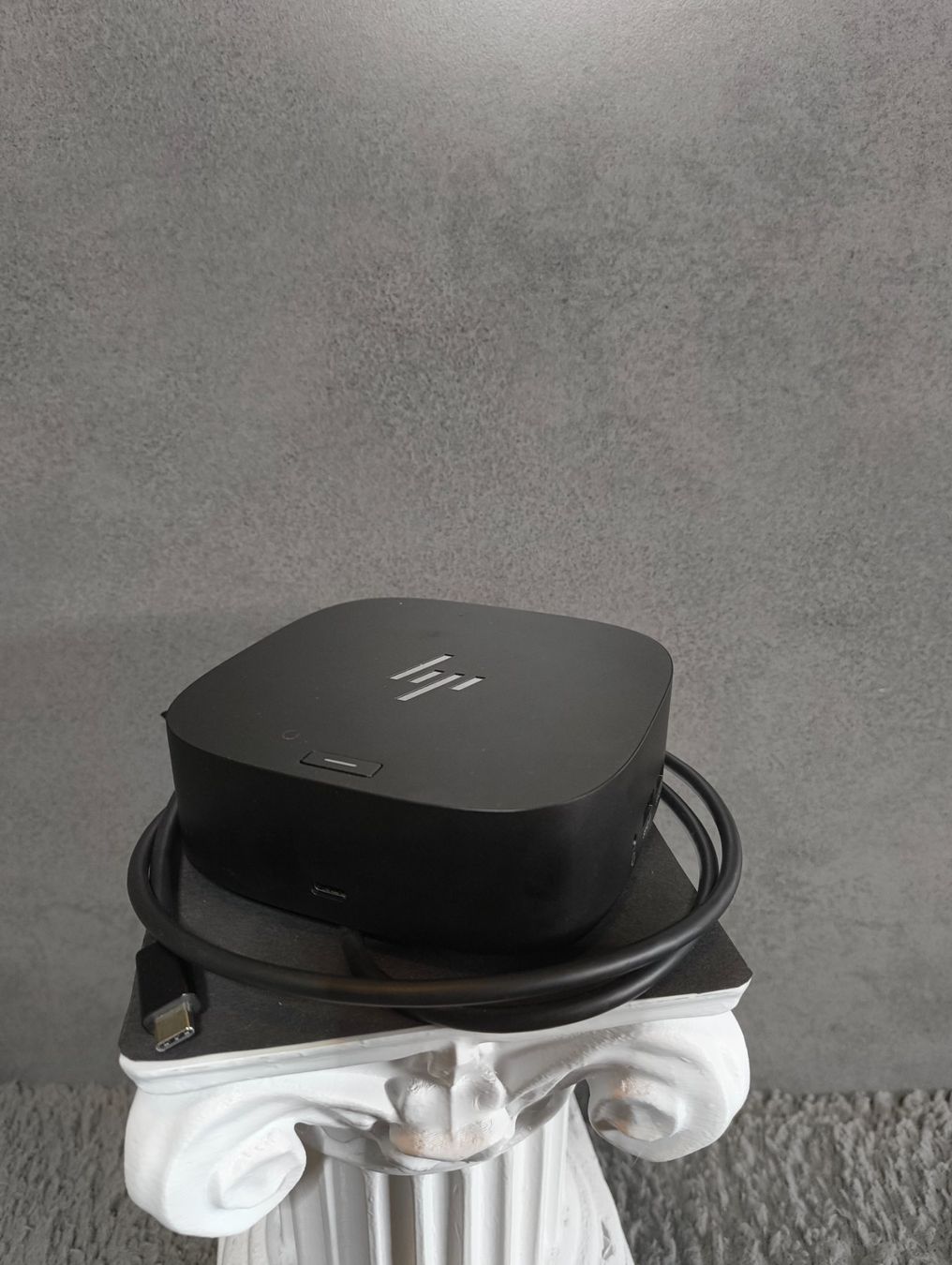

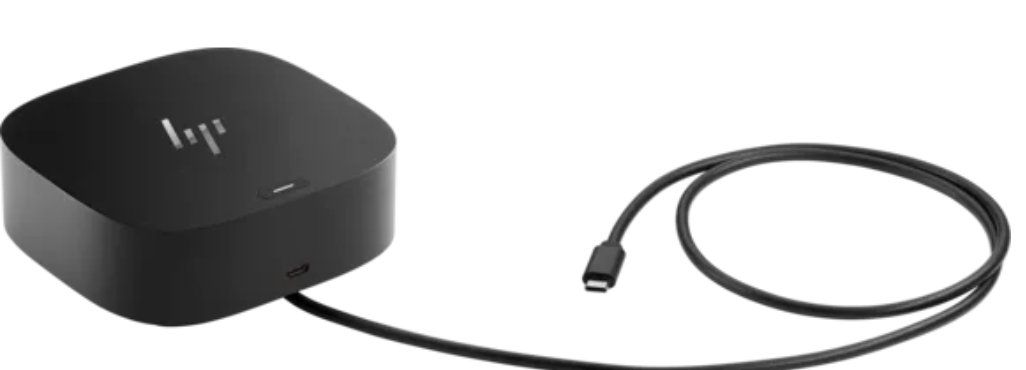

Neuwertige HP-Dockingstation mit fest verbundenem, aufgerolltem USB-C-Kabel. Original Netzteil inkl.

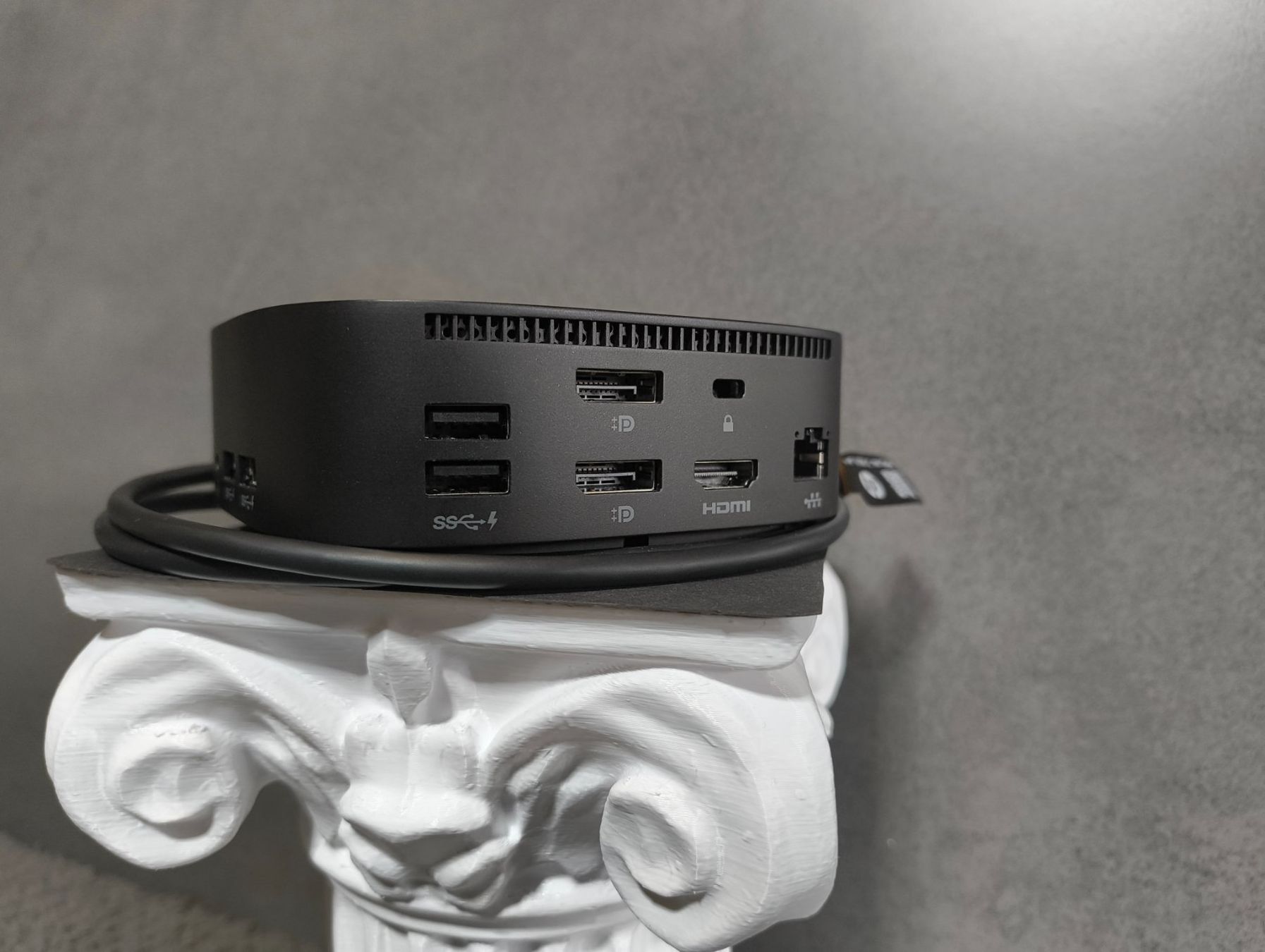

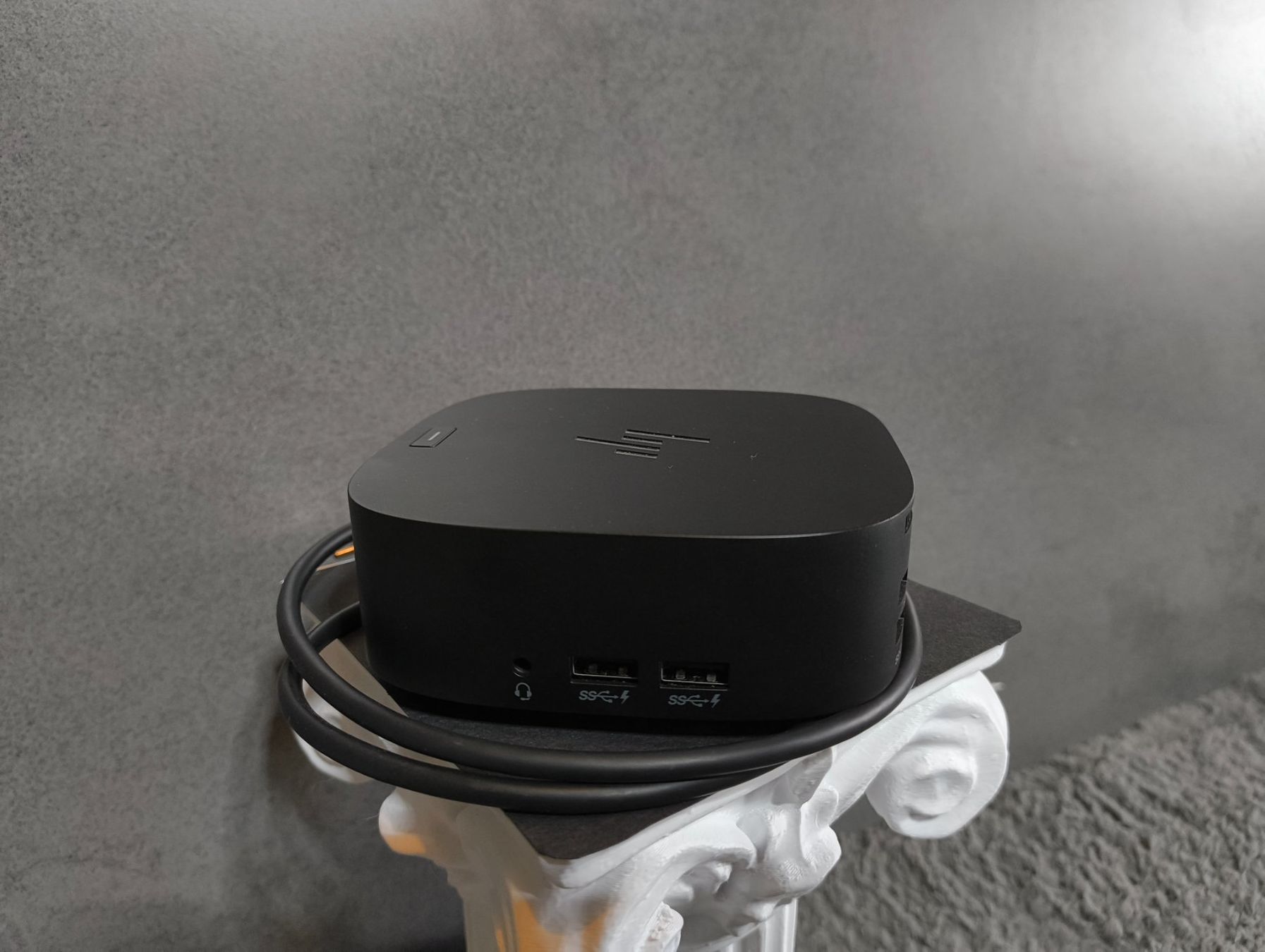

Anschlüsse: 2x USB-A, 2x DisplayPort, HDMI, RJ45, Kensington-Lock hinten; Kopfhörerbuchse + 2x USB-A (SuperSpeed/Laden) vorne.
Funktion getestet.
Durch Aufhebung von Homeoffice überflüssig geworden. Lagermaterial.
Part number 5TW10AA/5TW10UT/5TW10ET
Dimensions (L x W x H) 4.80 x 4.80 x 1.77 in (122 x 122 x 45 mm)
Weight 1.49 lb (0.68 kg)
Top components Mechanical power button with LED indicator to power or wake host system1
Front components 1 x USB-C® 3.2 Gen 1 port with data and power out (15W)
1 x USB-C® cable to connect to host system (1 meter cable length)
Side components 2 x USB-A 3.2 Gen 1 charging ports
1 x Combo audio jack
Back components 2 x USB-A 3.2 Gen 1 charging ports
2 x DisplayPortTM 1.4 ports
1 x RJ45 port (10/100/1000)
1 x HDMI 2.0 port
1 x Standard lock slot
External monitor support For hosts that support DisplayPort 1.4 with Display Stream Compression:
3x FHD @ 60 Hz
3x QHD @ 60 Hz
3x 4k @ 60 Hz
For hosts that support DisplayPort 1.3/1.4:
3x FHD @ 60 Hz
3x QHD @ 60 Hz
2x 4K @ 60 Hz
For hosts that support DisplayPort 1.2:
3x FHD @ 60 Hz
2x QHD @ 60 Hz
1x 4K @ 60 Hz
Networking Supports 1 Gb of Ethernet
Power to system Up to 100W via USB-C®.
Up to 75W on non HP machines.
Separate AC power needed for HP ZBooks that require more than 100W power delivered via
USB-C alt mode.
Power to host (USB-C PD) 5V , 9V, 10V, 12V, 15V, 20V all at 5A MAX
Supported Operating Systems Windows 11 21H2
Windows 11 22H2
Windows 10 RS4
Windows 10 RS5
Windows 10 19H1
Windows 10 19H2
Windows 10 20H1
Windows 10 20H2
Windows 10 21H1
Windows 10 21H2
Windows 10 22H2
ChromeOS v92.0.4515.157
ChromeOS M92 (HP notebooks only)
ChromeOS M93 (HP notebooks only)
ThinPro 8.0
Windows 10 IoT Enterprise LTSC 2021
macOS Monterey v12.0
macOS Big Sur 11.5.2
Supported Platforms Tested and supported on select HP commercial notebooks. For HP notebook compatibility
please visit: https://pcb.inc.hp.com/webapp/#!/us-en and search by notebook. Tested and
supported on the following 3rd party notebooks: Apple MacBook Pro 13 2022 (M2), Dell
Latitude 5540 2022 (11th Gen Intel® Core™), Dell Latitude 7430 2022 (12th Gen Intel® Core™),
Dell XPS 13 2022 (12th Gen Intel® Core™), Lenovo ThinkPad X1 Carbon Gen 9 2021 (11th Gen
Intel® Core™), Lenovo ThinkPad X1 Carbon Gen 10 2022 (12th Gen Intel® Core™).
Security slot type 1x Kensington Lock Slot6
Network Manageability Features eTag
Disconnected Firmware updates
PXE BootWake on LAN (from the Off, Sleep or Hibernation States2)
MAC address pass-through (from the On, Off, Sleep or Hibernation States2)
WLAN-LAN Switching
HP USB-C Dock G5
Specifications
6. Compatible with the following HP locks: T1A62AA HP Keyed Cable Lock 10mm, T1A63AA
HP Keyed Cable Lock 10mm (master), T1A64AA HP Dual Headed Keyed Cable Lock 10mm,
T1A65AA HP Dual Headed Keyed Cable Lock 10mm (master), T0Y16AA HP Essential
Combination Lock and T0Y15AA HP Combination Lock.
