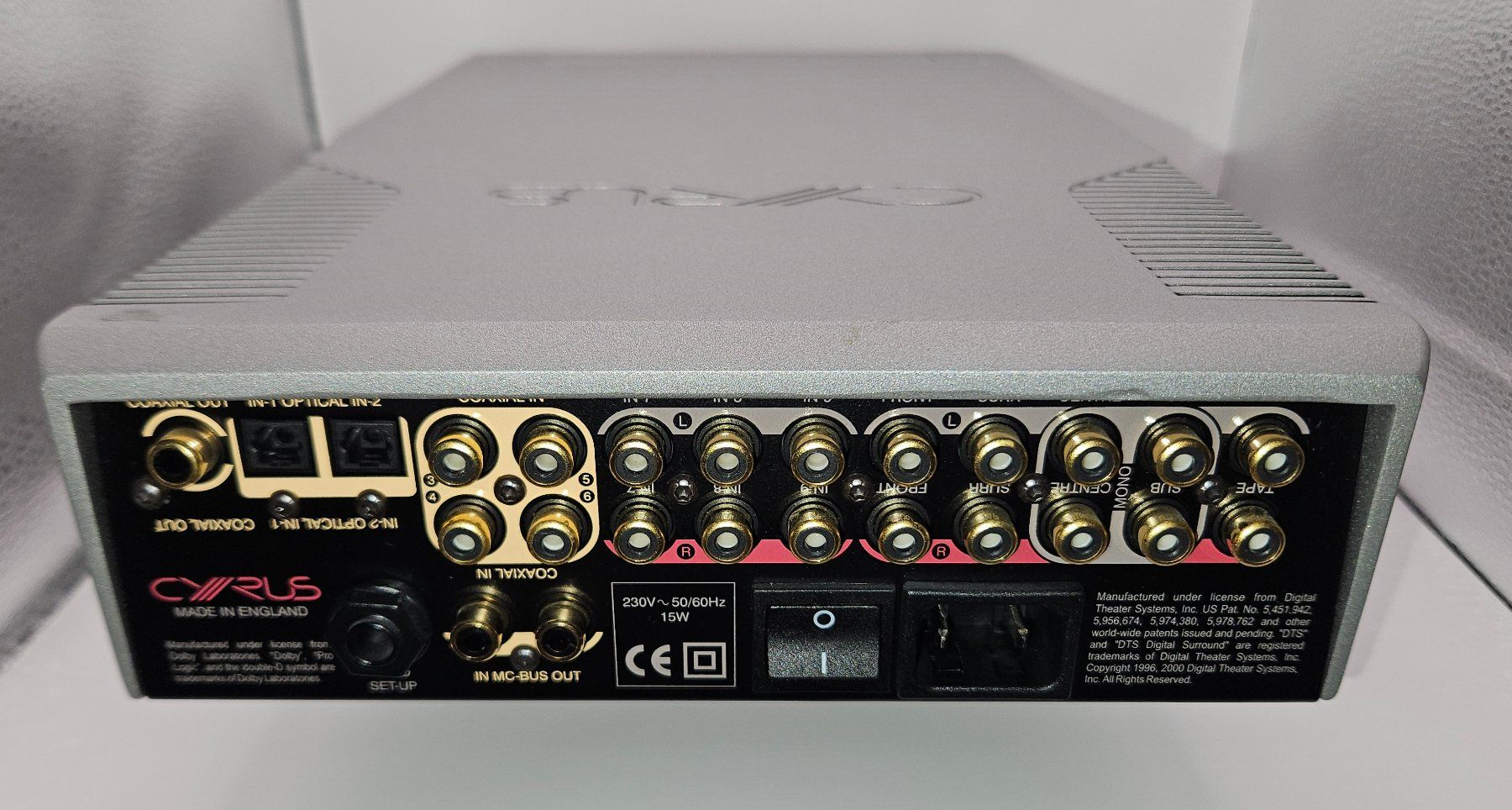

Inputs
Four co-axial digital
Two optical (TOSLINK)
Three stereo analogue inputs
Outputs
Front surround
centre and subwoofer channel audio outputs
Audio record line output
Digital co-axial output
Power Supply - 40VA Toroidal transformer
Communications - MC-BUS™ System BUS
Specifications
Multi-channel decoding systems - Dolby Digital, DTS, Dolby Pro Logic II, PCM linear
Analogue input sensitivity - 2V 47kΩ
Digital input sensitivity - 500mV pk-pk 75Ω
Output voltage - 3.9V max all channels
Tape output voltage - 2V max
Signal to noise ratio - -90dB Awtd vol @ max, -117dB Awtd vol @ -28dB to min.
THD - 0.005% Digital input, 0.006% Analogue input
Frequency response - 3Hz to 20kHz
Dimensions - (H x W x D) 73 x 215 x 360 (mm)
Finish - SilverInputs
)
)
)
