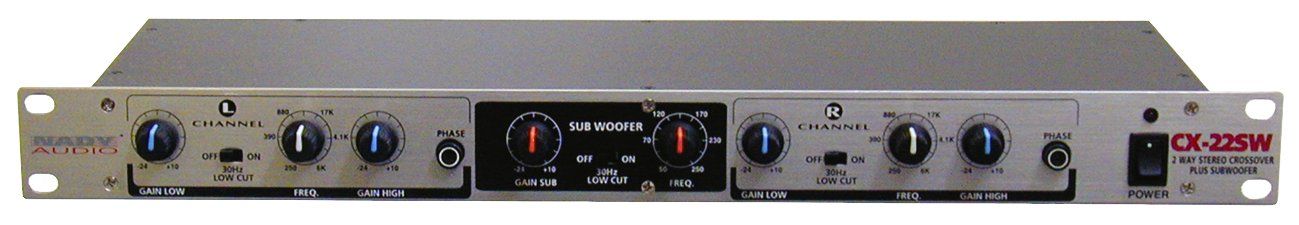

Crossover CX-22SW NADY

NADY Crossover CX-22SW

Neu und geprüft

Crossover Type ..............................................................Stereo 2 ways + Subwoofer

Crossover Range ............................................................Subwoofer: 50 - 250Hz, -24/10dB

Low/High : 250-6000Hz, -24/10dB

Filter Type (Slope) ..........................................................2nd order, 12dB/Octave

Inputs

Type ..............................................................................Balanced XLR and unbalanced 1/4"

Impedance ....................................................................100KΩ

Outputs

Type ..............................................................................Unbalanced 1/4"

Impedance ....................................................................220 Ω

Low Cut Filters................................................................30Hz/ - 3dB, 12dB/Octave

Frequency Response......................................................20Hz - 25KHz +/-1dB

Total Harmonic Distortion (THD) + Noise ....................< 0.05 %

S/N Ratio ..........................................................................> 95 dB

Fuse..................................................................................0.5 A/ 250V, 5mm glass type

Dimensions......................................................................19’’ x 1.73’’ x 5.9’’ (483 X 44 X 150mm)

Weight ..............................................................................4.4 lbs. (2.2 Kg
