Quick Spec
Table 1 shows the quick spec.

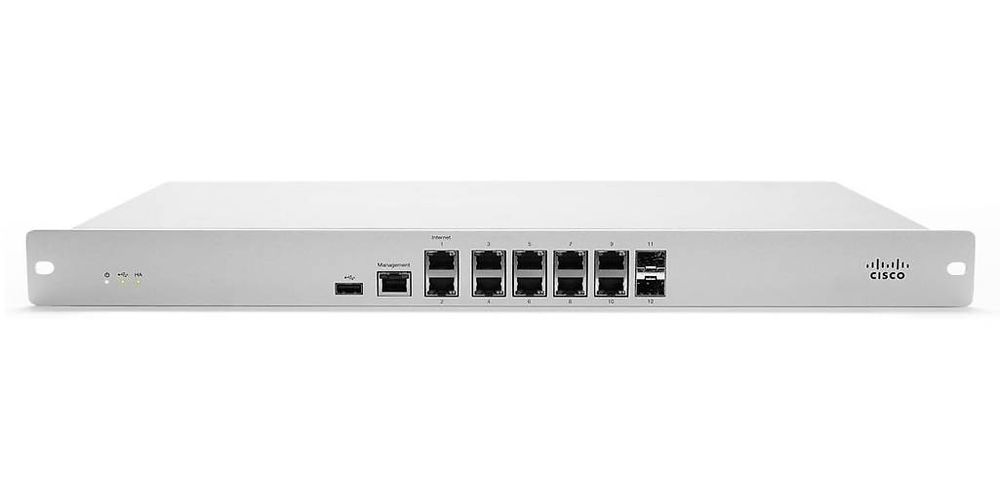

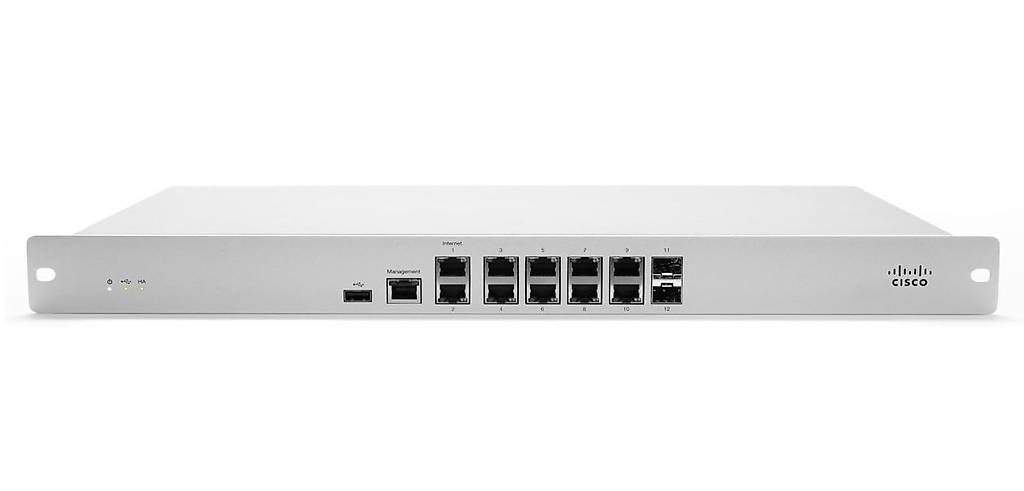

MX84-HW Spezifikation
Recommended Use Cases
Medium Branch
Recommended Clients
200
Stateful Firewall Throughput
500 Mbps
Advanced Security Throughput
320 Mbps
Maximum VPN Throughput
250 Mbps
Maximum Concurrent VPN Tunnels
100
WAN Interfaces
Dedicated: 2 x GbE RJ45 1 x USB (cellular failover)
Dual-purpose: -
LAN Interfaces
Fixed: 8 x GbE; 2 x GbE (SFP)
Web Caching
1TB
Mounting
1U rack
Dimensions (W x D x H)
19? x 10? x 1.75? (483 mm x 254 mm x 44 mm)
Weight
9 lb (4.1kg)
Power Supply
Internal 100-220V 50/60Hz AC
Power Load (idle/max)
26W / 32W
Operating Temperature
32°F to 104°F (0°C to 40°C)
Humidity
5% to 95%
Management
- Managed via the web using the Cisco Meraki dashboard
- Single pane-of-glass into managing wired and wireless networks
- Zero-touch remote deployment (no staging needed)
- Automatic firmware upgrades and security patches
- Templates based multi-network management
- Org-level two-factor authentication and single sign-on
- Role based administration with change logging and alerts
Network and Firewall Services
- Stateful firewall, 1:1 NAT, DMZ
- Identity-based policies
- Auto VPN: Automated site-to-site (IPsec) VPN, for hub-and-spoke or mesh topologies
- Client (IPsec L2TP) VPN
- Multiple WAN IP, PPPoE, NAT
- VLAN support and DHCP services
- Static routing
- User and device quarantine
Regulatory
FCC (US)
CB (IEC)
CISPR (Australia/New Zealand)
PTCRB (US)
RCM (Australia/New Zealand, Asia Pacific)
GCF (EU)
OHNE LIZENZ
Info 07644 71 093
)
