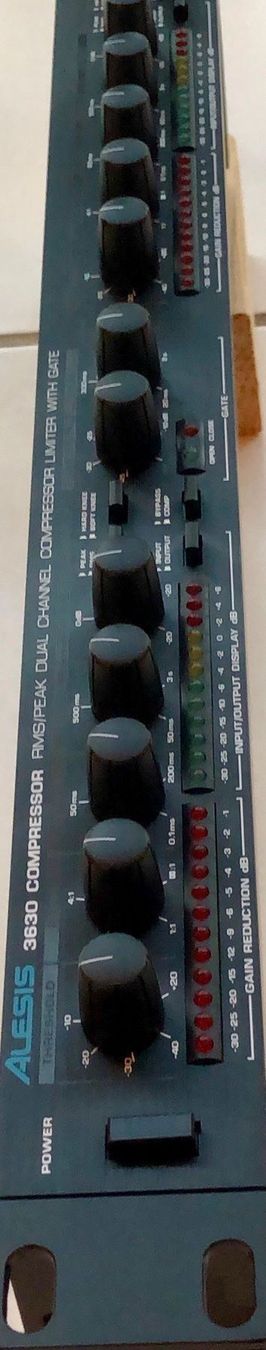

Alesis 3630 Compressor Limiter Noisegate

Alesis Compressor 3630

Dual Channel Compressor, Limiter with Noise-Gate mit vielen Funktionen

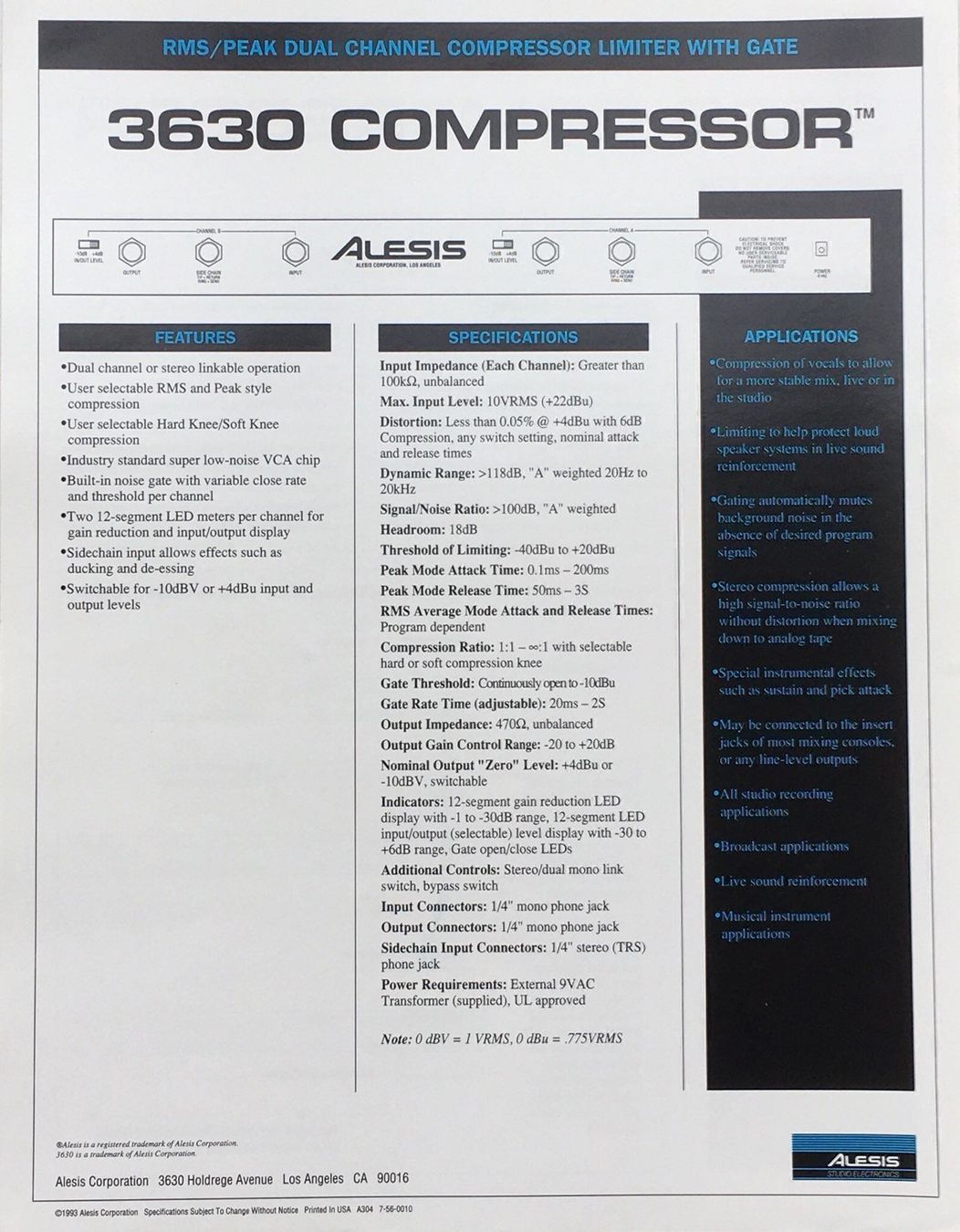

SPECIFICATIONS

Dynamic Range: >118dB, "A" weighted

Signal to Noise Ratio: >100dB, "A" weighted

Headroom: +18dBu

Frequency Response: 10Hz to 30kHz, 0/-.5dB

Crosstalk: < -85dB @ 10kHz

Compression Threshold Range: -40 dBu to +20 dBu

Compression Ratio: 1:1 to ∞:1, selectable hard or soft compression knee

Peak Attack Time: 0.1 ms to 200 ms

Peak Mode Release Time: 50 ms to 3 seconds

RMS Average Mode Attack and Release Times: Program dependent

Gate Threshold Range: Continuously open (no gating) to -10 dBu

Gate Rate Time: 20 ms to 2 seconds

Impedance: OUTPUT: 470Ω, unbalanced SIDECHAIN: 2KΩ, unbalanced

Output Gain Control Range: -20 to +20 dB

Nominal Output "Zero" Level: Switchable, +4dBu or -10 dBV

Distortion: Less than 0.05% @ +4 dBu, 20Hz to 20kHz, "A" weighted with 6 dB

compression, any switch setting, nominal attack and release times

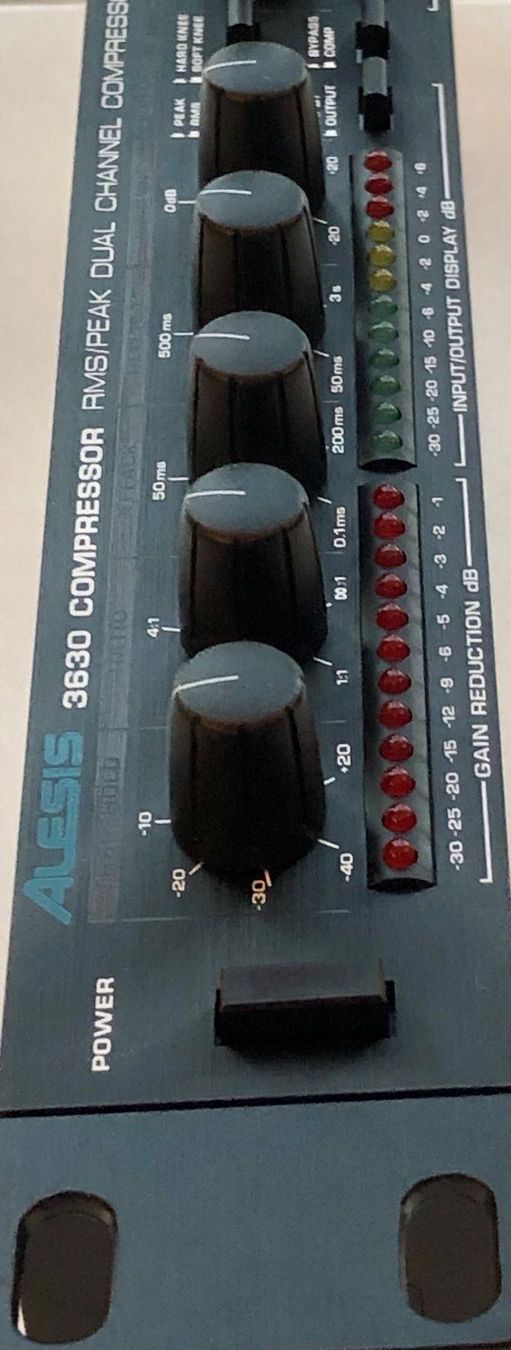

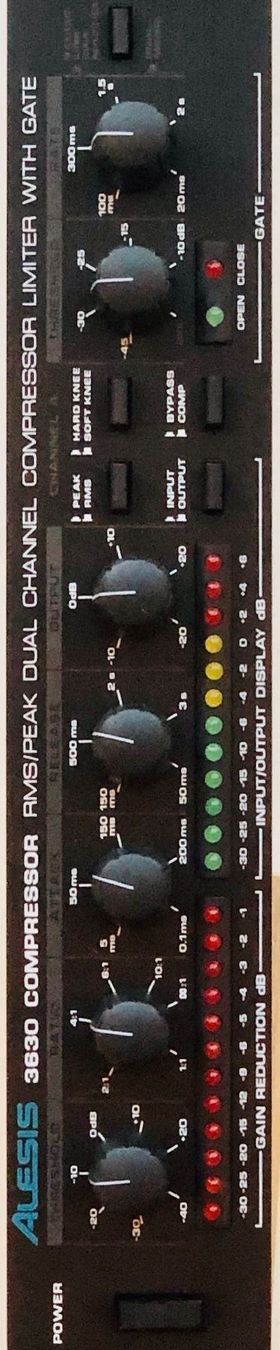

Indicators: 12 segment gain reduction LED display with -1 to -30 dB range, 12 segment

LED input/output (selectable) level display with -30 to +6 dB range, gate open/close

LEDs.

Switches: Stereo/dual mono link, bypass, peak/RMS mode, input/output monitor, knee

characteristics (hard/soft)

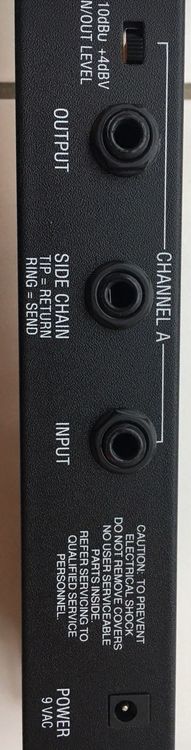

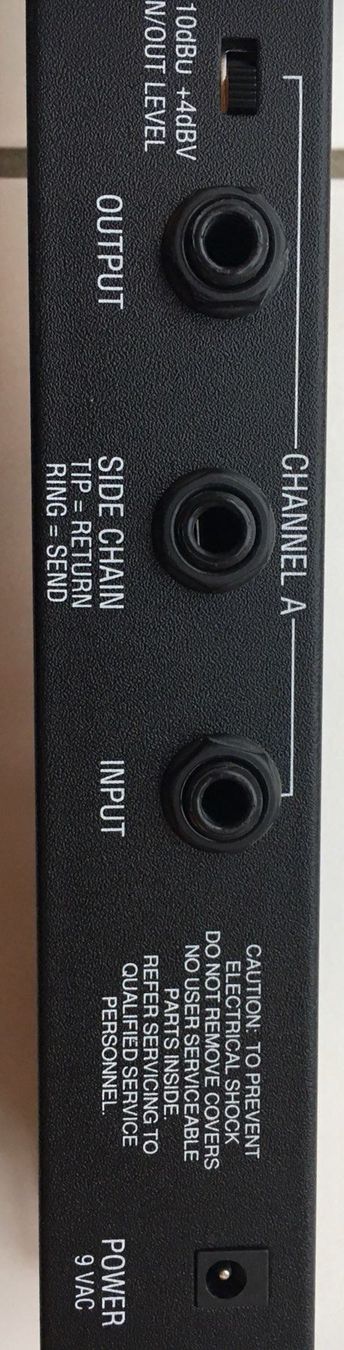

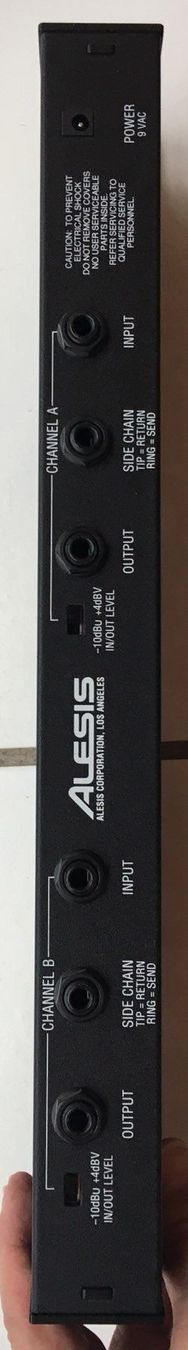

Input and Output Connectors: 1/4" mono phone jacks

Side Chain Connectors: 1/4" stereo phone jacks

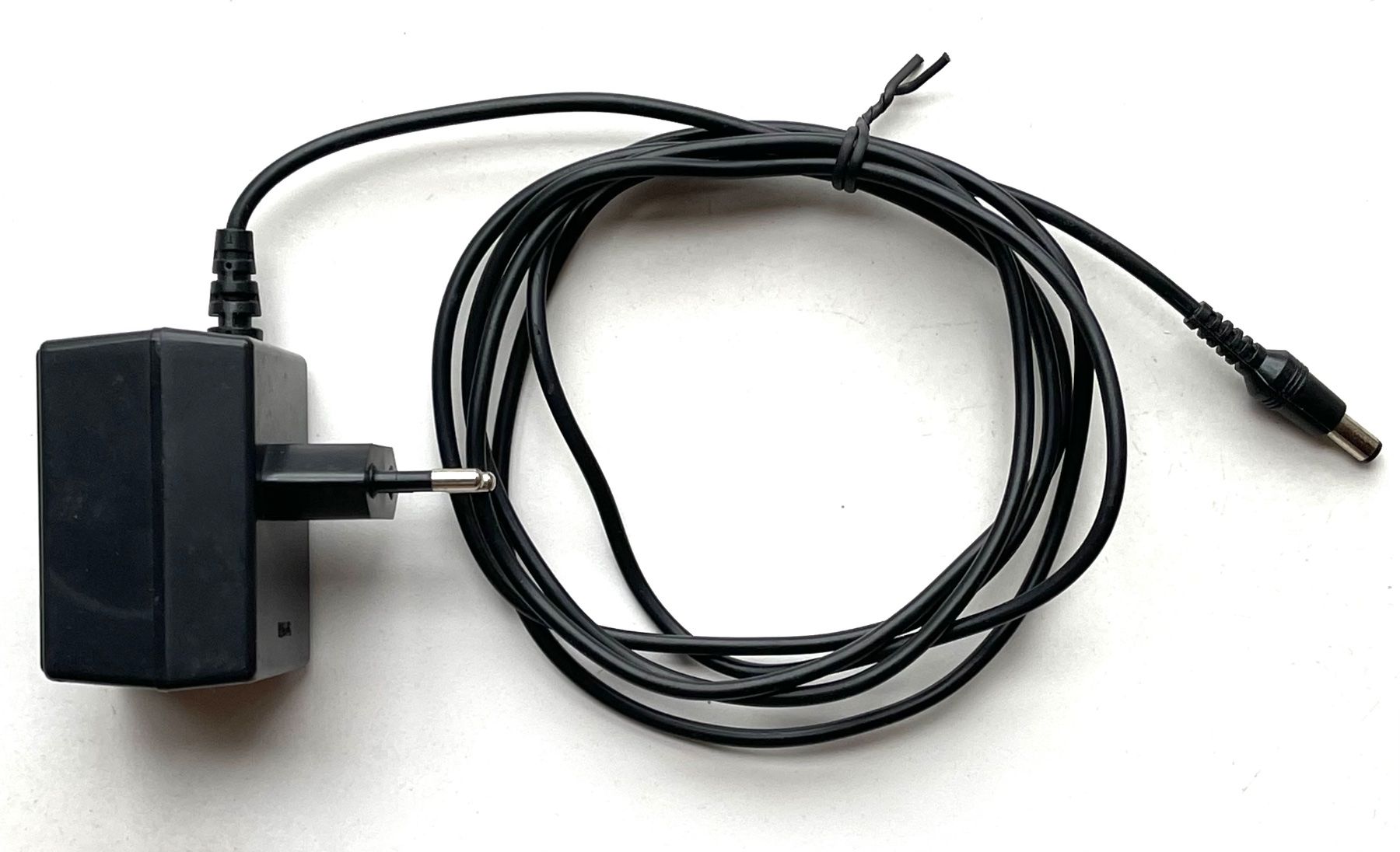

Power Requirements: External 9 VAC transformer (supplied), UL approved

Size: Standard 1U rack mount

Note: +4 dBu = 1.23 Vrms -10dBV = 0.316 Vrms

Versand nur innerhalb der Schweiz ! !
