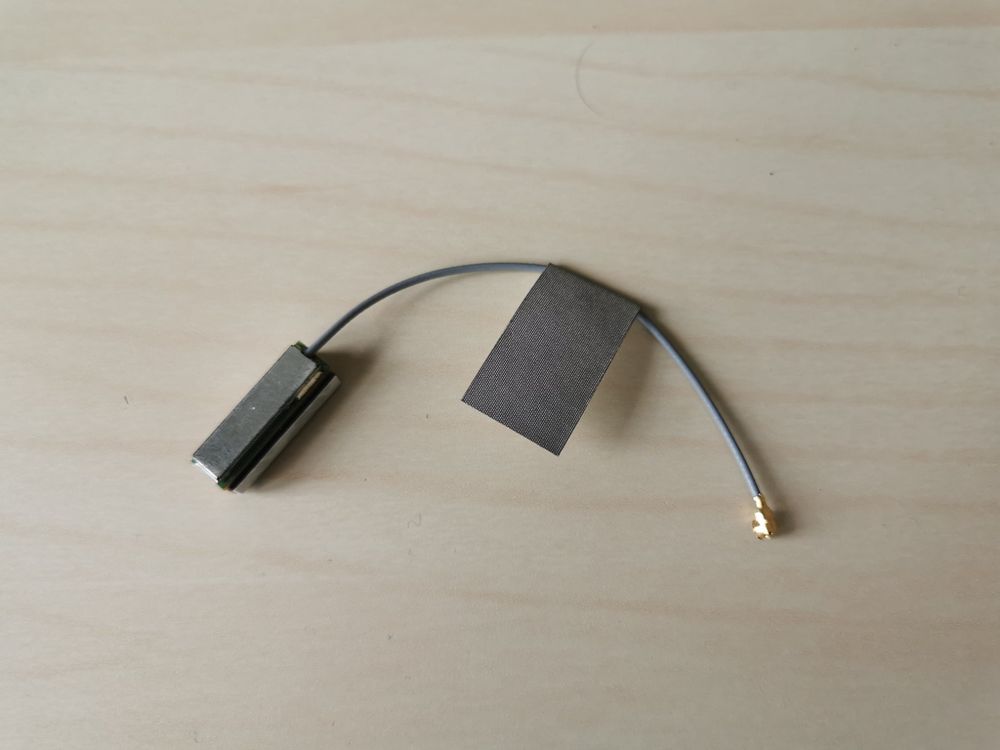

Active GPS antenna 130mm cable length, terminated with IPEX connector, now common standards used in all radio frequency devices in the UHF and SHF bands up to 6GHz. The antenna offers excellent gain of 24dB well containing its size in only 20x6x4mm. The very small dimensions make it perfect for use in drones and model aircraft for a precise location and more stable signal.
TECHNICAL SPECIFICATIONS:
Model: G165
Frequency: 1575.42MHz ± 1.023MHz
Bandwidth: 6MHZ
Impendence input: 50Ω
V.S.W.R: ≤ 1.7
Electric consumption <10mA
Polarization Intensity: R.H.C.P
Supply Voltage: 2.7 ~ 3.3VDC
The Sound Coefficient: ≤ 1.5dB
Axial Ratio: 3dB
Cable length: 130mm
Connector Type: IPEX (UFL)
Operating Temperature: -40°C ~ +85°C
Storing temperature: -40°C ~ +90°C
Humidity: 95% ~ 100% RH
Waterproof: IP67
Dimensions: 20 x 6 x 4mm
Weight: 30g
)
