4 Stück Super Micro Twin Server ----> Absolut genial , klein kompakt und sehr zuverlässig.

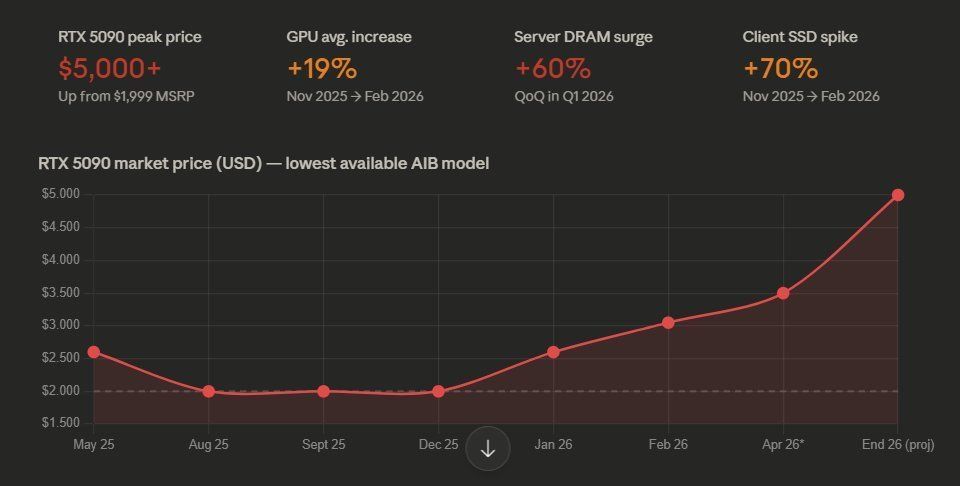

Die Preise werden weiter steigen ! Siehe Bilder
Anwendung ? ZB : > Local AI, on Your Computer. https://lmstudio.ai/

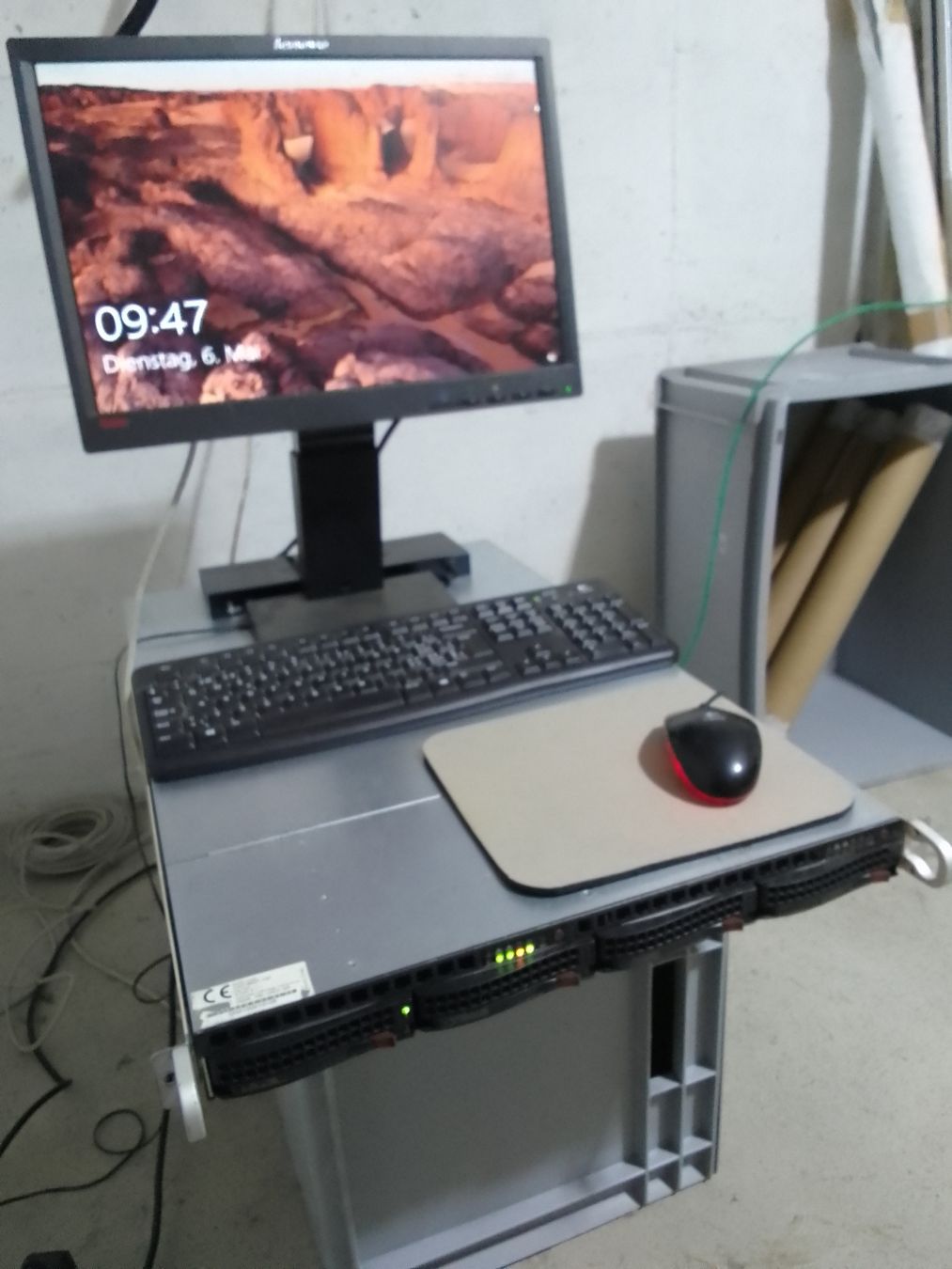

Sie bieten auf 4 Server OHNE Monitor , Maus und Tastatur.
Stromverbrauch bei 50% Last ca. 170 Watt pro Server , kann auch einzeln betrieben werden.

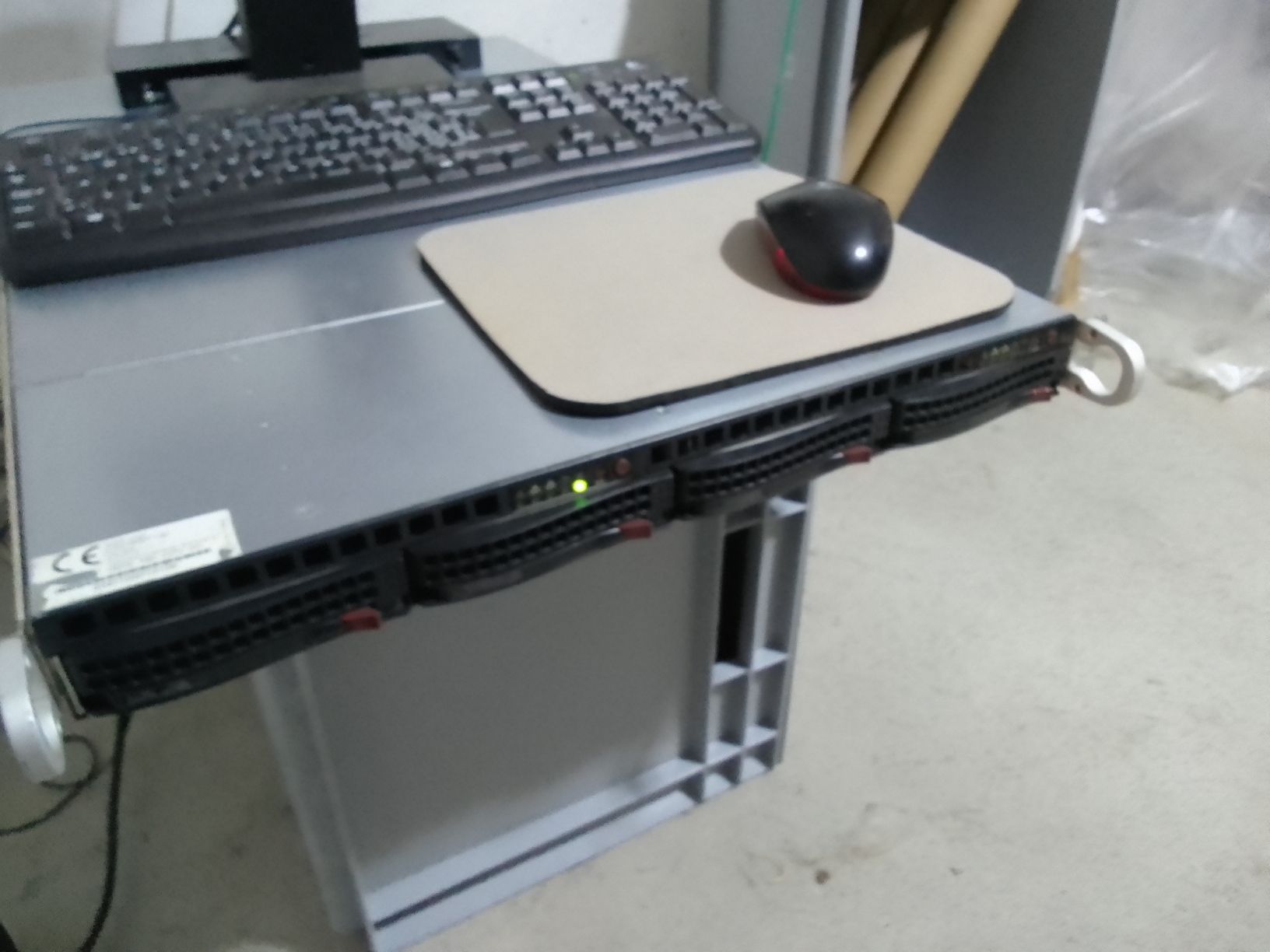

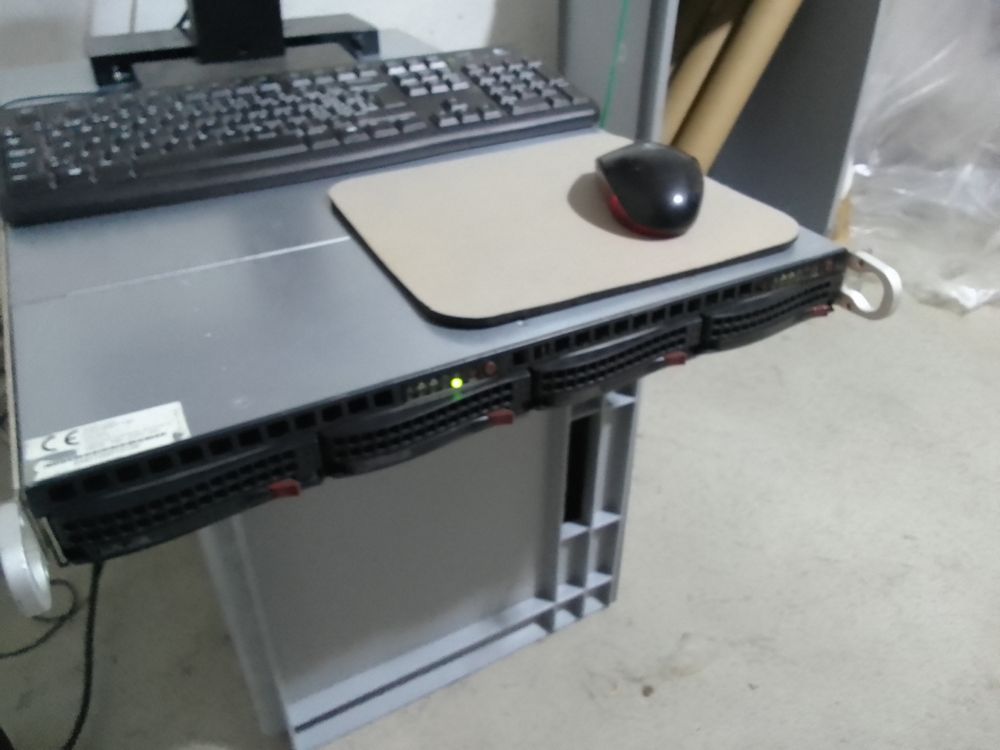

Super Micro Twin Server --> 2 Server in einem Gehäuse.
Jeder Server hat folgende Daten :

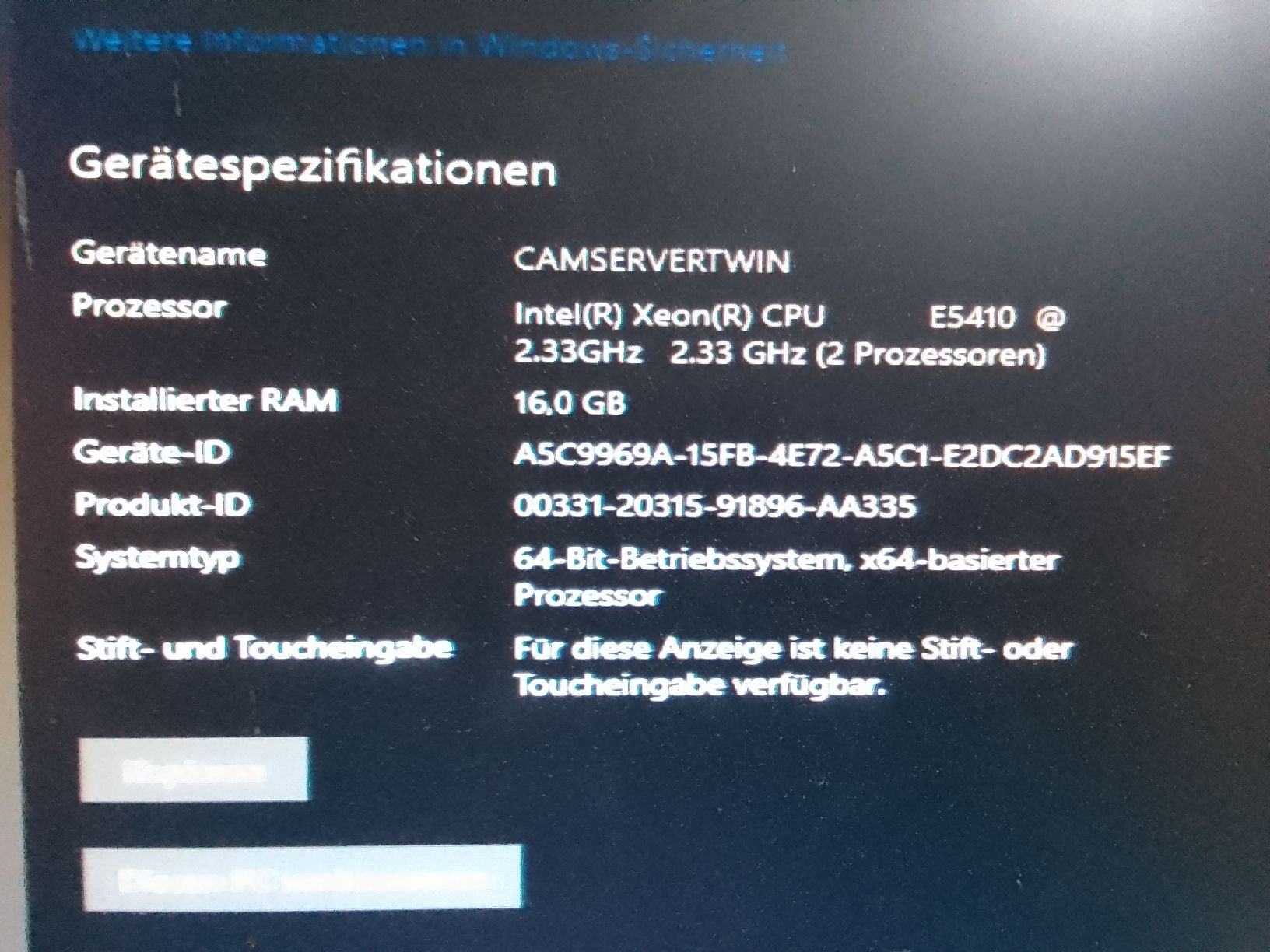

16 GB Ram, 2 Prozessoren Xenon (siehe Bild)
2 x SATA Hot Swap Schacht. HD und mit Adapter auch SSD.

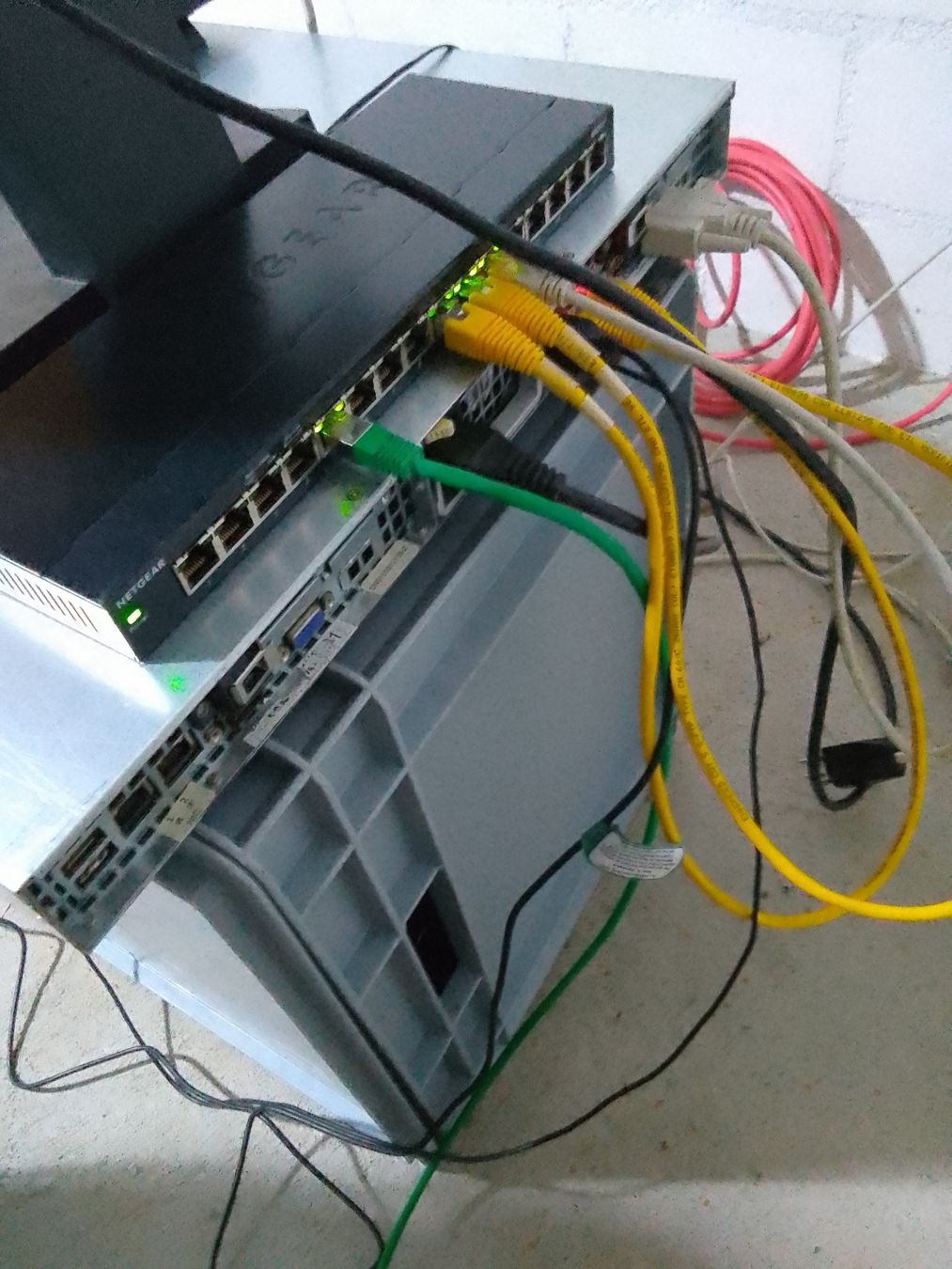

2 x Netzwerk etc. weitere Informationen im Netz. oder --->

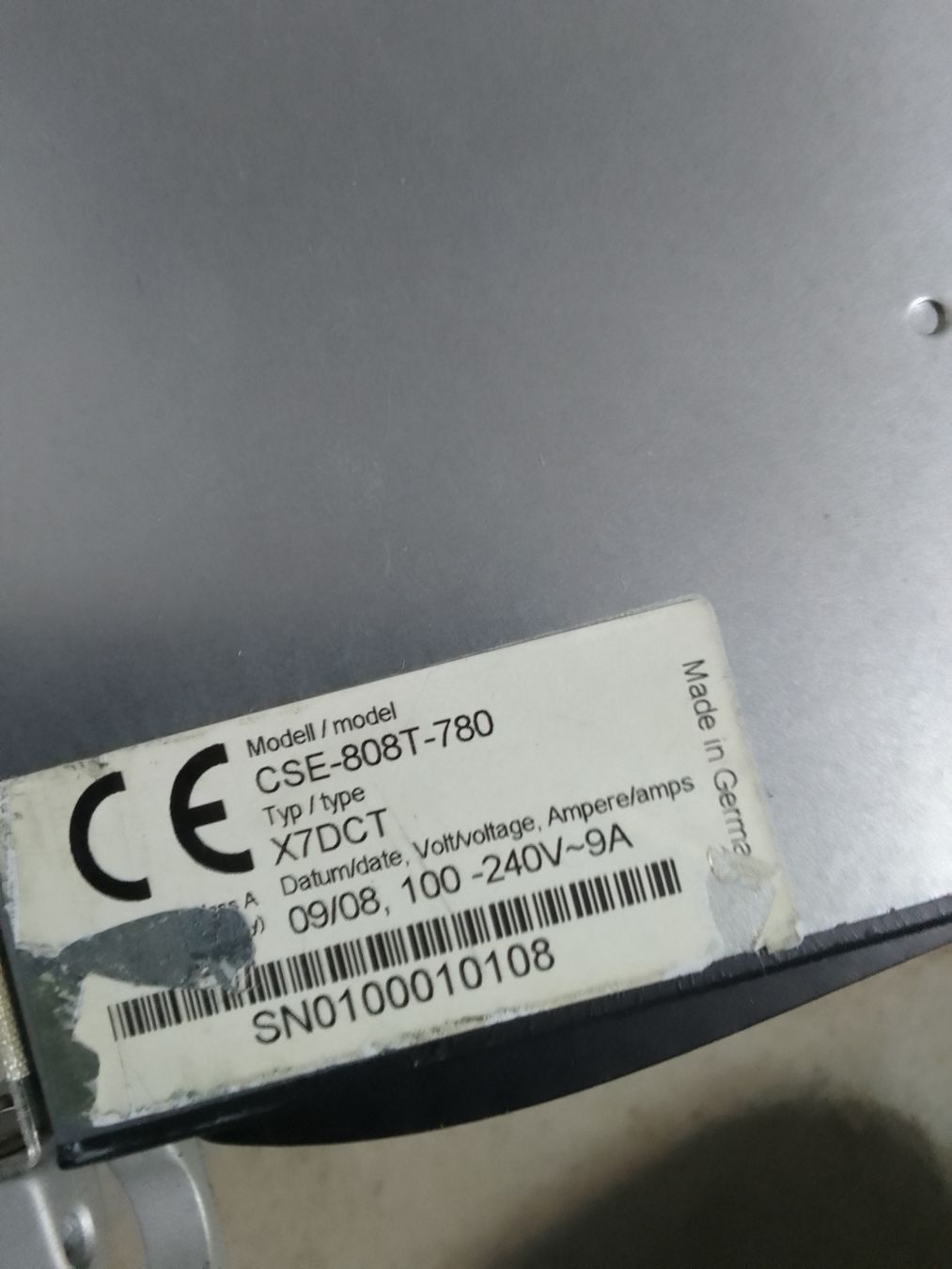

Supermicro SuperChassis SC808T-780
- Each node supports:
- 780 W High-efficiency Power Supply
- 2x 3.5" Hot-swap SAS/SATA Drive Bays
- 3x PWM Cooling Fans
- 1x Low-profile Slot
- Power Switch, Reset Button & 5x LED Indicators
Product SKU
CSE-808T-780BSuperChassis 808T-780B (Black) Form Factor
1 U chassis - Supports 2 proprietary 16" x 6.5 " (40.6 cm x 16.5 cm) motherboards Processor Support
Supports Twin motherboards with dual, single Intel® Xeon® / AMD Opteron? processors Dimensions
Height1.7" (43 mm)Width17.2" (437mm)Depth27.75" (705 mm)Gross Weight39 lbs (17.7 kg)Available ColorsBlack Expansion Slots (per Node)
1x Low-Profile expansion slot (Riser Card Required) Drive Bays (per Node)
- Hot-Swap2x 3.5" SATA Hot-swap drive bays (supports SES2 drives)
- SAS or enterprise SATA HDD only recommended
Backplane
1x 1 U SAS/SATA backplane System Cooling (per Node)
- Fans3x PWM Cooling Fans
- 4-pin PWM Fans
Front Panel (per Node)
- ButtonsPower On/Off button
- System Reset button
- LEDsPower LED
- Hard drive activity LED
- 2x Network activity LEDs
- System Overheat LED
Operating Environment (System)
Operating Temperature Range5°C ~ 35°C (41°F ~ 95°F)Non-Operating Temperature Range-40°C ~ 60°C (-40°F ~ 140°F)Operating Relative Humidity Range8% ~ 90% (non-condensing)Non-Operating Relative Humidity Range5% - 95% (non-condensing) Power Supply
- 780 W AC to DC power supply w/ PFCAC Input100-240 V, 60-50 Hz, 9.5-3.5 A+5 V sb4 A+12 V65 A @ 180-240 V ac
- 58 A @ 100-140 V ac
Regulatory (Power Supply)
- Power Supply Safety / EMCUSA - UL listed
- Canada - CUL listed
- TUV Certified
- EN 60950/IEC 60950-Compliant
- CB Report
- CCC Certification
)
