Compact Par 7-3
Product code: 42579
Product Specifications
Model: Compact Par 7 Tri
Electrical:
Input voltage: 100–240 V AC, 50/60 Hz
Power consumption: 28 W
Fuse: T 1 A, 250 V
Physical:
Dimensions: 275 x 258 x 92 mm (L x W x H)
Weight: 2,16 kg
Optics:
Light source: 7 x 3 W 3-in-1 RGB LEDs
Luminous flux: 2685 lm
Illuminance @ 2 m: 1772 lx
Dimmer: 0–100 %
Strobe: 0–20 Hz
Beam angle: 40°
Drive current: 330 mA
Refresh rate: 3900 Hz
Operation and control:
Control: Stand-alone (auto, manual, sound-controlled)
Master/Slave (auto, manual, sound-controlled)
DMX-512
DMX channels: 3, 4, 8 channels

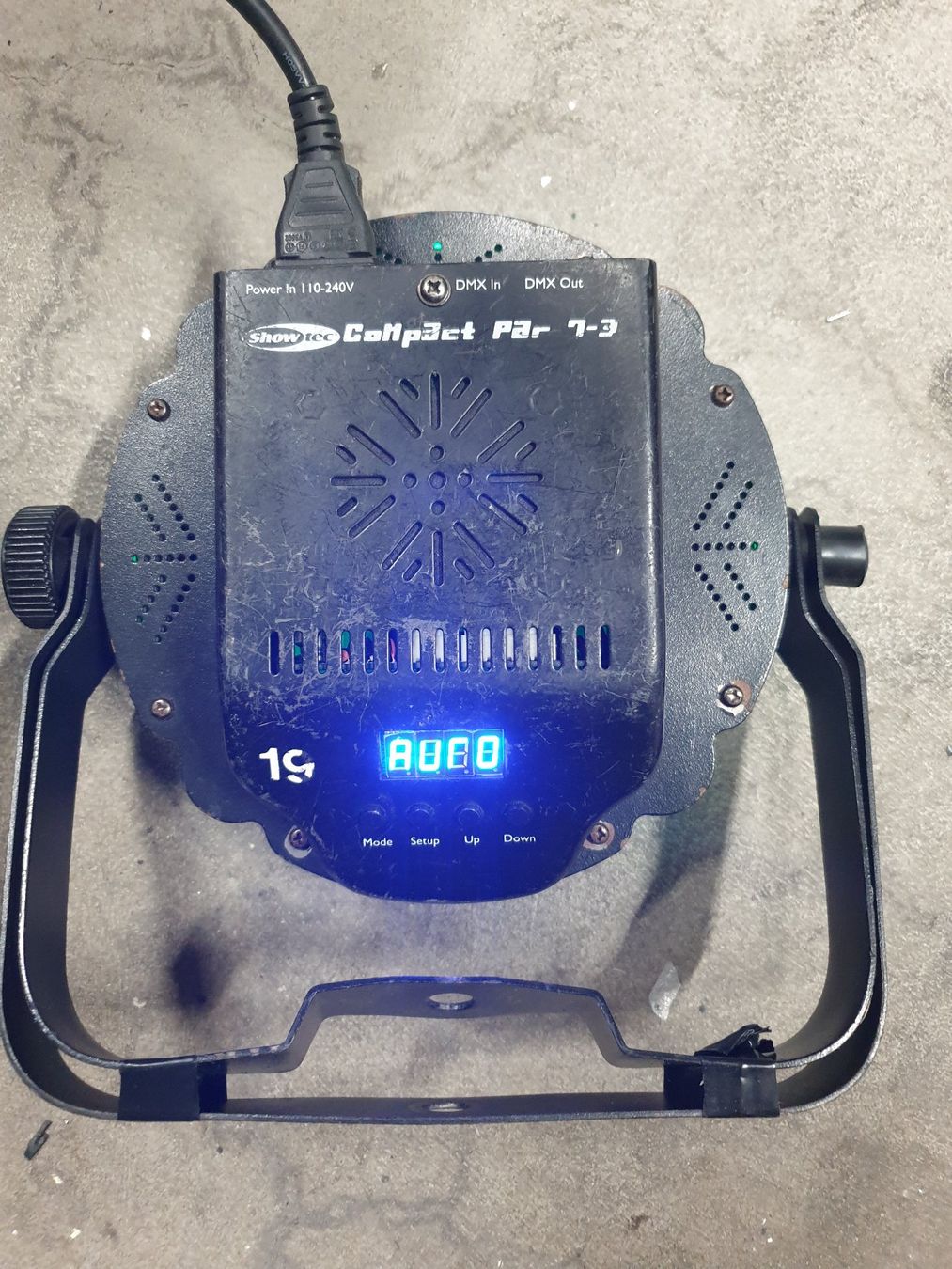

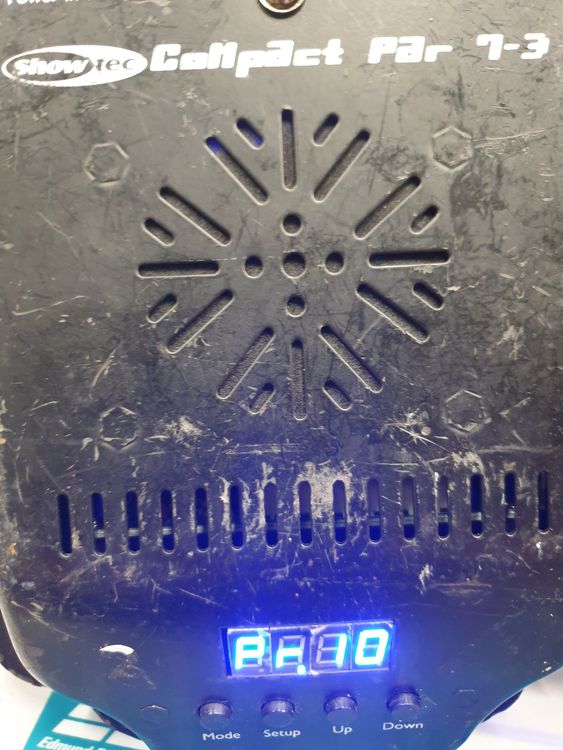

Control panel: 4-digit LED display and buttons
Connections:
Power connections: IEC (C14) power connector IN
Data connections: 3-pin DMX connectors IN/OUT
Signal pinouts: Pin 1 (ground), pin 2 (-), pin 3 (+)
Construction:
Housing: Extruded aluminum and metal plate
Color: Gray and black
IP rating: IP20
Cooling: Aluminum heatsink
Thermal:
Maximum ambient temperature ta: 40 °C
Minimum Operating Temperature -10 °C
Minimum distance:
Minimum distance from flammable surfaces: 0,5 m
Minimum distance to lighted object: 0,5 m

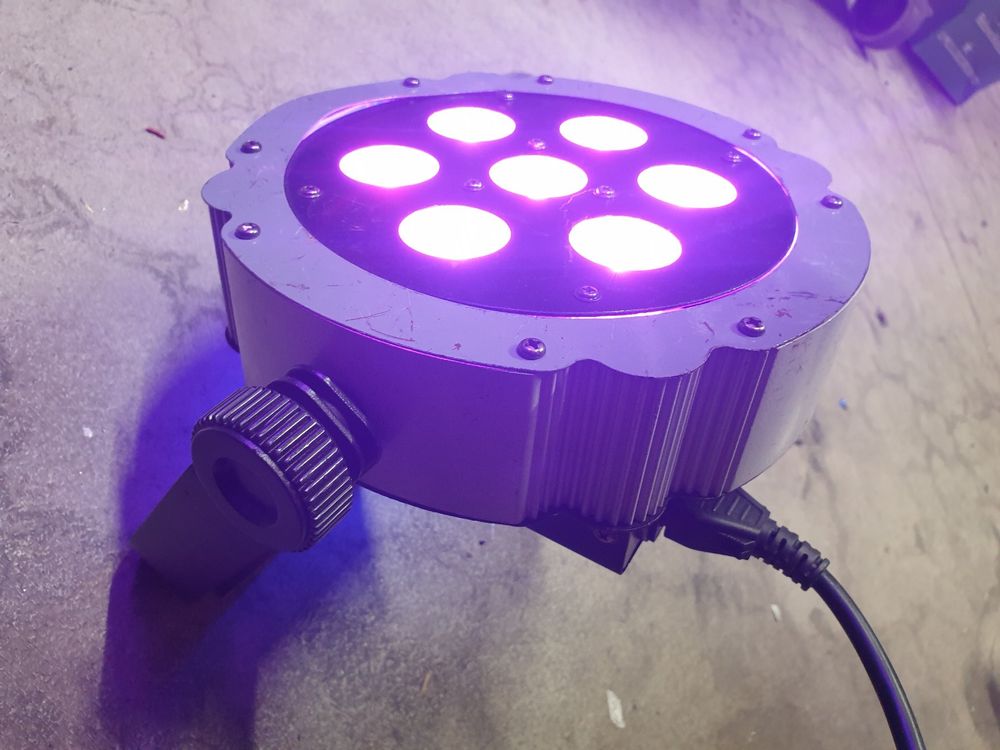

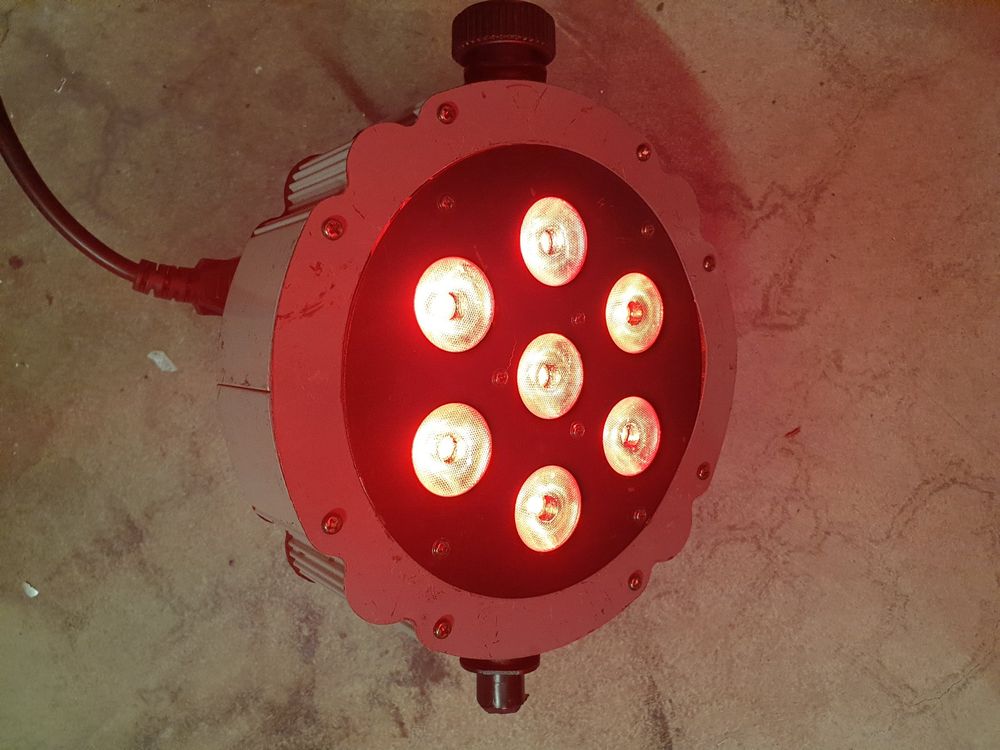

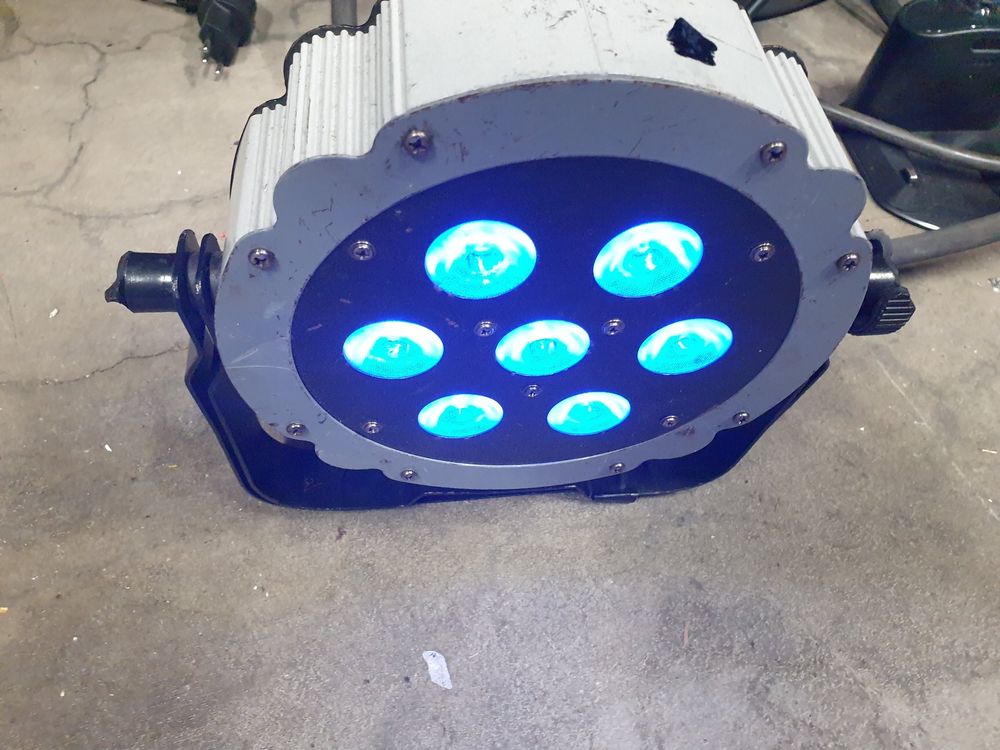

Condition, signs of wear, see pictures
Delivery : 3x projector
)
)
)
