Network Tester Meter RJ45 Cat5e Cat6 UTP Unshield LAN
-------------------------
Die Fotos sind Teil des Artikelbeschriebs. Keine Rücknahme, Umtausch oder Garantie auf ersteigerte Artikel.
Versand nur innerhalb der Schweiz und Liechtenstein.
Paket B-Post, CHF 9.50 (zum Endpreis hinzugerechnet werden)
Bezahlung per TWINT ist möglich.
Bei Einzahlung am Post-Schalter bitte + CHF 3.- Gebühren bezahlen, vielen Dank.
-----------------------------------------
Type of Tester Cable
STP/UTP twin twisted cable, coaxial cable, telephone line

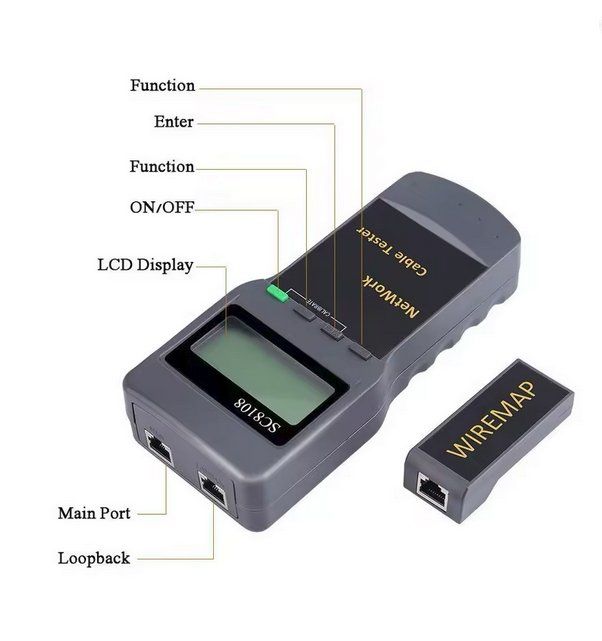

Tester Port
Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R)
(BNC and RJ11 converters (not included in the set), can be used to measure and check the continuity of coaxial cable and telephone line)
Length Measurement of Twin Twisted Cable
Scope: 1 to 350M (3 to 1,200 FT) calibration
Calibration accuracy
3% (0.5m or 1.5 ft) (calibrating cable > 5 M)
Shipment accuracy
5% (0.5m or 1.5 ft) (AMP, AT&T Class 5 cable)
Unit of Measurement
Display in meter (M) or feet (FT)
Length Calibration
User can set self-calibration factor by a given length cable.
The length of calibrating cable is more than 5M
Wire Sequence and Locating Cable Error
Check errors such as open circuit, short circuit, reverse connection, cross- over or cross-talk interference
Locating Cable
Included 1 far-end passive test jack
Automatic Time
Delay Shut Off Time; The tester is idle for 30 minutes
Powered by
4*1.5V AAA batteries (not included)
Working Ambient Temperature
-10° to 60°
Size
8.2*18*3.8cm / 3.2*7.1*1.5“
Net Weight
0.21kg / 7.4oz
Product contain
1*Multi-Network Cable Tester
1*Far-End Test Jack
1*Instruction Manual
)
-–-neuwertig)
