XTLSA
System configuration3-way line array module
Power handling RMS900 W
Frequency response (-3 dB)65÷18k Hz
Peak SPL (@1 m)137 dB
Coverage Angle (-6 dB)120° horizontal
Nominal impedance (bi-amp)8 (LF), 8 (MF+HF) Ohm
Nominal impedance (tri-amp)8 (LF), 8 (MF), 8 (HF) Ohm
TransducersLF 1x12"
MF 2x6" neodymium
HF 2x1" titanium
Input connectors2xNL8FC Speakon
Cabinetbirch plywood
Dimensions (WxHxD)1044x392x550 mm
Net weight (Kg)61
XTLSAS
System configurationarrayable double subwoofer
Power handling RMS2400 W
Frequency response (-3 dB)35÷90 Hz
Peak SPL (@1 m)142 dB
Nominal impedance4 Ohm
TransducersLF 2x18"
Input connectors8 (LF), 8 (MF), 8 (HF) Ohm
Cabinetbirch plywood
Dimensions (WxHxD)1044x470x800 mm
Net weight (Kg)93.5
Special version4+4 Ohm impedance

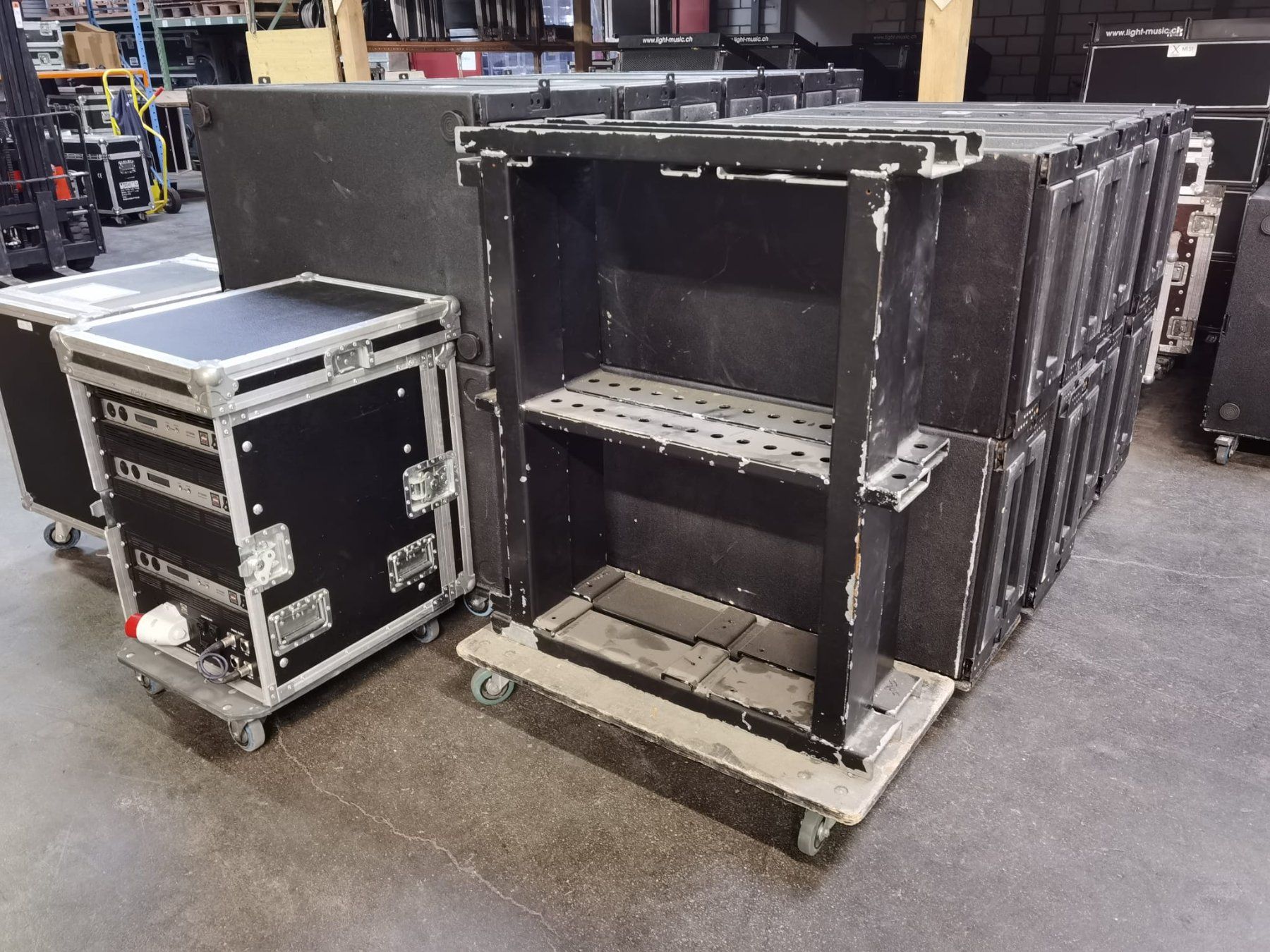

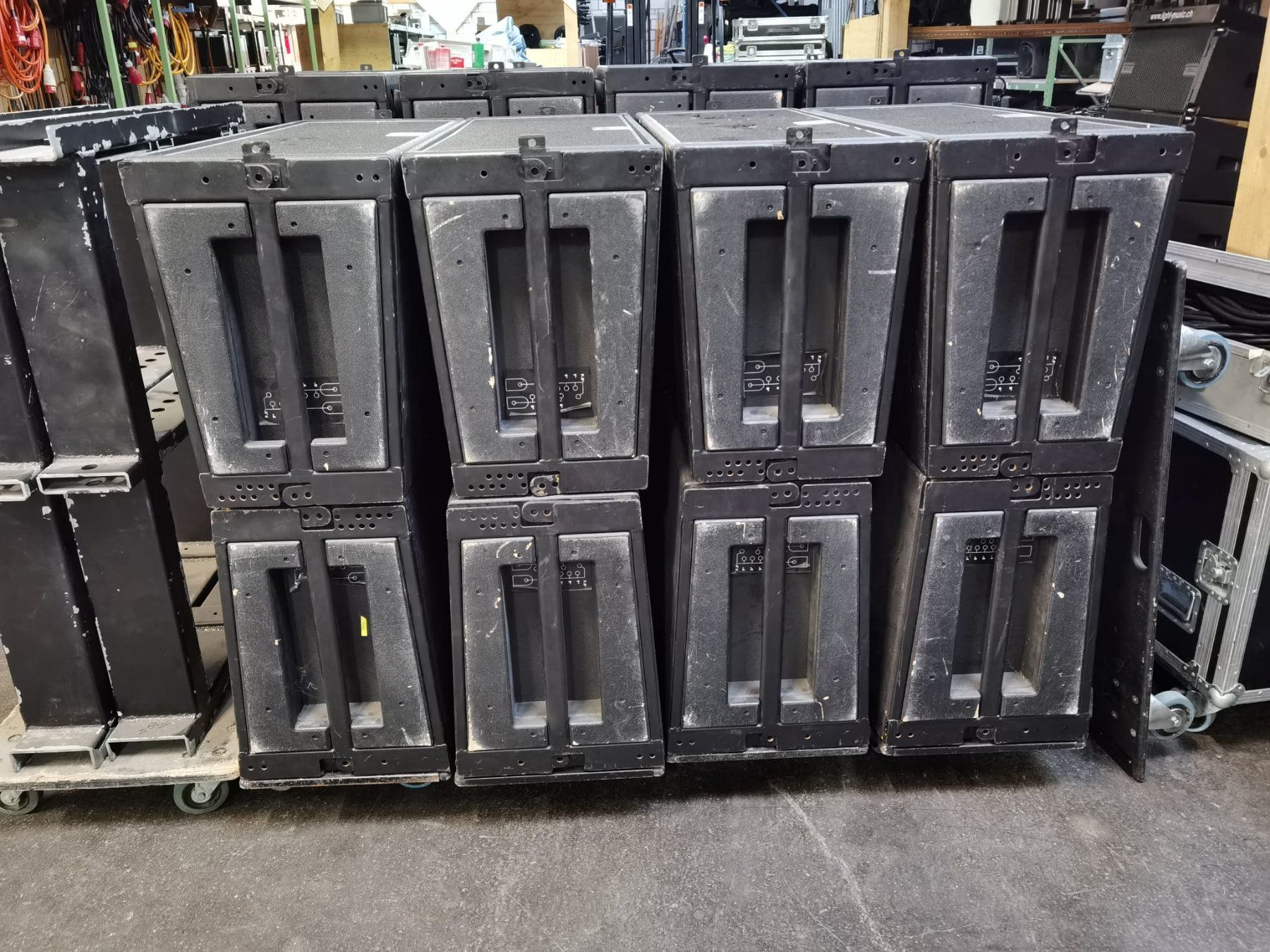

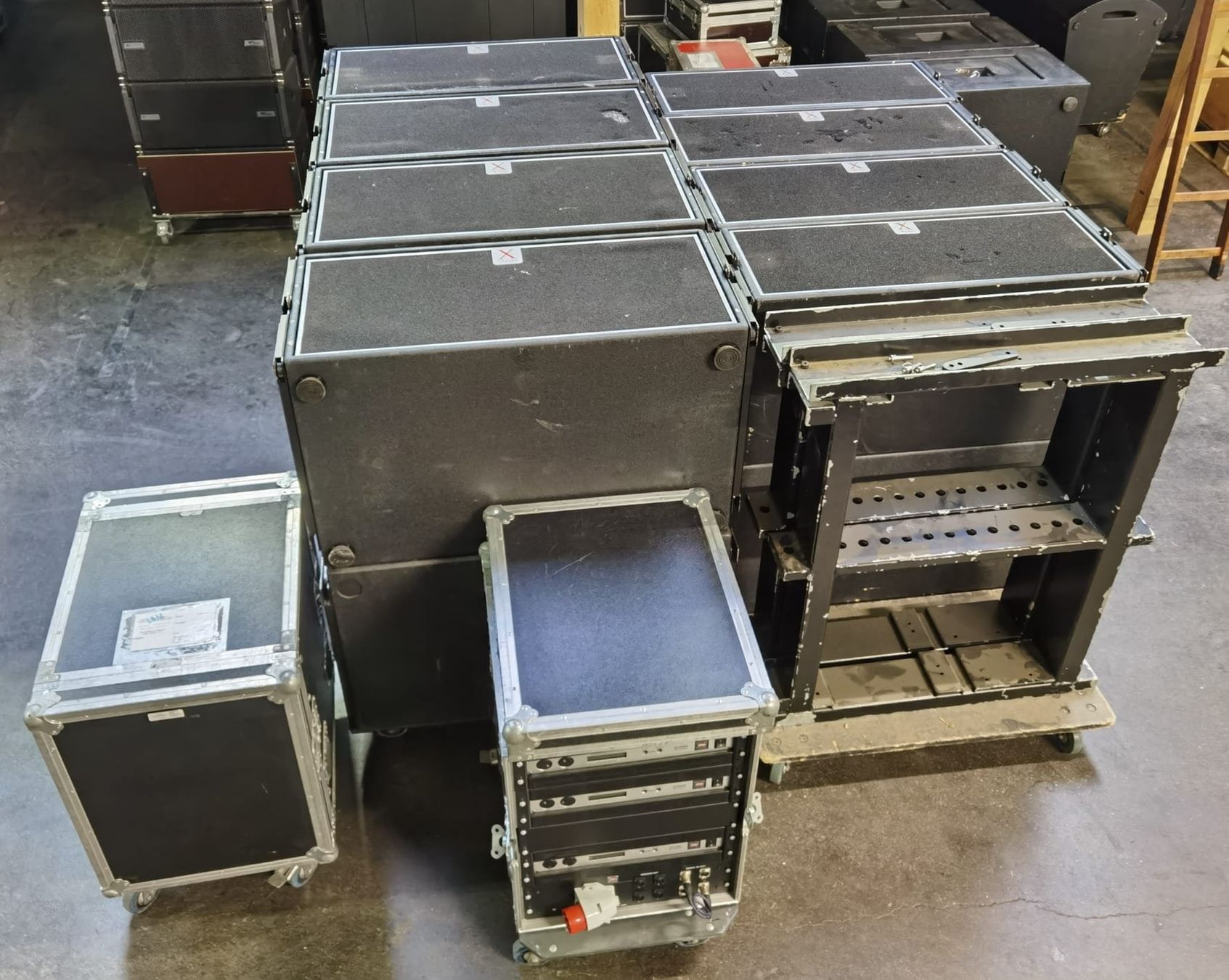

8x Top
7x Transport Wägeli
8x Sub
8x Transport Wägli
2x Flugrahmen
1x Transport Wägli
2x Amprack
1x Kabelsett
System kann gerne Probegehört werden vor dem Kauf
-inklusive-amps)
