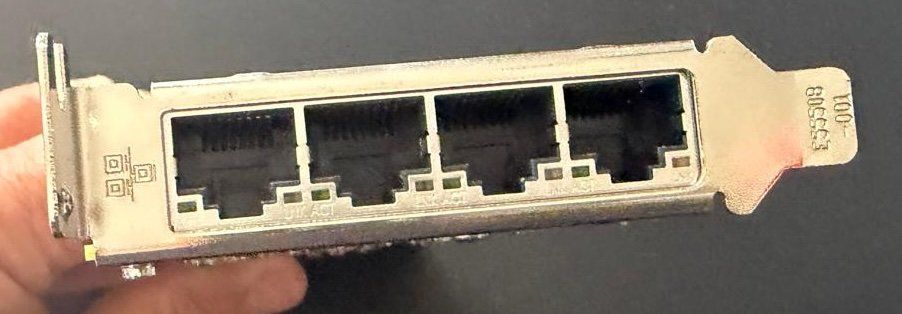

Oracle Quad Port 10GBase-T RJ 45 copper Adapter compatible with Linux Windows
Mint as new
Oracle Quad Port 10GBase-T Adapter reduces the cost and complexity of
deploying 10 Gb Ethernet infrastructure with servers and storage
systems. In addition to supporting 10 Gb Ethernet over low-cost twisted-pair
copper cabling, the adapter delivers network and server virtualization
features, enhancing the efficiency and security of on-premises clouds and
virtualized server deployments.
Oracle Quad Port 10GBase-T Adapter provides server virtualization, I/O convergence,
and network virtualization capabilities ideal for deploying on-premises cloud and
virtualization infrastructure. Key features include
Server virtualization: Provides dedicated hardware resources for up to 128 Virtual
Machines (VMs)
Network virtualization: Provides support for network overlays, including VXLAN,
NVGRE, and Geneve, which enables the data center’s network infrastructure to be
virtualized
I/O convergence: Through lossless iSCSI, enables both network and storage
connectivity to be provisioned with a single adapter
By combining the physical and virtual networking features required by high-density
virtualized servers into a single adapter, Oracle Quad Port 10GBase-T Adapter enables
customers to improve the economics and efficiency of on-premises cloud deployments.
Ethernet Features
10 Gb/1 Gb/100 Mb Ethernet; auto-negotiating
IEEE 802.3ad, Link Aggregation
IEEE 802.1Q, VLAN tags
IEEE 802.3 2005 flow control support
IEEE 802.1p
Jumbo frame support (9.6 KB)
Boot
PXE Boot
iSCSI boot over SAN
Virtualization Network Virtualization
VXLAN, NVGRE, and Geneve
Converged Networking
LAN
iSCSI
Server Virtualization
SR-IOV
» 16 physical functions
» 128 virtual functions (32 per physical port)
VM load balancing
VMDq: Up to 256 maximum VMDq VMs supported
Virtual bridging (VB) support:
» VEPA: IEEE 802.1Qbg support for virtual Ethernet port
aggregator
» Virtual Ethernet Bridge (VEB)
Features :
PCI Express (PCIe) PCIe Interface
Standard low-profile PCIe form factor; bracket dimensions are
PCI 3.0 CEM compliant: 6.665 in. x 3.154 in.
PCIe base 3.0 compliant, 1.1 and 2.0 compatible
2.5 GT/sec, 5.0 GT/sec, or 8.0 GT/sec link rate x8 (up to
128 GT/sec bidirectional)
SR-IOV support with 16 physical functions and up to 128 virtual functions (32 per port)
MSI-X support
Supported Operating
Systems, Hypervisors,
and Distributions
Operating Systems drivers compatibility
Oracle Linux
Oracle Solaris
Windows Server
Red Hat Linux
Hypervisors
Oracle VM Server
VMware ESX
Hyper-V
OpenBsd
FreeBsd
Eventually interested ? 079 5336993
Francesco
)
