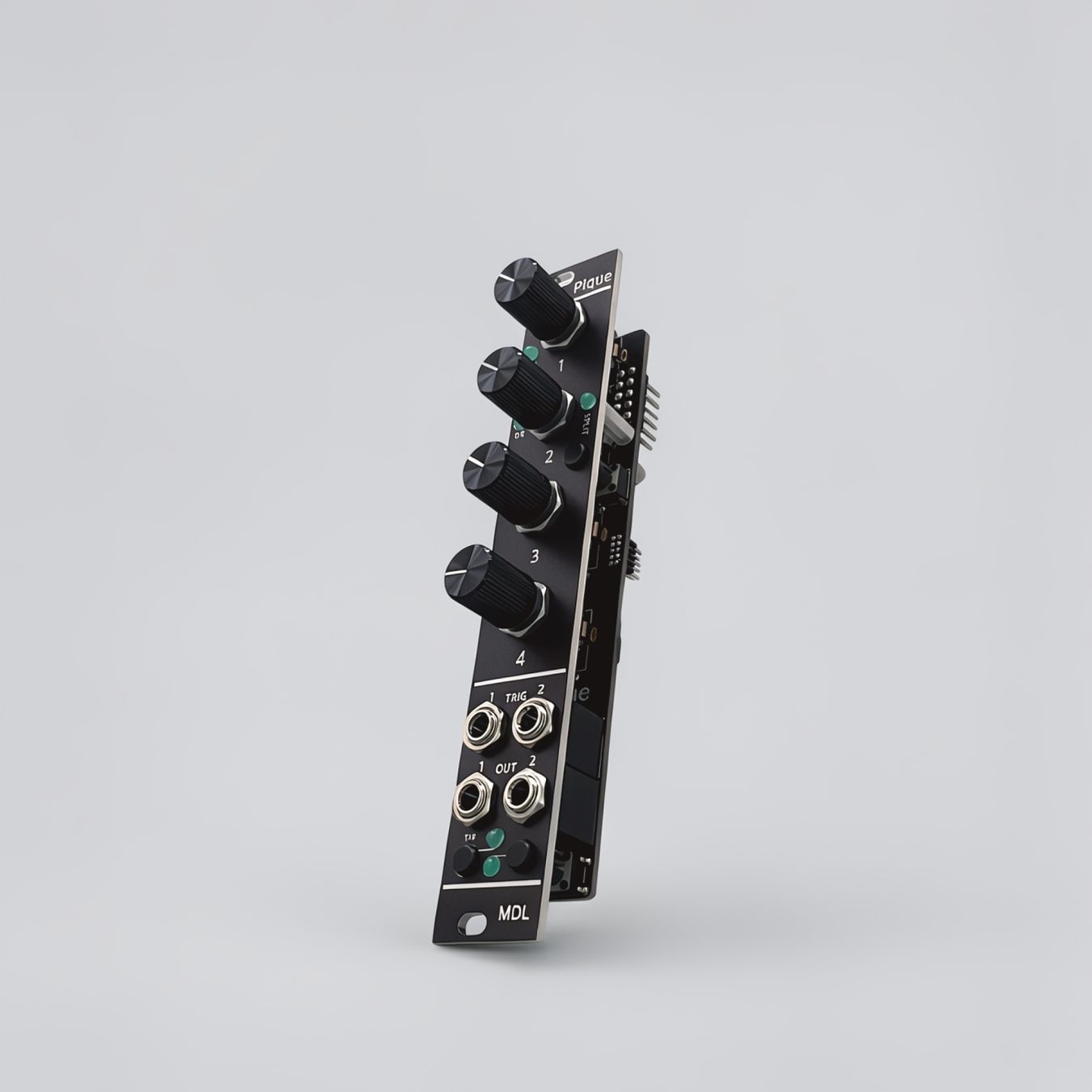

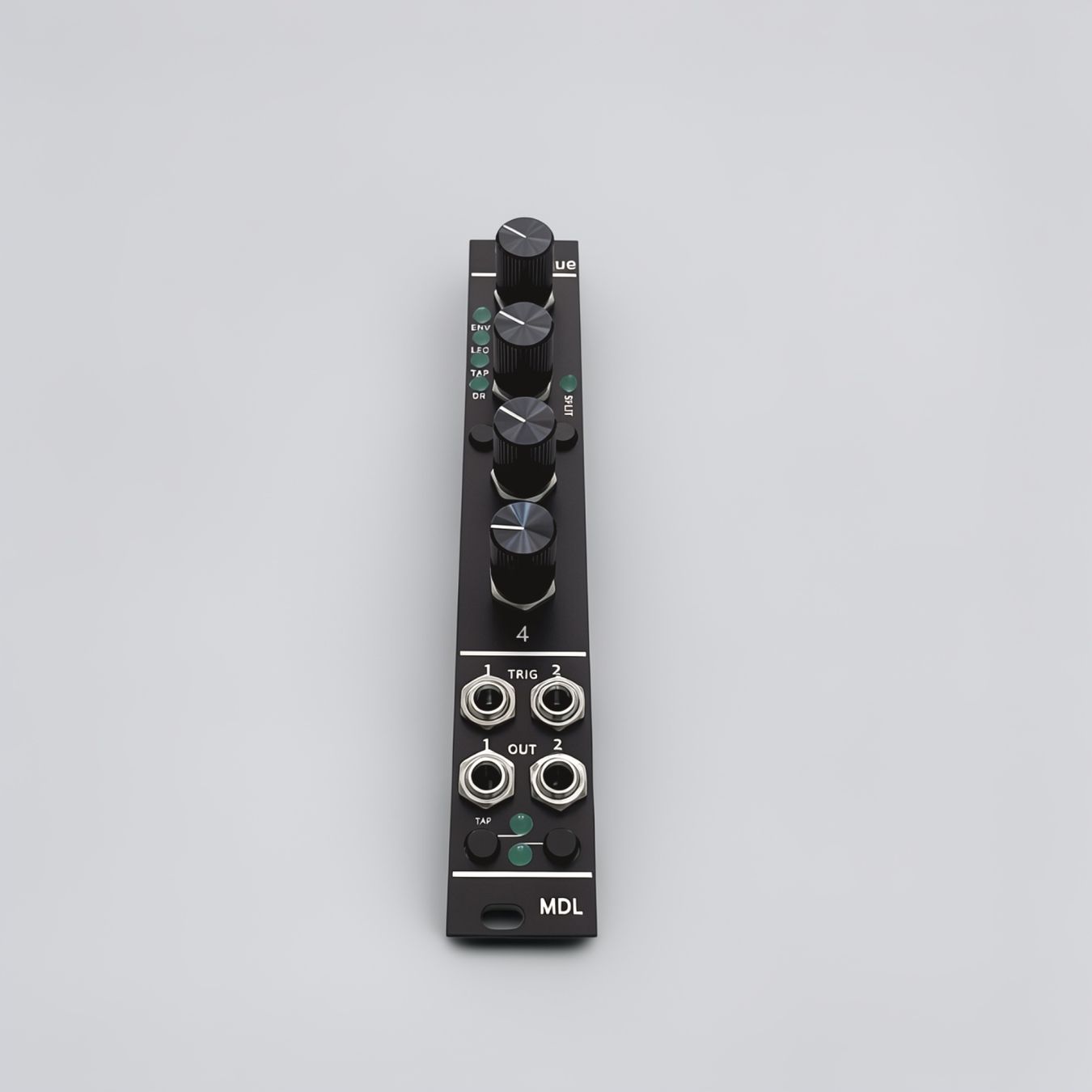

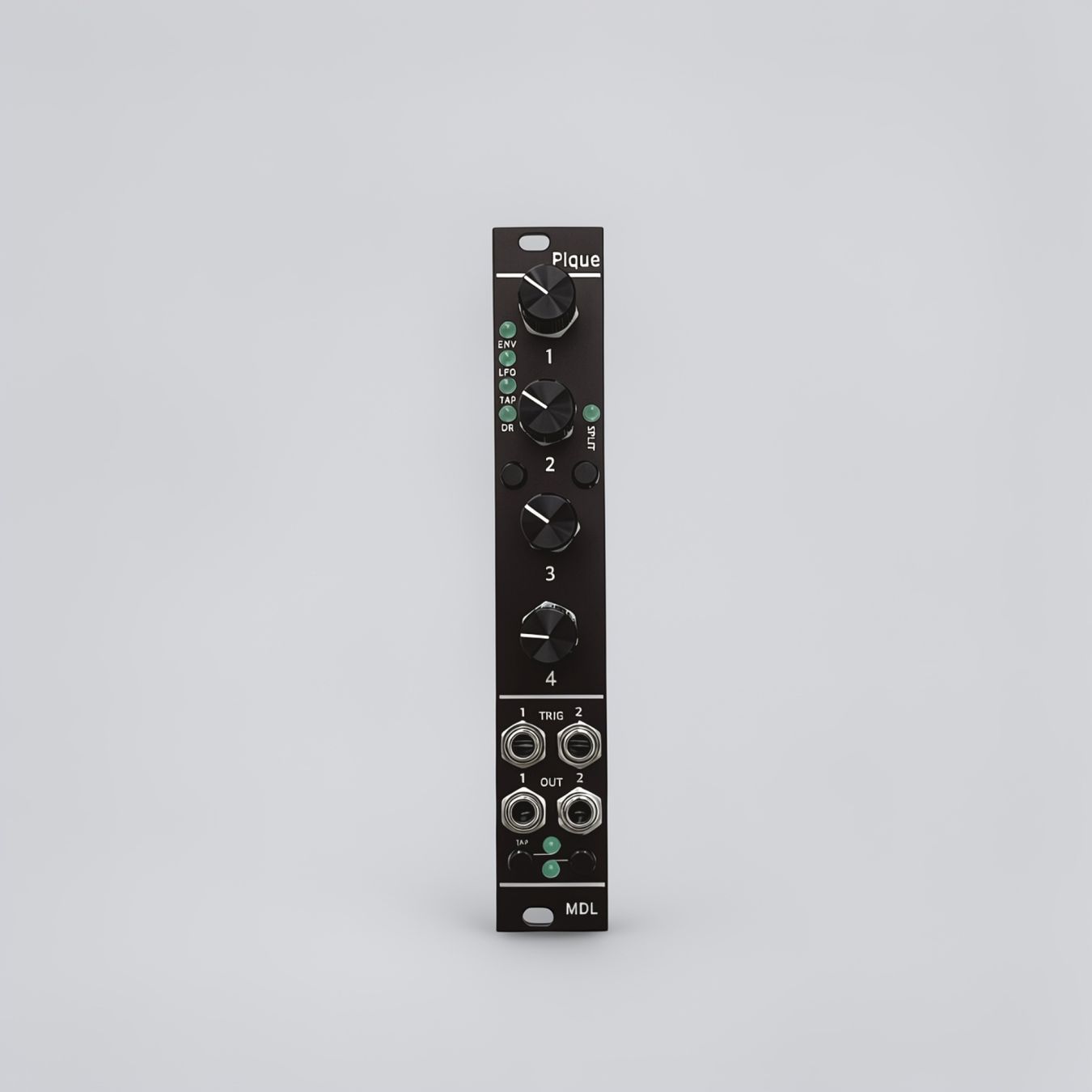

Pique is a 4hp version of Mutable Instruments Peaks.
ADSR, LFO, Drum sounds and lots more!
ADSR envelope generator
Segment durations ranging from 0.2ms to 8s.
Quartic attack, exponential decay, exponential release
.
LFO and tap-tempo LFO
0.03 Hz to 160 Hz.
5 basic waveforms: square, triangle, sine, stepped, random.
Waveform variations and morphing for each of these: PWM, slope, folding/harmonics, step size, interpolation.
Phase at reset control.
Tap LFO can lock onto irregular rhythms.
Drum synth
Channel 1: 808 kick model with extra parameters (tune, punch).
Channel 2: 808 snare model with extra parameters (tune, decay).
Channel 2: A specific combination of settings transform the snare into a modelled 808 hi-hat.
Control modes
Twin: Channel 1&2 share the same parameters but can be triggered independently.
Split: Channel 1 is edited by knobs 1&2, channel 2 edited by knobs 3&4, with a simplified 2-parameter control scheme.
Expert: Channel 1&2 are completely independent.
Specifications
Inputs: 100k impedance, threshold at 0.6V.
16-bit CV/audio generation with 48kHz sample rate.
Output level: 0 to +8V for envelopes, 10Vpp for LFOs and drum signals.
Size: 4HP
2mm Aluminium Panel
Knobs: Black Aluminium Style
Inkl. Ribbon Cable and Screws
1 Year Warranty
+12V / 60mA
-12V / 2mA
Available on our Site mdlmusic
