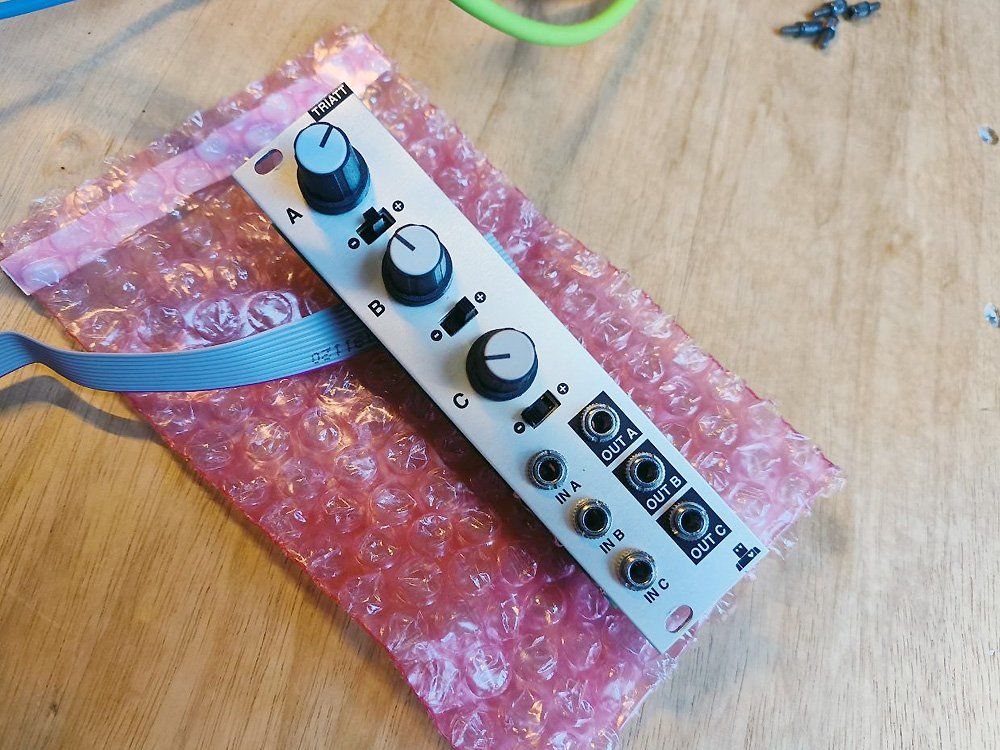

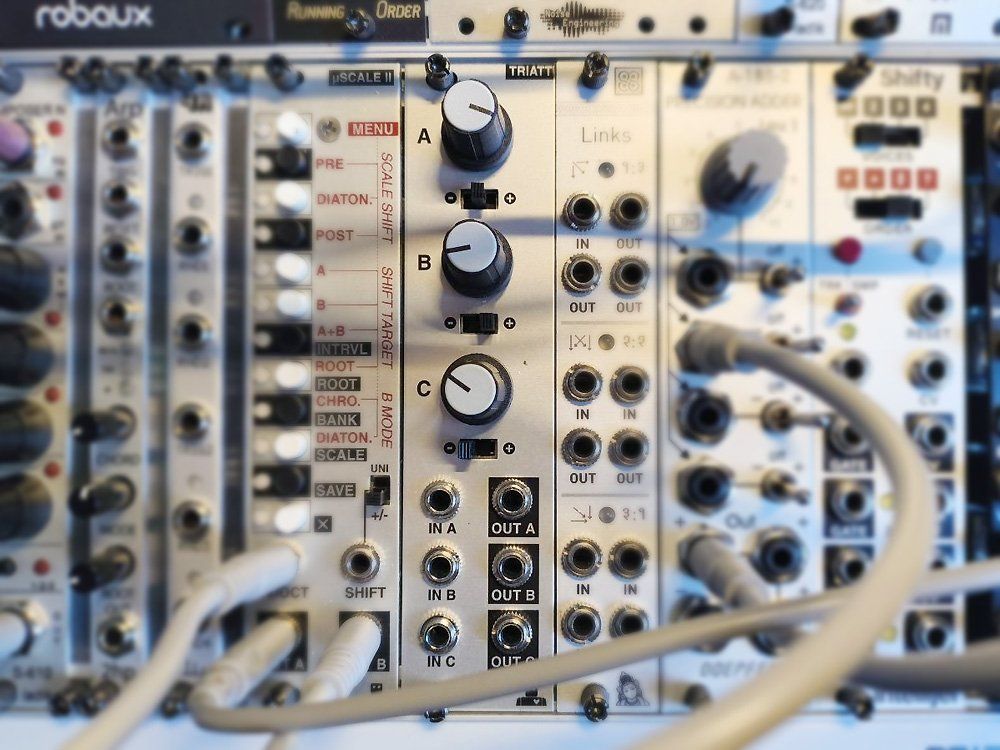

Triple Attenuator / Inverter / Attenuverter / Mixer / DC Voltage Source
Abholung / Übergabe in Zürich / Postversand (+7.50 Fr.). Mit Kabel & Schrauben.
*auf tutti 65 Fr.*
Overview:
This is a utility module we found ourselves always needing and using. The three well spaced
knobs can act as active attenuators, attenuverters (bipolar) and inverting attenuators depending
on the setting of the three-position switches.
Each input is normalled to a DC voltage selectable via jumpers for each channel to be 5V or
10V. With nothing plugged into the jacks, each knob controls a voltage amount.
Features:

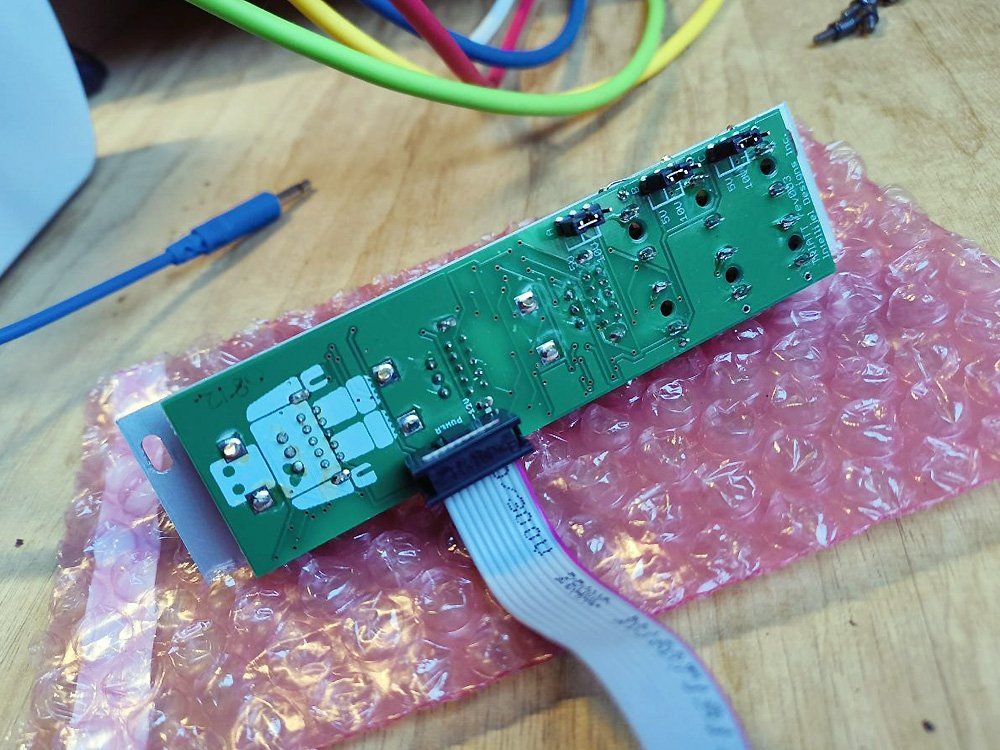

- Skiff Friendly (single PCB)
- 3 modes for each channel
- 5V or 10V normally to inputs
- With external signals, it acts as active/buffered attenuator/attenuverter/inverter/mixer
- Width 6 hp
- Maximum Depth 24 mm
- Current Draw 16 mA @ +12V, 14 mA @ -12V
)
)
)
)
)
