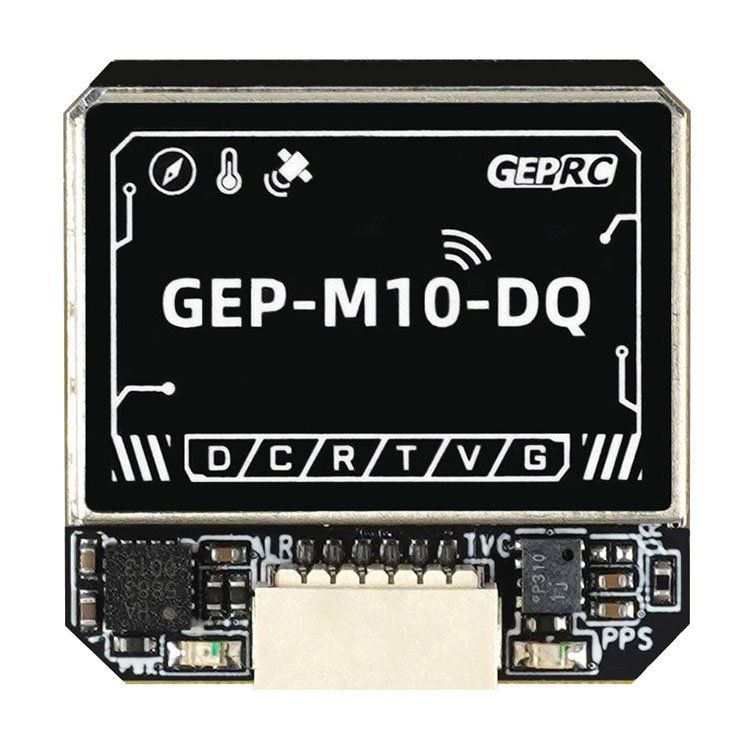

Neues und ungebrauchtes GepRC GPS mit Kompass und Barometer
Specifications
- GPS chip: u-blox M10050
- Input voltage: 3.3V-5V
- Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
- Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning
- Channel: 72ch
- Navigation satellites: Up to 32 pieces
- Output protocol: UART(ublox), I2C(Baro,Mag)
- (Noted: Ublox output, you need to create the corresponding program yourself)
- Baud rate: 115200bps
- Output Frequency: 10Hz
- Speed Accuracy: 0.05 m/s
- Horizontal positioning accuracy: 2D ACC1.5m(Weather)
- Timing accuracy: 30 ns
- Receiver sensitivity: Trace-162dBm，Capture-160dBm
- Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s
- Maximum acceleration: 4G
- Mag: QMC5883L,IST8310
- Baro：DPS310
- Size: 15x15x7.5mm(GEP-M10nano),22x22x8.2mm(GEP-M10)
- Antenna size: 12x12mm(GEP-M10nano),18x18mm(GEP-M10)
- Weight: 4.1g(GEP-M10nano),7.8g(GEP-M10)
)
