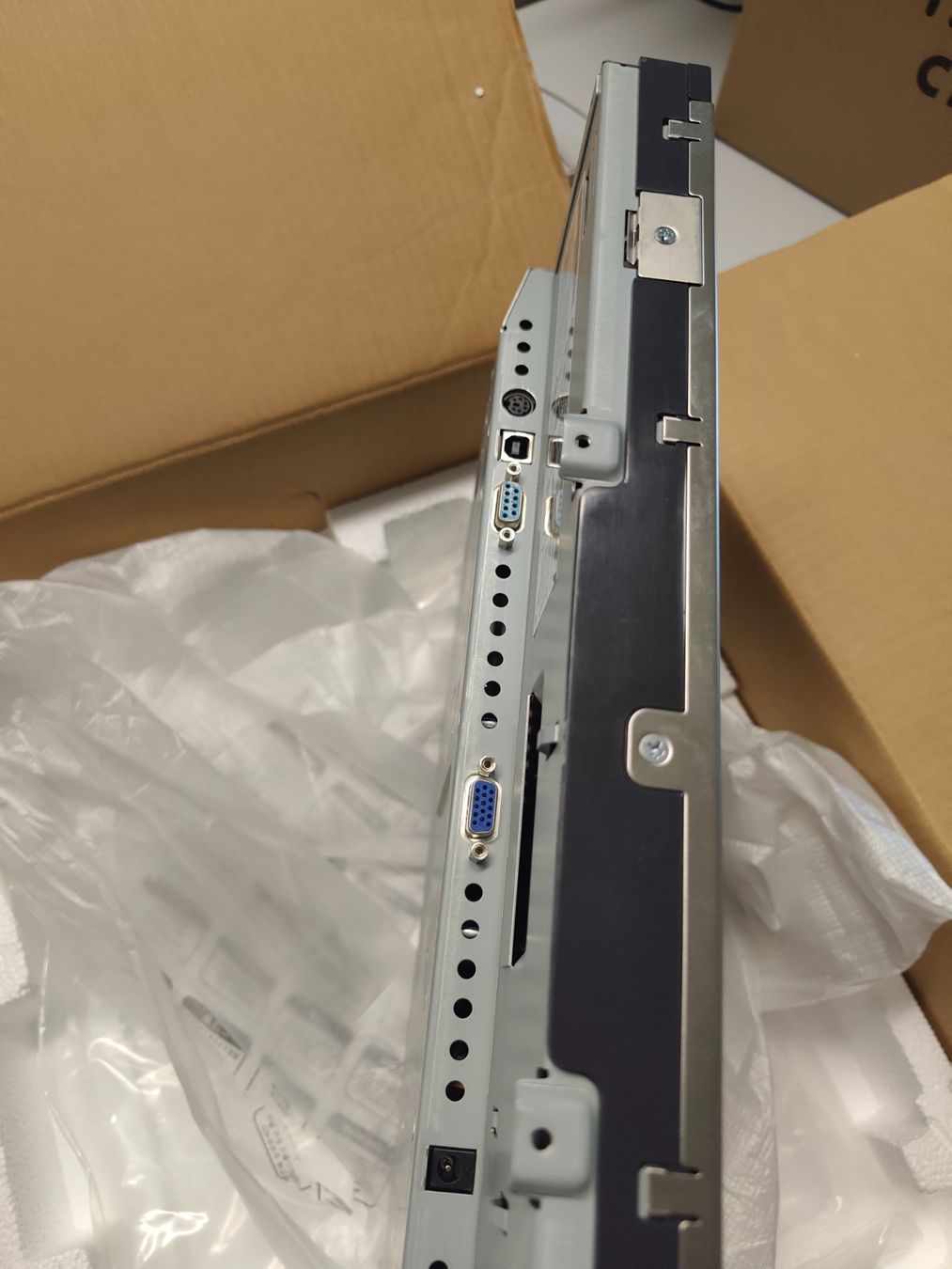

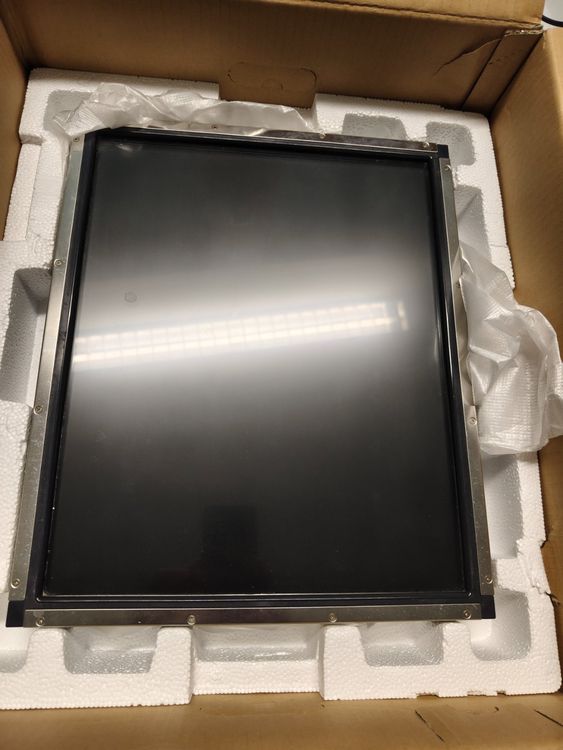

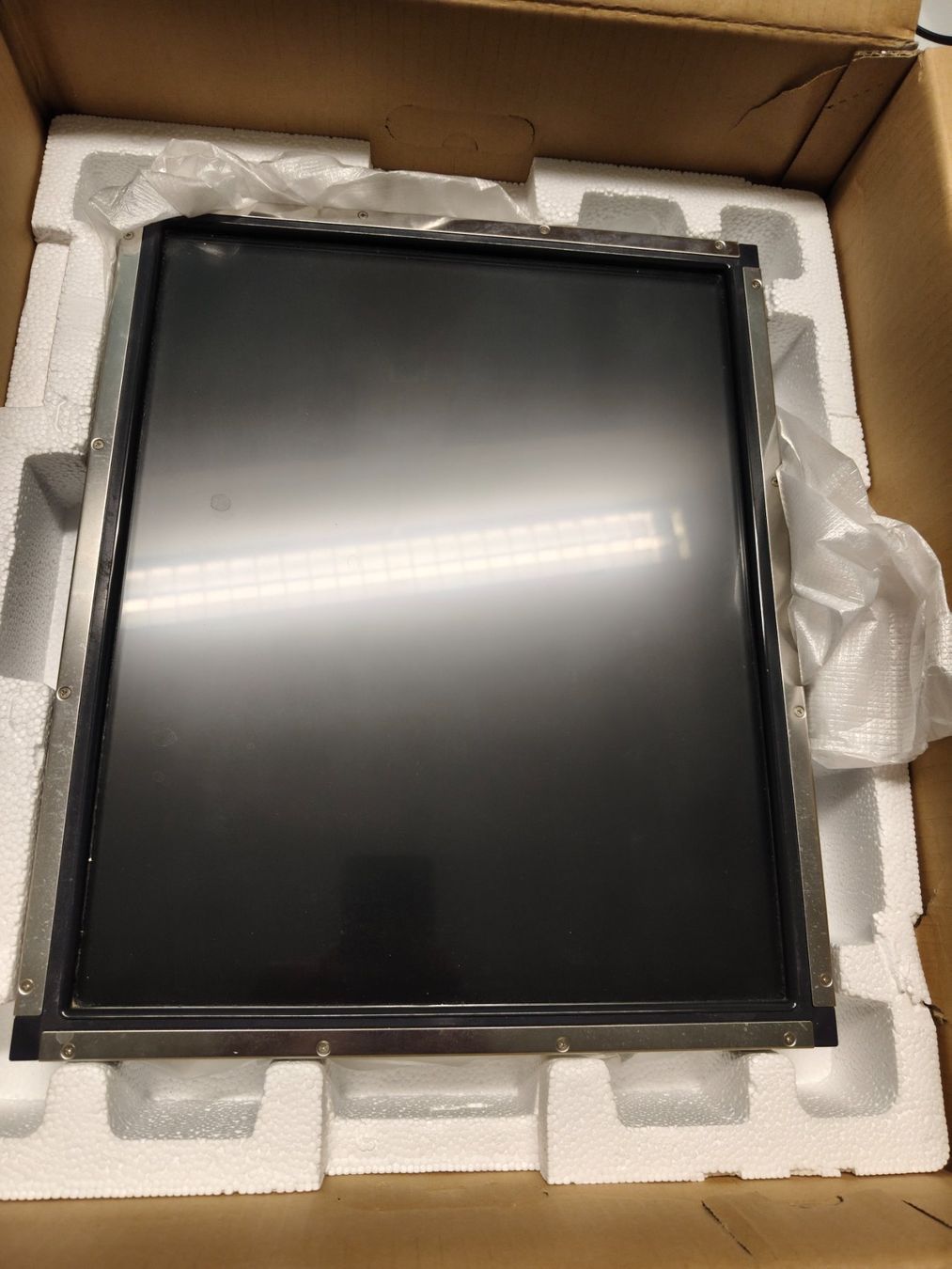

ELO Touch 1939L, Ersatzgerät original verpackt, war nie im Einsatz. Wurde für Test ausgepackt und wieder eingepackt.

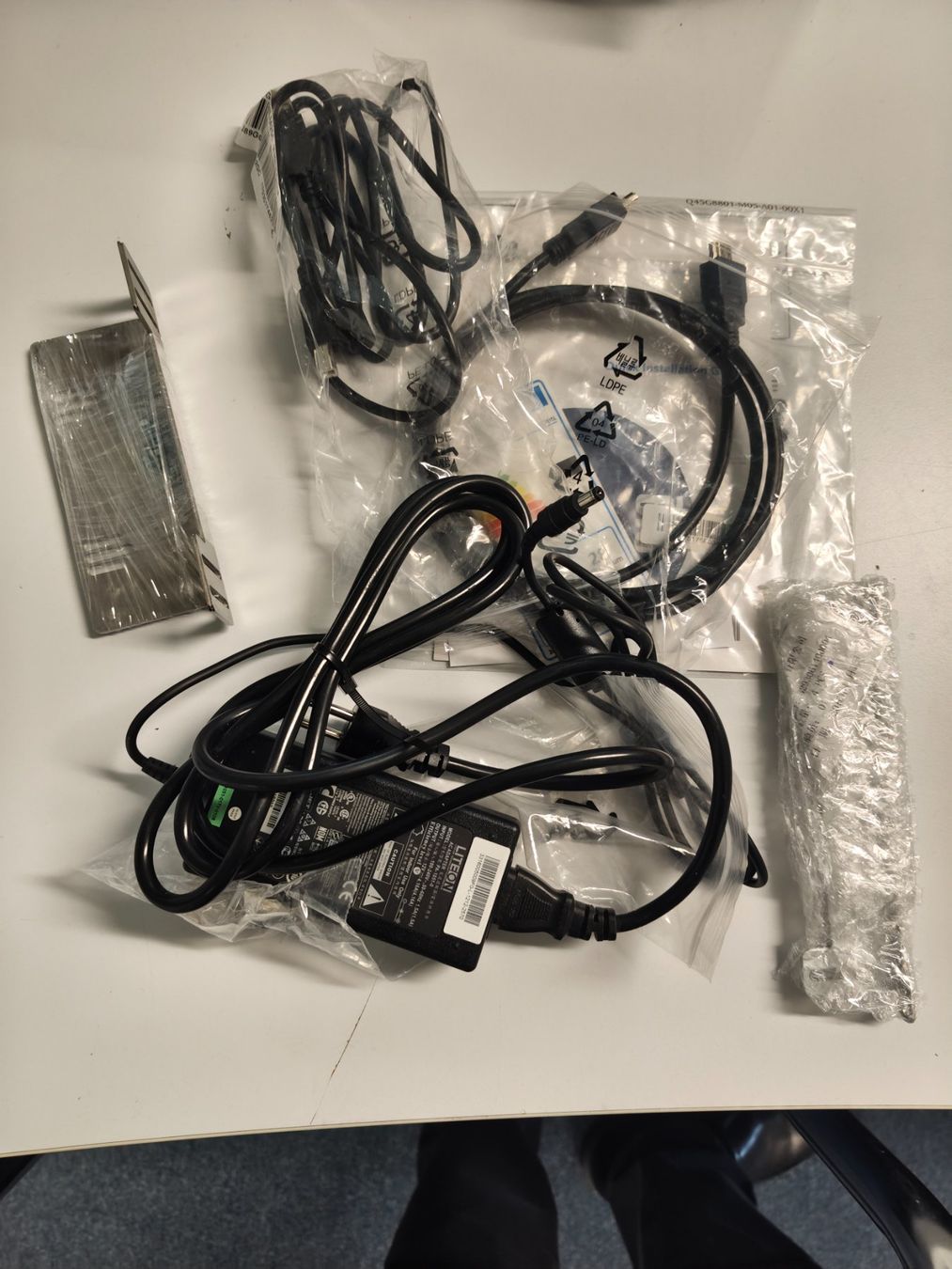

Achtung, Bildschirm ist für den Einbau und ohne Ramen oder Standfuss. Zubehör und Produkt gemäss Bilder.
Aufgrund des Gewichtes ist eine Abholung erwünscht, Postversand ist gegen Portoübernahme von Fr. 22.50 und Vorauszahlung möglich.
Daten gemäss Herstellerseite
Model1939LDisplay19.0" diagonal, Active matrix TFT LCDAspect Ratio5:4Useful Screen AreaHorizontal: 14.8" (376 mm)
Vertical: 11.9" (301 mm)Native (Optimal) Resolution1280 x 1024Other Supported Resolutions1280 x 1024 at 60, 70 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65 (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 Hz
512 x 247 at 60 Hz
512 x 256 at 60 HzColors16.7 millionBrightness
(Typical)LCD panel: 250 nits
AccuTouch: 200 nits
Acoustic Pulse Recognition: 225 nits
CarrollTouch: 225 nits
IntelliTouch: 225 nits
SecureTouch: 220 nits
Surface capacitive: 212 nitsResponse Time - Total (Typical)25 msecViewing Angle
(Typical)Horizontal: ±89° or 178° total
Vertical: ±89° or 178° totalContrast Ratio (typical)1300:1 (Typical) On-Screen Display (OSD)Controls (optional remote with 1.8m cable): Auto/Sel, up, down, menu
Controls (back): menu, left, right, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controls
Power SupplyExternal DC - optional power brick
Input power connector specification (Monitor)
Type: DC Barrel Jack
Barrel inner diameter: 6.4mm (+/- 0.3mm)
Pin outer diameter: 2.0mm (+0.0 -0.1mm)
Barrel depth: 8.8mm (+/- 0.3mm)
Input voltage range: +12VDC ±5%
Input power connector specification (Power brick)
Type: IEC 60320 C14
Adaper input voltage range: 100-240VAC, 50/60HzPower Consumption (Typical)Monitor only: 38W
Monitor and power brick: 43W
Input Video FormatAnalog VGAInput Video Signal ConnectorMini D-Sub 15-Pin VGA typeInput FrequencyHorizontal: 31.5-80.0 kHz
Vertical: 56.3-75 Hz
Monitor DimensionsWidth: 16.3" (415 mm)
Height: 13.5" (343 mm)
Depth: 2.0" (51 mm)Shipping Box Dimensions
(W x D x H)20.28" (515 mm) x 17.72" (450 mm) x 6.89" (175 mm)
WeightActual: 11.5 lb (5.2 kg)
Shipping: 16.1 lb (7.3 kg)
TemperatureOperating: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 60°C (-4°F to 140°F)Humidity
(noncondensing)Operating: 20%-80%
Storage: 10%-90%
Form FactorOpen-frameEnclosure ColorSteel/blackMTBF50,000 hours demonstratedMounting Options75 mm or 100 mm VESA mount
Rear mount or with included standard mounting brackets
Front mount with optional bezel (see Accessories tab for details)
Rack mount with optional bracket (see Accessories tab for details)
)
)
