Ich verkaufe hier mein BYXA von Sylph Modular. Das Modul funktioniert technisch einwandfrei und ist praktisch neu. Kann in Bern abgeholt oder mit Aufpreis via Post verschickt werden.

Privatverkauf, keine Garantie oder Rücknahme.



"4HP Eurorack Envelope Follower and Contact Microphone inspired by Mutable Instruments Ears

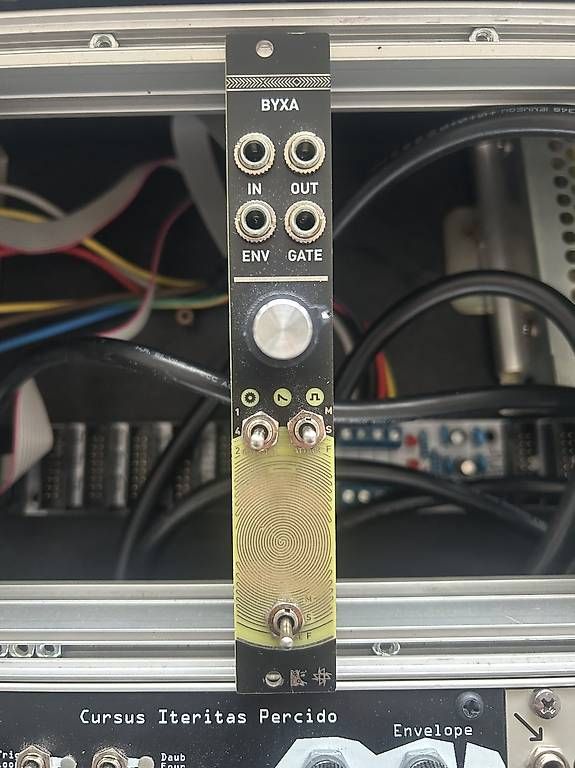

BYXA is an enhanced Mutable Instruments Ears variant for Eurorack systems. It combines a contact microphone, envelope follower and gate extractor in a compact 4HP format while introducing additional front-panel controls for faster performance-oriented operation.

The module converts audio signals into useful control voltages and gates, allowing external instruments, microphones, percussion and acoustic objects to become modulation sources within a Eurorack system. When no signal is connected, the built-in piezo contact microphone can be used directly by tapping, scratching or interacting with nearby surfaces to generate envelopes and trigger events.

Unlike the original design, BYXA places important performance controls directly on the front panel. Dedicated switches allow adjustment of gate sensitivity, attack time and decay time without requiring access to rear-board settings. Every module is assembled, calibrated and tested individually by Sylph Modular.

Features of the Mutable Instruments Ears variant
Envelope follower
Gate extractor
Built-in piezo contact microphone
External audio input
Front-panel gate threshold selection
Front-panel attack control
Front-panel decay control
Audio pass-through output
CV and gate generation
Compact 4HP format
Why BYXA?
BYXA transforms external audio and physical interaction into modulation sources for Eurorack systems. The addition of front-panel controls makes it faster and more practical during live performance, allowing envelope and gate behaviour to be adjusted without removing the module from a case.

Specifications
HP: 4
Depth: 25mm
Power: 5 mA +12V / 5 mA -12V
"
