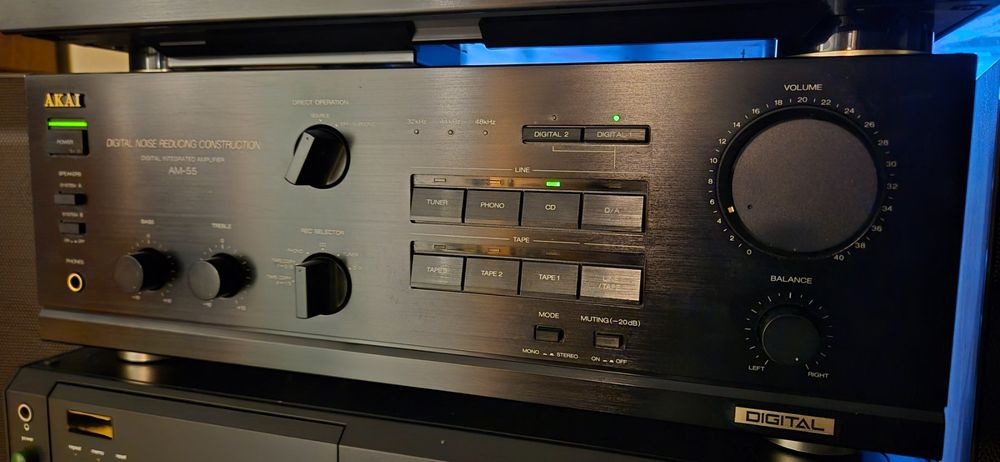

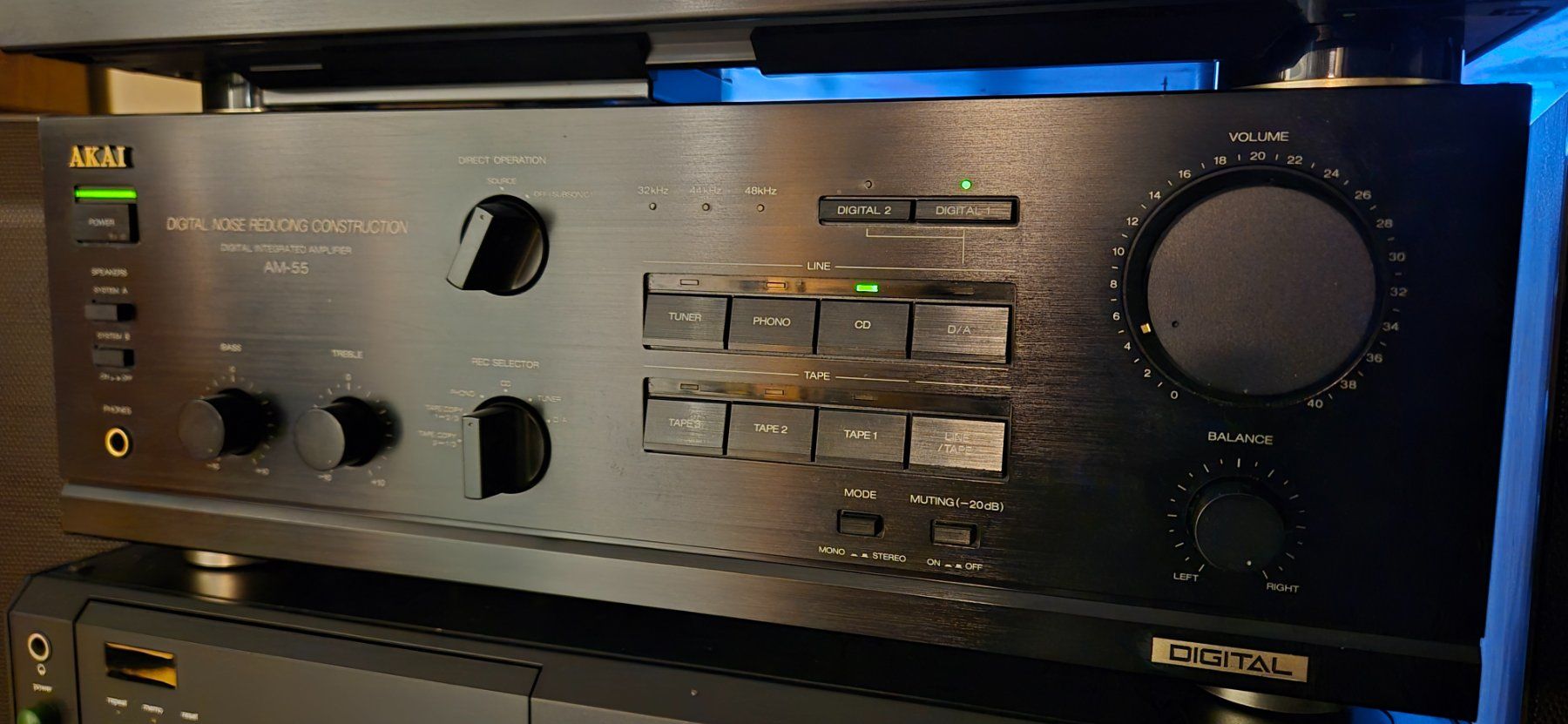

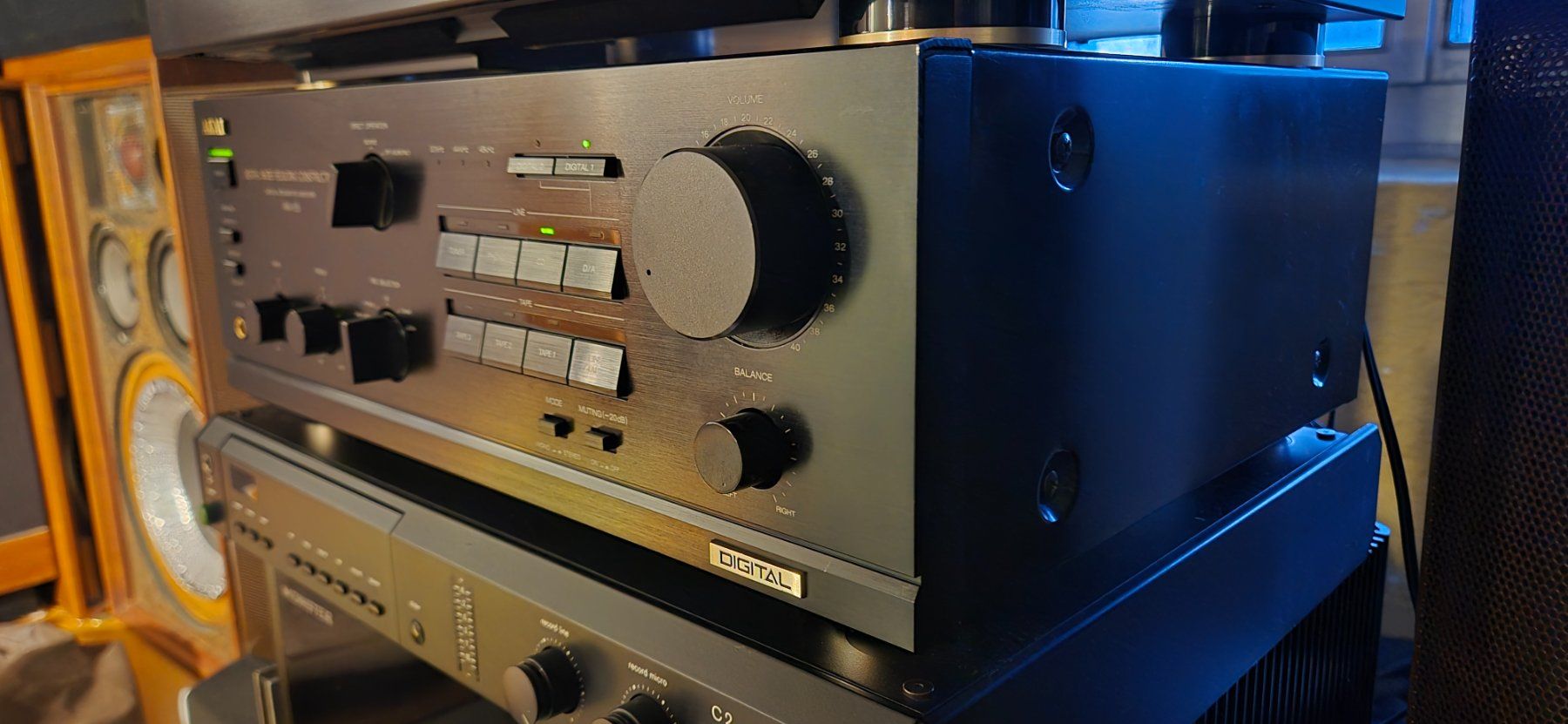

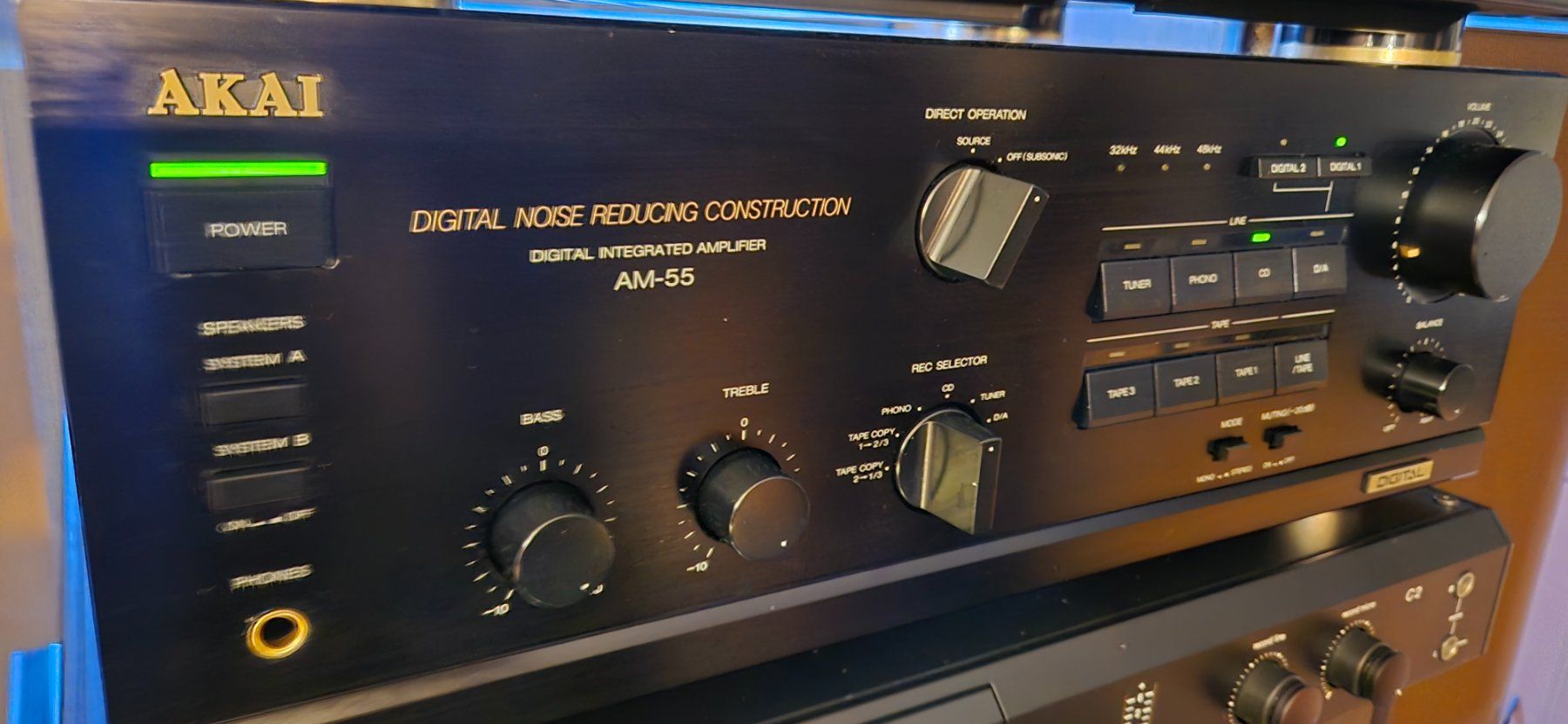

AKAI AM 55

AKAI AM 55

Funktioniert einwandfrei.

Gut klingender Verstãrker wird nur verkauft da ich reduzieren muss.

2× 80 watt an 8ohm

General

• Manufacturer: Akai
• Model: AM-55
• Type: Integrated amplifier
• Years of manufacture: 1990 - 1992
• Made in: Japan
• Colors: Black, Silver
• Remote control: no
• Power consumption:
• Dimensions: 425 x 156 x 370 mm (WxHxD).
• Weight: 10.8 kg

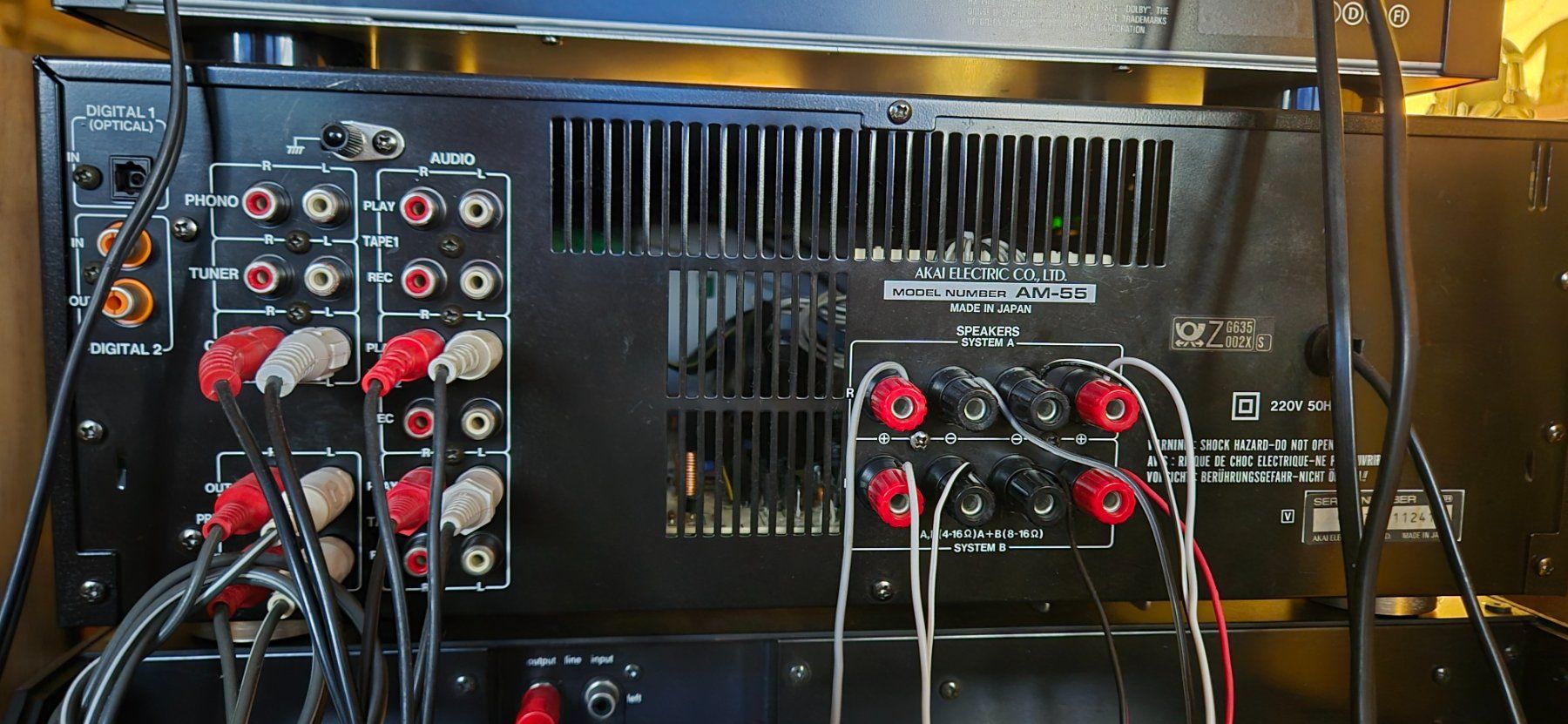

Connections

• Number of inputs: 8

Digital 1 (Optical) -14dBm to -23dBm

• Digital 2 (Coaxial) 0.5Vp-p/75Ohm

Tuner 150mV/47kOhm

• Phono 2,5mV/47kOhm

CD 150mV/47kOhm Tape 1 150mV/47kOhm Tape 2 150mV/47kOhm

• Tape 3 150mV/47kOhm
• Number of outputs: 4
• Digital 2 (Coaxial)
• Tape 1-3 150mV/1kOhm
• Number of speaker pairs: 2
• Impedance speaker pair A or B: 4 to 16 Ohm
• Impedance speaker pair A and B: 8 to 16 Ohm

Technical Data

• Continuous power (at distortion factor)
• 8 Ohm: 80W + 80W at 0.05%
• 4 Ohm: 120W + 120W at 1%
• Total harmonic distortion: 0.005% (1kHz 8 Ohm)
• Attenuation factor: 45 (1kHz 8 Ohm)
• Frequency response: 5Hz - 100kHz (+0dB -3dB)
• Signal to noise ratio phono: 85dB

Signal-to-noise ratio tuner, CD, tape: 101dB

• Stereo channel separation: 60dB at 1kHz, 50 dB at 10kHz.
• Tone control:
• Bass: +-8dB 100Hz

Treble: +- 8dB 10kHz

• Loudness: No
• High Filter: No
• Low Filter (Subsonic): No
• Mute: -20dB
