Funktioniert einwandfrei. Versand +15fr. Abzuholen in Hohenrain.
Details:

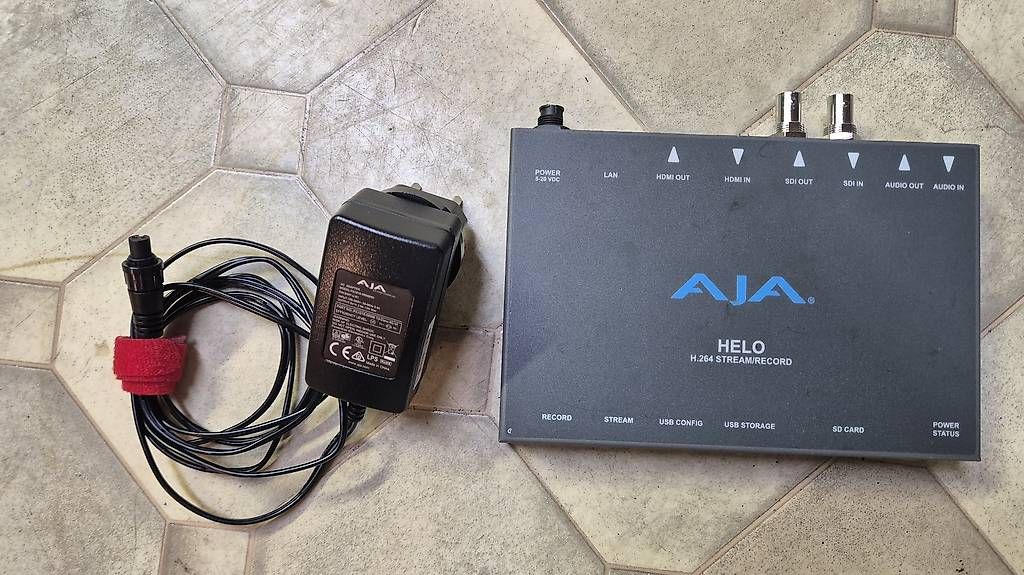

HELO
Tech Specs
Tech Specs are subject to change.
Print Tech Specs
Video Formats
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60*
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1080i 50, 59.94, 60
(HD) 720p 50, 59.94, 60
(SD) 525i, 625i
*2K inputs are center cut to 1080p and are only supported on SDI input
Video Codec Support
H.264/MPEG-4 Encoder
Video Encoding Parameters
100 kbps to 20 Mbps streamed output
100 kbps to 20 Mbps recorded output
Up to 1080p 60
Supports Baseline, Main and High
Audio Encoding Parameters
32 kbps to 256 kbps
48 kHz 2-Channel stereo
MPEG-4 AAC-LC
Protocols
RTMP, RTSP (10 clients), RTMPE, RTMPS, HTTPS and RTP/UDP Unicast and Multi Unicast
Storage
1x USB port (USB 2.0 and USB 3.0 media, exFAT or FAT32)
1x SD card slot, SD, SDHC, SDXC cards (exFAT)
Mounted Network Share (CIFS or NFS)

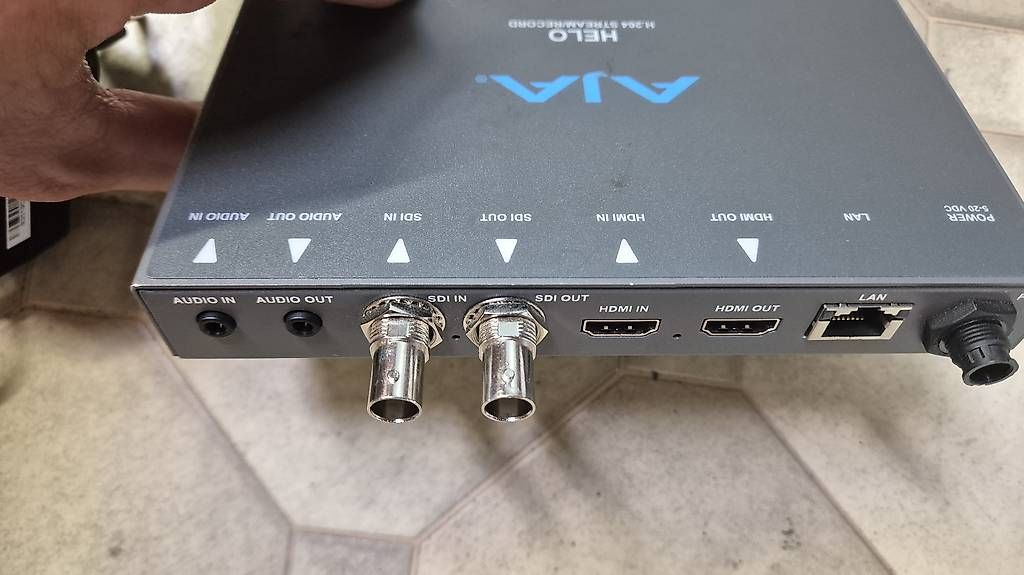

Video Input Digital
1x 3G-SDI, SMPTE-259/292/296/424, 10-bit
Single Link 4:2:2, 4:4:4 (1x BNC)
1x HDMI Standard Type A connector
HDMI v1.4a, RGB or YCbCr
Video Output Digital
1x 3G-SDI, SMPTE-292/296/424, 10-bit
Single Link 4:2:2 or 4:4:4 (1x BNC)
1x HDMI Standard Type A connector
HDMI v1.4a, RGB or YCbCr
Audio Input Digital
2-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
2-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
Audio Input Analog
2-channel, Analog (-10dBV Line Level, Unbalanced stereo 1x 3.5mm TRS connector)
Audio Output Digital
2-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
2-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
Audio Output Analog
2-channel, Analog (Line Level, Unbalanced stereo 1x 3.5mm TRS connector)
Network Interface
10/100/1000 Ethernet (RJ-45)
Embedded web server for Configuration and Control
Regionalized interface support - Simplified Chinese

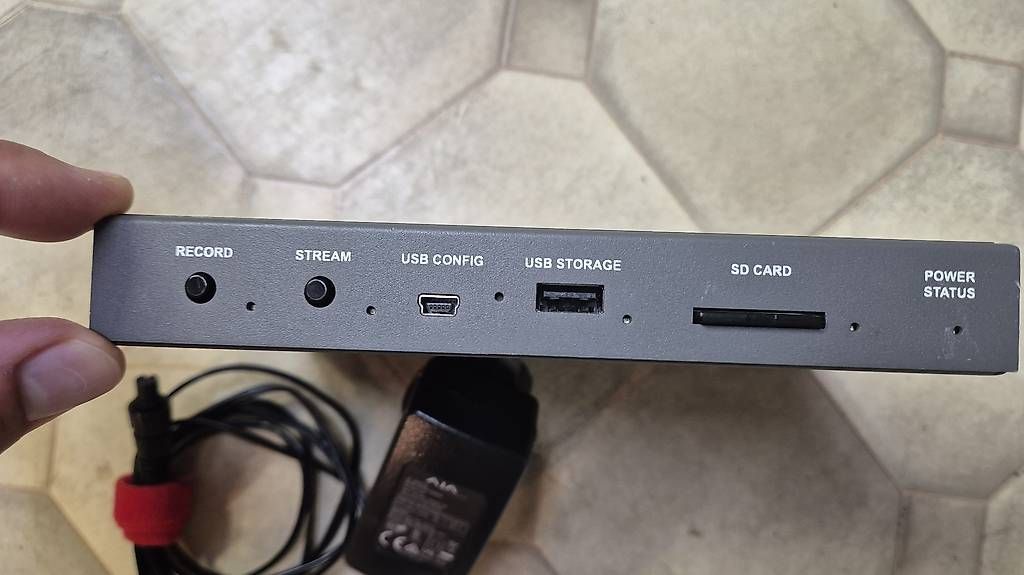

User Interface
Stream Button
Record Button
Web UI
Simple Web Configuration via AJA eMini-Setup (macOS and Windows)
Integrated calendar
Control and Automation
Integrated calendar scheduler
Support remote ICS calendars
Scriptable REST control API
Closed Captioning supported
Size (w x d x h)
7.00 x 4.66 x 1.02 (177.8 x 118.37 x 25.91 mm)
Weight
0.8 lb (0.4 kg)
Power
100-240V, 50/60 Hz Universal Input, +5-20V DC 13W Max
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
)
