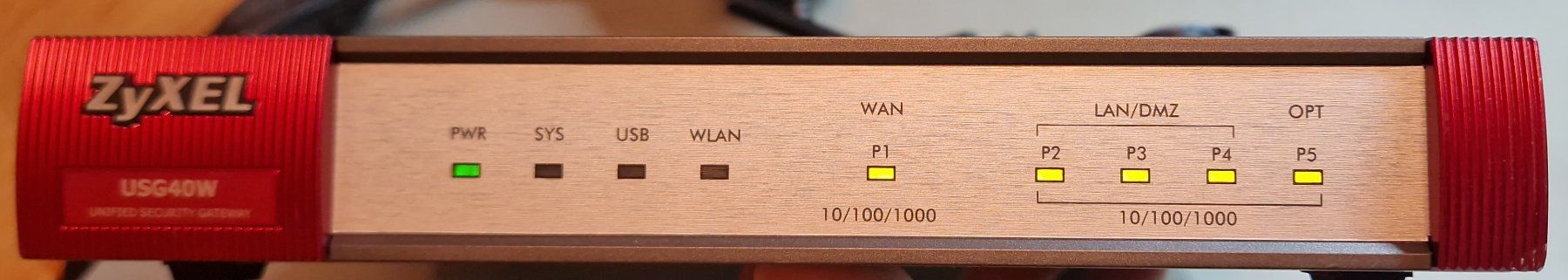

Zyxel USG40W Router

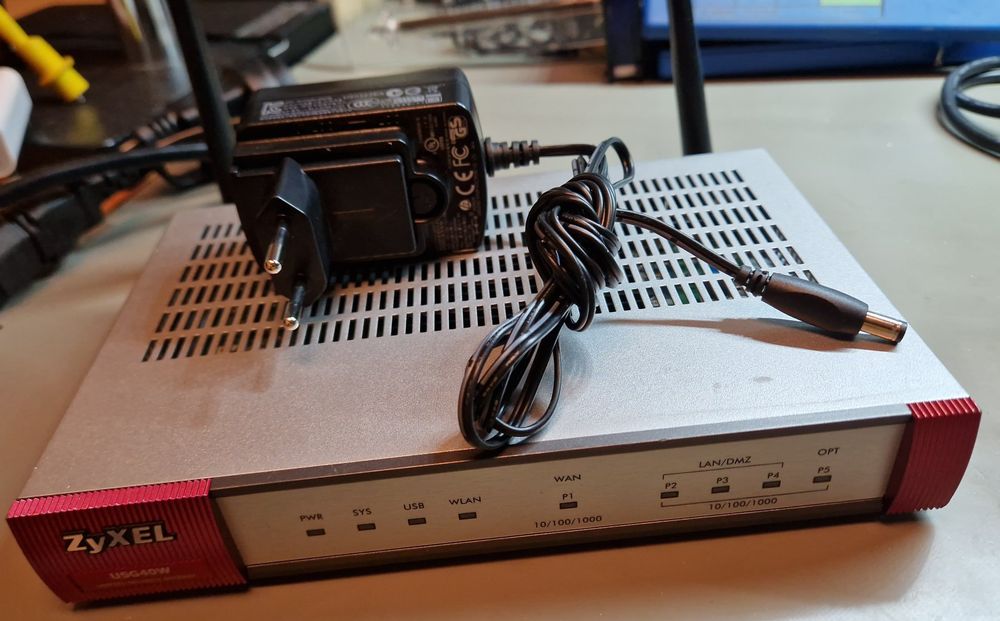

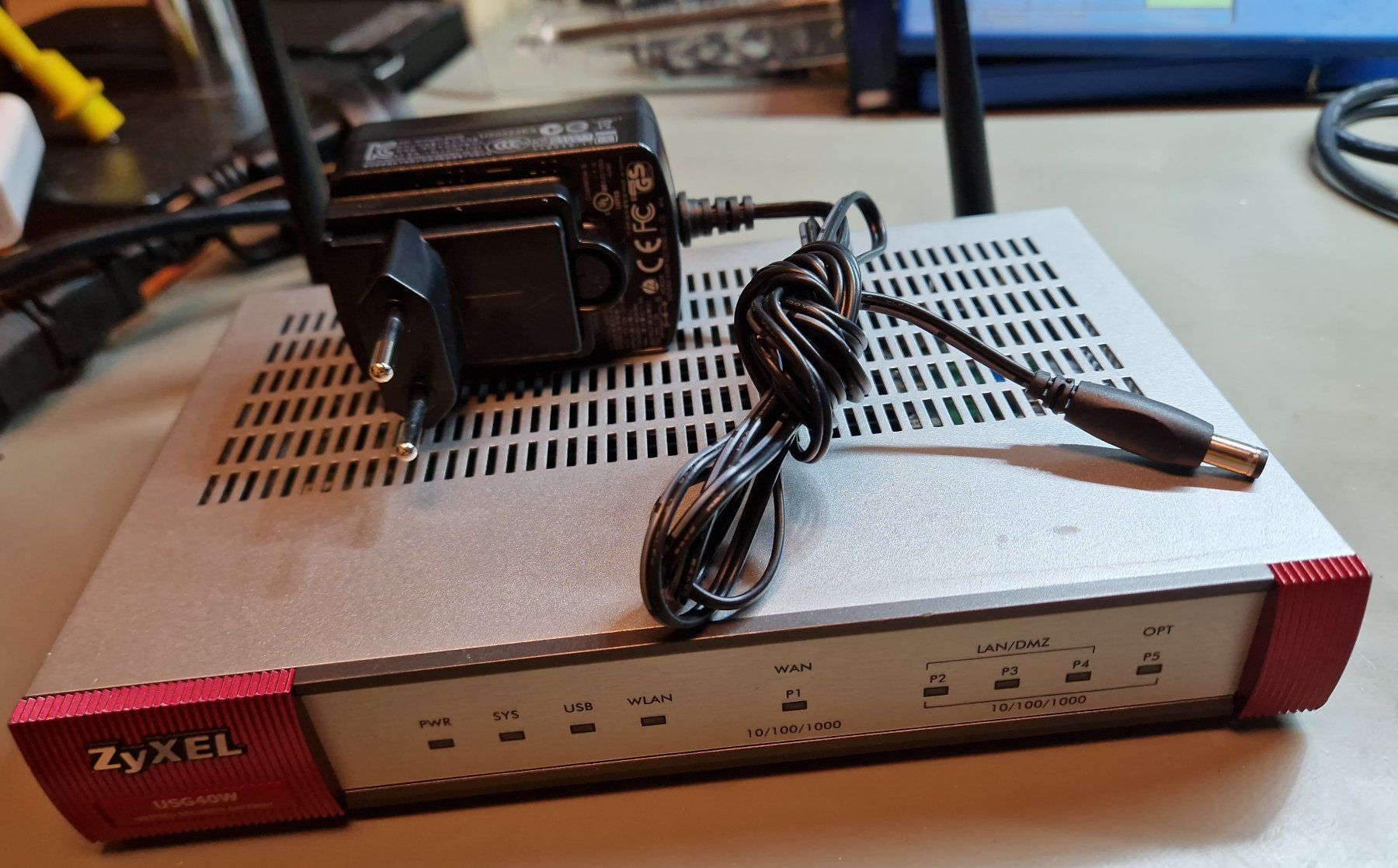

Gebrauchter Zyxel USG40W Firewall. Altes, aber bewährtes Gerät. Funktioniert ok. Könnte immer noch eine gute Budgetwahl für ein kleines Büro sein.

https://www.zyxel.com/us/en-us/products/next-gen-firewall/unified-security-gateway-usg40-40w-60-60w#

Hardware Specifications

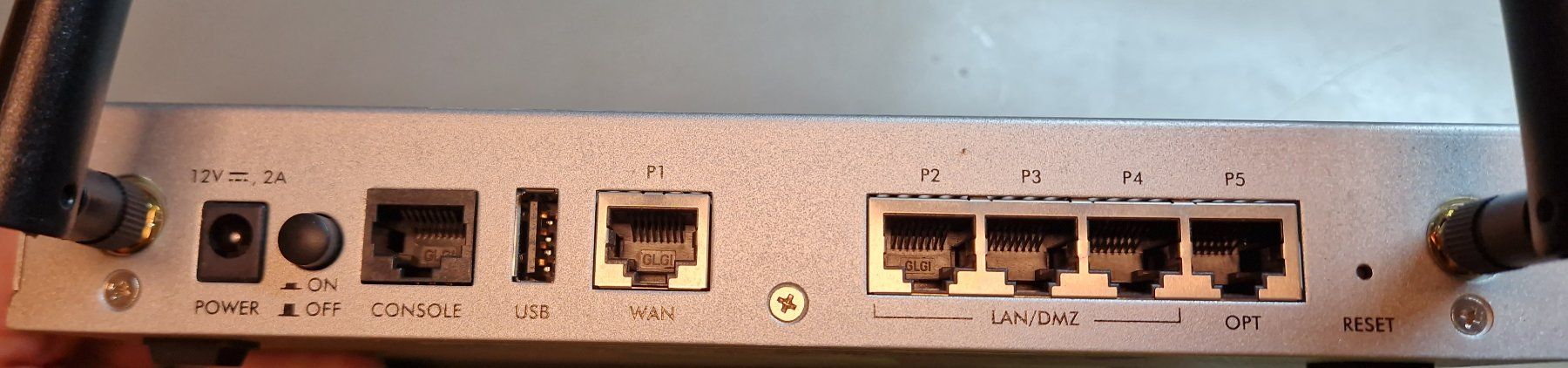

• Interfaces: 3 × LAN/DMZ, 1 × WAN, 1 × OPT
• USB ports: 1
• Console port: Yes (RJ-45)
• Rack-mountable: No
• Fanless: Yes

System Capacity & Performance

• SPI firewall throughput: 400 Mbps
• VPN throughput: 100 Mbps
• IDP throughput: 95 Mbps
• AV throughput: 80 Mbps
• UTM throughput (AV + IDP): 60 Mbps
• Max. TCP concurrent sessions: 50,000
• Max. concurrent IPSec VPN tunnels: 20
• Concurrent SSL VPN users (default/max): 20 / 30
• VLAN interfaces: 8
• Concurrent device logins (default/max): 64

WLAN Management

• Managed AP number (default/max): 8 / 24
• Recommended max. AP in one AP Group: 10

Security Service

• Anti-virus (AV): Yes
• Intrusion detection & prevention (IDP) & Application Patrol: Yes
• Anti-spam: Yes
• Content filtering: Yes
• SecuReporter Premium: Yes

Key Features

• VPN: IKEv2, IPSec, SSL, L2TP/IPSec
• 2-Factor Authentication: Yes
• EZ Mode: Yes
• Microsoft Azure: Yes
• Amazon VPC: Yes

Power Requirements

• Power input: 12 V DC, 2.0 A max.
• Max. power consumption: 17 W
• Heat dissipation: 58.01 BTU/hr

Physical Specifications

• Dimensions (W × D × H): 216 × 143 × 33 mm / 8.50 × 5.63 × 1.30 in
• Weight: 0.91 kg / 2 lb
• Packing dimensions (W × D × H): 381 × 261 × 79 mm / 15.00 × 8.50 × 3.11 in
• Packing weight: 1.63 kg / 3.59 lb
• Antenna

Environmental Specifications

• Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Operating humidity: 10% to 90% (non-condensing)
• Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
• Storage humidity: 10% to 90% (non-condensing)
• MTBF: 386,931.7 hours

Certifications

• EMC: FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI
• Safety: LVD (EN60950-1), BSMI

Wireless Specifications

• Standard compliance: 802.11 b/g/n
• Wireless frequency: 2.4 GHz
• Radio: 1
• SSID number: 8
• Maximum transmit power (Max. total channel): US (FCC) 2.4 GHz: 24.3 dBm, 2 antennas; EU (ETSI) 2.4 GHz: 19.6 dBm (EIRP), 2 antennas
• Number of antennas: 2.4 GHz 2T2R MIMO (Detachable, SMA-R)
• Antenna gain: 3 dBi
• Data rate: 802.11 b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps; 802.11 n: up to 300 Mbps (MCS15, 40 MHz, GI = 400 ns)
• Frequency band (2.4 GHz IEEE 802.11 b/g/n): USA (FCC): 2.412 – 2.462 GHz; Europe (ETSI): 2.412 – 2.472 GHz; Taiwan (NCC): 2.412 – 2.462 GHz
• Receive sensitivity: 11 Mbps ≤ –87 dBm; 54 Mbps ≤ –77 dBm; HT20 ≤ –71 dBm; HT40 ≤ –68 dBm
