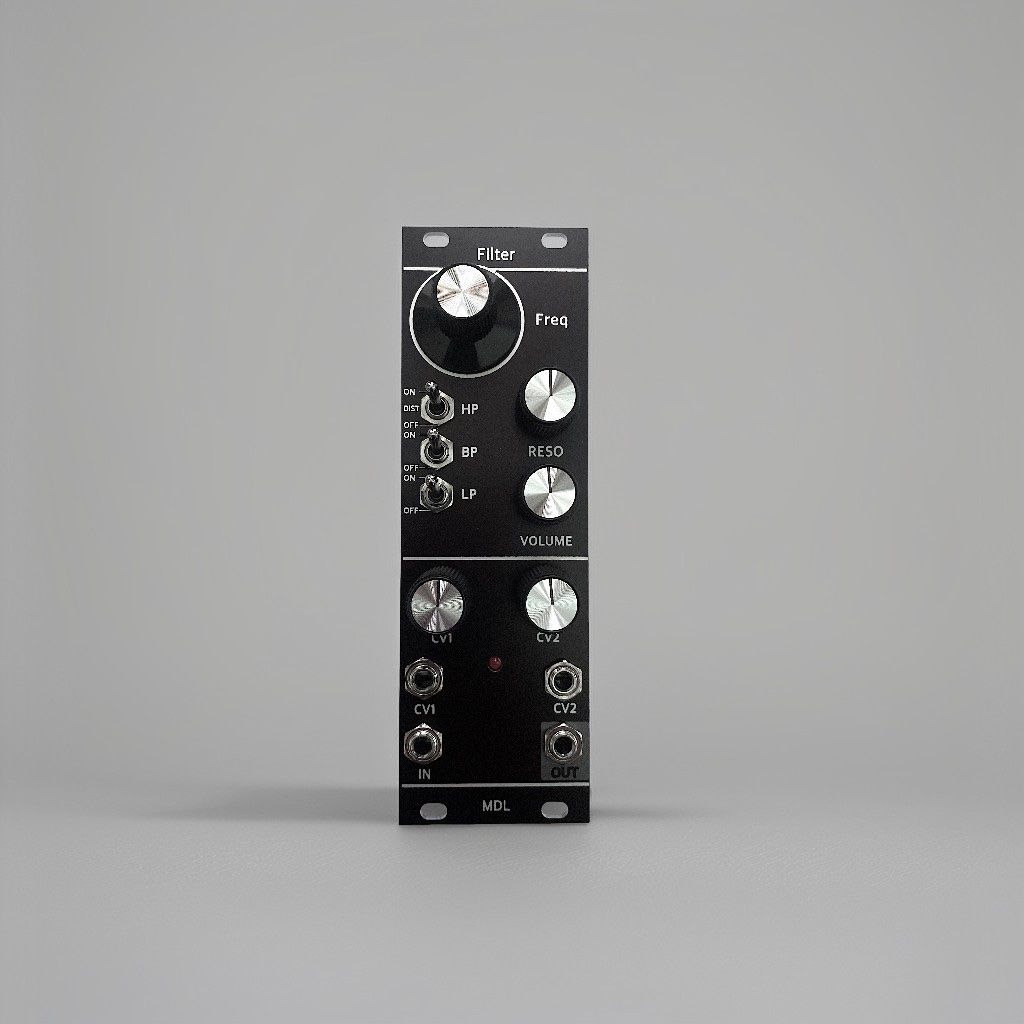

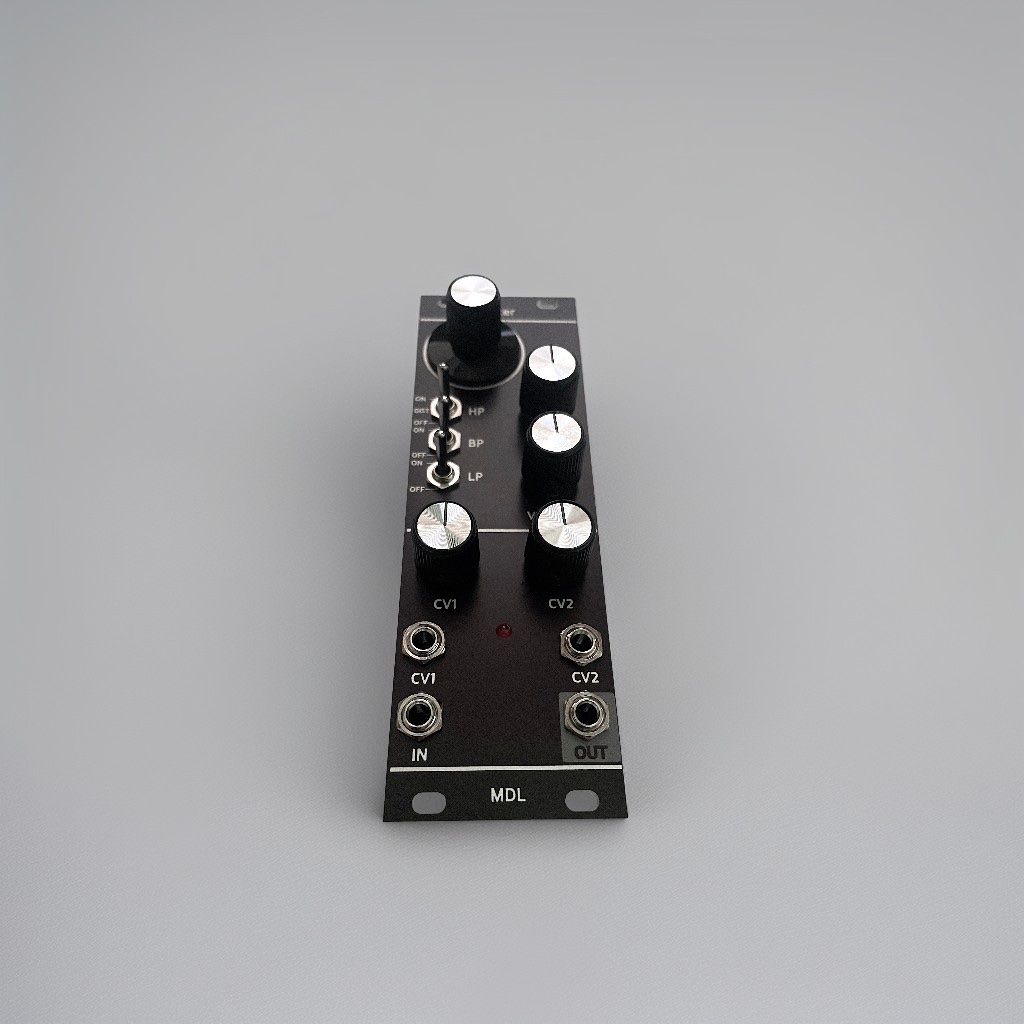

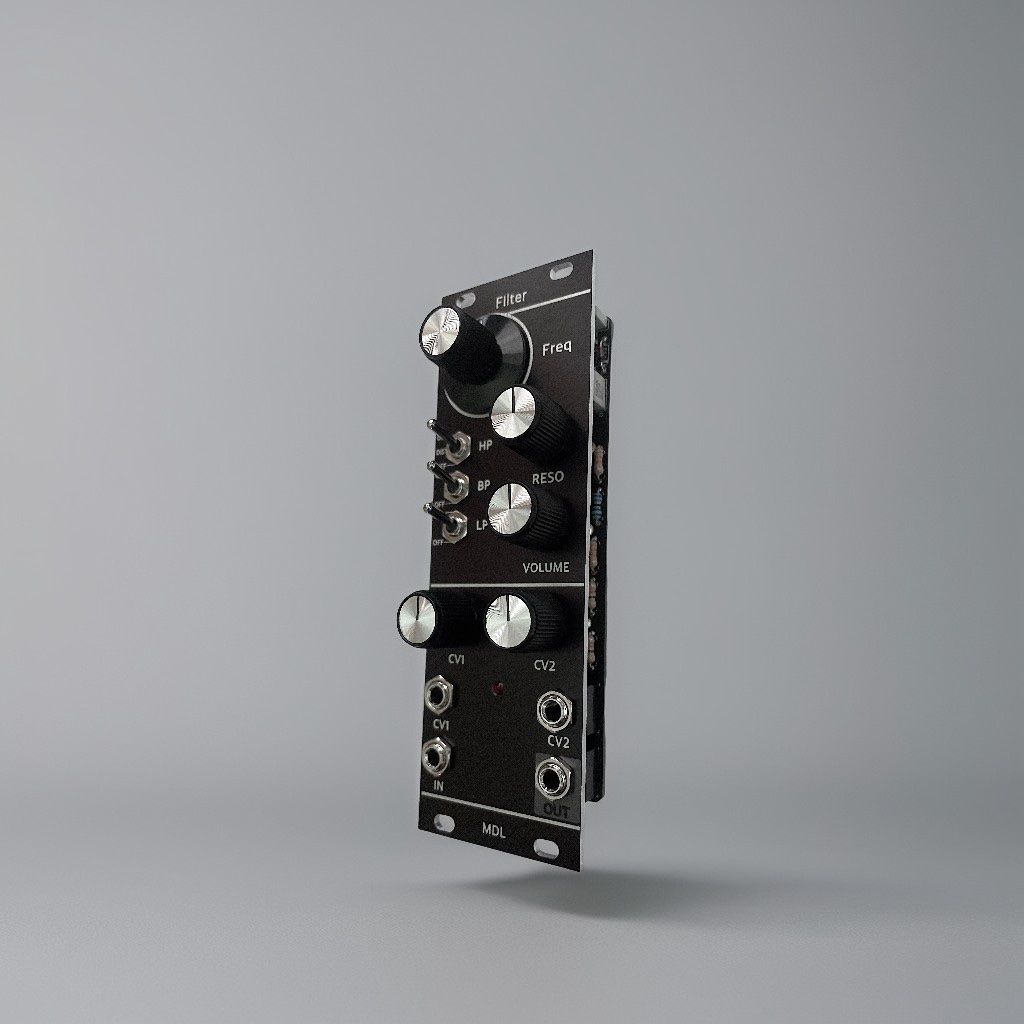

Multimode Diode Ladder Filter
This filter is based on the circuit of the legendary EMS filter which was also used in Roland's TB303. The circuit is fully analog and was developed with the utmost care.
The bands can be changed with the toggle levers. HiPass/BandPass/LowPass. With the HiPass toggle lever you can also add distortion in the middle position. This setup distort only the higher frequencies and gives the filter an extremely warm character but can also be pushed to the point of destroying the sound.
In addition, all filter modes can also be operated simultaneously, which leads to exceptional results
The two cv inputs control the frequency
This is a simple but powerful ladder filter
Features
Controller for: Frequency / Resonance / Volume /CV1 / CV2
Toggle switch: LowPass / BandPass / HighPass /Distortion
Inputs: IN / CV1 / CV2
Outputs: OUT
Size: 8HP
2mm Aluminium Panel
Inkl. Ribbon Cable and Screws
1 Year Warranty
)
