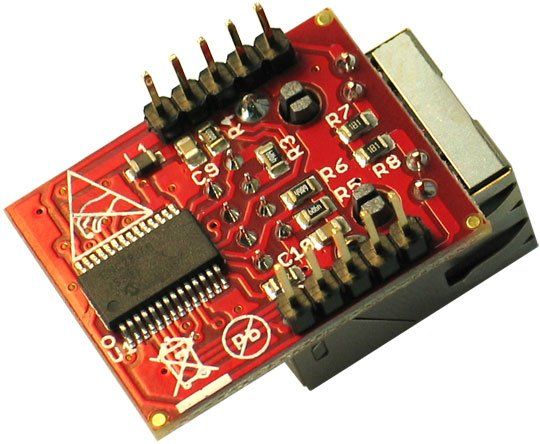

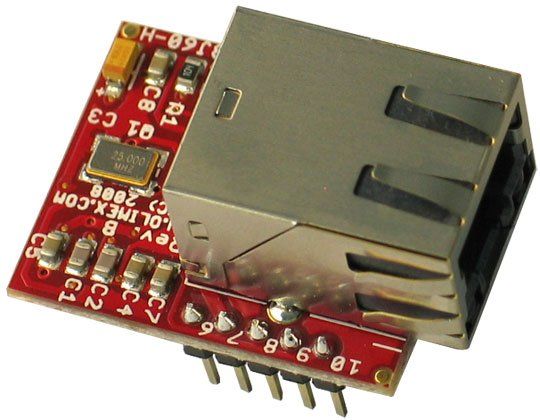

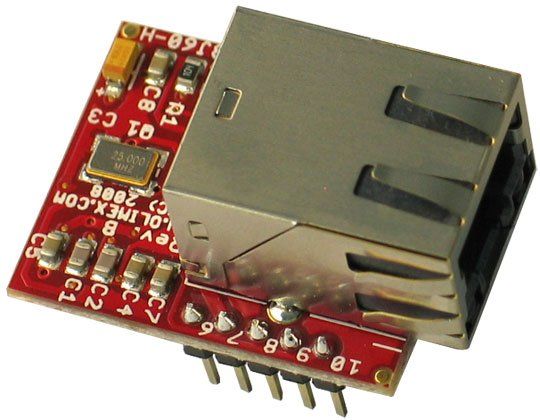

Es sind neuwertige Ethernet ENC28J60-H Development Boardvon Olimex zu verkaufen.
INTRODUCTION
ENC28J60-H is world's smallest Ethernet controller development board with it?s
size of only 30x24 mm. It provides easy connection to any microcontroller with only
few ports via SPI which makes it perfect for adding Ethernet connectivity to
embedded applications.
BOARD FEATURES
- ENC28J60 10 Mbit Ethernet controller
- on-board RJ45 connector with build in Ethernet transformer and two status LEDs
- easy interface to any microcontroller via SPI
- compact size in DIL 10 pin format, the distance between pin rows is 0.8?
- PCB: FR-4, 1.5 mm (0,062"), soldermask, white silkscreen component print
- Dimensions: 30x24 mm (1.18x0.95")
Ethernet Controller Features
ENC28J60-H board use ENC28J60 stand-alone ethernet controller with these features:
- IEEE 802.3. Compatible Ethernet Controller
- Fully Compatible with 10/100/1000Base-T Networks
- Integrated MAC and 10Base-T PHY
- Supports One 10Base-T Port with Automatic Polarity Detection and Correction
- Supports Full and Half-Duplex modes
- Programmable Automatic Retransmit on Collision
- Programmable Padding and CRC Generation
- Programmable Automatic Rejection of Erroneous Packets
- SPI Interface with Clock Speeds Up to 20 MHz
Versand und Abholung möglich
Bezahlung Bar, Twint oder Überweisung
Beim Kauf von mehreren Produkten gleichzeitig ist nur 1x das höchste Porto der gekauften Artikel fällig.
