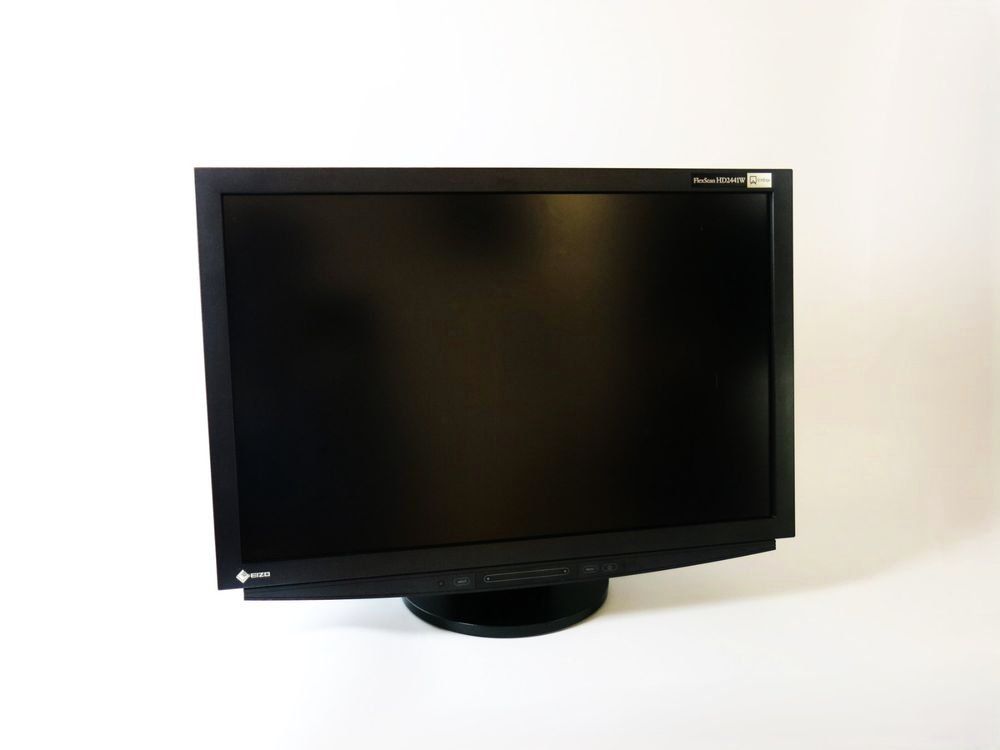

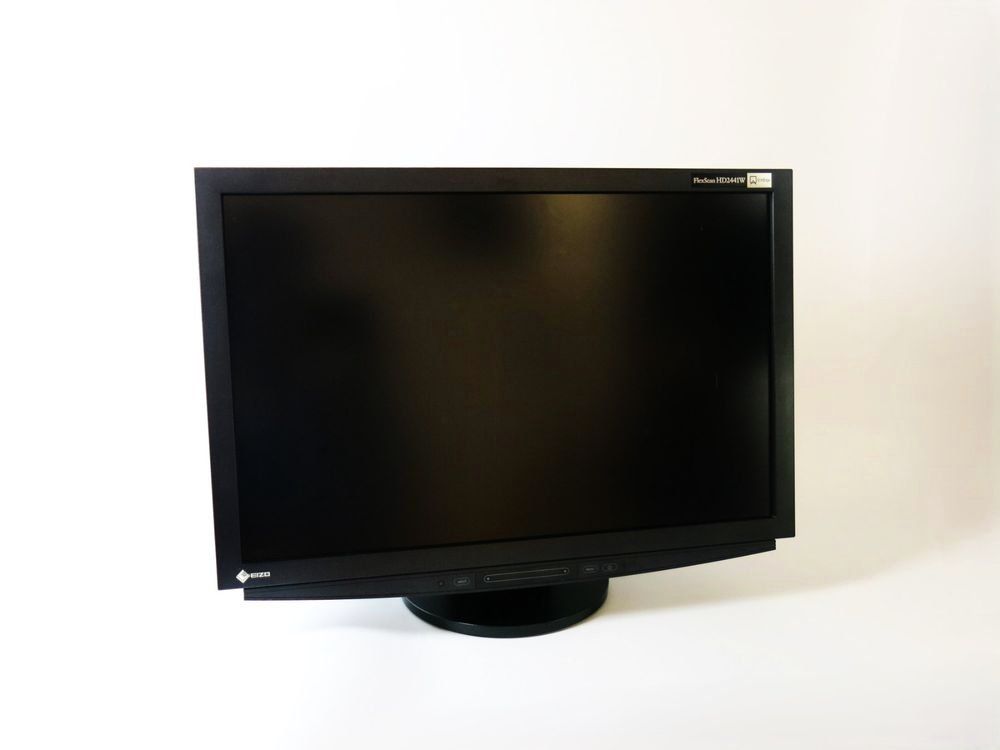

24" TFT LCD, WUXGA (1920x1200), 450 cd/m², 3000:1, 6ms (g/g), 2 x HDMI, DVI-D, D-Sub (VGA) • TCO03

Panel LCD Panel 24.1-inch (610 mm) TFT color LCD with anti-glare hard coating

Viewing angle: Vertical 178°, Horizontal 178° (CR: 10 or more)

Dot Pitch 0.270mm

Resolution 1920 dots × 1200 lines

Max. Display

Color

Approx. 16.77 million colors: Applicable to 8 bit (1048.77 million colors)

Display Area

(H × V)

518.4mm × 324.0mm

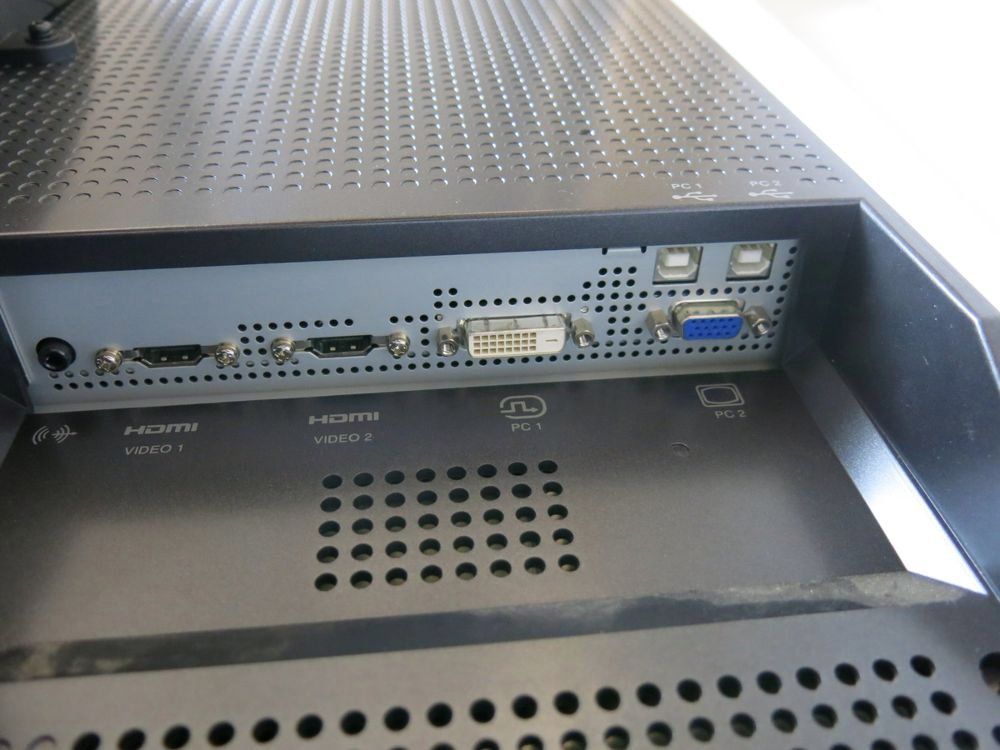

PC Input Signal Digital Input

Signal (PC 1)

Input Signal Connector DVI-D × 1

Horizontal Scan Frequency 31.5 - 76kHz: each preset signal ±1kHz

Vertical Scan Frequency 59 - 61Hz: each preset signal ±1Hz

(VGA TEXT: 69 - 71Hz)

(49 - 51Hz is also available@720p/1080p*1)

Max. Dot Clock 162 MHz

Signal Transmission System TMDS (Single Link)

Analog Input

Signal (PC 2)

Input Signal Connector D-Sub mini 15-pin × 1

Horizontal Scan Frequency 31.5 - 80kHz: each preset signal ±1kHz

Vertical Scan Frequency 55 - 76Hz: each preset signal ±1Hz

(49 - 51Hz is also available@720p/1080p*1)

Max. Dot Clock 162MHz

Input Signal (Sync) Separate, TTL, positive/negative

Input Signal (Video) Analog, positive (0.7Vp-p/75Ω)

Video Signal Memory 50 (preset: 34)

Audio Input USB communication

Plug and Play VESA DDC2B

VIDEO Input

Signal

HDMI Input

Signal*2

(VIDEO 1/2)

Input Signal Connector HDMI Type A × 2

Applicable Format Video signal

- 525i (480i)/525p (480p)/1125i (1080i)/750p (720p)/

1125p (1080p) :60Hz

- 625i (576i)/625p (576p)/1125i (1080i)/750p (720p)/

1125p (1080p) :50Hz

Audio signal

- 2ch linear PCM (32kHz/44.1kHz/48kHz/88.2kHz/

96kHz/176.4kHz/192kHz)

Audio Output Audio Output Terminal Ø3.5 stereo mini jack × 1

Headphone Jack Ø3.5 stereo mini jack × 1

USB Standard USB Specification Revision 2.0

USB Port Upstream port × 2, Downstream port × 2

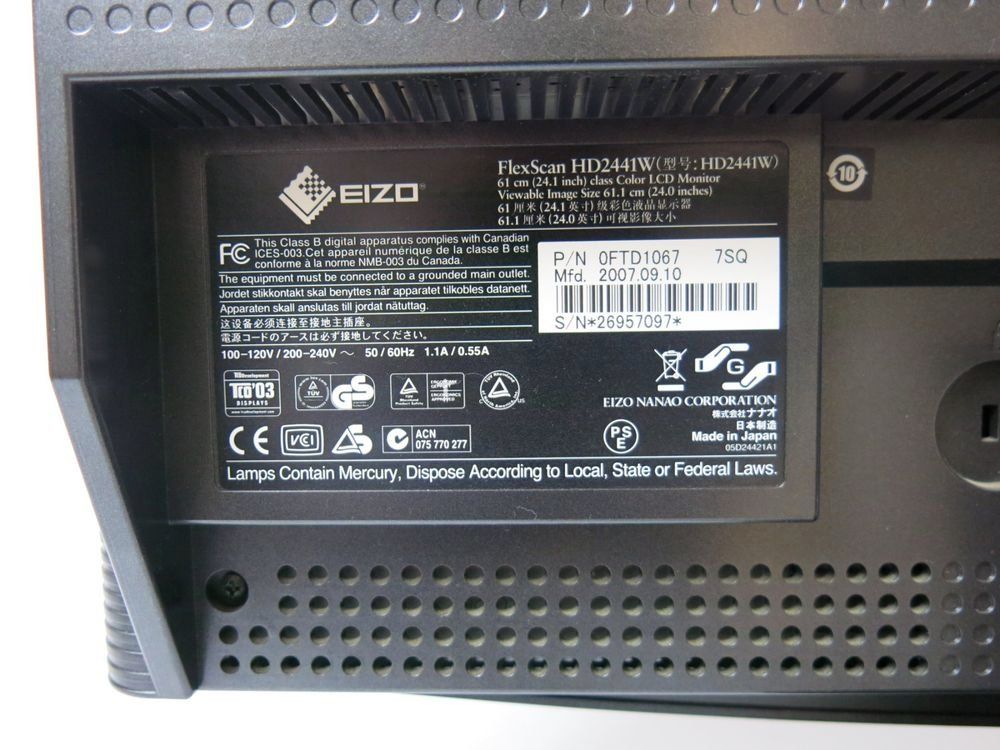

Power Supply 100 - 120 VAC±10%, 50/60Hz, 1.1A

200 - 240 VAC±10%, 50/60Hz, 0.55A

Power Consumption Max.: 110W (with USB load)

Min.: 100W (normal mode) (without USB load)

Power-saving mode:

• When <Signal Detection> setting is set to “All Input Signals”:

7W or less (at no input signal, without USB load)

• When <Signal Detection> setting is set to “Current Input Signal”:

2W or less (at PC input signal selection, at no input signal, without USB load)

Power switch Off: 1W or less
