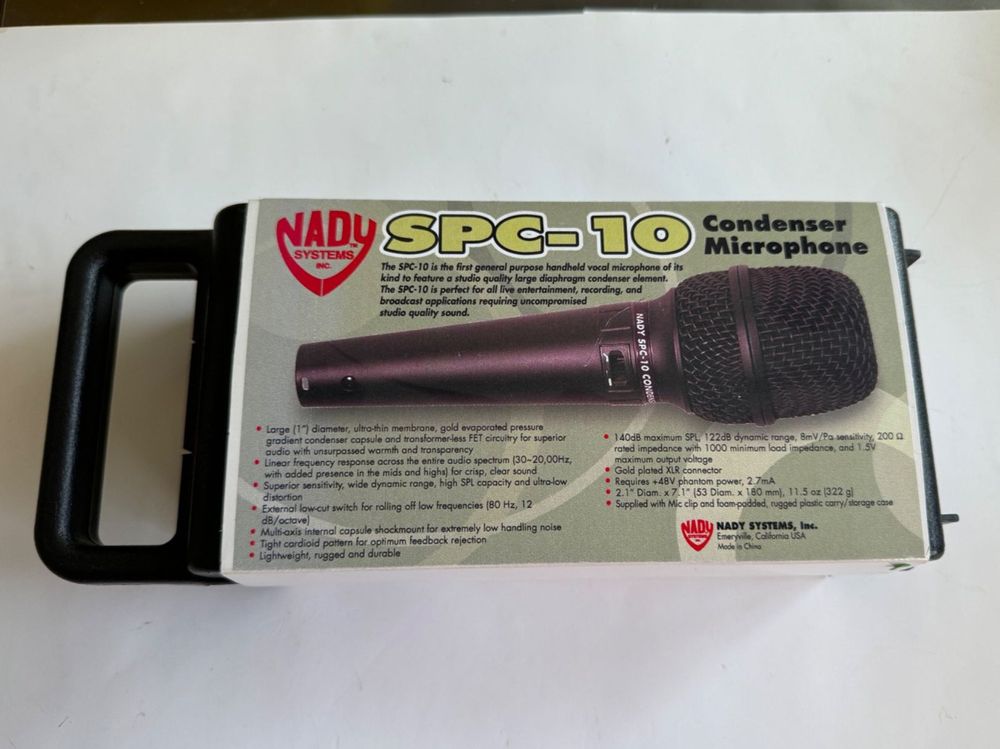

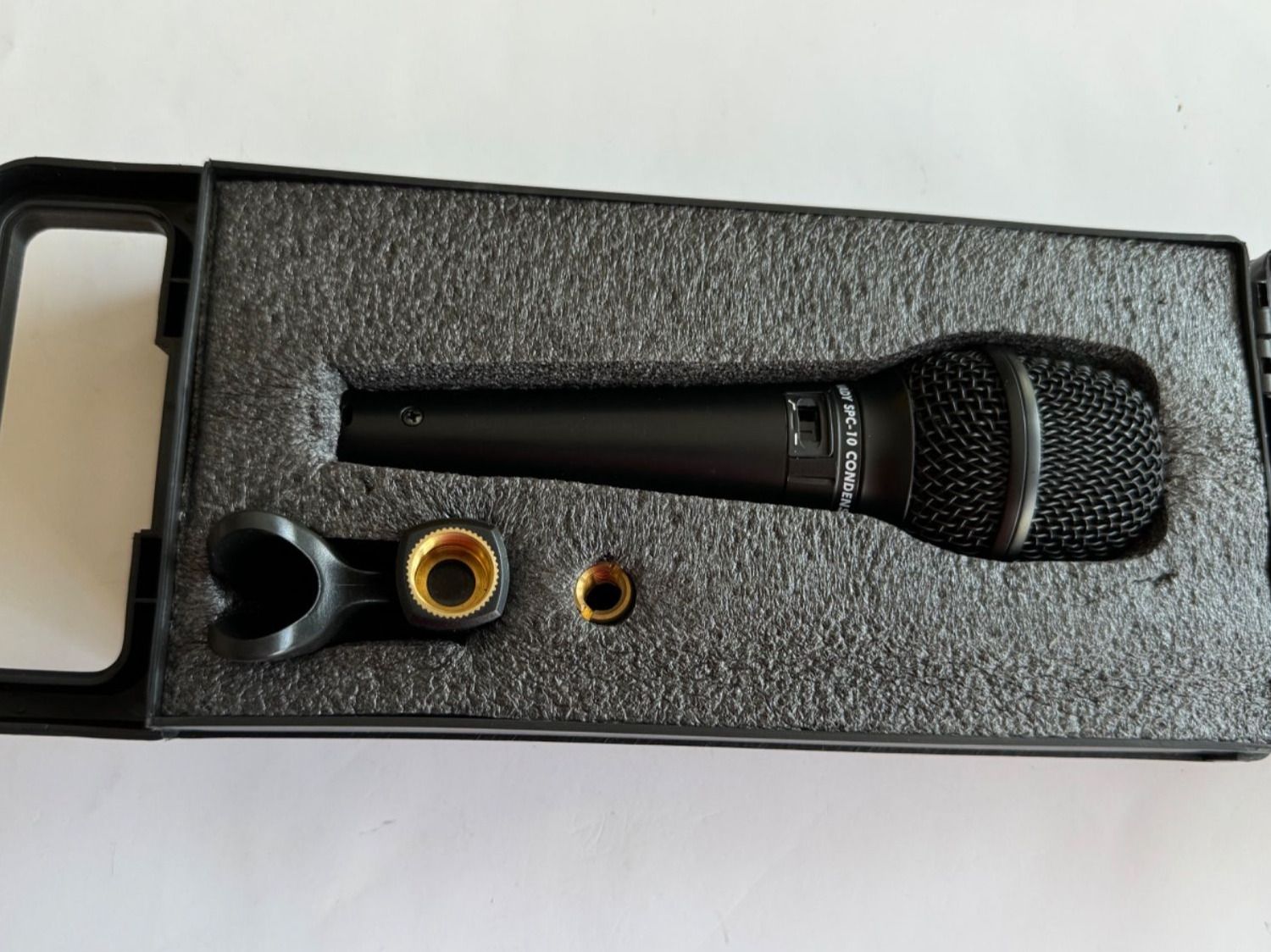

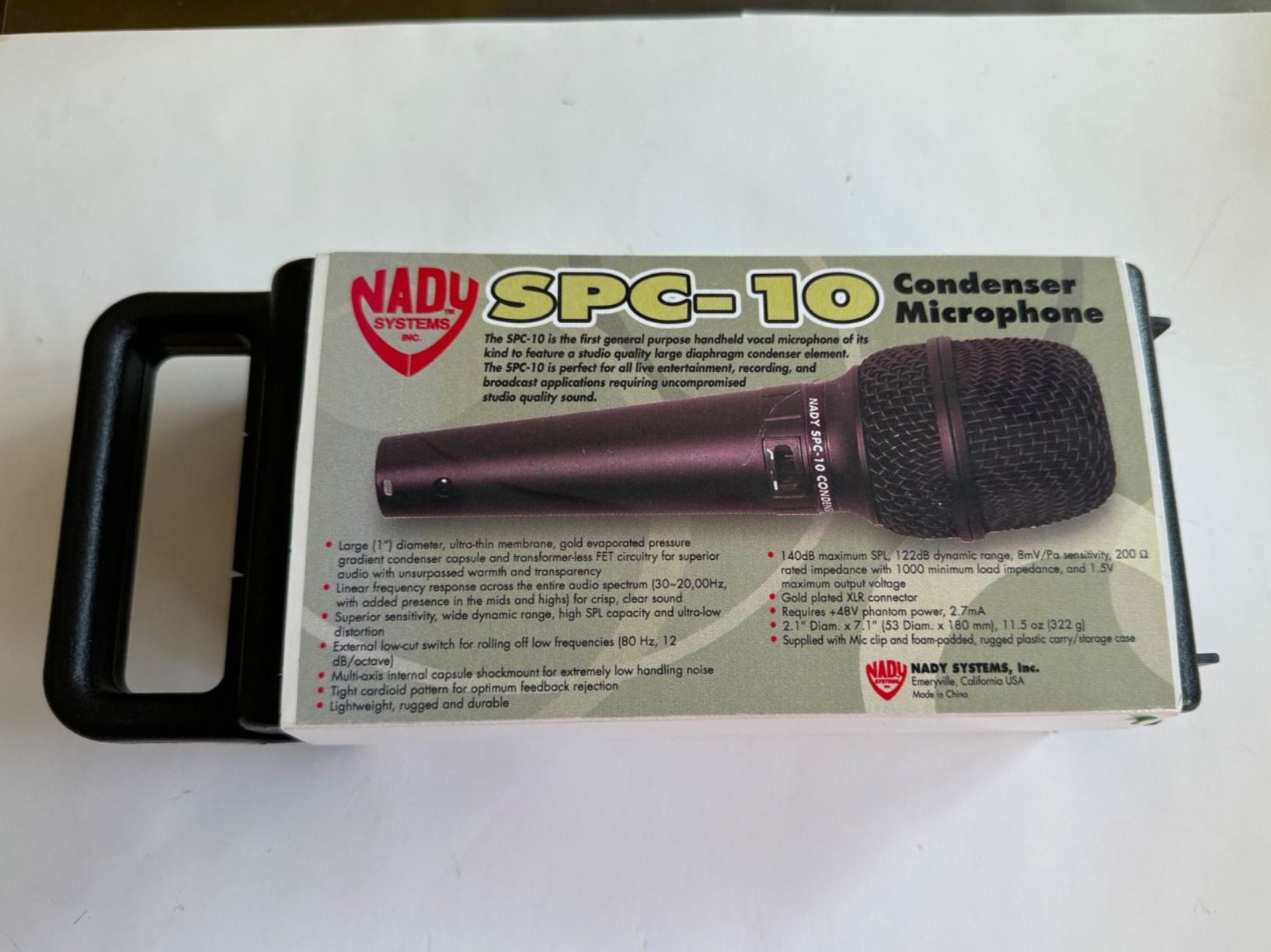

Demo Modell NOS
CARTRIDGE TYPE ......................Condenser
DIRECTIVITY PATTERN ..............Cardioid pattern for optimum feedback rejection
FREQUENCY RESPONSE ..........30 to 20,000Hz
SENSITIVITY
(@1kHz, 74dB S.P.L.) ..................8mV/Pa
IMPEDANCE ................................200 Ω
MINIMUM LOAD IMPEDANCE ....1,000 Ω
MAXIMUM S.P.L.
(1% THD @≤0.5% @ 1KHz) ........140dB
DYNAMIC RANGE........................122dB
EQUIVALENT NOISE LEVEL ......18dB (A Weighted IEC/DIN651)
SIGNAL TO NOISE RATIO ..........76dB
CONNECTOR................................3-pin XLR (gold plated)
POWER REQUIREMENT ............+48V phantom power, 2.7mA
MIC CABLE ..................................3-pin XLR standard cable (not supplied)
DIMENSIONS................................2.1” Diam. x 7.1” (53 Diam. x 180 mm)
WEIGHT ........................................11.5 oz (322 g)
MATERIAL ....................................Die-cast zinc
BALLSCREEN ..............................Steel mesh
-funktioniert-einwandfrei)
)
