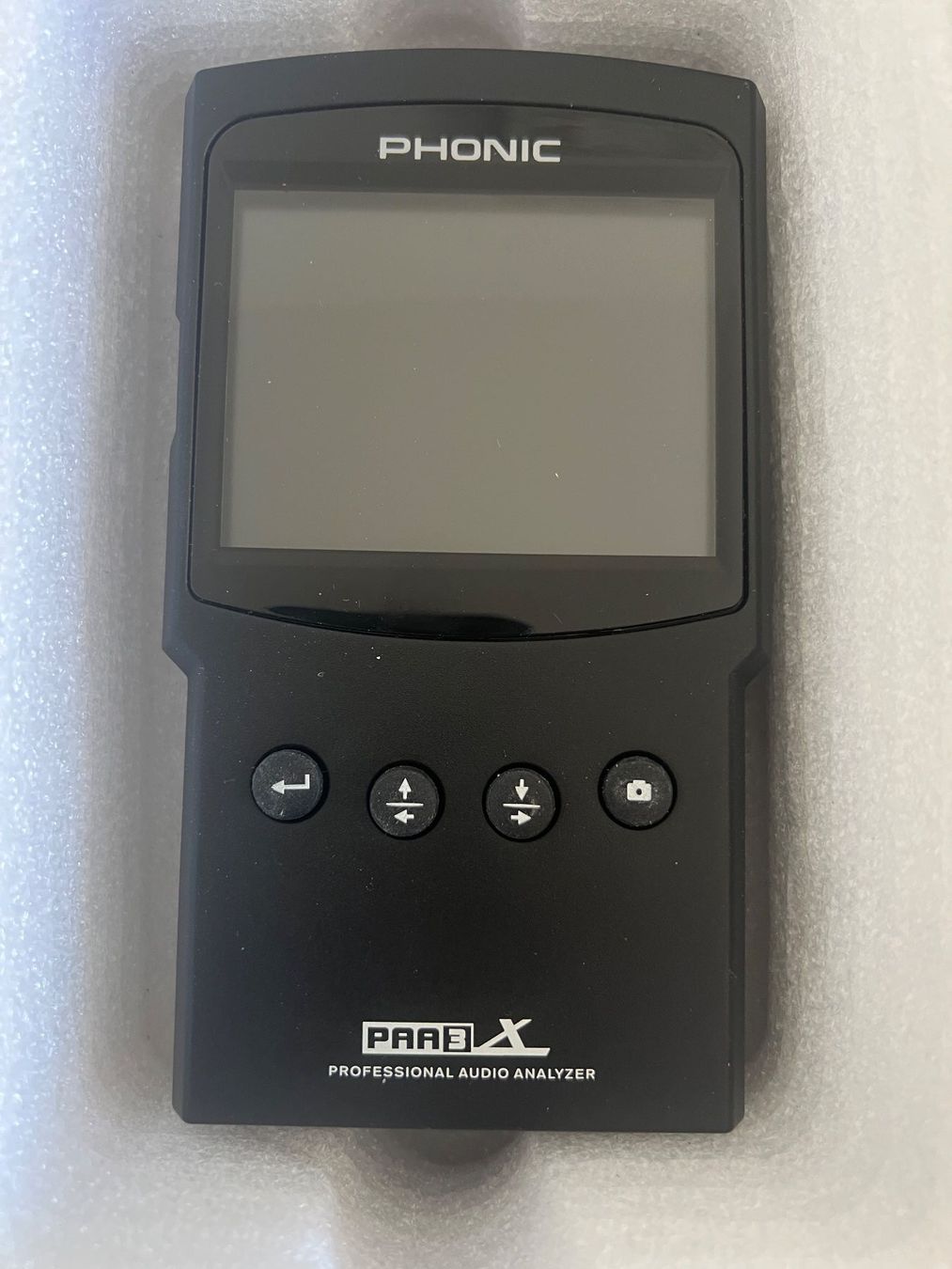

Audio Analyzer Phonic PAAX3

Neu, nur getestet und wieder verpackt.

PHONIC PAA3X High Precision Handheld Audio Spectrum Analyzer Support Screenshot Balanced XLR Input/Output

Features:

- The PAA3X audio analyzer can measure reliable data for you at any time, whether you are measuring analog digital audio signals, conducting on-site tuning tests, or using in specialized acoustic environments, it can meet the requirements.

- The unique screenshot button can quickly save screenshots to the SD card for reference purposes.

- It comes with a detachable measuring microphone and a 5-kilometer extension cable for long-distance measurement, suitable for measuring high sound pressure environments without being exposed to the environment.

- Balanced XLR input/output terminals.

- Adopting a new generation of rechargeable lithium batteries with high voltage, high specific energy, long cycle life, and good safety performance, it ensures the environmental friendliness, high performance, and long lifespan of the product.

Specification:

Input/Output:

- Microphone: detachable micro-capacitive microphone

- Line input/output: balanced XLR interface for line input and output

- Display: 320 x 240 RGB LCD

- SPL, dBu, dBV, Voltage: bar chart and numerical display

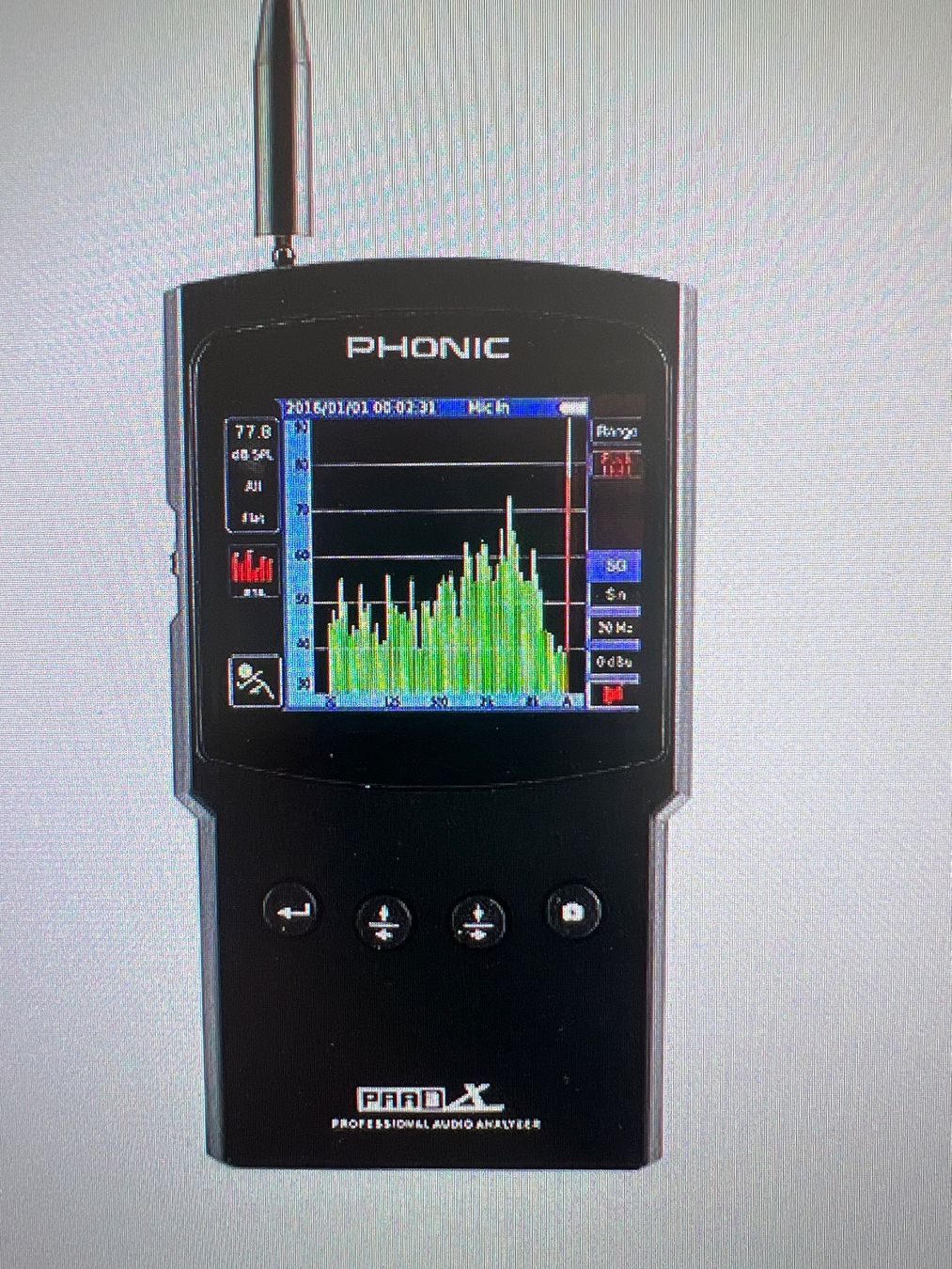

- RTA: 1/3 octave and 1/6 octave with a resolution of 0.5dB, center from 20Hz frequency ISO standard to 20KHz

Measuring range:

- SPL (microphone input): 30 to 130dB SPL

- dBu (line input): -50 to +40dBu

- dBV (line input): -52 to +38dBV

- Voltage (line input): 5mV to 80V

Setting:

- Weight (importance): A, B, C or Flat

- Peak value hold: ON/OFF

- Maximum SPL display: RESET

- Response time: 35ms, 125ms, 250ms, 1second

Other Functions:

- RT60: reverb time display, maximum 30s

- Memory: Micro SD card slot

- Equalizer setting value display: 31 segments/61 segments

- Polarity check: +/- (use polarity signal)

- Signal generator: pink noise, sine wave, sweep frequency wave, polarity signal

- Signal generator output: balanced XLR output

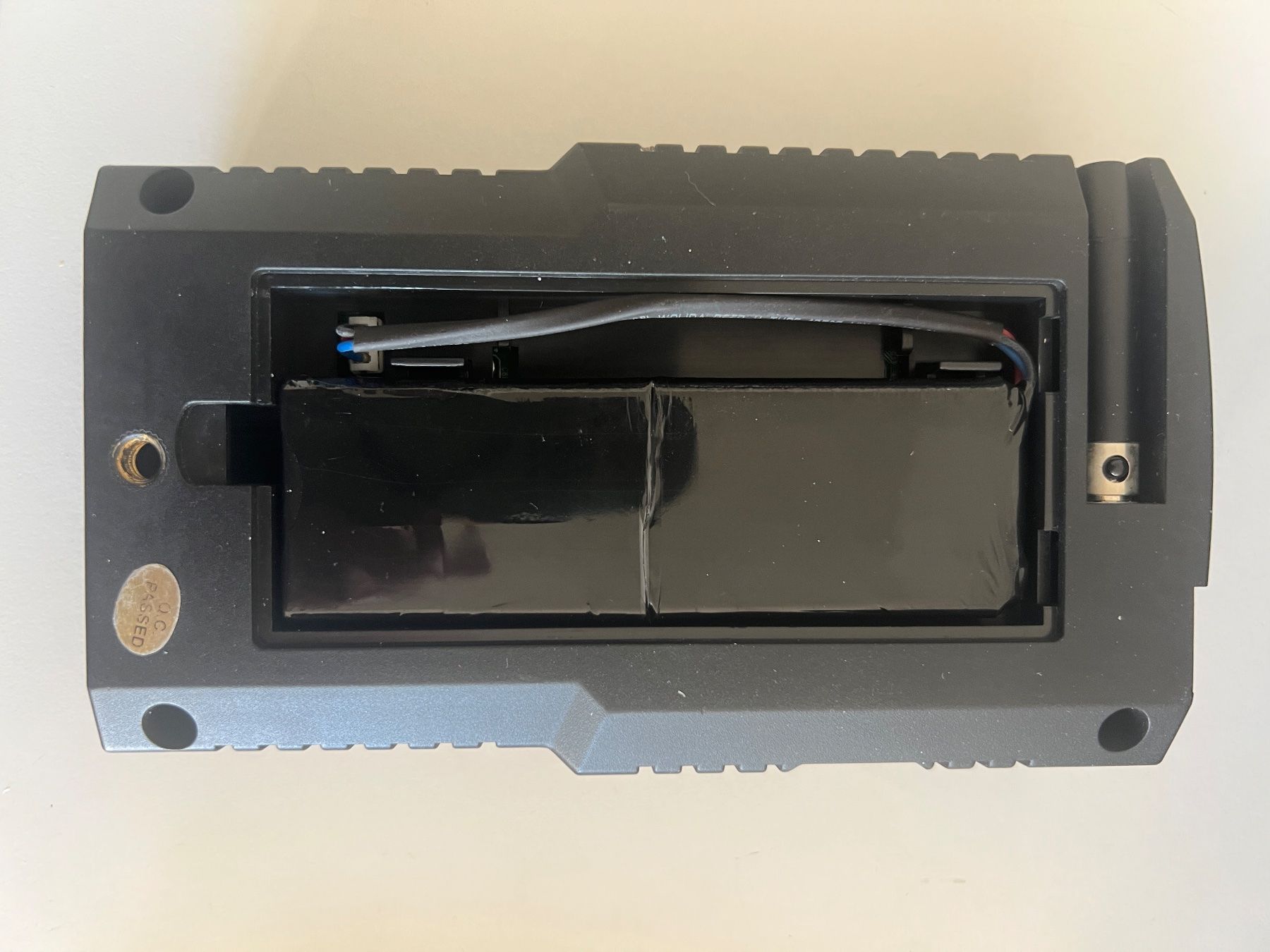

- Power supply: built-in rechargeable lithium battery

- Charging port: Micro USB

- Size: 156 x 90 x 37.5mm (6.14" x 3.54" x 1.5")

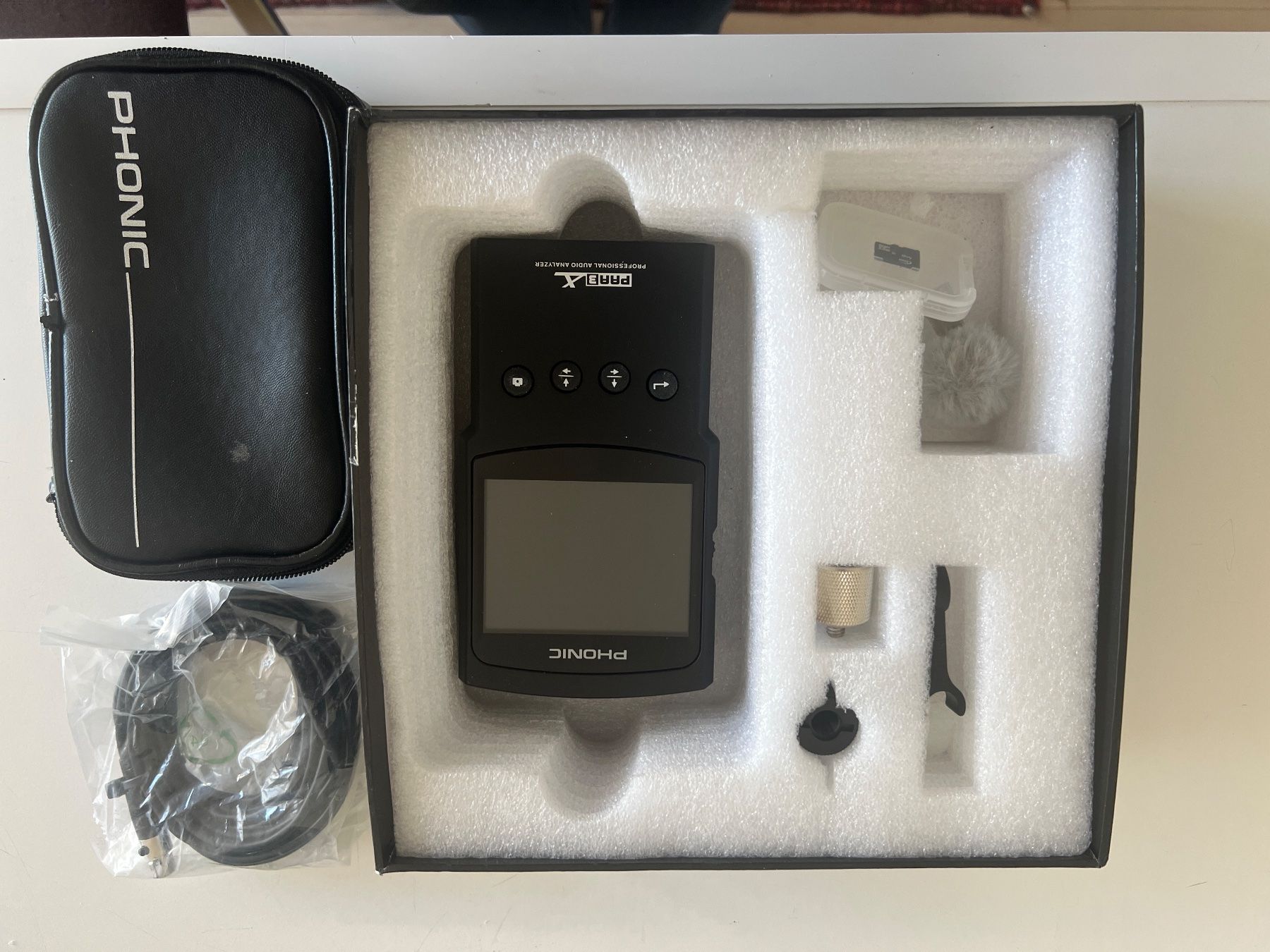

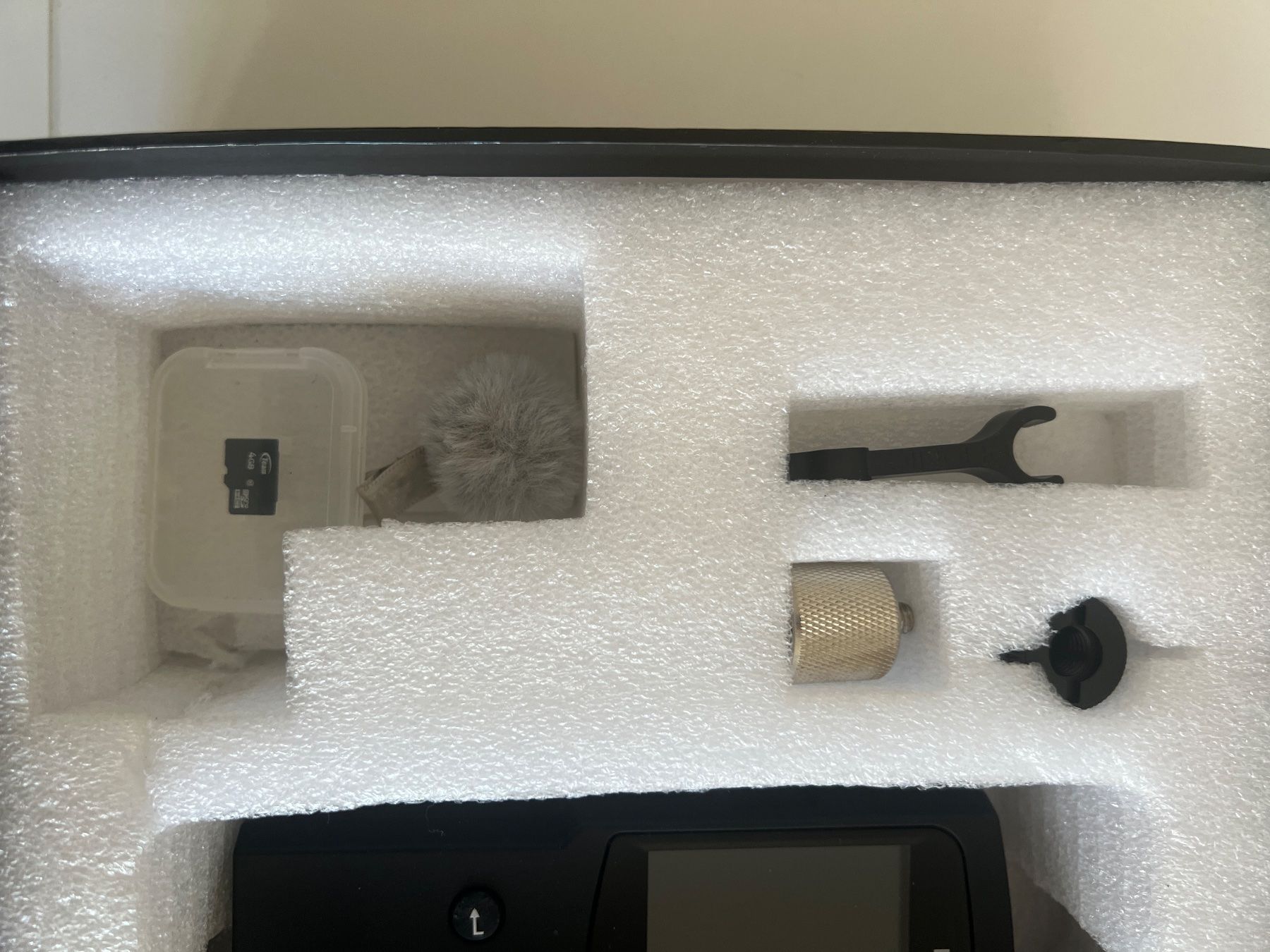

Package Included:

- 1 x Set of Spectrum Analyzer

Keine Garantie und Rücknahme!
